Bently Nevada 330730‑040‑00‑05 3300 XL 11 mm Extension Cable

Brand:Bently Nevada PLC
Item No.:330730‑040‑00‑05
Product Origin:USA
Product Dimensions:30.5mm
Product Weight:0.14 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

330730-040-00-05 4330730-040-00-05 3330730-040-00-05330730-040-00-05

Introduction

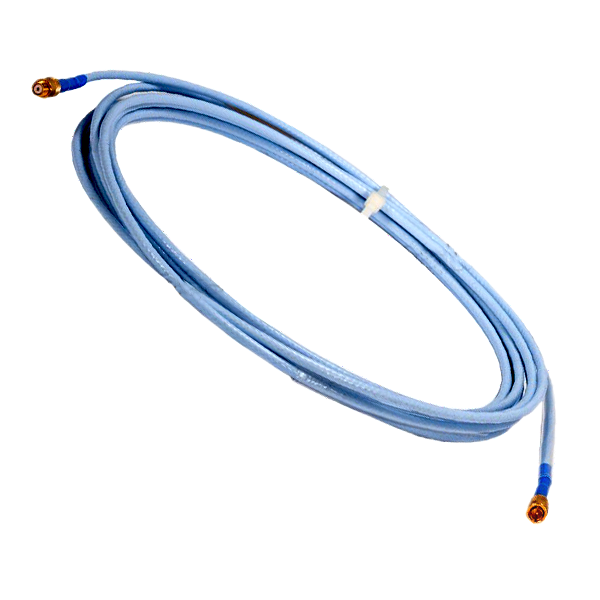

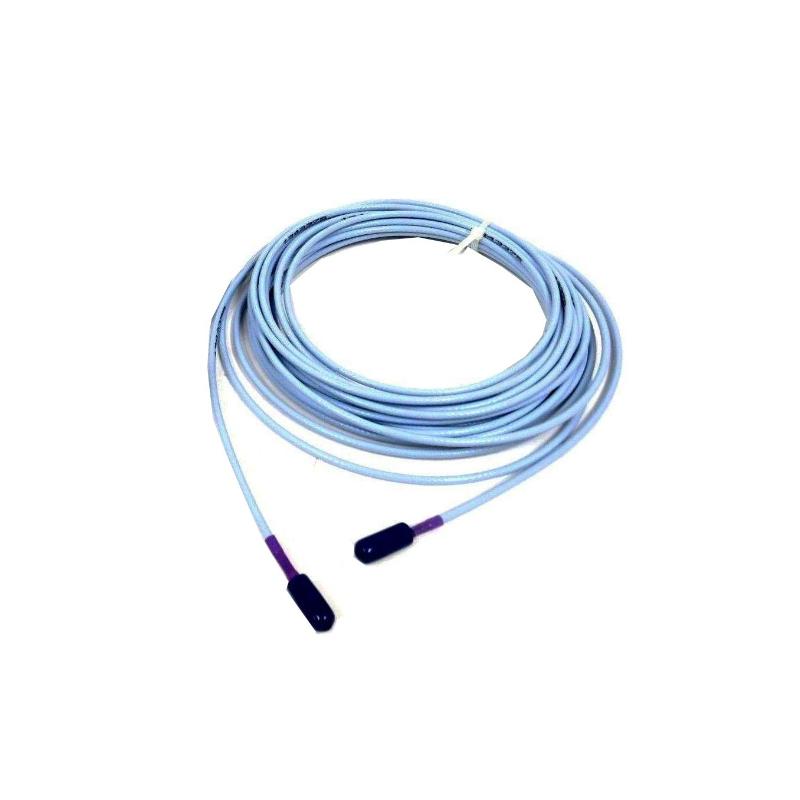

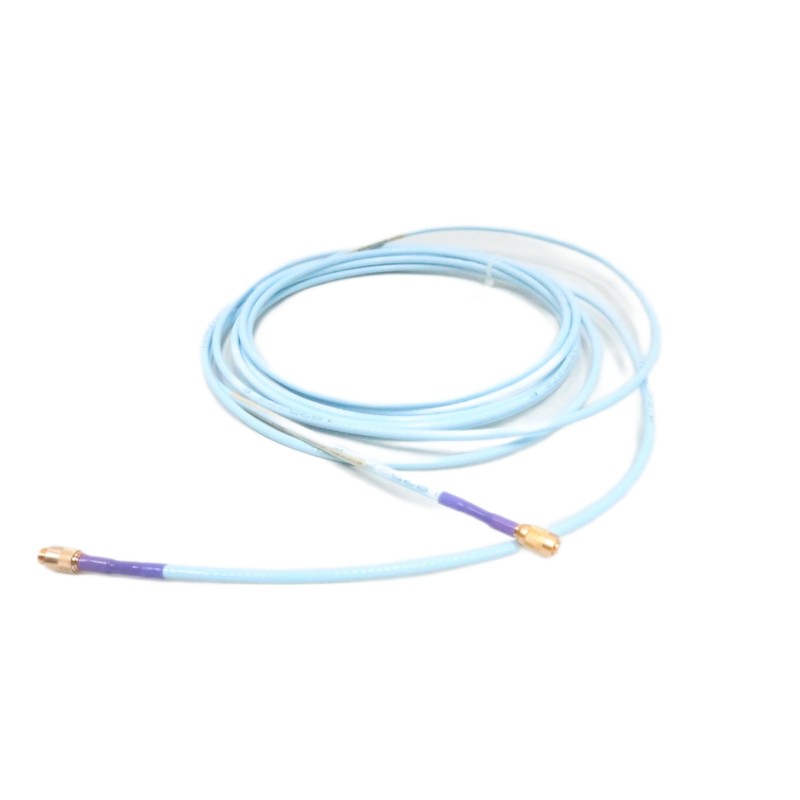

The Bently Nevada 330730‑040‑00‑05 3300 XL 11 mm Extension Cable is a precision‑engineered connection cable specifically designed as part of the 3300 XL 11 mm Proximity Transducer System for industrial machinery condition monitoring. This ruggedized extension cable reliably links the large‑range 11 mm proximity probe to the Proximitor sensor, ensuring accurate vibration and displacement signal transmission even in challenging plant environments. Its construction supports stable performance in applications such as turbines, compressors, and motors, delivering dependable connectivity and enhancing system uptime.

Technical Specifications

SpecificationDetails
ManufacturerBently Nevada
Model Number330730‑040‑00‑05
Product Type3300 XL 11 mm Extension Cable
Cable Length4 meters (13.1 feet)
Cable Construction75 Ω triaxial with FEP insulation
Connector TypeGold‑plated brass ClickLoc connectors
Operating Temperature‑51 °C to +177 °C
Signal IntegrityLow capacitance design (~69.9 pF/m)
Recommended TargetMinimum 30.5 mm diameter target
WeightApprox. 0.14 kg
Country of OriginUSA


Applications

This extension cable is integral to vibration monitoring systems using the 3300 XL 11 mm proximity transducer series, and it performs especially well in scenarios that require long‑range, high‑fidelity measurements:

  • Rotating machinery vibration and displacement monitoring

  • Condition monitoring of steam and gas turbines

  • Compressor and pump position measurement

  • Axial piston and thrust position control

  • Predictive maintenance systems in power generation

  • Industrial plants with EMI or mechanical stress environments

By maintaining high signal integrity and mechanical ruggedness, it supports accurate real‑time diagnostics essential to reliable asset health management.


Advantages

  • Designed for 3300 XL Systems — Fully compatible with the 3300 series proximity probes and sensors.

  • High Signal Fidelity — Low capacitance and triaxial shield design preserve accurate sensor data transmission.

  • Industrial Durability — FEP insulation and robust connectors stand up to wide temperature ranges and mechanical stress.

  • Multiple Approval Option — “05” variant includes enhanced agency compliance for diverse industrial applications.

  • Lightweight & Flexible — Four‑meter length and flexible build simplify installation in equipment cabinets and field rigs.


Technical FAQs

  1. What machine monitoring system is this cable used with?
    It connects the 11 mm probe to the Proximitor sensor in the Bently Nevada 3300 XL series.

  2. What is the cable length on this part?
    Standard 4 meters (13.1 feet), indicated by “040” in the part number.

  3. Does the cable support harsh environments?
    Yes — rated for extreme temperature ranges and industrial use.

  4. What type of connectors are used?
    High‑quality, gold‑plated brass ClickLoc connectors ensure secure, low‑noise connections.

  5. What is the typical impedance characteristic?
    Designed as a 75 Ω triaxial cable for optimal signal transmission.

  6. Can this cable be used with other probe lengths?
    Yes — cable lengths work with compatible 3300 XL 11 mm probes and sensors.

  7. Is the model suitable for global industrial standards?
    The “05” suffix denotes multiple agency approval compliance.

  8. What minimum target size is recommended?
    A target diameter of at least 30.5 mm is recommended for reliable transducer performance.

  9. Is the cable weight significant for installation?
    It is lightweight (~0.14 kg), easing routing and mounting.

  10. What maintenance does this cable require?
    Inspect connectors and cable integrity periodically as part of routine condition monitoring system upkeep.
