Introduction

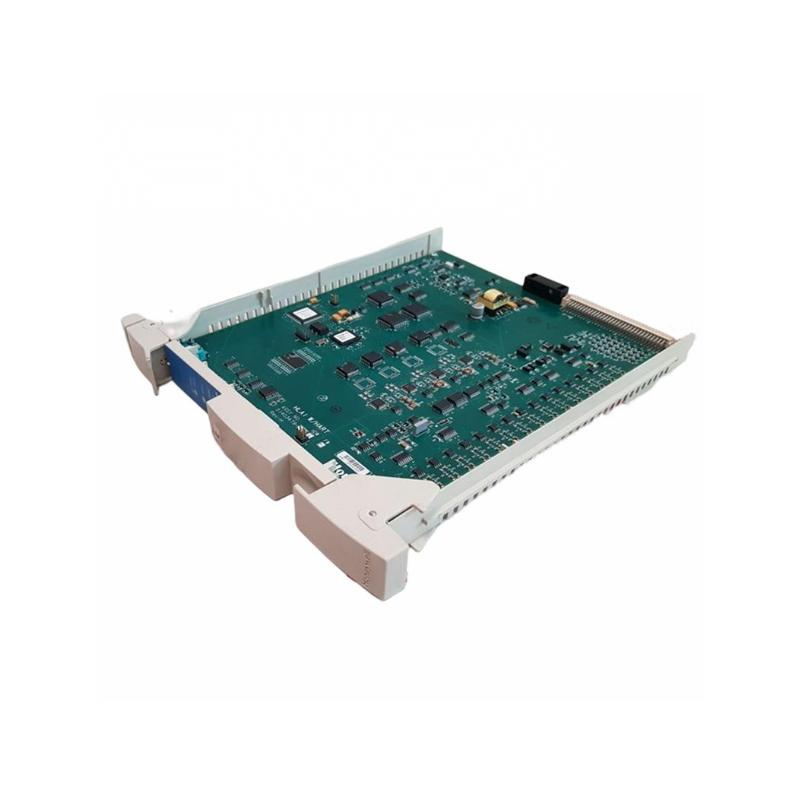

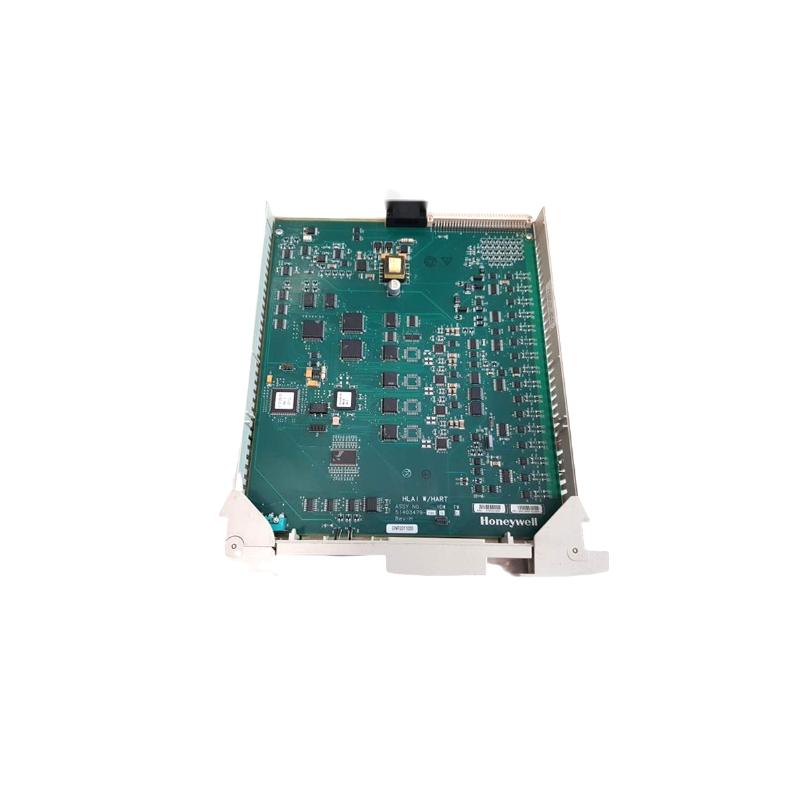

The Honeywell MC-PHAI01 51403479-150 High Level Analog Input Module is an advanced interface solution engineered for high-precision analog signal acquisition in industrial control systems. Designed to integrate seamlessly with Honeywell distributed automation platforms, this module delivers accurate measurement of process variables like temperature, pressure, flow, and level. Its high-level analog capability ensures responsive data capture across diverse industrial environments, providing the foundation for optimized control and monitoring strategies.
Built with industrial-grade components and robust signal conditioning, the MC-PHAI01 enhances system reliability and helps engineers maintain precise process relationships with minimal noise interference.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Honeywell |
| Model Number | MC-PHAI01 51403479-150 |
| Module Type | High Level Analog Input Module |
| Input Channels | 8 High Level Analog Inputs |
| Input Signal Range | 0–10 VDC / 4–20 mA (configurable) |
| Resolution | 16-bit (high accuracy) |
| Sampling Rate | Up to 1 kHz per channel |
| Input Impedance | ≥ 100 kΩ for voltage inputs |
| Isolation | Channel-to-system electrical isolation |
| Status Indicators | Module and channel LEDs for diagnostics |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | -40 °C to 85 °C |
| Humidity | Up to 95% non-condensing |
| Mounting | Rack or DIN-rail (system dependent) |
| Dimensions (L×W×H) | Approx. 180 × 100 × 40 mm |
| Weight | Approx. 0.6 kg |
