Introduction

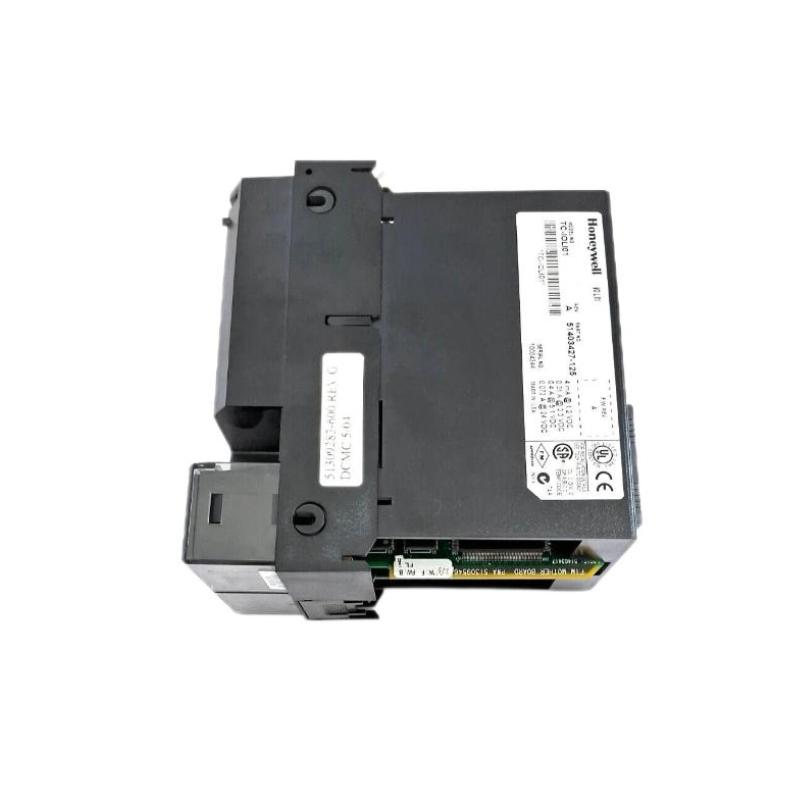

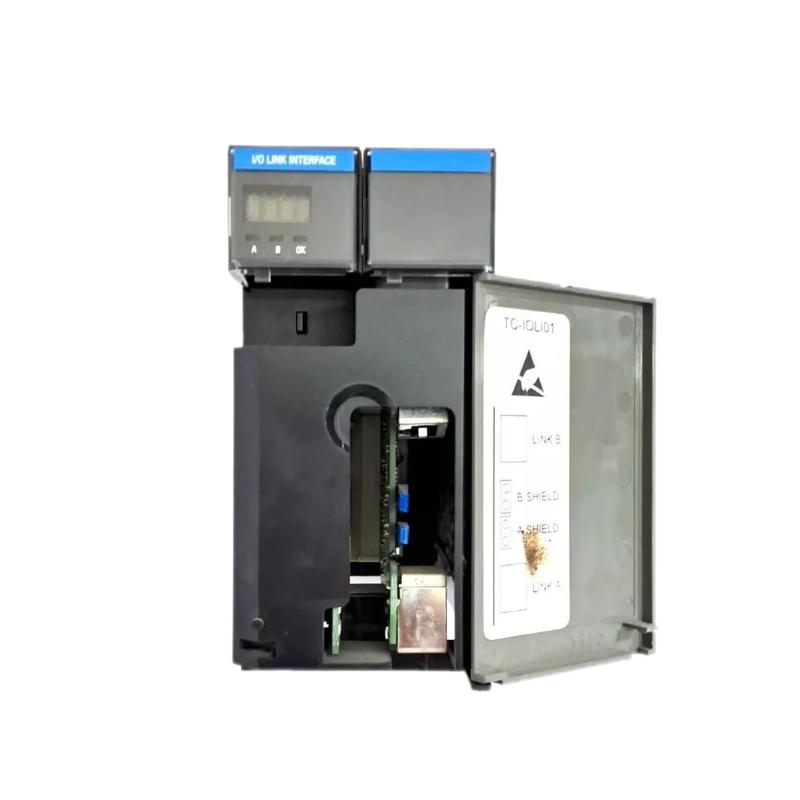

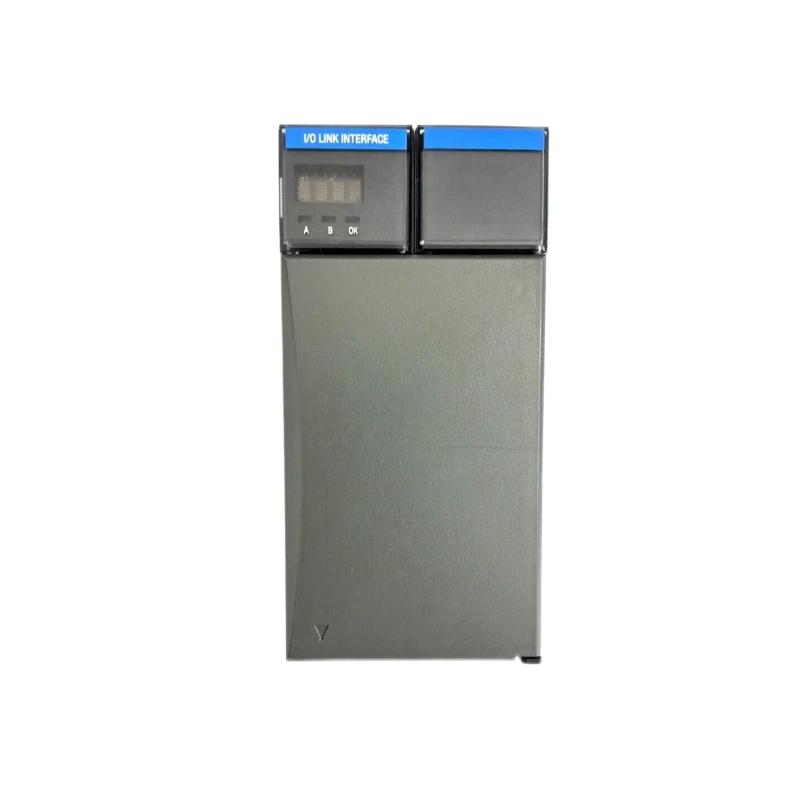

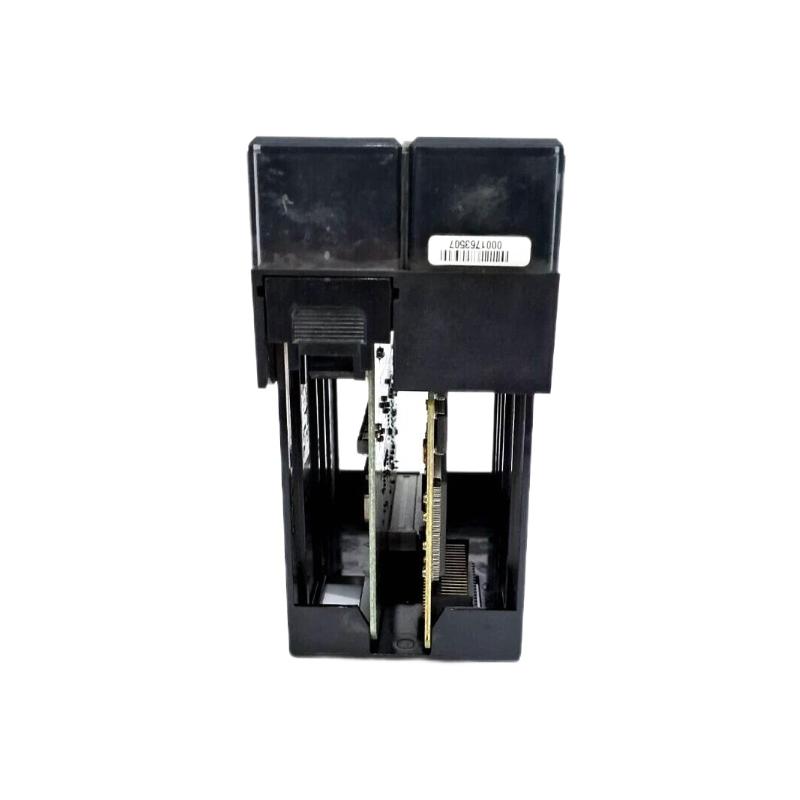

The Honeywell TC‑IOLI01 51403427‑125 Experion LS I/O Link Interface Module is a robust communication interface designed to connect field I/O devices with Honeywell’s Experion LS distributed control system. It provides real‑time data exchange between sensors, actuators, and the central controller, enabling responsive and reliable control in industrial automation environments. Its compact design, durability, and modular expandability make it ideal for both new installations and system expansions.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Honeywell |
| Model Number | TC‑IOLI01 51403427‑125 |
| Module Type | Experion LS I/O Link Interface Module |
| System Compatibility | Honeywell Experion LS Control Platform |
| Communication Protocol | I/O Link (RS‑485) |
| Supply Voltage | 24 VDC ±20% |
| I/O Channels | 8 Channels |
| Mounting Type | DIN‑rail or Panel Mount |
| Operating Temperature | ‑20°C to +60°C |
| Storage Temperature | ‑40°C to +85°C |
| Humidity Range | Up to 95% non‑condensing |
| Dimensions (L×W×H) | Approx. 180 × 160 × 30 mm |
| Weight | Approx. 0.5 kg |
| Protection Rating | IP20 |
