Introduction

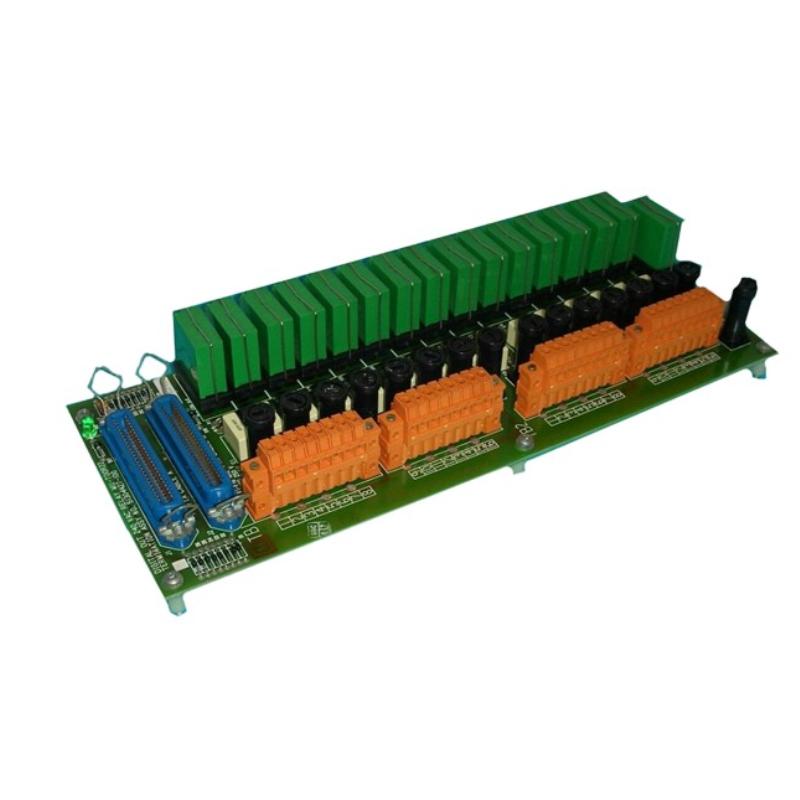

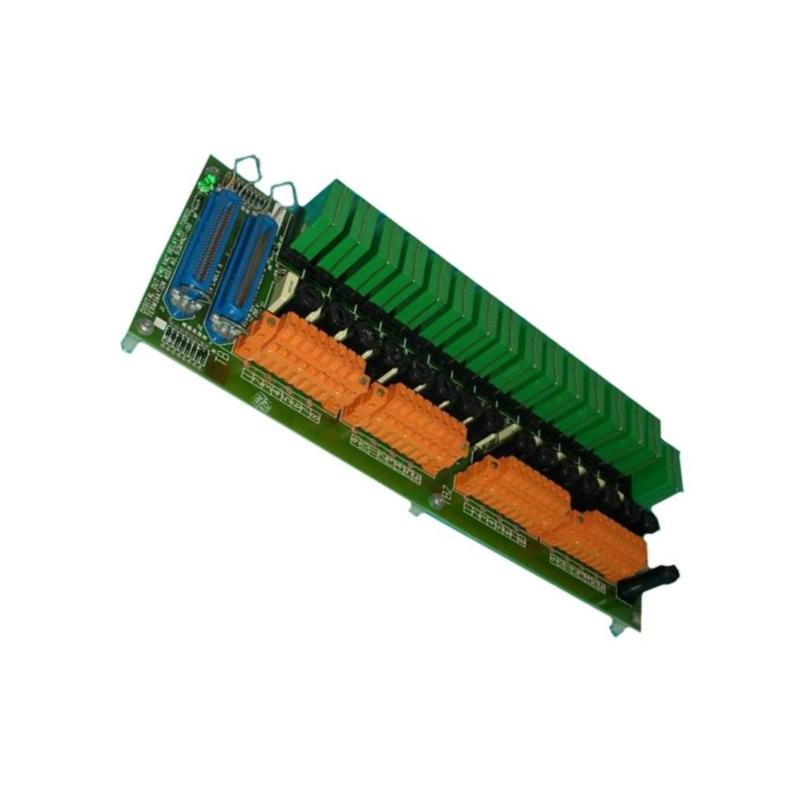

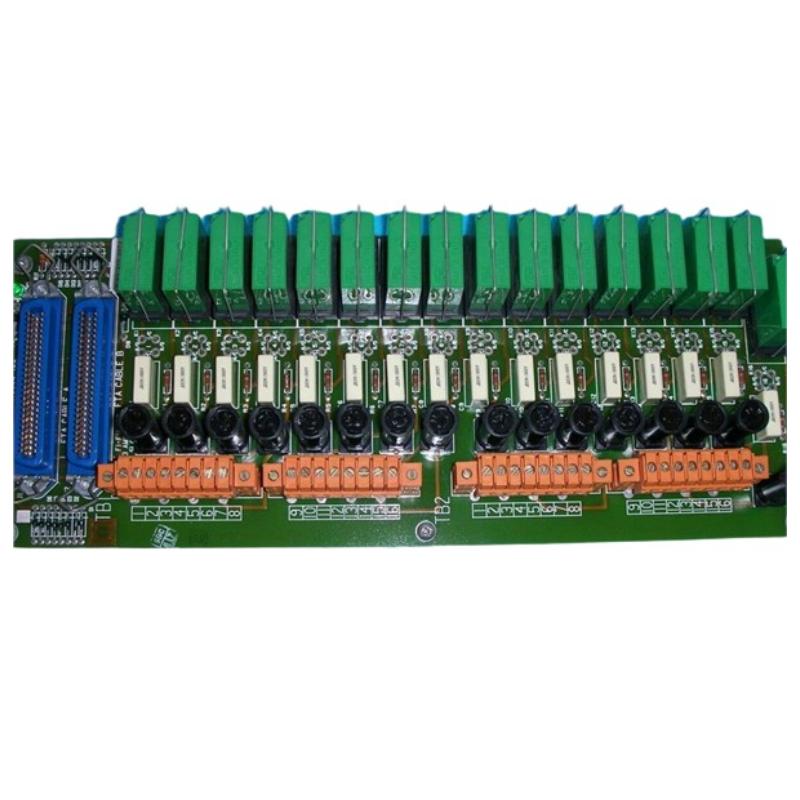

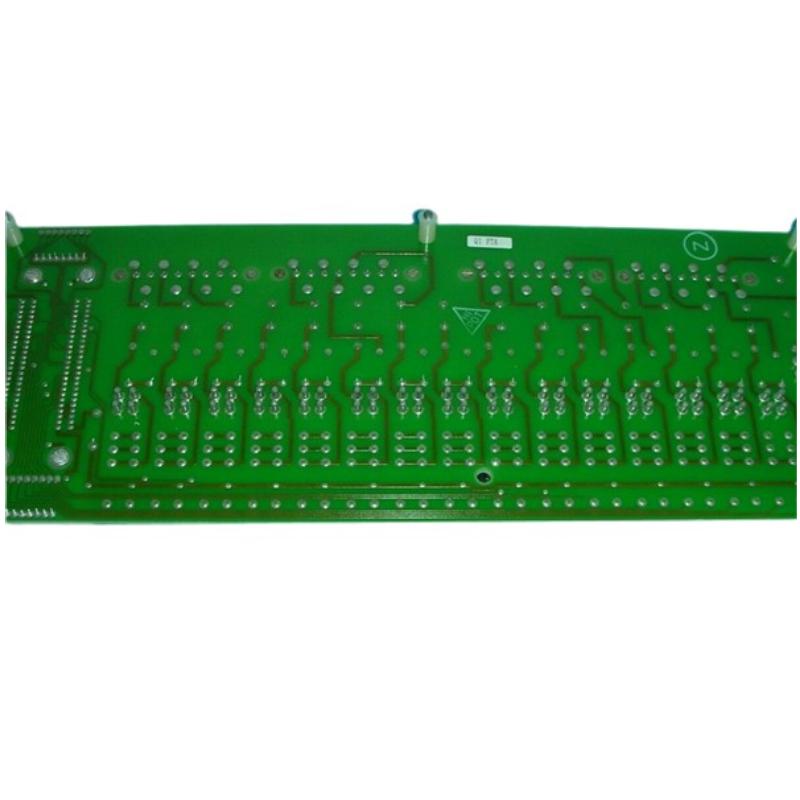

The Honeywell MU-TDOR22 51304427-100 Digital Relay Output Module delivers dependable digital switching for industrial process and control systems. Engineered to provide dependable relay outputs with electrical isolation and enhanced noise immunity, this module enables consistent performance in complex automation environments. Its robust design supports critical relay functions, ensuring that control signals are transmitted precisely and reliably to field devices, actuators, and other control hardware.
Whether upgrading existing installations or designing new control panels, the MU-TDOR22 balances solid engineering with operational flexibility, making it a versatile choice for applications requiring repeatable, high-integrity digital output control.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Honeywell |
| Model Number | MU-TDOR22 51304427-100 |
| Module Type | Digital Relay Output |
| Output Channels | 16 Digital Relay Outputs |
| Relay Type | Form C (SPDT) |
| Rated Load | 2 A @ 125/250 VAC; 2 A @ 30 VDC |
| Isolation | Optical and Electrical Isolation per Channel |
| Status Indicators | Multi-color LEDs for Output State |
| Operating Temp. | 0°C to 55°C |
| Storage Temp. | -40°C to 70°C |
| Humidity | Up to 95% non-condensing |
| Dimensions | Approx. 220 × 130 × 45 mm |
| Weight | Approx. 0.55 kg |
