Introduction

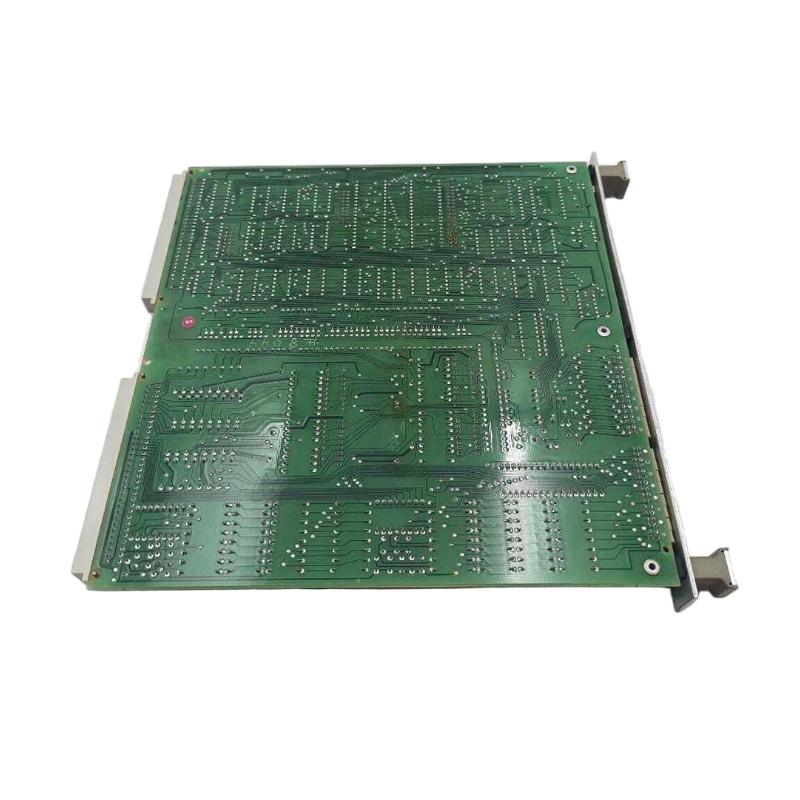

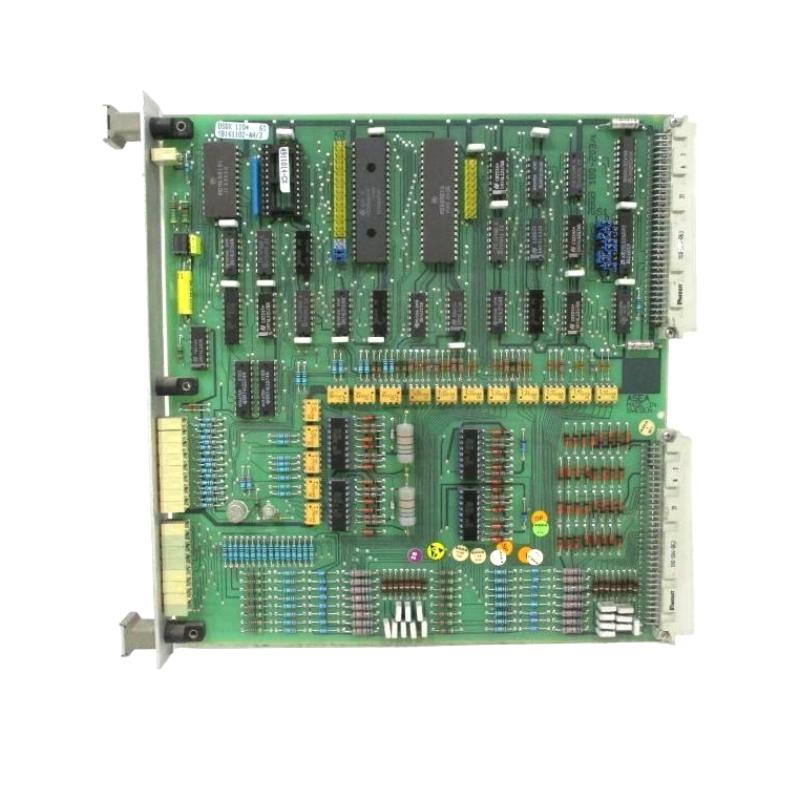

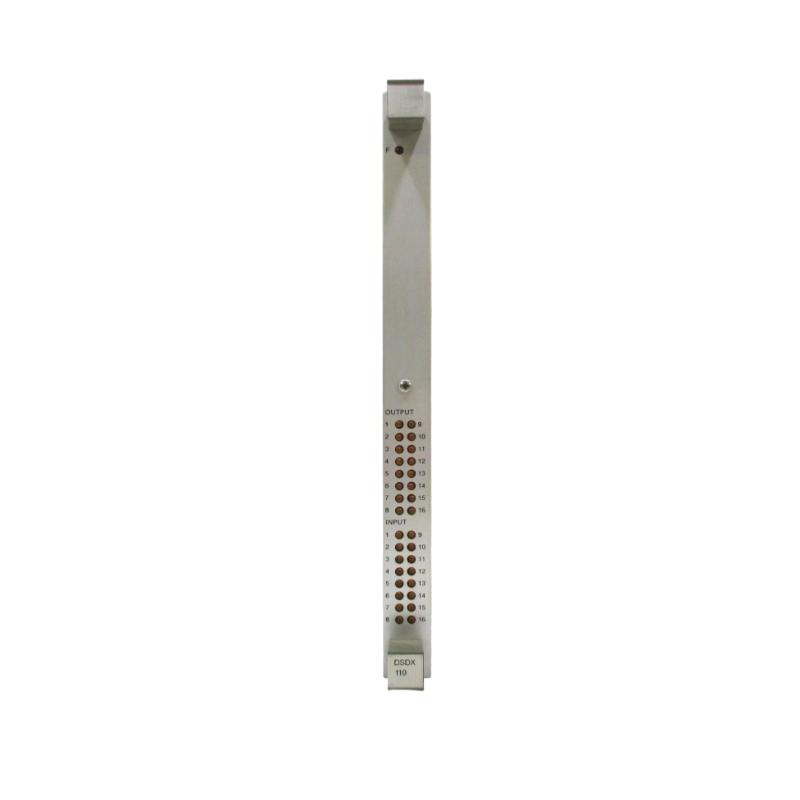

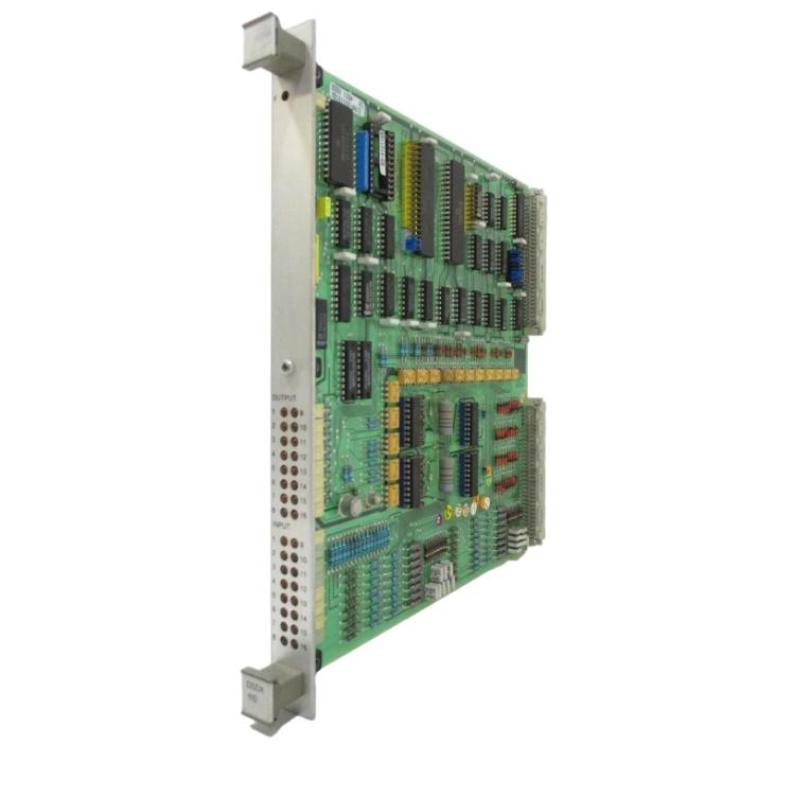

The ABB DSDX 110 YB161102-AH DS Digital Input/Output Module is designed to handle both digital inputs and outputs in industrial automation systems. This module provides high flexibility for applications requiring the integration of sensors, actuators, and other industrial devices. It seamlessly interfaces with ABB’s distributed control systems (DCS), offering reliable and precise digital signal processing for various control applications.
Technical Specifications
| Specification | Details |
|---|
| Model Number | DSDX 110 YB161102-AH |
| Input Voltage | 24V DC |
| Input Channels | 16 channels (Digital Input) |
| Output Channels | 16 channels (Digital Output) |
| Mounting Type | Rack-mounted |
| Dimensions (W x H x D) | 324 mm × 18 mm × 238.5 mm |
| Weight | 0.4 kg |
| Operating Temperature Range | -20°C to +60°C |
| Protection Class | IP20 |
Applications
The ABB DSDX 110 Digital Input/Output Module is ideal for applications that require both input and output functionalities in industrial automation and control systems:
-
Industrial Automation: Handles digital input signals from sensors and outputs control signals to actuators, motors, and other devices, ensuring precise control in manufacturing processes.
-
Process Control: Manages input and output signals in continuous processes, allowing for real-time monitoring and adjustment.
-
Building Management: Facilitates the management of systems such as HVAC, lighting, and security, providing efficient control for building operations.
-
Oil & Gas: Operates reliably in challenging environments, offering signal processing for critical systems in remote or harsh conditions.
Advantages
The ABB DSDX 110 offers several key benefits:
-
Dual Functionality: Provides both digital input and output capabilities, offering flexibility in system design and functionality for a wide range of applications.
-
Compact and Efficient: With its slim profile and compact dimensions, it can be installed in space-constrained environments without compromising on performance.
-
Wide Operating Range: Operates within a temperature range of -20°C to +60°C, ensuring reliable performance in various industrial settings.
-
Easy Integration: Integrates seamlessly with ABB’s DCS, providing easy setup and expansion of control systems for complex automation projects.
-
Durability: Built to endure industrial conditions, the module’s IP20 protection ensures it is safeguarded against dust and debris in controlled environments.
