Introduction

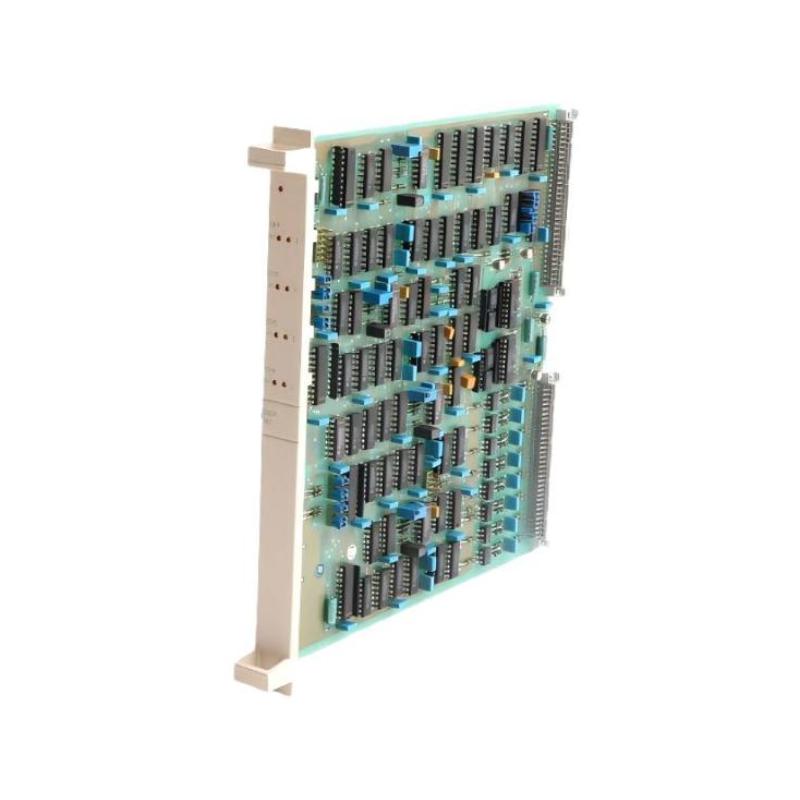

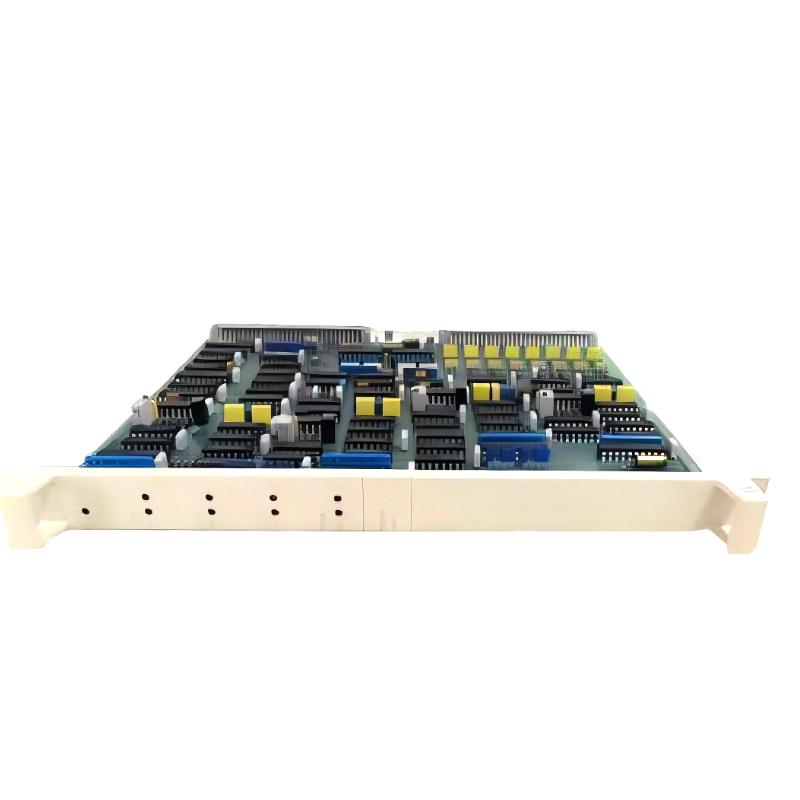

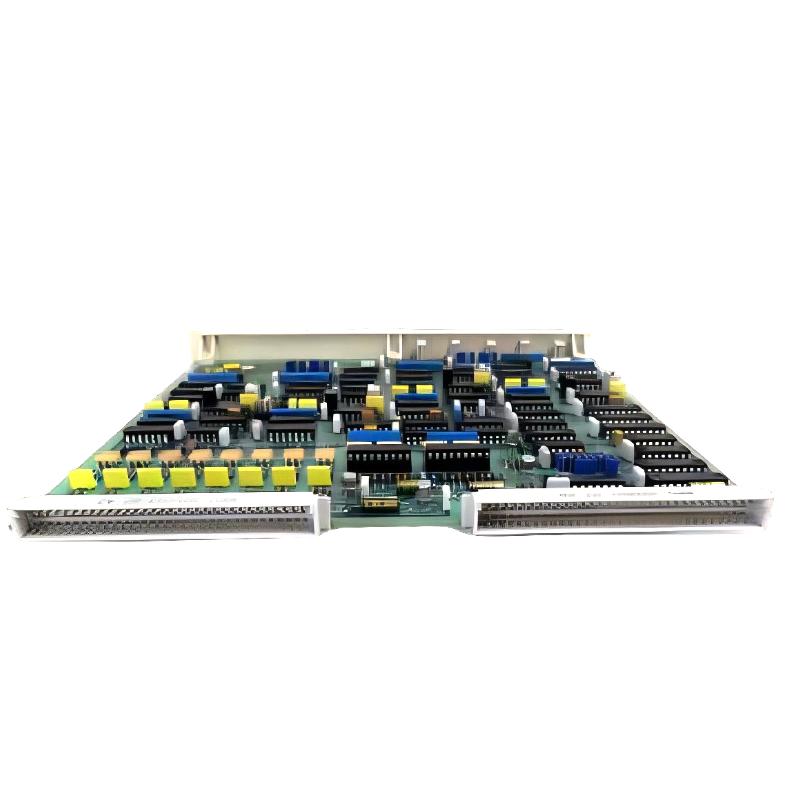

The ABB DSDP 160 57160001-KG Pulse Counter Board is an essential component in industrial automation systems, designed to accurately count and process pulse signals in a variety of applications. It seamlessly integrates with ABB's distributed control systems (DCS) to provide reliable signal processing, enabling efficient operation and monitoring of automated systems.
Technical Specifications
| Specification | Details |
|---|
| Model Number | DSDP 160 57160001-KG |
| Input Voltage | 24V DC |
| Channels | Multiple input channels |
| Input Type | Pulse (Digital) |
| Mounting Type | Rack-mounted |
| Dimensions (W x H x D) | 360 mm × 15 mm × 250 mm |
| Weight | 0.39 kg |
| Operating Temperature Range | -20°C to +60°C |
| Protection Class | IP20 |
Applications
The ABB DSDP 160 Pulse Counter Board is designed for use in various industrial automation and control applications:
-
Industrial Automation: Monitors pulse signals from sensors, encoders, and other devices for real-time control in manufacturing systems.
-
Process Control: Used for tracking counts in continuous processes, ensuring accurate data for operations like batching and flow measurement.
-
Energy Management: Monitors pulse outputs from energy meters, allowing efficient energy consumption tracking and reporting.
-
Building Management: Counts pulses for building systems, such as water, gas, and electricity meters, to provide accurate readings for monitoring and control.
Advantages
The ABB DSDP 160 Pulse Counter Board offers several benefits for industrial and control systems:
-
Precise Pulse Counting: Designed for accurate pulse counting, ensuring reliable data for automation and control applications.
-
Wide Operating Temperature Range: Operates effectively in temperatures ranging from -20°C to +60°C, making it versatile for various industrial environments.
-
Flexible Integration: Seamlessly integrates with ABB’s distributed control systems, providing easy setup and expansion of control systems.
-
Durability: Built to endure harsh industrial conditions, the board’s IP20 protection class ensures it is protected from dust and debris.
-
Compact Design: Despite offering multiple channels, the board’s compact size makes it suitable for installations in space-limited environments.
