Introduction

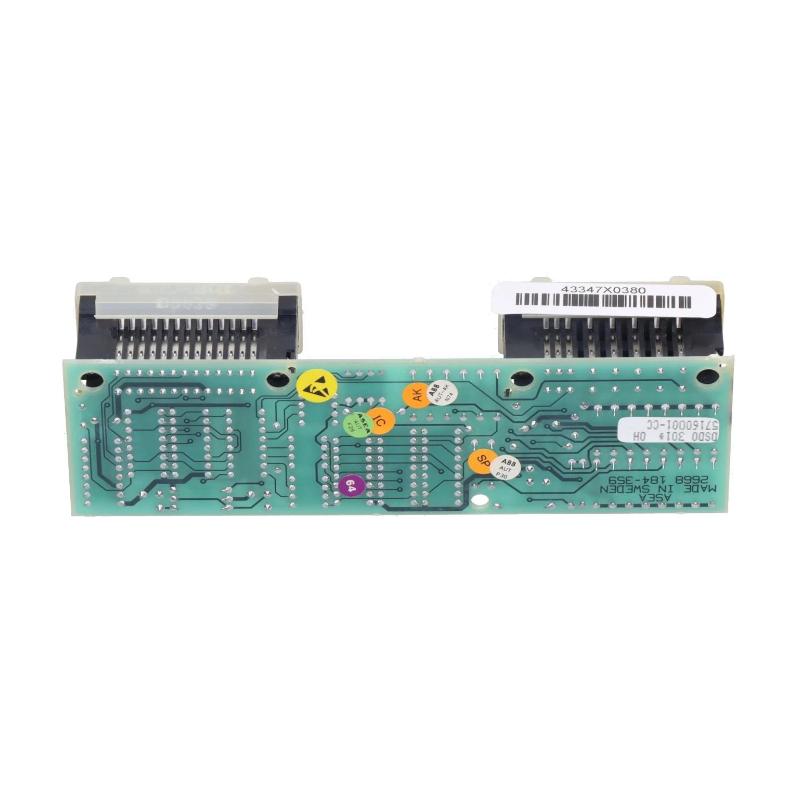

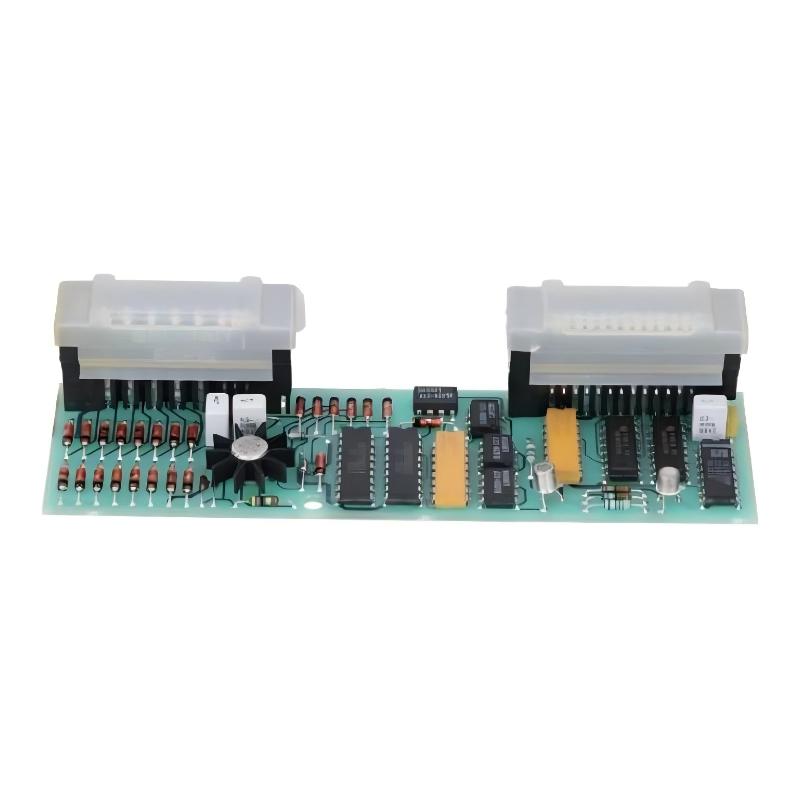

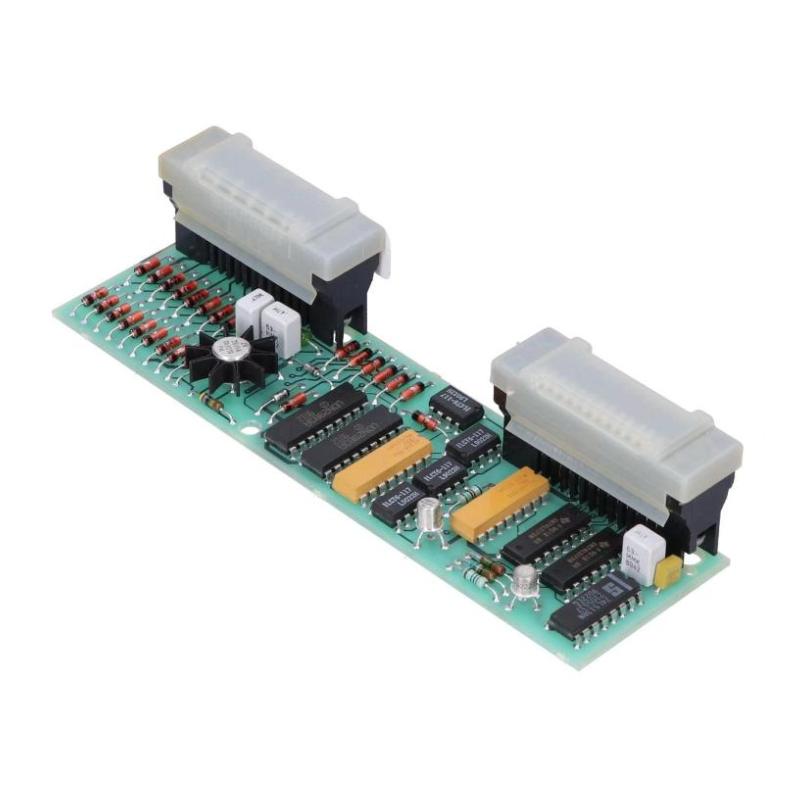

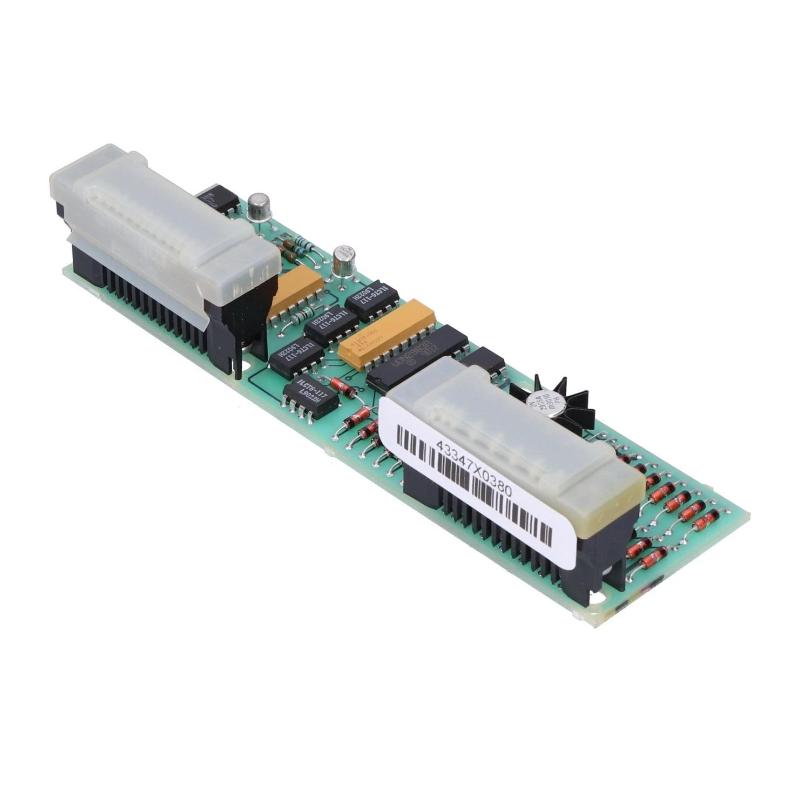

The ABB DSDO 301 57160001-CC DS Digital Output Module is designed for precise and reliable digital signal outputs in industrial automation systems. It integrates seamlessly with ABB’s distributed control systems (DCS), offering high performance and flexibility for a wide range of automation and control applications.
Technical Specifications
| Specification | Details |
|---|
| Model Number | DSDO 301 57160001-CC |
| Output Voltage | 24V DC |
| Output Channels | 16 channels |
| Output Type | Digital (24V DC) |
| Mounting Type | Rack-mounted |
| Dimensions (W x H x D) | 224 mm × 35 mm × 50 mm |
| Weight | 0.1 kg |
| Operating Temperature Range | -20°C to +60°C |
| Protection Class | IP20 |
Applications
The ABB DSDO 301 digital output module is ideal for various industrial applications that require reliable digital signal output:
-
Industrial Automation: Controls devices like actuators and relays in manufacturing systems, enabling precise control of industrial processes.
-
Control Systems: Integrated into ABB’s distributed control systems to offer seamless communication and control for complex automation systems.
-
Building Management: Used for managing systems such as lighting, HVAC, and security, ensuring energy efficiency and smooth operation.
-
Oil & Gas: Operates reliably in harsh environments, providing dependable digital outputs for monitoring and control in critical systems.
Advantages
The ABB DSDO 301 offers several key advantages:
-
High Output Capacity: With 16 digital output channels, it can control multiple devices simultaneously in a wide variety of industrial processes.
-
Reliable Performance: Ensures stable and precise digital outputs, even in environments with fluctuating input signals.
-
Wide Temperature Range: Operates efficiently in temperatures ranging from -20°C to +60°C, making it suitable for diverse industrial applications.
-
Low Power Consumption: Designed to be energy efficient, reducing overall system power requirements while maintaining performance.
-
Flexible Integration: Easily integrates with ABB’s DCS, simplifying setup and allowing for easy system expansion.
