Introduction

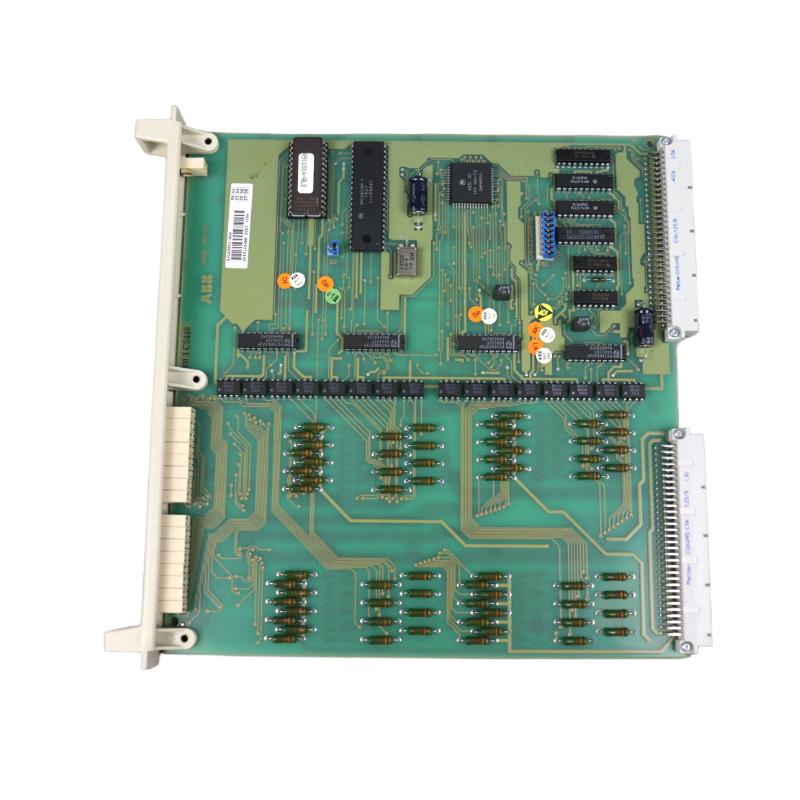

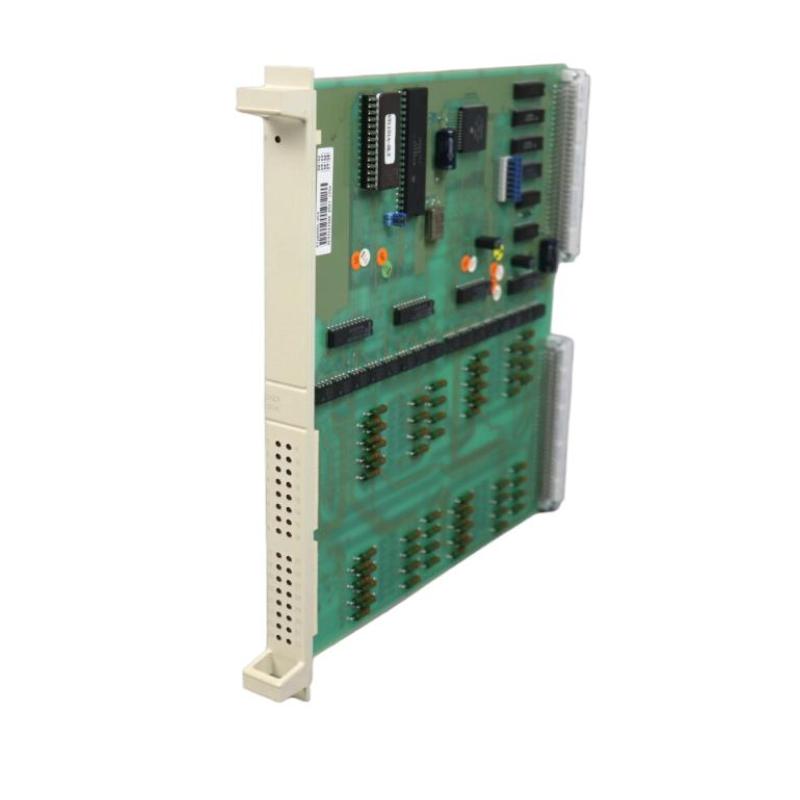

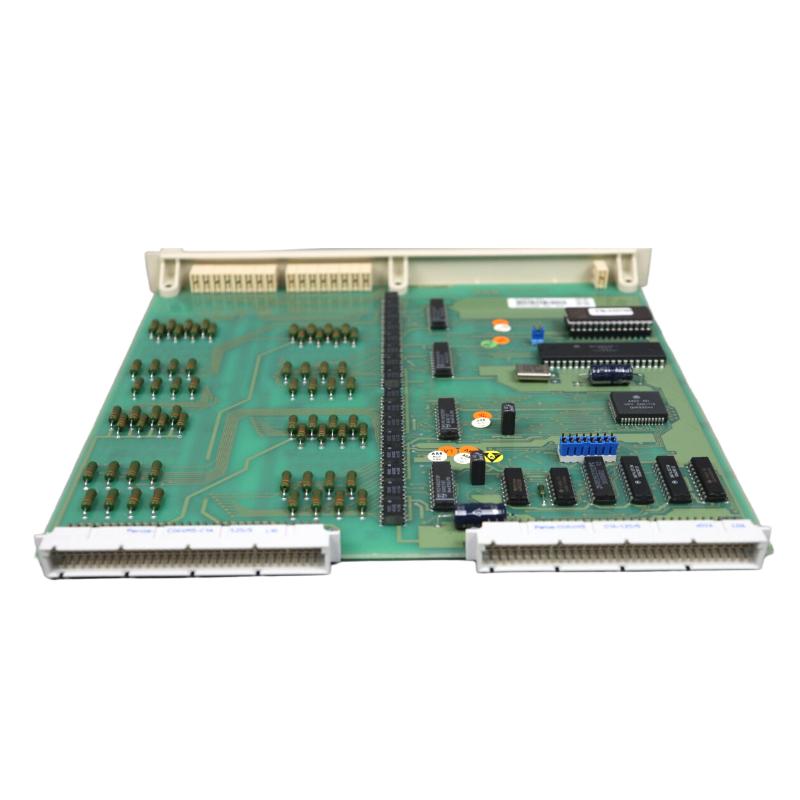

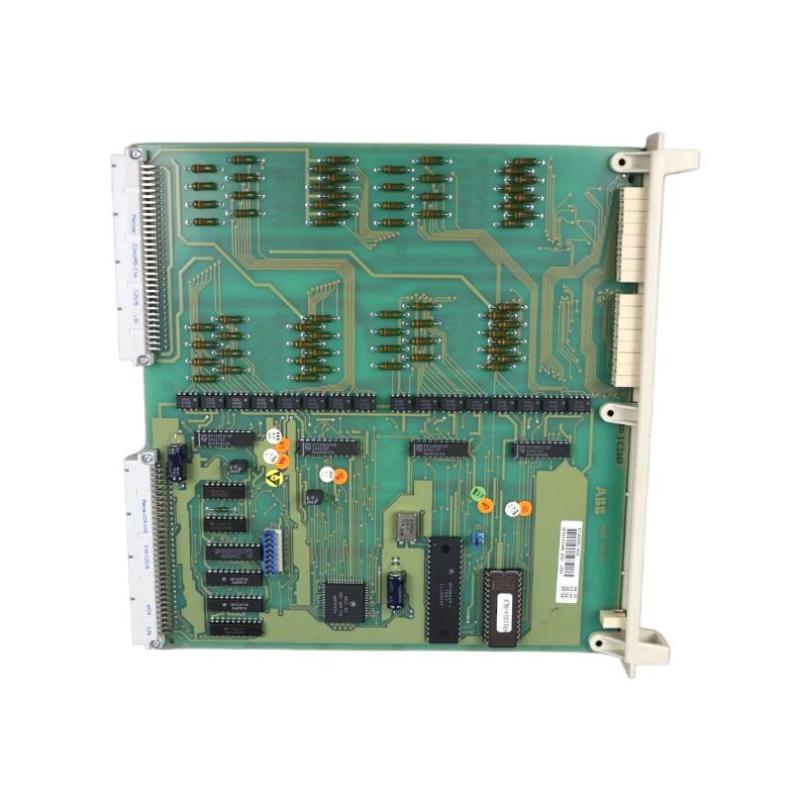

The ABB DSDI 120A 57160001-ACA digital input board is engineered for high-performance signal processing in industrial automation systems. It is designed to integrate seamlessly with ABB's distributed control systems (DCS), ensuring precise and reliable processing of digital signals across various industrial applications.
Technical Specifications
| Specification | Details |
|---|
| Model Number | DSDI 120A 57160001-ACA |
| Input Voltage | 24V DC |
| Input Channels | 16 channels |
| Input Type | Digital (24V DC) |
| Mounting Type | Rack-mounted |
| Dimensions (W x H x D) | 324 mm × 22.5 mm × 234 mm |
| Weight | 0.3 kg |
| Operating Temperature Range | -20°C to +60°C |
| Protection Class | IP20 |
Applications
The ABB DSDI 120A digital input board is ideal for various industrial and control system applications:
-
Industrial Automation: Processes digital signals from sensors and actuators for real-time automation in manufacturing systems.
-
Control Systems: Integrates into large-scale control systems, offering reliable data transmission and enhancing overall system efficiency.
-
Oil & Gas: Operates reliably in challenging environments, providing robust signal processing for essential equipment.
-
Building Management: Used in managing HVAC, lighting, and security systems, improving energy management and building automation.
Advantages
The ABB DSDI 120A digital input board offers several notable benefits:
-
Reliable Performance: Provides stable and accurate signal processing even in noisy or fluctuating electrical environments.
-
Compact Design: Slim profile (only 22.5 mm in height) ensures easy integration into space-limited control panels.
-
Wide Temperature Range: The module operates in temperatures from -20°C to +60°C, making it suitable for a wide range of industrial environments.
-
Easy Integration: Easily integrates with ABB's DCS, ensuring a smooth and efficient setup for large-scale control systems.
-
Durability: Rated with IP20 protection, it offers reliable protection against dust and debris.
