ABB DAI03 0369631MR Analog Input Module

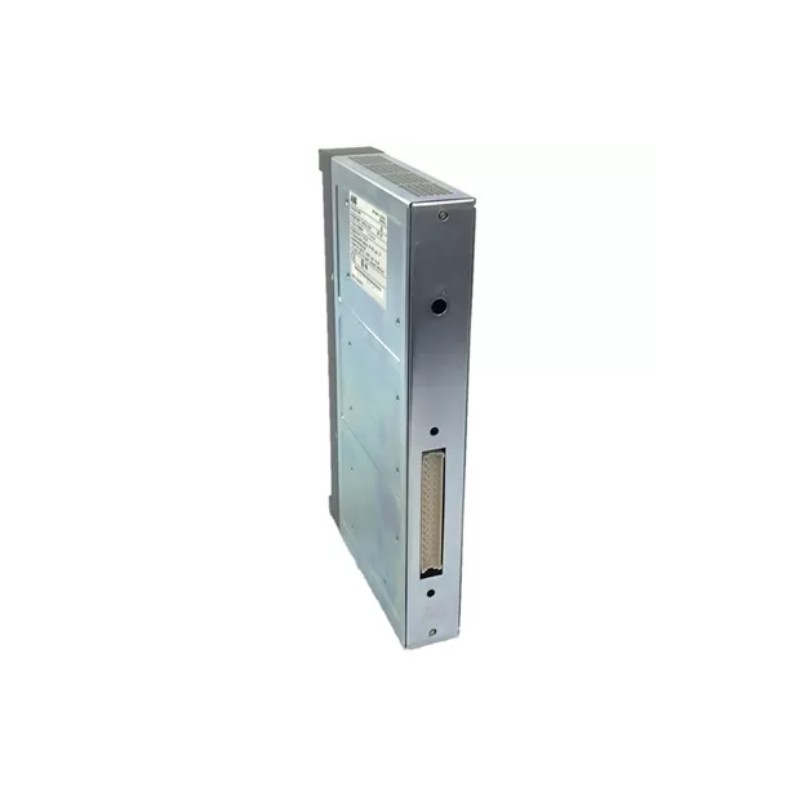

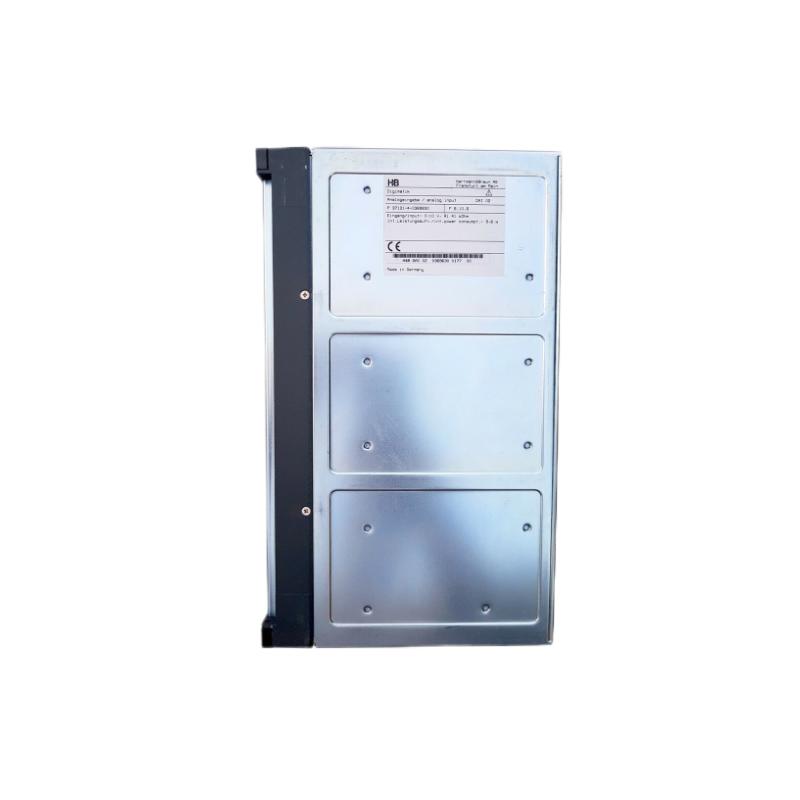

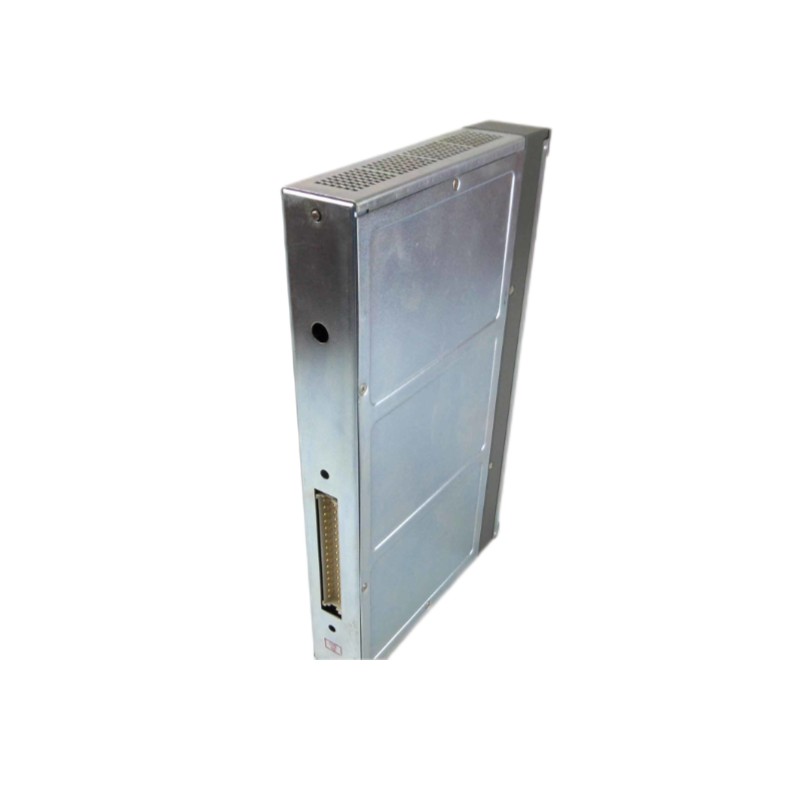

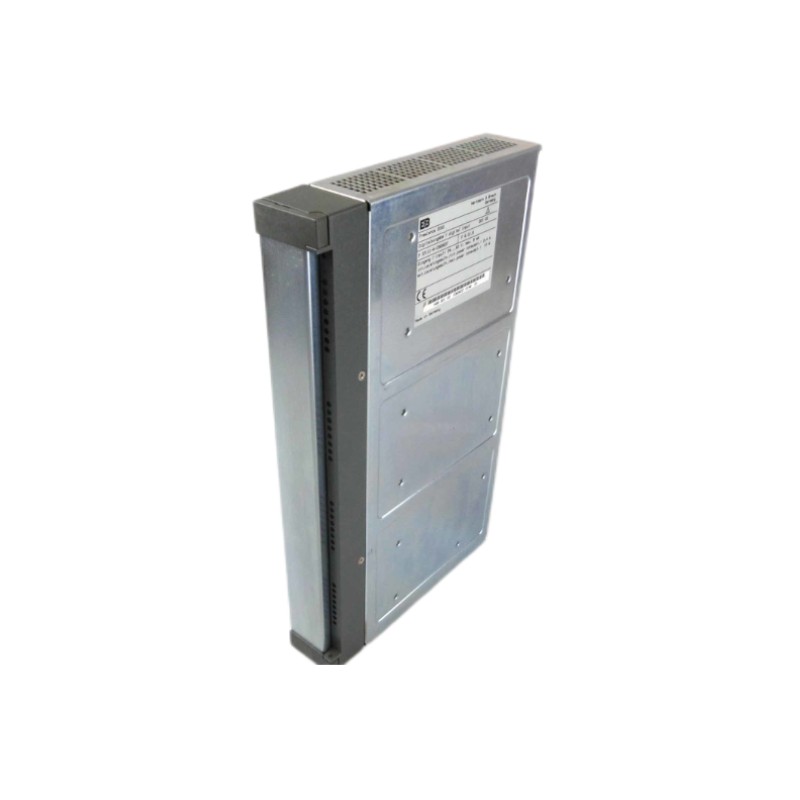

Name: ABB DAI03 0369631MR Analog Input Module
Brand: ABB PLC
SKU: 25
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:ABB PLC
Item No.:DAI03 0369631MR
Product Origin:Sweden
Product Dimensions:0.25 kg
Product Weight:128 × 24 × 160 mm
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The ABB DAI03 0369631MR is an analog input module designed for ABB’s distributed control and automation systems. It provides precise signal acquisition from field devices such as sensors, transmitters, and transducers, converting analog signals into digital data for process control. This module is suitable for industrial environments that require reliable, high-accuracy measurement and integration into complex automation networks.

Technical Specifications

The DAI03 module ensures deterministic signal conversion and reliable communication to the system controller, supporting a wide range of industrial signal types.

General Specifications

Parameter	Description
Module Type	Analog Input Module
Part Number	DAI03 / 0369631MR
Input Channels	Typically 8 analog inputs (voltage/current)
Input Signal Range	±10 V, 0–20 mA, 4–20 mA (system-configurable)
Resolution	16-bit analog-to-digital conversion
Sampling Rate	Up to 1 kHz per channel
Accuracy	±0.1% of full scale
Operating Temperature	0…55 °C
Storage Temperature	–40…70 °C
Installation	Rack or DIN-rail mounted
Diagnostics	Channel-level status, fault detection, and LED indicators
Dimensions	128 × 24 × 160 mm (H × W × D)
Weight	≈ 0.25 kg

Applications

The DAI03 is commonly used in process control environments for:

Reading temperature, pressure, flow, and level sensors
Monitoring analog signals in chemical, water treatment, and energy industries
Integration into ABB DCS for control and automation loops
Safety-critical analog signal acquisition in plant-wide monitoring
Data acquisition for supervisory systems and remote I/O nodes

Advantages

High signal accuracy for precise control and monitoring
Flexible input ranges, compatible with multiple sensor types
Diagnostic feedback for fast fault identification
Compact form factor for dense cabinet installations
Reliable operation in industrial environments with electrical noise
Seamless integration with ABB control platforms

Technical FAQs

How many channels does the DAI03 support?
Typically 8 analog input channels.
What signal types can it read?
Voltage and current signals, including ±10 V, 0–20 mA, and 4–20 mA.
Does it provide diagnostics?
Yes, including channel fault detection and LED indicators.
Is it compatible with ABB DCS systems?
Yes, fully compatible with ABB automation controllers.
Can it be used in SIL-rated systems?
It can be integrated depending on system-level safety architecture.
Does it require calibration?
Minimal calibration is needed; typical configuration is via system software.
What is the typical update rate?
Up to 1 kHz per channel.
Can it handle long sensor cables?
Yes, but proper shielding and wiring practices are recommended.
Is it suitable for high-temperature environments?
Yes, within 0…55 °C operating temperature range.
Can it be used in retrofit projects?
Yes, its form factor and compatibility make it ideal for system upgrades.
