ABB PFTL101A-0.5KN 3BSE004160R1 Load Cells

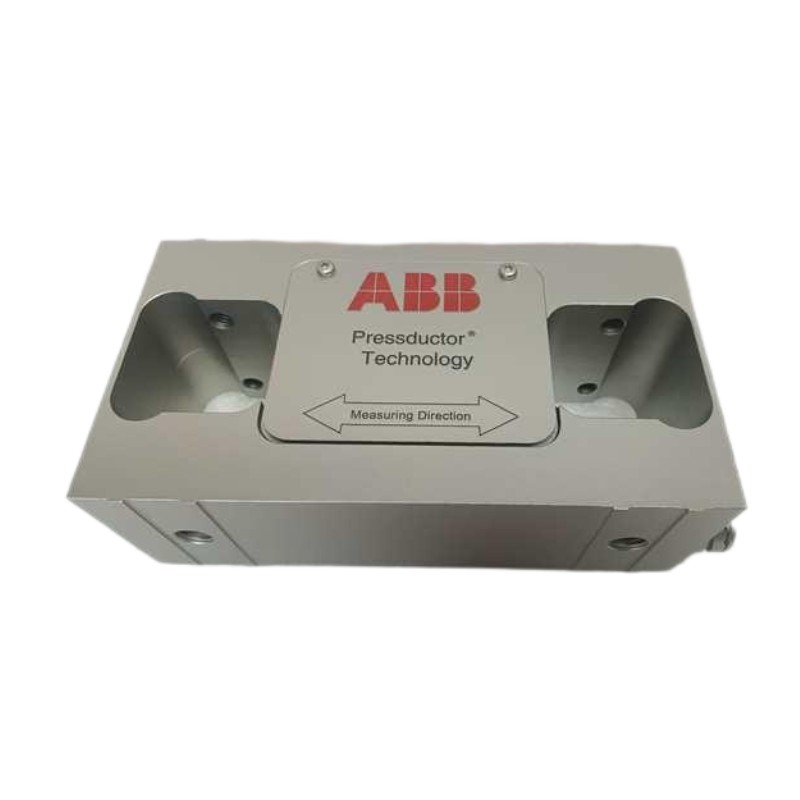

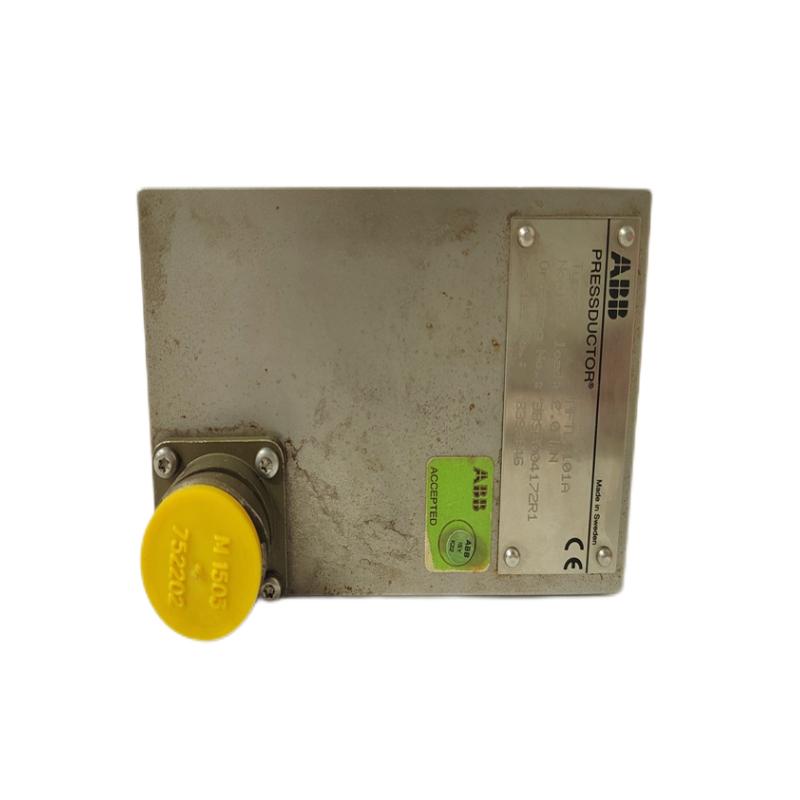

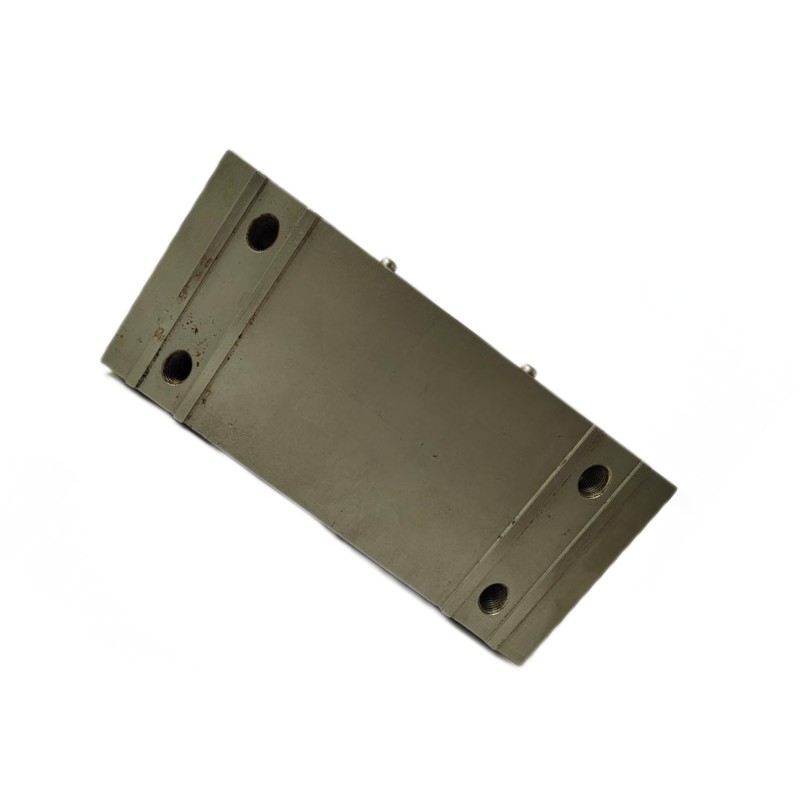

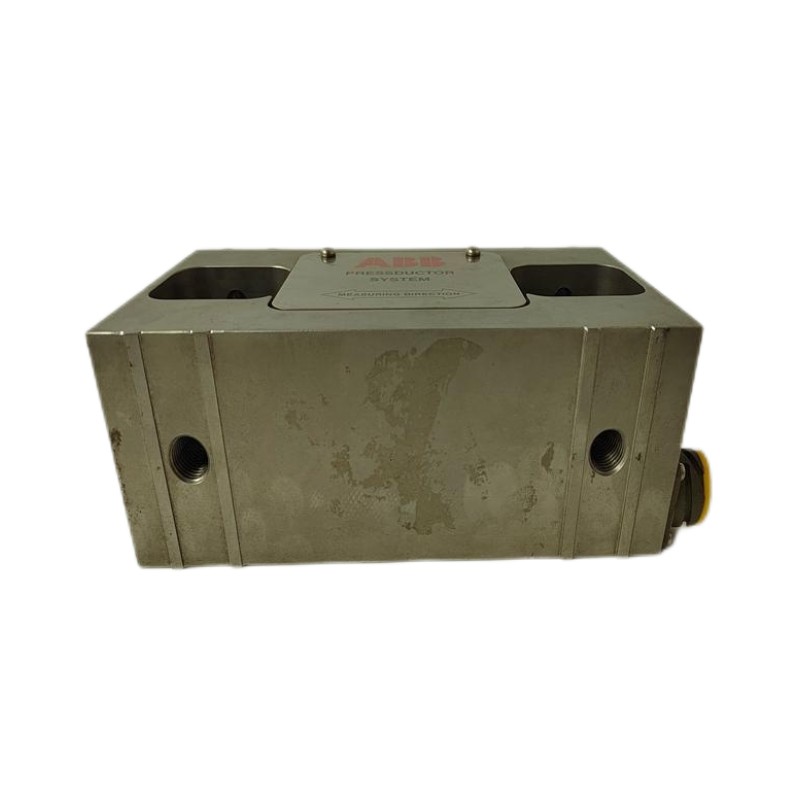

Name: ABB PFTL101A-0.5KN 3BSE004160R1 Load Cells
Brand: ABB PLC
SKU: 2478
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:ABB PLC
Item No.:3BSE004160R1
Product Origin:Sweden
Product Dimensions:50 × 25 × 25 mm
Product Weight:0.15kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Overview

The ABB PFTL101A-0.5KN 3BSE004160R1 is a precision load cell designed for accurate force measurement in industrial automation and process control applications. With high sensitivity and reliable signal output, it is ideal for weighing, force monitoring, and mechanical testing systems. Its rugged construction ensures long-term stability, making it suitable for challenging industrial environments.

Technical Specifications (Dimensions & Weight)

Feature	Specification
Model	PFTL101A-0.5KN 3BSE004160R1
Module Type	Load Cell
Rated Capacity	0.5 kN
Measurement Type	Compression / Tension (depending on application setup)
Output Signal	mV/V proportional to applied force
Excitation Voltage	5–15 V DC
Accuracy	Class C3 (high precision)
Material	Stainless steel or alloy steel housing
Protection Rating	IP65 (dust and water-resistant)
Operating Temperature	–10 °C to +60 °C
Storage Temperature	–20 °C to +70 °C
Mounting	Standard threaded mounting (M12 or M16 depending on model)
Dimensions (L × W × H)	Approx. 50 × 25 × 25 mm
Net Weight	Approx. 0.15 kg

Applications

The PFTL101A load cell is widely used in industries requiring precise force or weight measurement:

Industrial weighing systems
Force monitoring in machinery and presses
Process control and automation feedback loops
Material testing and mechanical stress measurements
Replacement or integration in existing load measurement setups

Its precision ensures accurate readings and reliable operation under varying environmental conditions.

Advantages

High-precision measurement: Ensures accurate force and weight data
Rugged construction: Industrial-grade materials withstand harsh operating conditions
Compact and lightweight: Easy integration into existing systems
Reliable signal output: Consistent mV/V response for monitoring and control systems
IP65 protection: Resistant to dust and water ingress for industrial environments

These features make the PFTL101A an ideal choice for precise and reliable load measurement in automation and industrial applications.

Technical FAQs (10)

What is the rated capacity of the PFTL101A?
0.5 kN.
What type of signals does it output?
Millivolt per volt (mV/V) proportional to applied force.
What supply voltage is required?
5–15 V DC excitation voltage.
Can it measure both compression and tension?
Yes, depending on the mounting and application setup.
What is the operating temperature range?
–10 °C to +60 °C.
Is it suitable for industrial environments?
Yes, it has IP65 protection against dust and water.
What are the physical dimensions of the load cell?
Approximately 50 × 25 × 25 mm.
What is the net weight?
About 0.15 kg.
What material is it made of?
Stainless steel or alloy steel for durability and stability.
Can it be integrated into existing weighing or automation systems?
Yes, it is designed for easy integration into industrial measurement setups.
