Product Overview

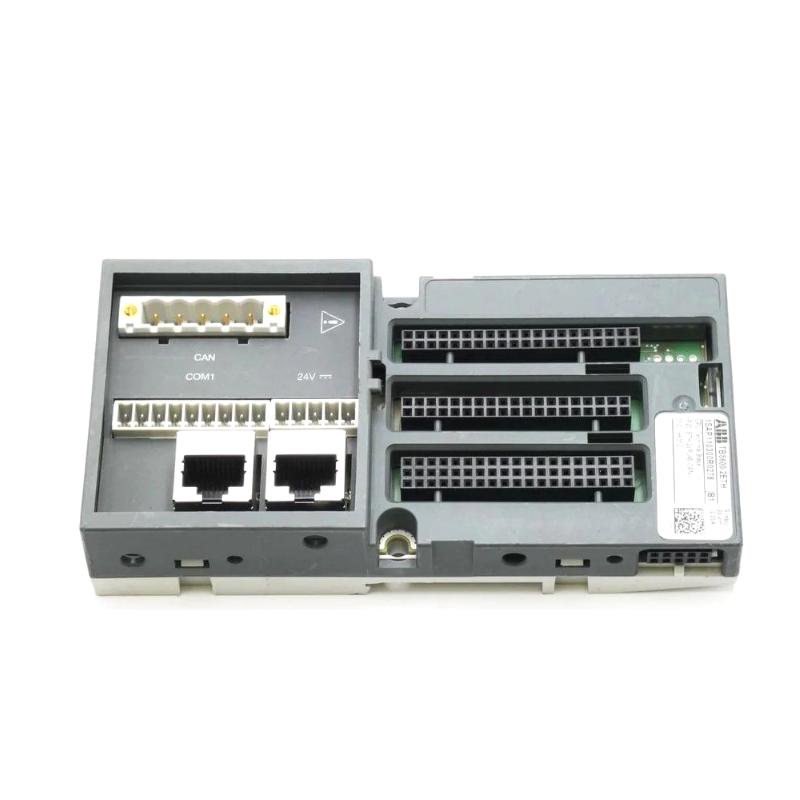

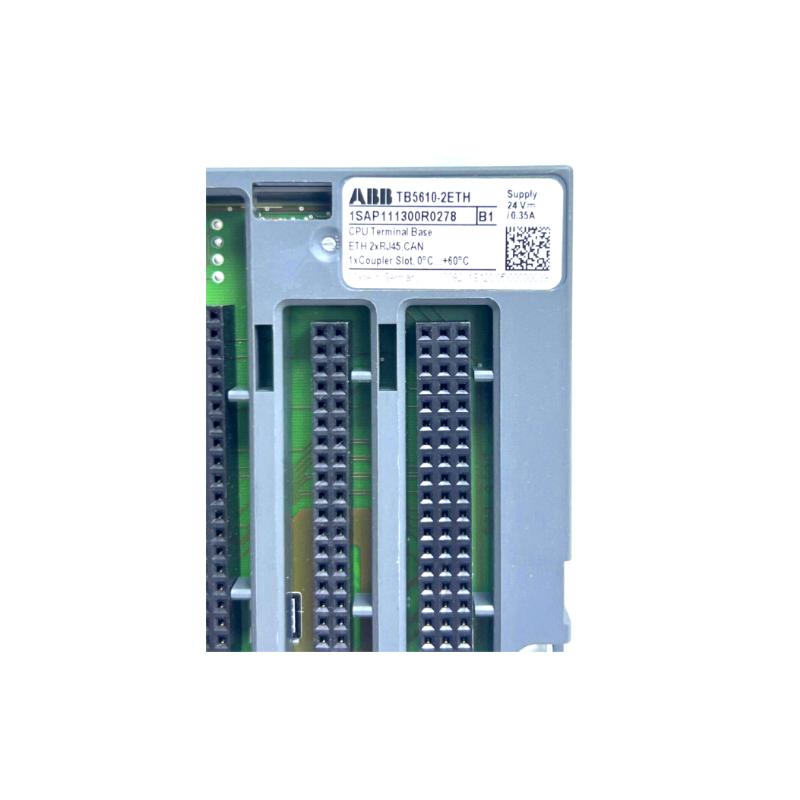

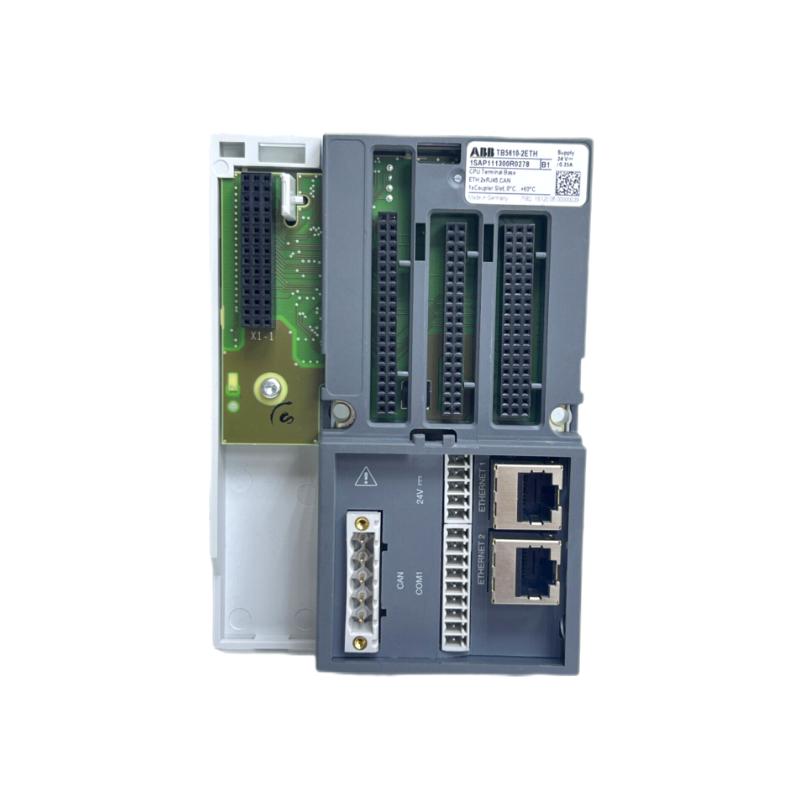

The ABB TB5610-2ETH 1SAP111300R0278 is a robust terminal base engineered to provide dependable mechanical support and secure electrical connectivity for ABB Ethernet-capable modules and I/O interface units. Built for industrial automation environments, this terminal base facilitates organized wiring, effective signal distribution, and reliable network integration within control panels, distributed systems, and modular automation architectures. Its thoughtful design supports ease of installation and long-term operational stability.
Technical Specifications (Dimensions & Weight)
| Feature | Specification |
|---|---|
| Model | TB5610-2ETH 1SAP111300R0278 |
| Module Type | Terminal Base |
| Function | Mounting and connection platform for Ethernet/I/O modules |
| Supported Modules | ABB dual-Ethernet and I/O interface modules |
| Terminal Type | Spring clamp terminals for signal and power wiring |
| Supply Voltage (for Mounted Modules) | 24 V DC |
| Rated Current | Up to 10 A per terminal connection |
| Communication Support | Dual Ethernet connectivity routed through base |
| Mounting | Standard DIN rail mount |
| Operating Temperature | –20 °C to +60 °C |
| Storage Temperature | –40 °C to +70 °C |
| Relative Humidity | 5 % – 95 % (non-condensing) |
| Dimensions (W × H × D) | Approx. 185 × 75 × 50 mm |
| Net Weight | Approx. 0.95 kg |
