Product Overview

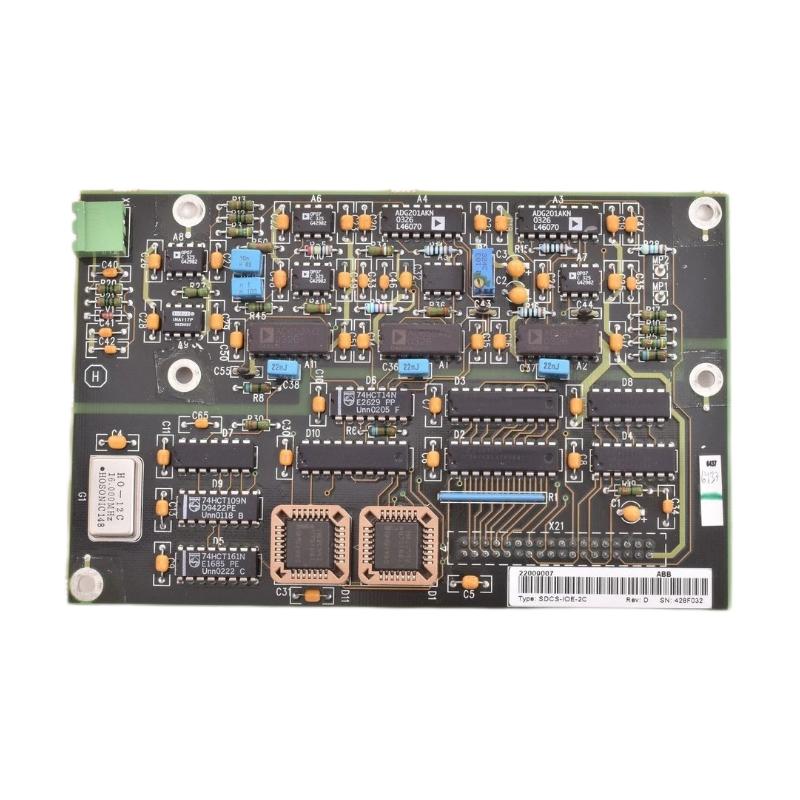

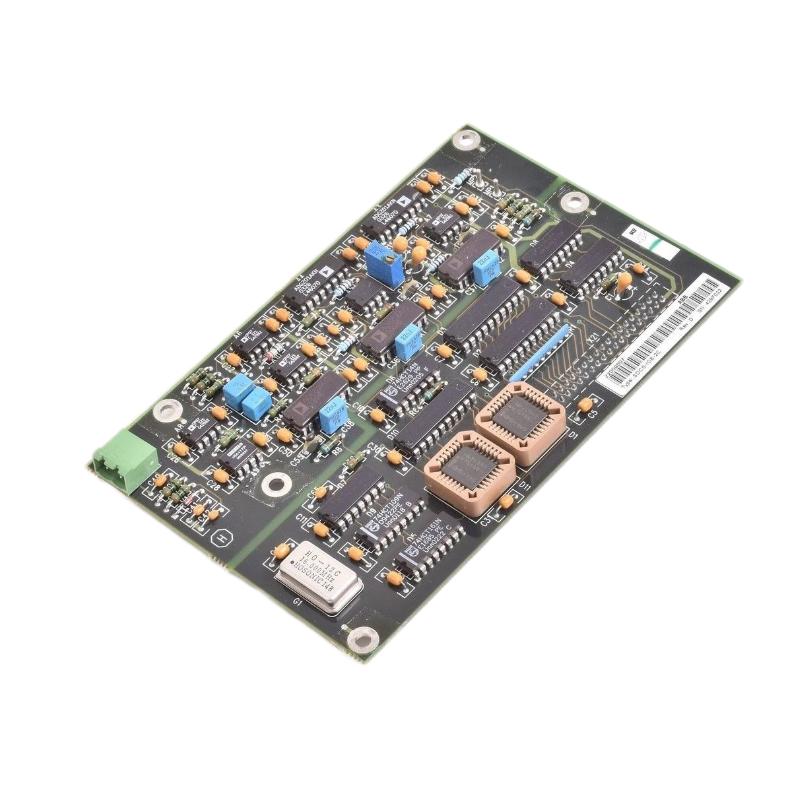

The ABB SDCS-IOE-2C 3ADT220090R0007 is a precision measuring board designed for ABB SDCS (Safety and Distributed Control Systems). It provides accurate signal acquisition and processing for digital and analog inputs, enabling precise monitoring and control within distributed automation networks. Its robust design ensures reliable performance in industrial environments, making it a core component for process measurement and control applications.
Technical Specifications (Dimensions & Weight)
| Feature | Specification |
|---|---|
| Model | SDCS-IOE-2C 3ADT220090R0007 |
| Module Type | Measuring Board |
| Function | Acquisition and processing of analog and digital signals for SDCS systems |
| Input Type | Analog voltage/current, digital inputs |
| Communication Interface | Integrated backplane interface for SDCS controller connection |
| Supply Voltage | 24 V DC |
| Power Consumption | Approx. 3 W |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | –20 °C to +70 °C |
| Relative Humidity | 5 % – 95 % non-condensing |
| Mounting | DIN rail or panel mountable |
| Dimensions (W × H × D) | Approx. 125 × 85 × 35 mm |
| Net Weight | Approx. 0.38 kg |
