Product Overview

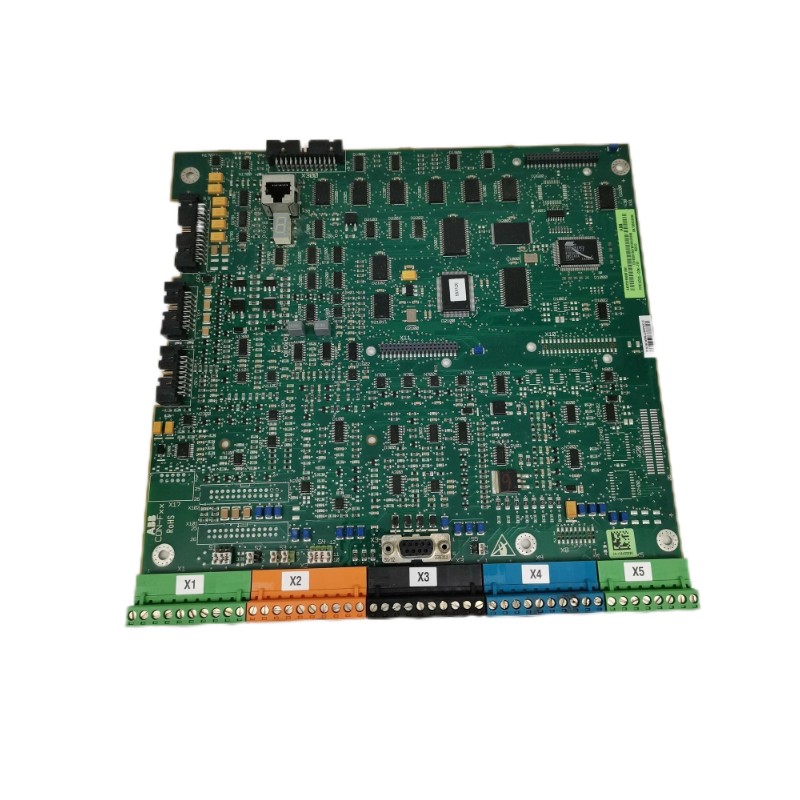

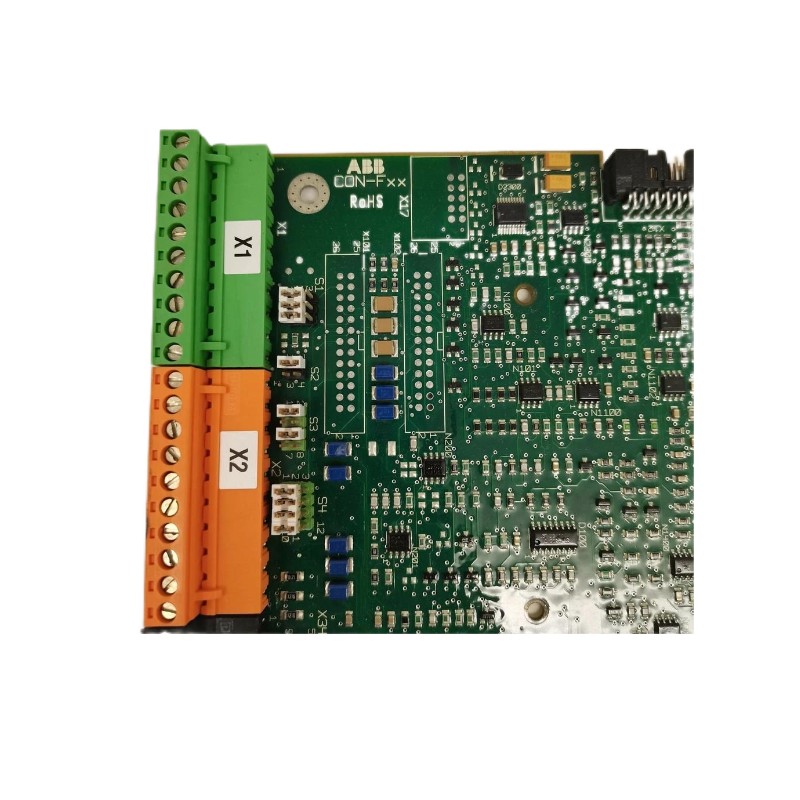

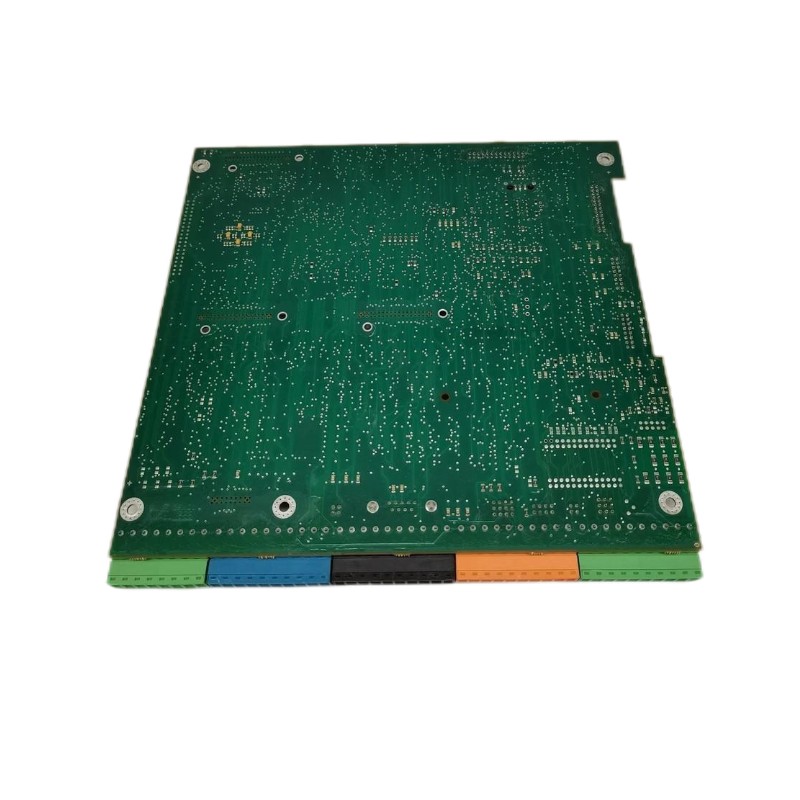

The ABB SDCS-CON-F01 3ADT316500R1501 is a versatile control panel designed for ABB SDCS (Safety and Distributed Control Systems). It provides operators with a centralized interface for monitoring, managing, and controlling industrial processes. With intuitive controls, a robust interface, and reliable communication capabilities, the SDCS-CON-F01 enhances system visibility and operational efficiency in demanding industrial environments.
Technical Specifications (Dimensions & Weight)
| Feature | Specification |
|---|---|
| Model | SDCS-CON-F01 3ADT316500R1501 |
| Module Type | Control Panel |
| Function | Centralized operator interface for SDCS systems |
| Display | High-visibility LCD for real-time data and system status |
| Input/Output | Operator push-buttons, switches, and indicator lights |
| Communication Interfaces | Ethernet, RS232/RS485 for integration with SDCS controllers |
| Supply Voltage | 24 V DC |
| Power Consumption | Approx. 10 W |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | –20 °C to +70 °C |
| Relative Humidity | 5 % – 95 % non-condensing |
| Mounting | Panel mount or enclosure installation |
| Dimensions (W × H × D) | Approx. 300 × 250 × 120 mm |
| Net Weight | Approx. 3.2 kg |
