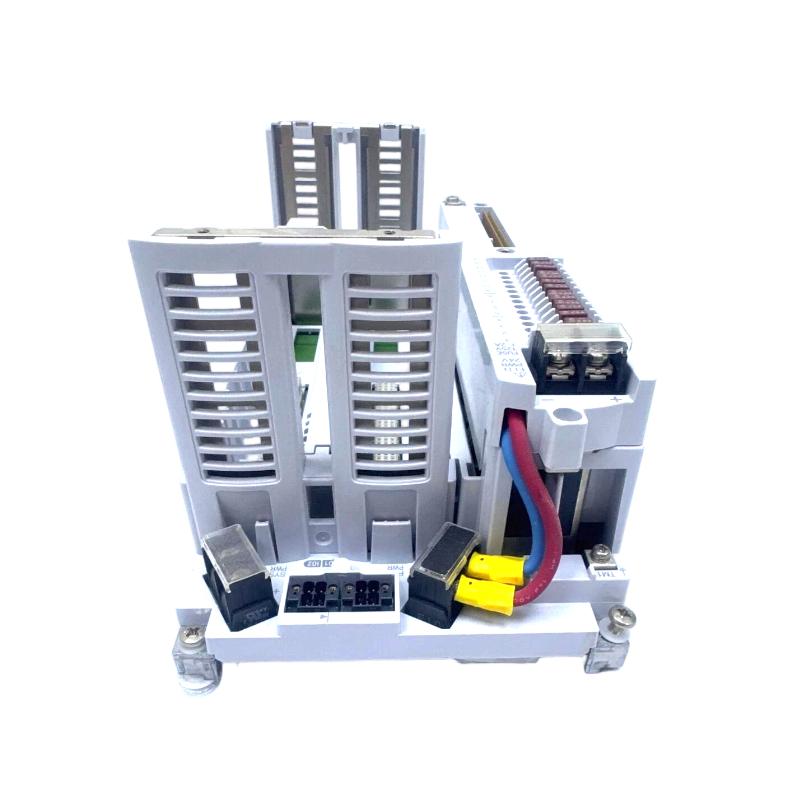

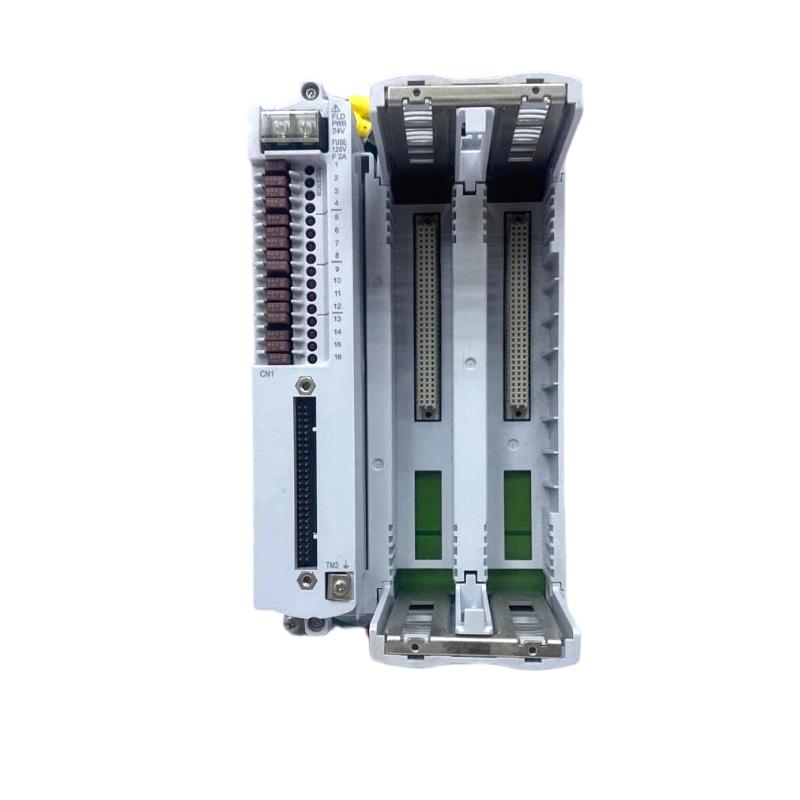

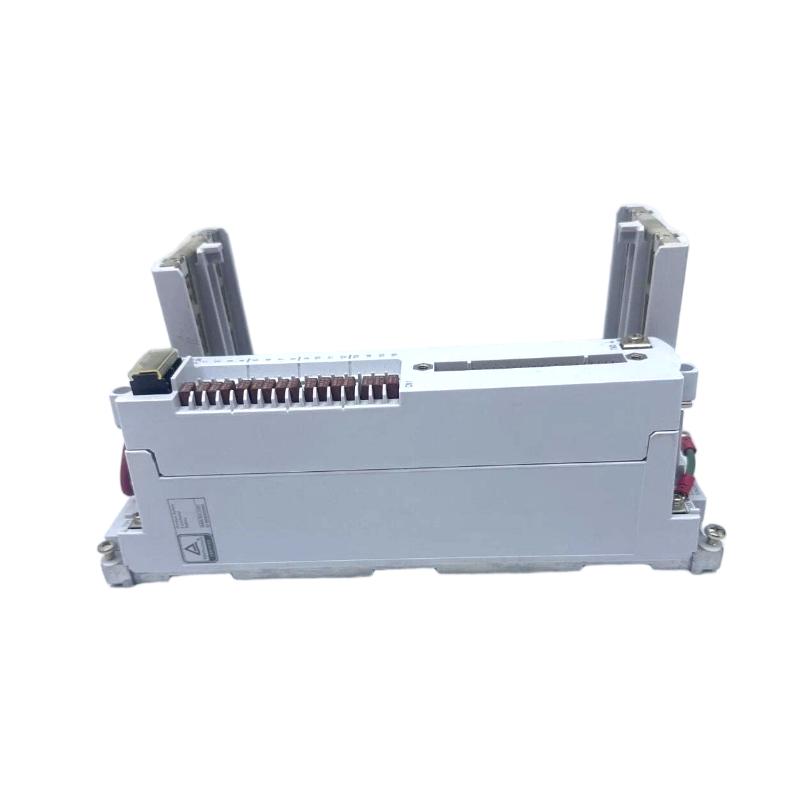

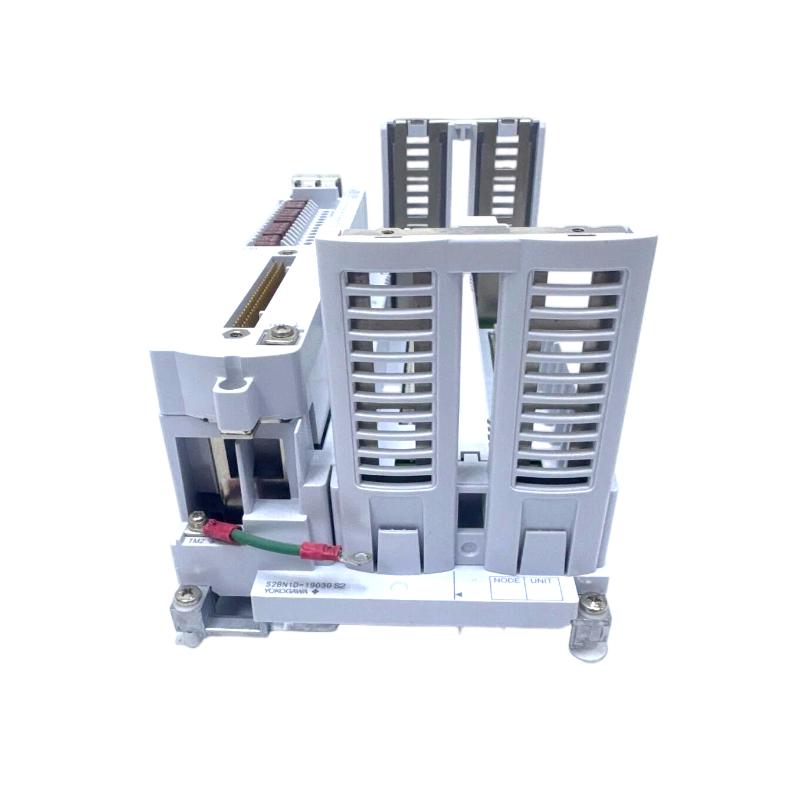

Yokogawa S2BN1D-11130 Terminal Block with Disconnect

Brand:Yokogawa Electric
Item No.:S2BN1D-11130
Product Origin:Japan
Product Dimensions:248 x 134 x 171.9 mm
Product Weight:1.4 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

Introduction

The Yokogawa S2BN1D-11130 Terminal Block with Disconnect is a high-quality, reliable terminal block designed for use in industrial automation systems. This terminal block is equipped with a disconnect feature that enhances safety and flexibility in wiring and circuit management. The S2BN1D-11130 offers easy integration into various control systems, ensuring that electrical connections remain secure and easily accessible for maintenance or troubleshooting. Its robust design and ease of use make it ideal for applications in process control, energy management, and other industrial environments.

Technical Specifications

SpecificationDetails
Model NumberS2BN1D-11130
TypeTerminal Block with Disconnect
Dimensions248 x 134 x 171.9 mm
Weight1.4 kg
Mounting TypeDIN Rail Mountable
Operating Temperature-40°C to 85°C
Rated Voltage300 V
Current Rating10 A
MaterialThermoplastic, Copper
Disconnect TypeScrew Type


Applications

The Yokogawa S2BN1D-11130 Terminal Block with Disconnect is commonly used in:

  • Industrial Automation: Providing secure and easily accessible electrical connections for automation systems.

  • Process Control: Managing electrical wiring and circuits in process control systems where safety and flexibility are paramount.

  • Energy Management: Offering secure electrical connections for energy monitoring and control equipment.

  • Manufacturing: Used in production lines and machinery for effective and safe electrical distribution.

  • Building Control Systems: Ensuring reliable and easy-to-manage connections for HVAC and other building systems.


Advantages

  • Safety and Flexibility: The disconnect feature allows for easy and safe disconnection of circuits, which simplifies maintenance and troubleshooting.

  • Wide Operating Temperature Range: Operating efficiently within a temperature range of -40°C to 85°C, the terminal block can withstand a variety of industrial environments.

  • High Voltage and Current Rating: Rated for 300 V and up to 10 A, the S2BN1D-11130 can handle a wide range of electrical applications.

  • Reliable Materials: Made from thermoplastic and copper, it ensures durability and long-term reliability in demanding applications.

  • Ease of Installation: The terminal block is DIN rail mountable, allowing for quick and easy installation in control panels or other industrial systems.


Technical FAQs

  1. What is the maximum voltage and current rating for the S2BN1D-11130 terminal block?

    • The terminal block is rated for 300 V and 10 A, making it suitable for various industrial electrical systems.

  2. What is the function of the disconnect feature?

    • The disconnect feature allows for safe and easy disconnection of circuits, which is especially useful for maintenance, troubleshooting, or isolation of parts of a system.

  3. How is the S2BN1D-11130 mounted?

    • The terminal block is designed for DIN rail mounting, ensuring quick and secure installation in control panels or enclosures.

  4. What materials are used in the construction of the terminal block?

    • The S2BN1D-11130 is made from durable thermoplastic for the housing and copper for the internal electrical contacts, ensuring reliability and resistance to wear.

  5. What is the temperature range for operating the terminal block?

    • The terminal block can operate in temperatures ranging from -40°C to 85°C, suitable for a wide variety of industrial environments.

  6. Can the S2BN1D-11130 be used in outdoor applications?

    • While the terminal block is designed for industrial environments, additional protection may be needed for outdoor use, especially in extreme weather conditions.

  7. What industries typically use the S2BN1D-11130 terminal block?

    • It is commonly used in industrial automation, process control, manufacturing, and energy management systems.

  8. How does the disconnect feature improve safety?

    • The disconnect feature allows technicians to safely isolate parts of the circuit for maintenance or troubleshooting, reducing the risk of electrical hazards.

  9. Can multiple wires be connected to a single terminal on the S2BN1D-11130?

    • Yes, the terminal block is designed to handle multiple wire connections, allowing for flexible circuit management in control panels.

  10. What is the expected lifespan of the terminal block?

  • With proper installation and maintenance, the terminal block can last for many years, providing reliable service in industrial environments.
