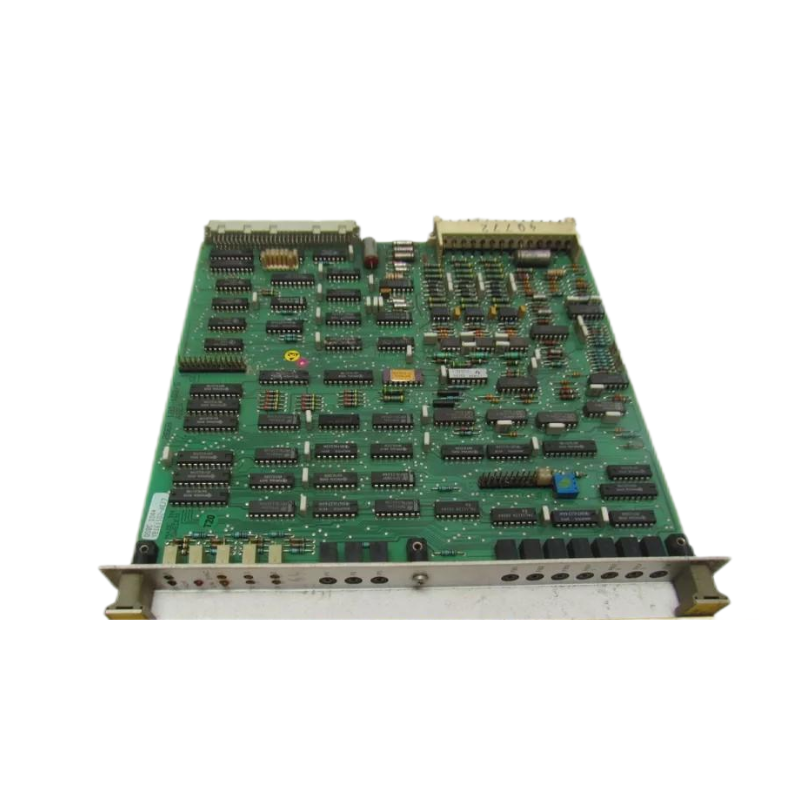

ABB DSQC104 YB161102-AE Resolver Digital Board

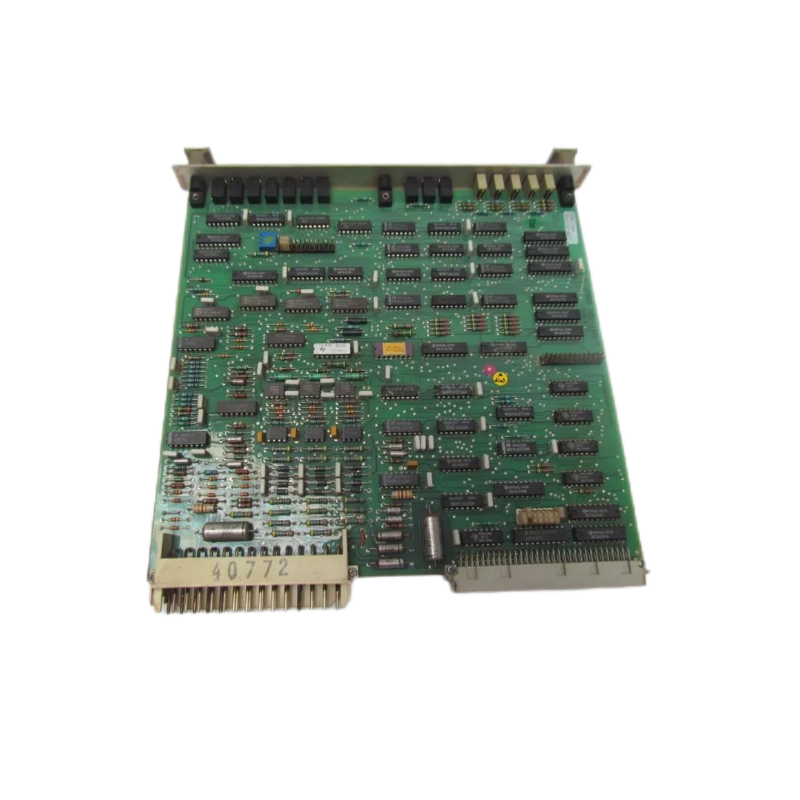

ABB CI920N 3BDS014113 Communication Interface for Industrial Automation

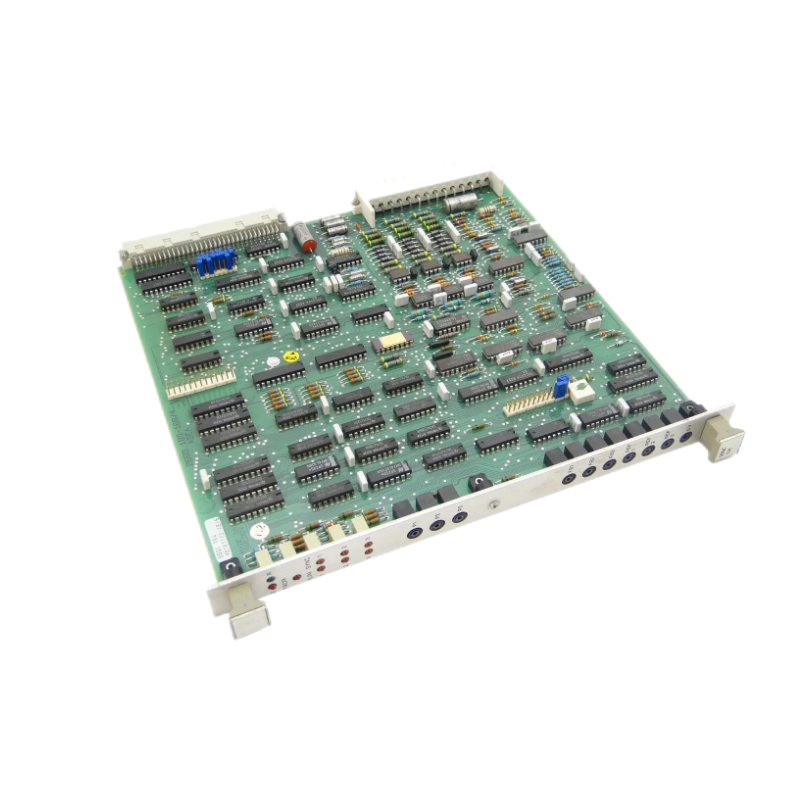

ABB DSQC104 YB161102-AE Resolver Digital Board

Name: ABB DSQC104 YB161102-AE Resolver Digital Board
Brand: ABB PLC
SKU: 2415
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:ABB PLC
Item No.:DSQC104 YB161102-AE
Product Origin:Sweden
Product Dimensions:140 × 100 × 35 mm
Product Weight:065kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Product Overview

The ABB DSQC104 YB161102-AE Resolver Digital Board is a high-precision module designed to interface with ABB industrial servo drives and robotic systems. It converts analog resolver signals into digital position data, ensuring accurate feedback for motion control applications. Engineered for reliability and durability, the DSQC104 enables smooth and precise operation of robotic arms and automated machinery, making it ideal for manufacturing, assembly, and material handling environments.

Technical Specifications (Dimensions & Weight)

Feature	Specification
Model	DSQC104 YB161102-AE
Module Type	Resolver Digital Board
Function	Analog-to-digital conversion of resolver signals
Supported Resolvers	Incremental and absolute resolvers compatible with ABB servo systems
Input Voltage	5 V DC logic supply
Power Consumption	Approx. 8 W
Operating Temperature	0 °C to +50 °C
Storage Temperature	–20 °C to +70 °C
Relative Humidity	5 % – 95 % non-condensing
Mounting	DIN rail or panel mount
Dimensions (W × H × D)	Approx. 140 × 100 × 35 mm
Net Weight	Approx. 0.65 kg

Applications

The DSQC104 Resolver Digital Board is ideal for applications requiring precise positional feedback and motion control:

Industrial robotic arms for welding, assembly, and handling
Servo-driven conveyor and material handling systems
CNC machine integration requiring high-accuracy position sensing
Automated pick-and-place and palletizing operations
Feedback and synchronization in multi-axis automation systems

Its accurate resolver-to-digital conversion ensures smooth, repeatable motion in demanding industrial processes.

Advantages

High-precision signal processing: Ensures accurate position feedback for servo and robotic systems
Compact form factor: Saves space in control panels and cabinets
Reliable industrial operation: Withstands temperature variations and industrial conditions
Versatile mounting: Supports DIN rail or panel integration
Low power consumption: Efficient operation for continuous industrial use

This board delivers precise motion control performance, making it essential for advanced automation systems.

Technical FAQs (10)

What is the primary function of the DSQC104?
Converts analog resolver signals into digital position data for robotic and servo systems.
Which types of resolvers are supported?
Compatible with incremental and absolute ABB resolvers.
What is the operating temperature range?
0 °C to +50 °C.
What is the power supply requirement?
5 V DC logic supply with approximately 8 W consumption.
Can it be mounted on a DIN rail?
Yes, DIN rail or panel mounting is supported.
What are the physical dimensions of the module?
140 × 100 × 35 mm (W × H × D).
What is the weight of the board?
Approximately 0.65 kg.
Can it be used in high-humidity environments?
Yes, it supports 5–95 % relative humidity, non-condensing.
Is it compatible with all ABB robotic controllers?
It is compatible with ABB controllers and servo drives that use resolver feedback.
What applications is it best suited for?
Robotics, CNC machinery, conveyor systems, automated assembly, and multi-axis automation requiring precise position feedback.
