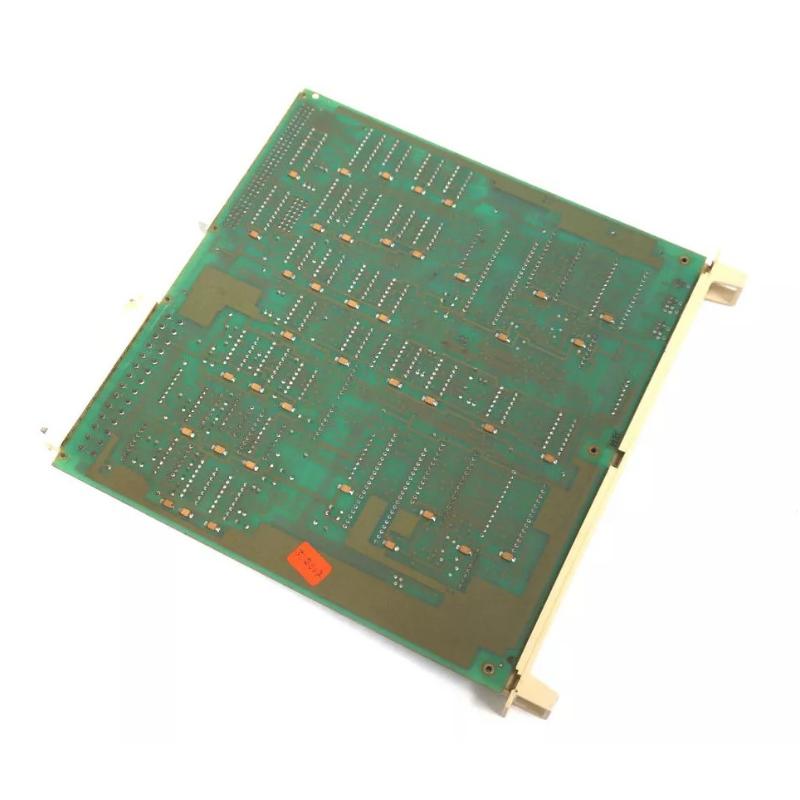

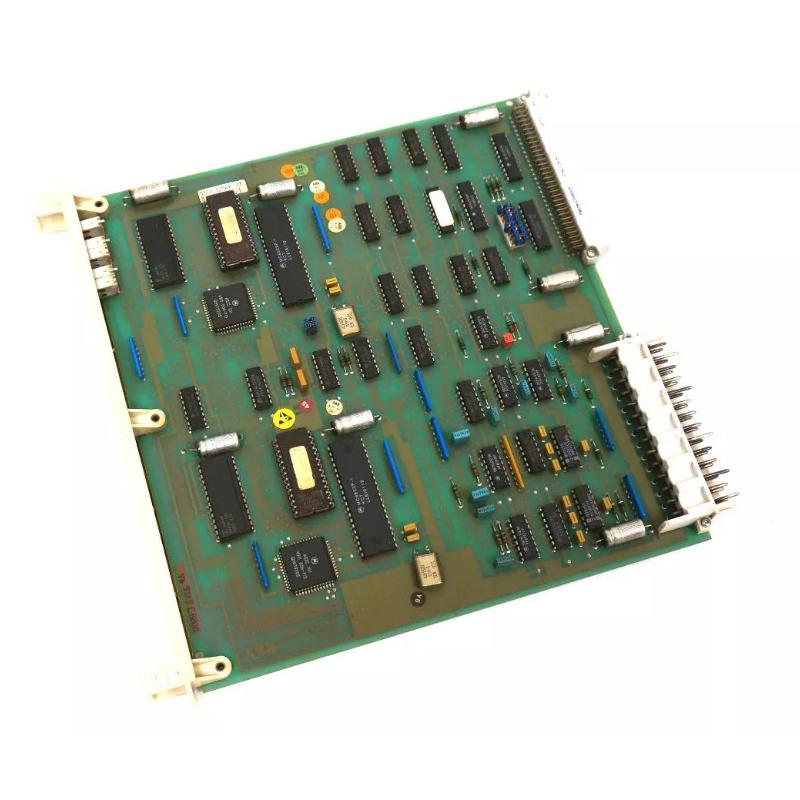

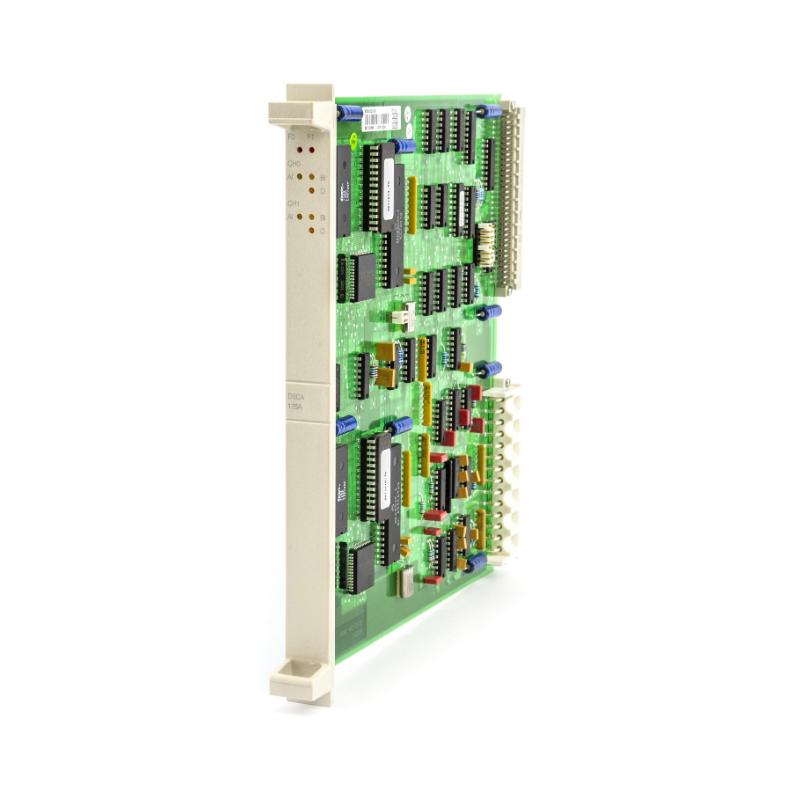

ABB DSCA 125A 57520001-CY Communication Board

Name: ABB DSCA 125A 57520001-CY Communication Board
Brand: ABB PLC
SKU: 2409
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:ABB PLC
Item No.:DSCA 125A 57520001-CY
Product Origin:Sweden
Product Dimensions:100 × 55 × 25 mm
Product Weight:0.22kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Product Overview

The ABB DSCA 125A 57520001-CY Communication Board is a high-reliability module designed to provide robust data exchange for ABB PLCs and distributed control systems. It is engineered for fast, stable, and secure communication between controllers, I/O devices, and supervisory systems. Its modular design ensures easy integration into control cabinets and simplifies network expansions while maintaining consistent performance in industrial environments.

Technical Details (Dimensions & Weight)

Feature	Specification
Model	DSCA 125A 57520001-CY
Module Type	Communication Board
Supported Protocols	Modbus RTU, PROFIBUS DP
Network Interface	RS485 / RS422
Maximum Data Rate	Up to 10 Mbps
Connector Type	Screw terminal blocks
Supply Voltage	24 V DC
Power Consumption	Approx. 4.5 W
Operating Temperature	–20 °C to +55 °C
Storage Temperature	–40 °C to +70 °C
Relative Humidity	5 % – 95 % non-condensing
Mounting	DIN rail or panel mount
Dimensions (W × H × D)	Approx. 100 × 55 × 25 mm
Net Weight	Approx. 0.22 kg

Typical Applications

The DSCA 125A Communication Board is suitable for industrial applications requiring dependable and low-latency communication:

Interfacing ABB PLCs with distributed I/O networks
Connecting process automation and control systems for data exchange
Machine-to-machine communication on assembly and production lines
Supervisory control and SCADA integration
Upgrading legacy systems to modern communication standards

Its versatility allows both new installations and retrofit projects to benefit from stable and efficient network connectivity.

Advantages & Benefits

Industrial reliability: Designed for continuous operation in demanding environments
Multi-protocol support: Supports Modbus RTU and PROFIBUS DP for flexible networking
Space-efficient design: Compact footprint allows easy integration into crowded control panels
Low power consumption: Efficient operation reduces energy usage
Simplified installation: DIN rail or panel mounting enables quick setup

These benefits make the DSCA 125A a dependable solution for industrial communication needs.

Technical FAQs (10)

Which protocols are supported?
Modbus RTU and PROFIBUS DP.
What interfaces are available?
RS485 and RS422 via screw terminal blocks.
What is the operating temperature range?
–20 °C to +55 °C.
Can it be mounted on a DIN rail?
Yes, it supports DIN rail and panel mounting.
What is the typical power consumption?
Approximately 4.5 W.
Is it compatible with ABB PLCs?
Yes, compatible with ABB controllers supporting the listed protocols.
Can it be used for both new and retrofit systems?
Yes, suitable for both applications.
What is the maximum data transfer rate?
Up to 10 Mbps.
What are the physical dimensions?
100 × 55 × 25 mm (W × H × D).
What is the weight of the module?
Approximately 0.22 kg.
