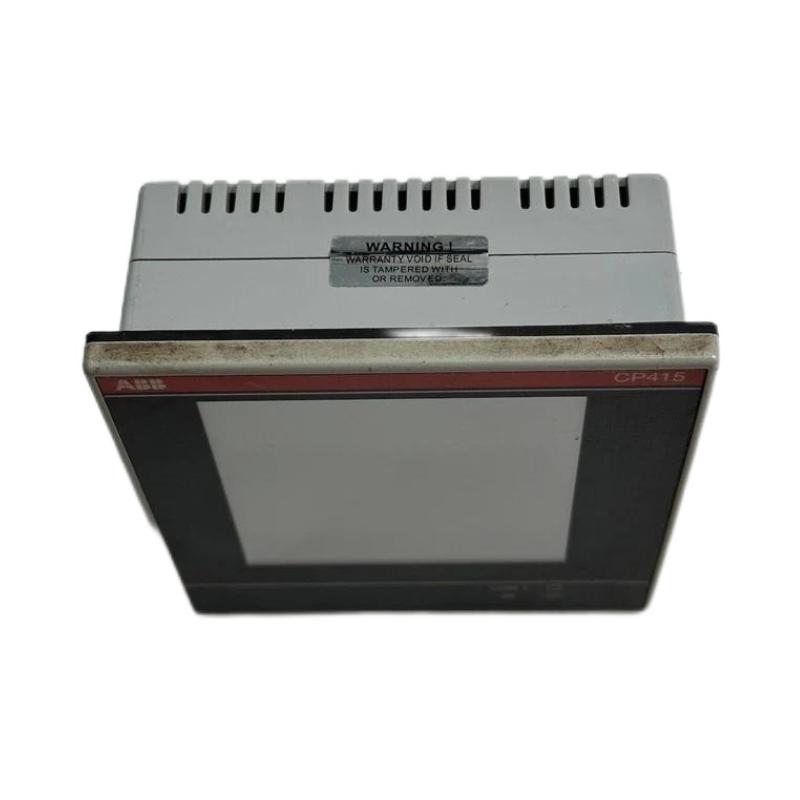

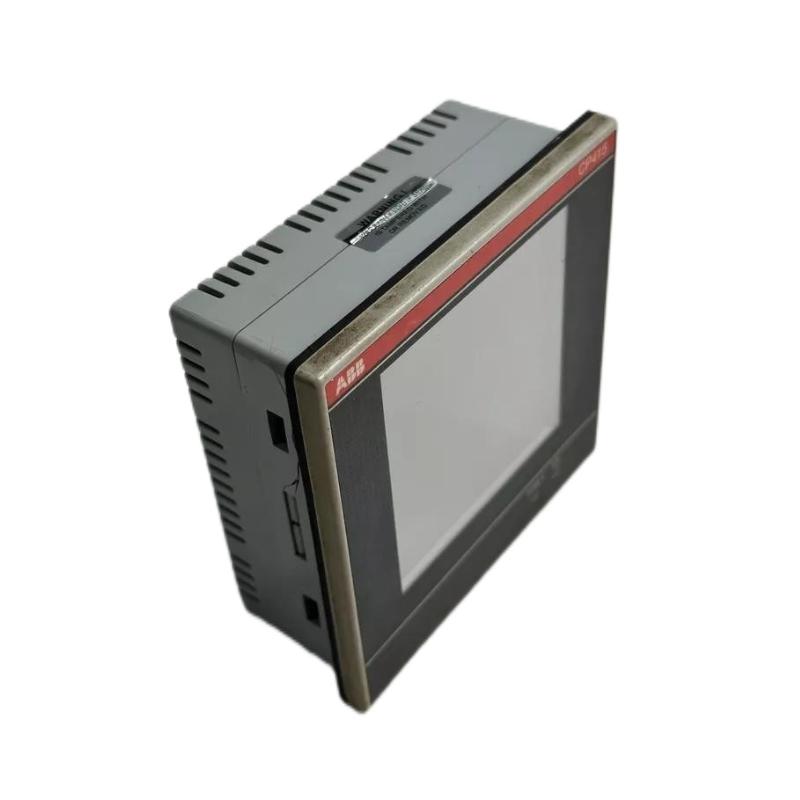

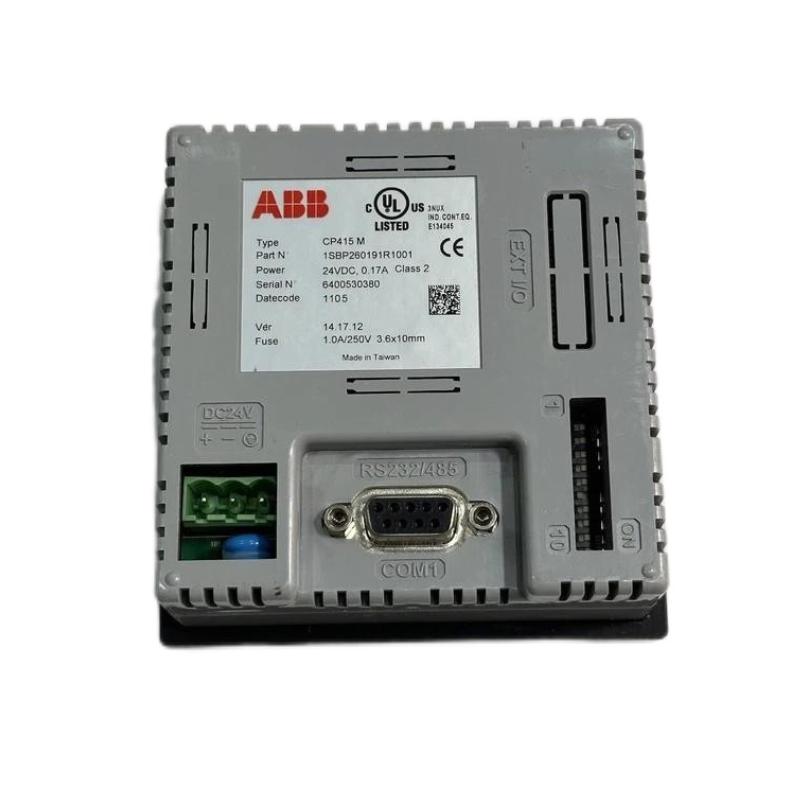

ABB CP415M 1SBP260191R1001 Touch Screen

Brand:ABB PLC
Item No.:CP415M 1SBP260191R1001
Product Origin:Sweden
Product Dimensions:96 × 96 × 41 mm
Product Weight:0.21kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

CP415M 1SBP260191R1001 1CP415M 1SBP260191R1001 3CP415M 1SBP260191R1001 4CP415M 1SBP260191R1001 2

Introduction

The ABB CP415M 1SBP260191R1001 Touch Screen is a compact industrial HMI engineered for reliable machine interaction in space-constrained control environments. Designed to balance clarity, responsiveness, and durability, this panel enables operators to monitor processes, execute commands, and respond to system events with confidence. Its intuitive touch interface combined with ABB’s proven industrial design makes it a dependable choice for OEM machine builders and automation engineers seeking long-term operational stability.

Technical Specifications Overview (Including Size & Mass)

SpecificationDetails
ModelCP415M 1SBP260191R1001
Module TypeTouch Screen / HMI Control Panel
Display Size3.5-inch diagonal
Display TechnologyMonochrome STN Touch LCD
Resolution240 × 240 pixels
Gray Levels16 levels
Active Display AreaApprox. 58.5 × 58.5 mm
Function Keys5 programmable keys
Rated Voltage24 V DC
Power ConsumptionApprox. 20 V·A
Communication InterfacesRS232 / RS422 / RS485
User Memory4000 kB
Flash / ROM4 MB
Real-Time ClockIntegrated
Front ProtectionIP65
Mounting MethodFront panel mount (0°–135°)
Operating Temperature0 °C to +50 °C
Storage Temperature–10 °C to +60 °C
Dimensions (W × H × D)Approx. 96 × 96 × 41 mm
Net WeightApprox. 0.21 kg


Applications

The CP415M offers broad applicability across sectors where clear machine feedback and responsive control are essential:

  • Supervisory control for conveyor and processing lines

  • Visualization and trend display in batch processing

  • Small-machine operator interface for packaging and assembly

  • System monitoring at field-level control stations

  • Retrofit solution for legacy automation upgrades

Its optimized size and essential feature set make it ideal for compact and mid-sized automation tasks.


Advantages

Why engineers and system integrators rely on this panel:

  • Intuitive Touch Operation: Capacitive touch and simple layout enhance usability.

  • Industrial-grade Design: Front IP65 protection ensures durability in dusty and humid environments.

  • Compact Footprint: Small panel dimensions allow flexible installation even in space-limited applications.

  • Reliable Performance: Designed for continuous use with robust electronics and thermal tolerance.

  • Seamless Integration: Works with standard serial communications and automation architectures.

These strengths make the CP415M a durable and practical choice for industrial HMI needs.


Technical FAQs

  1. What is the primary function of the CP415M?
    It serves as a human-machine interface for monitoring and controlling industrial automation systems.

  2. Does this panel support touch operation?
    Yes, it features a monochrome STN touch screen combined with physical keys.

  3. What power supply is required?
    A regulated 24 V DC supply is required.

  4. Is a real-time clock included?
    Yes, the panel includes an integrated real-time clock for time-based functions.

  5. What communication standards are supported?
    RS232, RS422, and RS485 serial communication interfaces are supported.

  6. Is the front panel suitable for harsh environments?
    Yes, it features an IP65-rated front surface.

  7. How much user memory is available?
    Approximately 4000 kB is available for user programs and configuration data.

  8. Can it be mounted at different angles?
    Yes, the panel supports front mounting between 0° and 135°.

  9. What is the operating temperature range?
    The recommended operating range is from 0 °C to +50 °C.

  10. Is this panel suitable for OEM machine integration?
    Absolutely. Its compact size and reliable performance make it ideal for OEM applications.
