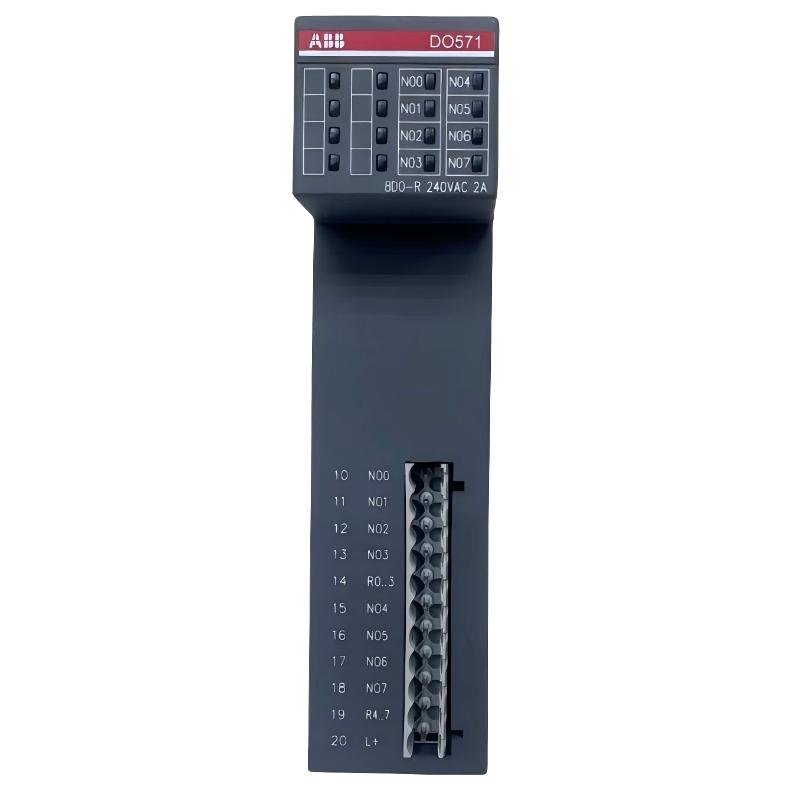

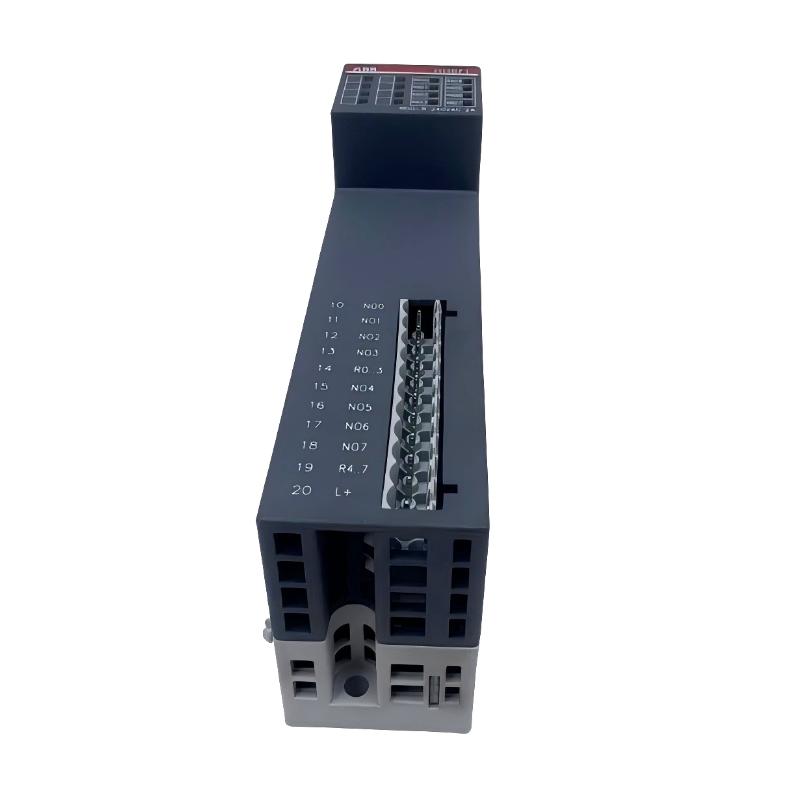

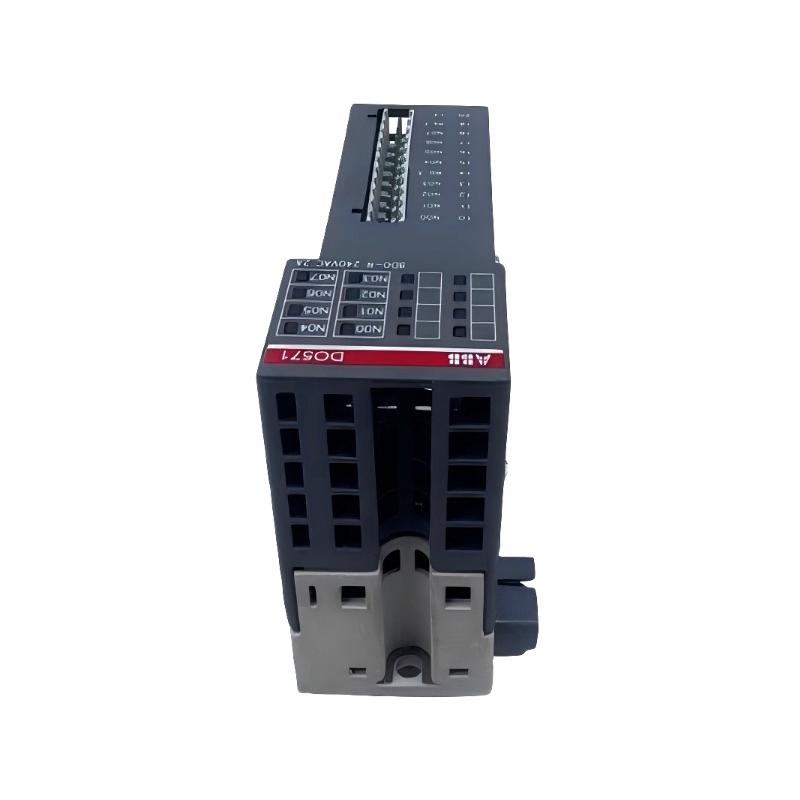

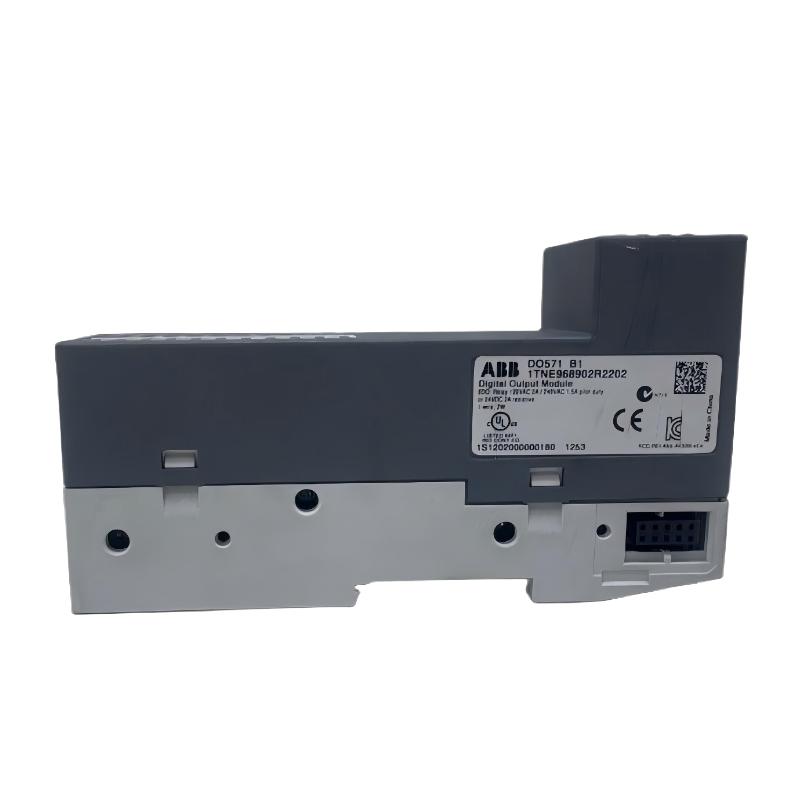

ABB DO571 1TNE968902R2202 Digital Output Module

Brand:ABB PLC
Item No.:DO571 1TNE968902R2202
Product Origin:Sweden
Product Dimensions:75 x 135 x 34 mm
Product Weight:0.138 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact


Introduction
The ABB DO571 digital output module is designed for high-performance and reliable operation within ABB distributed automation systems. Equipped with multiple digital outputs, it provides precise switching for actuators, relays, and other field devices. Its compact form factor and lightweight design make it suitable for space-constrained control panels, while maintaining robust industrial-grade performance. The module is ideal for applications where accurate and dependable digital output control is critical.

Technical Specifications

ParameterSpecification
Module TypeDigital Output Module
Dimensions75 × 135 × 34 mm (H × W × D)
Weight0.138 kg
Number of Channels8 digital outputs
Output TypeRelay or transistor outputs (configurable)
Max Load per Channel0.5 A
IsolationOptical isolation per channel
Operating Temperature0°C to 60°C
MountingDIN-rail or panel-mounted
Status IndicatorsLED per channel for output status


Applications

  • Control of actuators, solenoids, and indicator devices in industrial automation.

  • Integration into ABB distributed I/O networks for process control and factory automation.

  • Sequential or timed digital switching in manufacturing and utilities.

  • Compact control cabinet installations requiring efficient use of space.


Advantages

  • Provides precise and reliable digital output switching with channel isolation.

  • Compact design allows for installation in dense control panels.

  • LED indicators simplify troubleshooting and status monitoring.

  • Fully compatible with ABB distributed automation systems.

  • Reduces wiring complexity and enhances operational reliability.


Technical FAQs

  1. How many digital output channels does the DO571 have?
    It provides 8 digital output channels.

  2. What types of outputs are supported?
    Configurable relay or transistor outputs.

  3. Is each channel isolated?
    Yes, channels are optically isolated.

  4. Can it be mounted on DIN rails?
    Yes, supports both DIN-rail and panel mounting.

  5. Are there status indicators?
    Yes, each channel has an LED for output status.

  6. What is the maximum current per channel?
    Up to 0.5 A per channel.

  7. Is it compatible with non-ABB systems?
    Primarily designed for ABB distributed I/O systems.

  8. What is the operating temperature range?
    0°C to 60°C.

  9. Can it be used in compact control cabinets?
    Yes, its slim design allows for dense installations.

  10. Does it require configuration software?
    Yes, the module must be configured in ABB system software for proper operation.
