ABB DO562 1SAP230900R0000 Digital Output Module

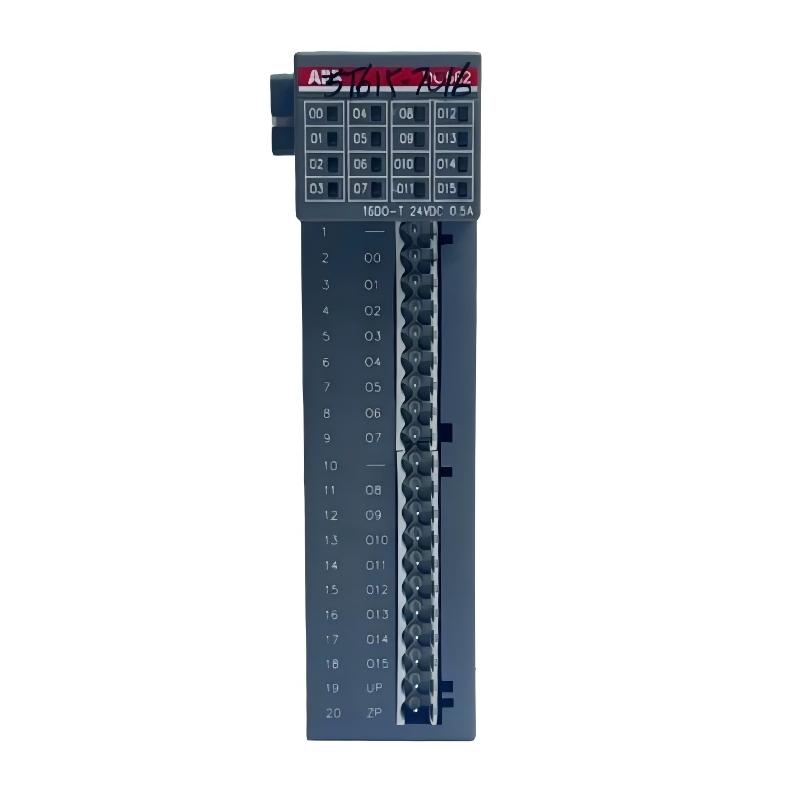

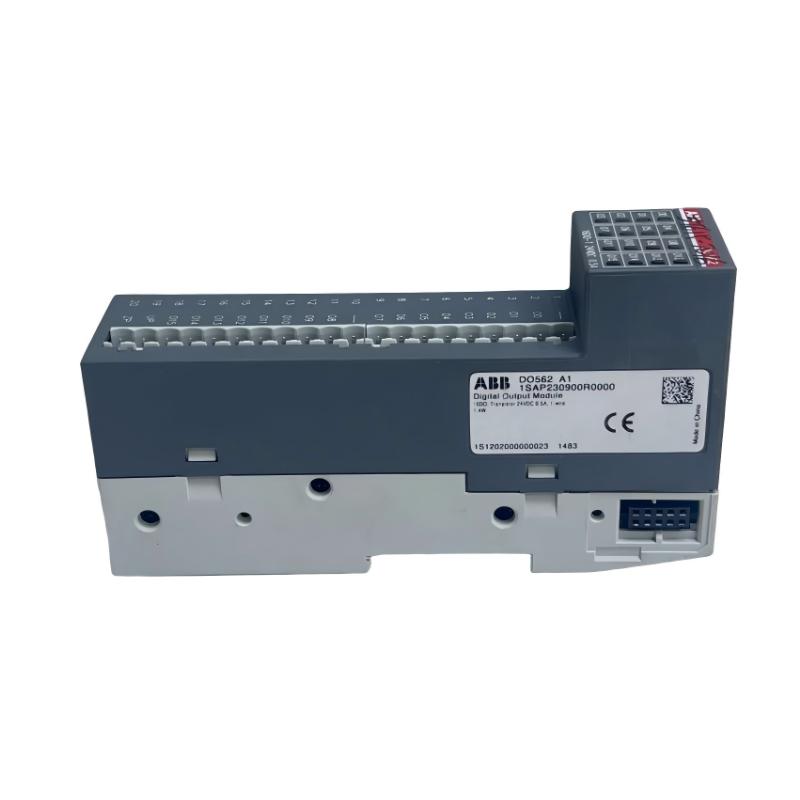

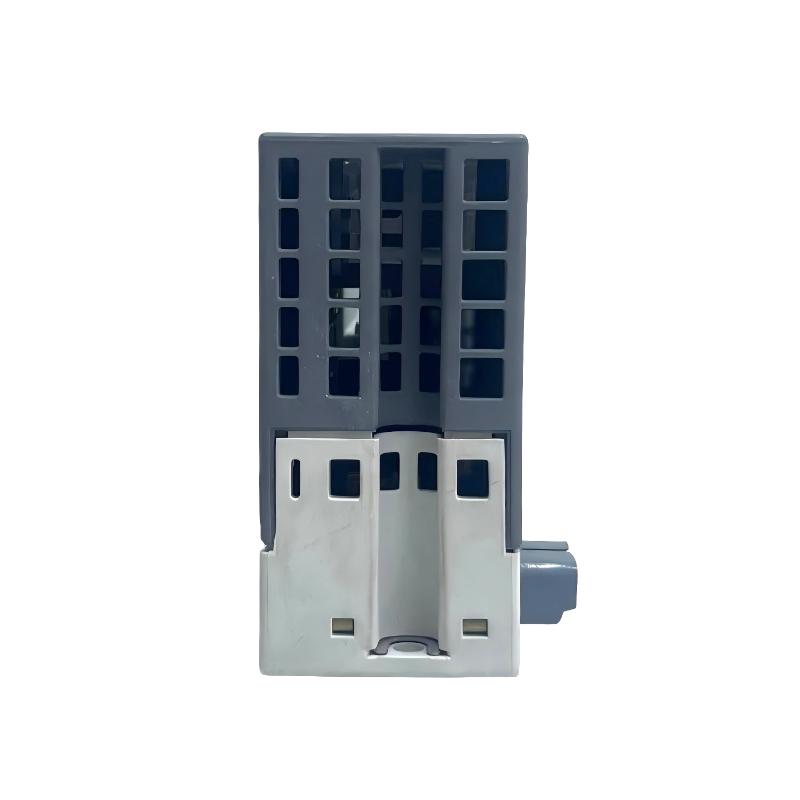

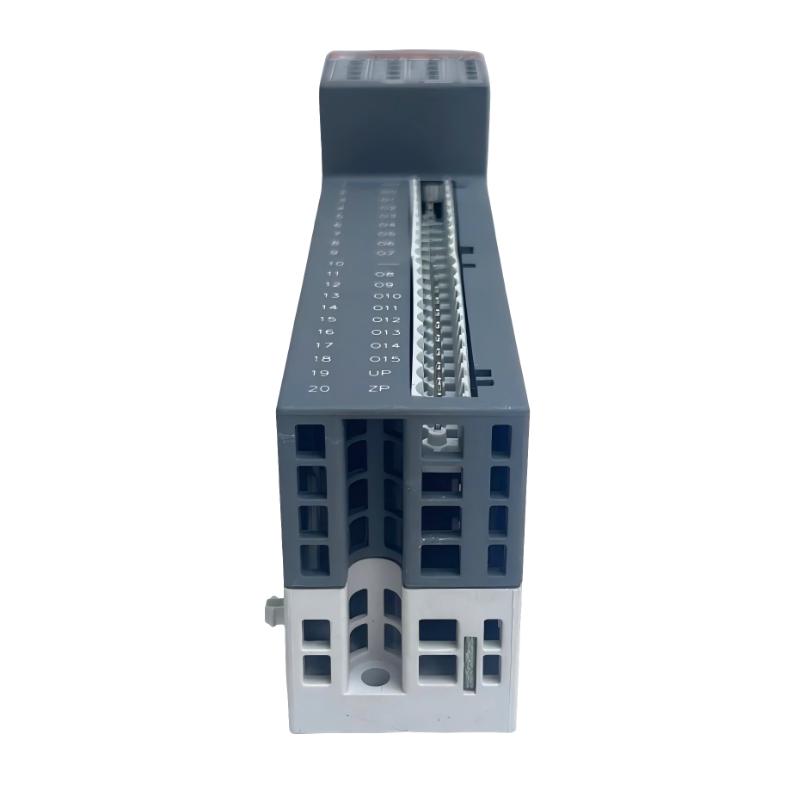

Name: ABB DO562 1SAP230900R0000 Digital Output Module
Brand: ABB PLC
SKU: 2307
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:ABB PLC
Item No.:DO562 1SAP230900R0000
Product Origin:Sweden
Product Dimensions:75 x 135 x 34 mm
Product Weight:0.16 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction
The ABB DO562 digital output module is designed for reliable performance in ABB distributed control systems. It provides precise switching of actuators, relays, and other field devices, enabling efficient automation in industrial environments. Its compact and lightweight design allows for easy installation in control cabinets with limited space. The DO562 is engineered for seamless integration with ABB I/O networks, offering stable operation and straightforward troubleshooting.

Technical Specifications

Parameter	Specification
Module Type	Digital Output Module
Dimensions	75 × 135 × 34 mm (H × W × D)
Weight	0.16 kg
Number of Channels	8 digital outputs
Output Type	Relay or transistor outputs (configurable)
Max Load per Channel	0.5 A
Isolation	Optical isolation per channel
Operating Temperature	0°C to 60°C
Mounting	DIN-rail or panel-mounted
Status Indicators	LED per channel for output status

Applications

Control of actuators, solenoids, and indicator devices in industrial automation.
Integration into ABB distributed I/O networks for process and factory automation.
Sequential or timed switching in manufacturing, utilities, and processing plants.
Compact control cabinet installations where space efficiency is important.

Advantages

Provides reliable digital switching with optical isolation for each channel.
Compact and lightweight for easy installation in dense cabinets.
LED indicators simplify troubleshooting and monitoring.
Fully compatible with ABB distributed automation systems.
Reduces wiring complexity while enhancing system reliability.

Technical FAQs

How many output channels does the DO562 have?
It provides 8 digital output channels.
What types of outputs are supported?
Configurable relay or transistor outputs.
Is each channel isolated?
Yes, channels are optically isolated.
Can it be mounted on DIN rails?
Yes, it supports both DIN-rail and panel mounting.
Are there status indicators?
Yes, each channel has an LED for output status.
What is the maximum current per channel?
Up to 0.5 A per channel.
Is it compatible with non-ABB systems?
Primarily designed for ABB distributed I/O systems.
What is the operating temperature range?
0°C to 60°C.
Can it be used in compact control cabinets?
Yes, its design is ideal for dense cabinet installations.
Does it require configuration software?
Yes, the module must be configured in ABB system software for proper operation.
