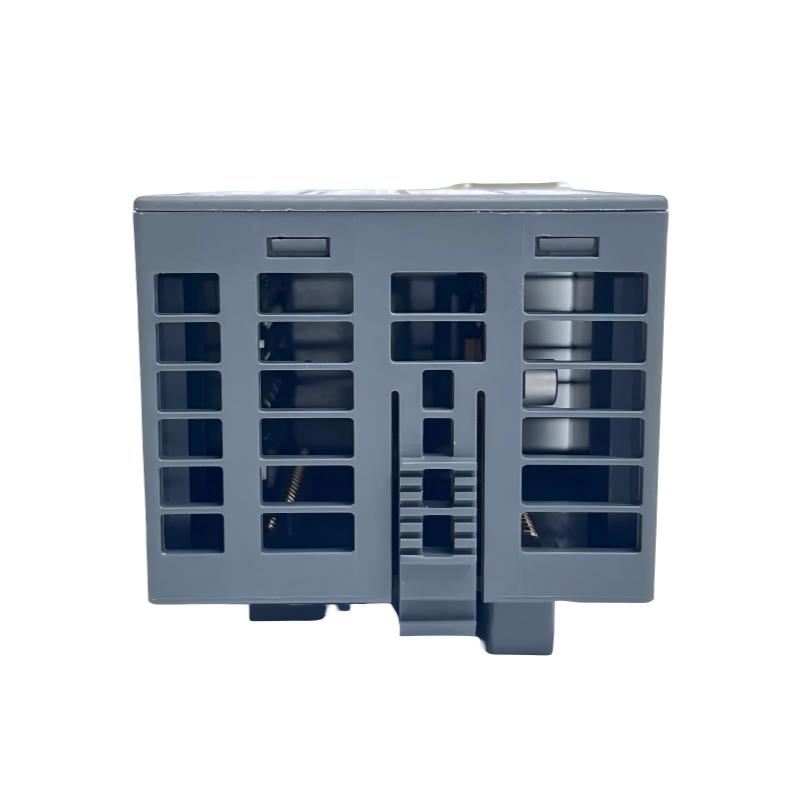

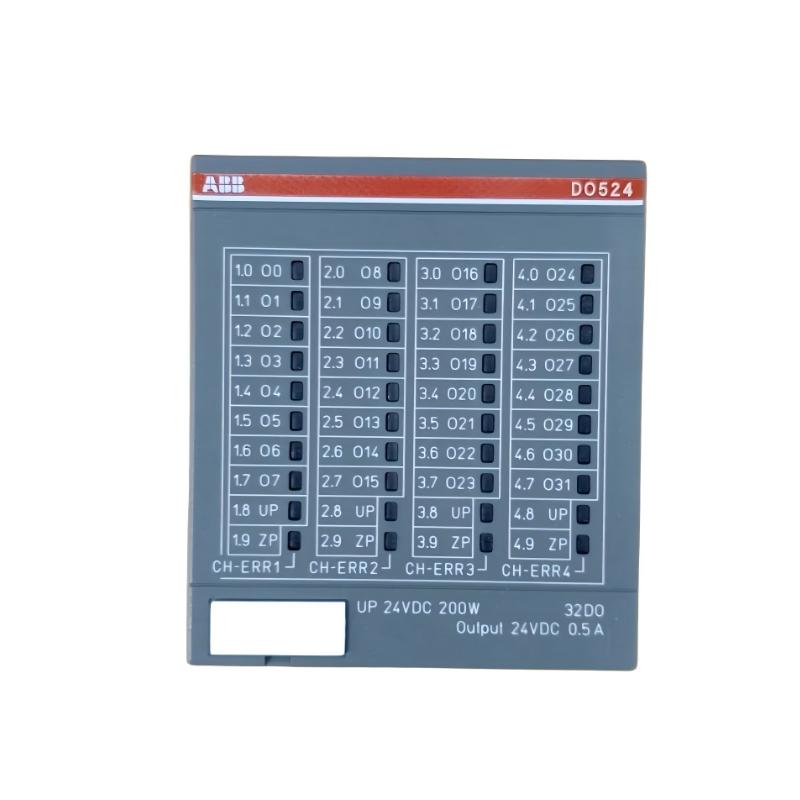

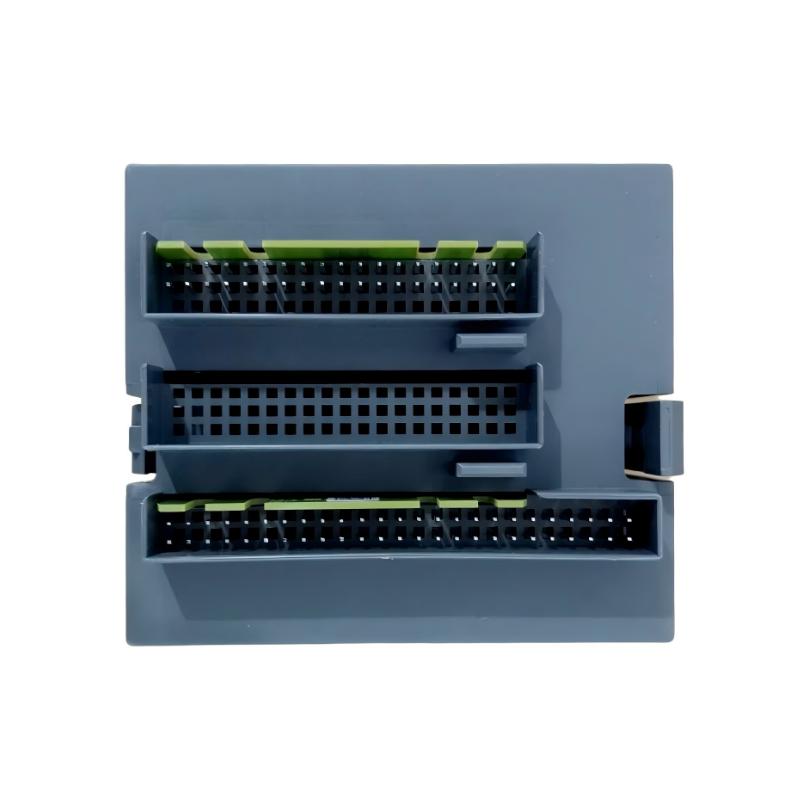

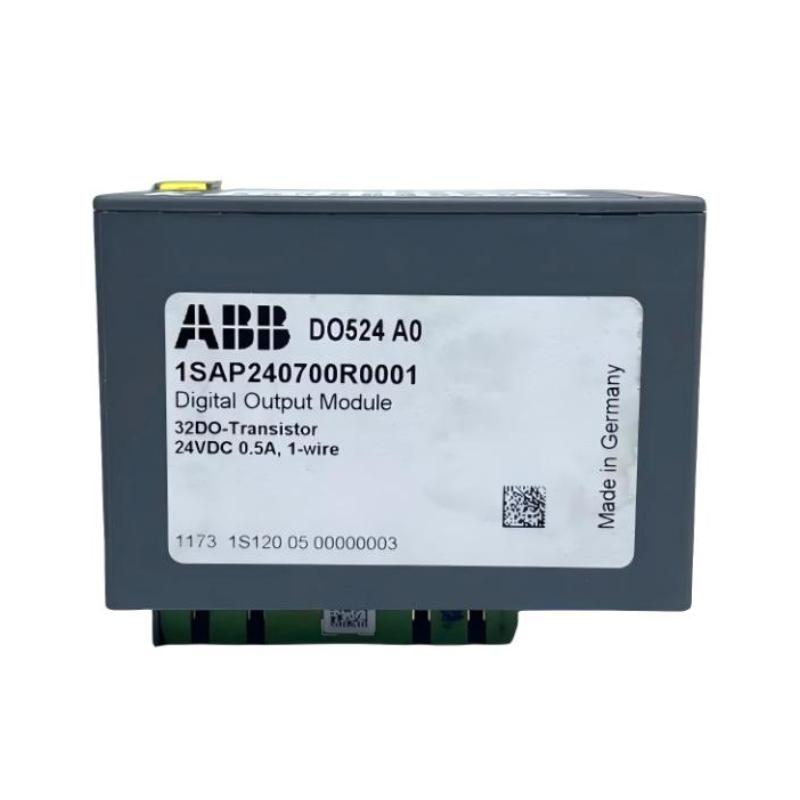

ABB DO524 1SAP240700R0001 Digital Output Module

Brand:ABB PLC
Item No.:DO524 1SAP240700R0001
Product Origin:Sweden
Product Dimensions:62 x 76 x 67.5 mm
Product Weight:0.106 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact


Introduction
The ABB DO524 digital output module is engineered for high-reliability performance in ABB distributed control and automation systems. Designed for precise switching of actuators and signal devices, the DO524 ensures stable operation in industrial environments. Its compact size makes it ideal for dense control cabinets, and its lightweight construction simplifies installation and handling. This module is widely used in applications where accurate digital output control is critical.

Technical Specifications

ParameterSpecification
Module TypeDigital Output Module
Dimensions62 × 76 × 67.5 mm (H × W × D)
Weight0.106 kg
Number of Channels4 digital outputs
Output TypeRelay or transistor (configurable)
Max Load per Channel0.5 A
IsolationOptical isolation between channels
Operating Temperature0°C to 60°C
MountingDIN-rail or panel-mounted
Status IndicatorsLED per channel for output status


Applications

  • Driving actuators, solenoids, and indicator lights in industrial automation systems.

  • Integration with ABB distributed I/O networks for process and factory automation.

  • Digital output management in compact control cabinets.

  • Sequential control or timed switching applications in manufacturing and utilities.


Advantages

  • Provides reliable digital switching with optical isolation for each channel.

  • Compact and lightweight for easy integration in tight spaces.

  • LED indicators simplify troubleshooting and status monitoring.

  • Compatible with ABB distributed control systems for seamless integration.

  • Reduces wiring complexity and enhances system reliability.


Technical FAQs

  1. How many output channels does the DO524 provide?
    It provides 4 digital output channels.

  2. What types of outputs are supported?
    Configurable relay or transistor outputs.

  3. Does the module provide isolation?
    Yes, channels are optically isolated to prevent interference.

  4. Can it be mounted on DIN rails?
    Yes, DIN-rail or panel mounting is supported.

  5. Are status LEDs available?
    Yes, each output channel has an LED indicator.

  6. What is the maximum current per channel?
    Up to 0.5 A per channel.

  7. Is it compatible with non-ABB systems?
    It is designed primarily for ABB distributed I/O systems.

  8. What is the operating temperature range?
    0°C to 60°C.

  9. Can it handle dense control cabinet layouts?
    Yes, its compact design is ideal for high-density installations.

  10. Does it require configuration software?
    Yes, channel addressing and operational parameters must be configured in ABB system software.
