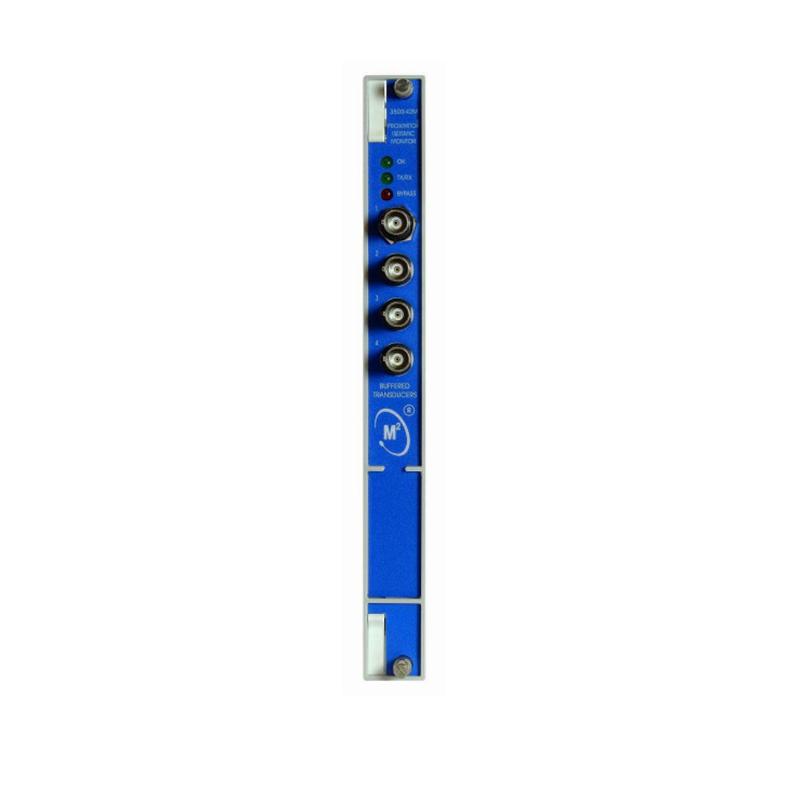

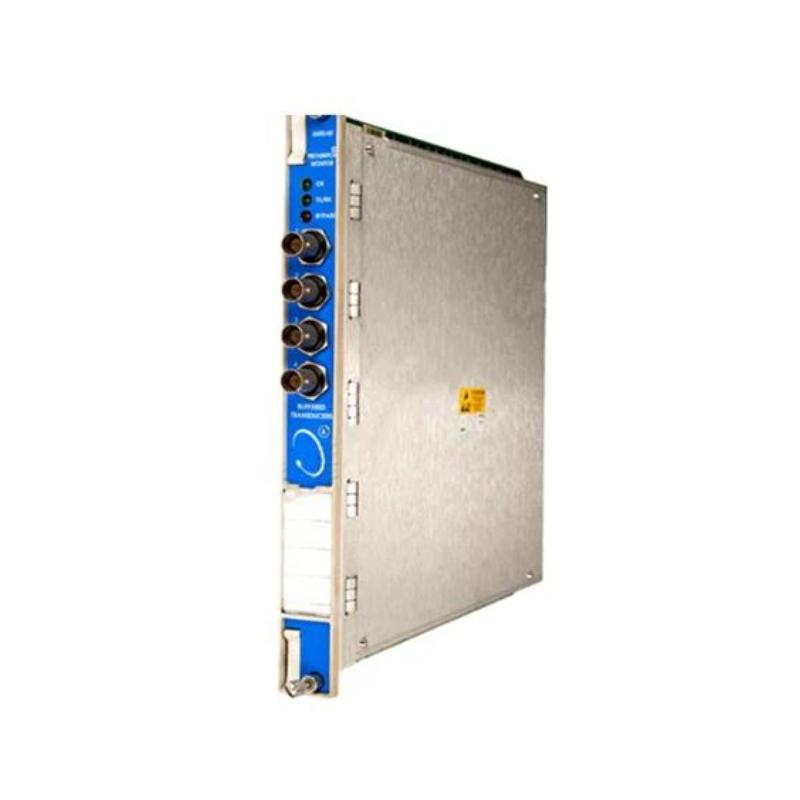

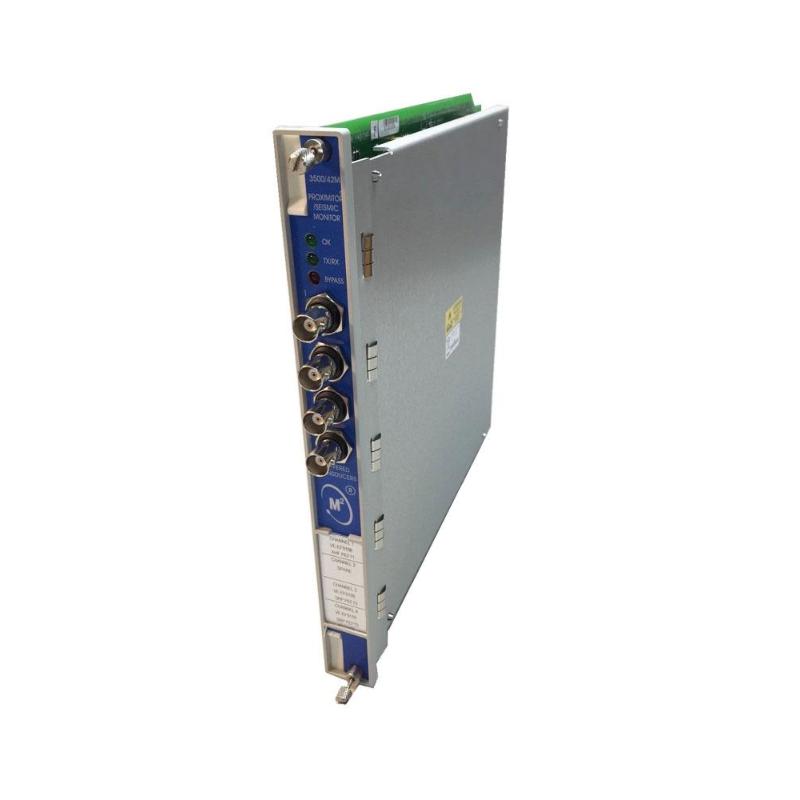

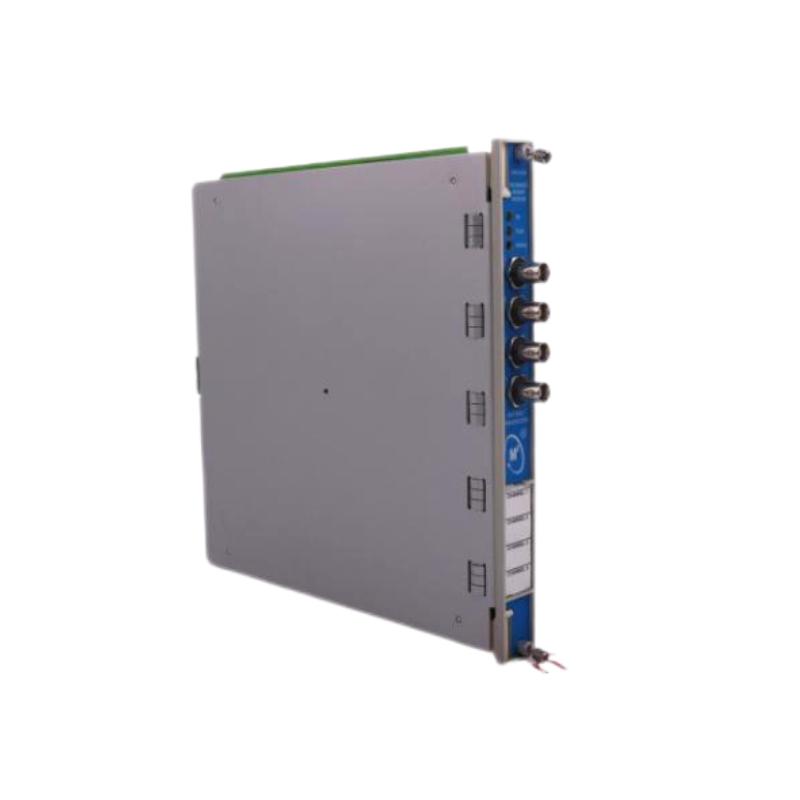

Bently Nevada 3500/42 176449-02 Monitor Module

Name: Bently Nevada 3500/42 176449-02 Monitor Module
Brand: Bently Nevada PLC
SKU: 230
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Bently Nevada PLC
Item No.:3500/42 176449-02
Product Origin:USA
Product Dimensions:241.3 x 24.4 x 241.8 mm
Product Weight:0.91 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The Bently Nevada 3500/42 (176449-02) is a robust vibration monitoring module designed for the 3500 Series machinery protection system. From an industrial reliability perspective, this module provides continuous, real-time monitoring of critical rotating equipment, delivering early-warning alarms and trip functionality. Its design supports predictive maintenance, minimizing downtime and enhancing operational safety in power plants, petrochemical facilities, and other industrial environments.

Technical Specifications

Parameter	Description
Model Number	3500/42
Part Number	176449-02
Module Type	Vibration Monitor Module
Function	Monitors vibration in rotating machinery and provides configurable alarm/trip outputs
Compatibility	Integrates with Bently Nevada 3500 Series racks
Signal Inputs	Accepts velocity, acceleration, or displacement transducers
Alarm/Trip Outputs	Configurable via system software to suit operational requirements
Operating Temperature	0 °C to 70 °C
Storage Temperature	–40 °C to 85 °C
Dimensions	241.3 × 24.4 × 241.8 mm (H × W × D)
Weight	0.91 kg
Mounting	Standard 19-inch rack compatible with 3500 Series chassis

Applications

Monitoring turbines, compressors, pumps, and other critical rotating machinery
Early detection of imbalance, misalignment, bearing wear, and mechanical anomalies
Triggering alarms and trips to prevent equipment damage or catastrophic failure
Supporting predictive maintenance programs and reliability engineering
Integration into plant-wide monitoring, control, and asset management systems

Advantages

High reliability — designed for continuous 24/7 industrial operation
Precise vibration monitoring — early detection of mechanical issues
Configurable alarm/trip thresholds — adaptable to specific machinery requirements
Compact and rack-friendly — fits directly into 3500 Series chassis
Industrial-grade construction — ensures durability in harsh operating conditions

Technical FAQs

What is the primary function of this module?
Monitors vibration in rotating machinery and provides configurable alarm and trip outputs.
Which sensors are compatible?
Velocity, acceleration, or displacement transducers compatible with 3500 Series modules.
What is the operating temperature range?
0 °C to 70 °C; storage –40 °C to 85 °C.
Can it integrate with other 3500 Series modules?
Yes, fully compatible within 3500 Series racks.
How is the module mounted?
Standard 19-inch rack mounting in 3500 Series chassis.
How are alarm and trip thresholds configured?
Using 3500 Series software, thresholds and outputs can be customized.
Is it suitable for continuous operation?
Yes, designed for 24/7 industrial monitoring.
What happens if vibration exceeds alarm levels?
Alarm signals are triggered, and trip outputs may engage if configured.
What are the dimensions and weight of the module?
241.3 × 24.4 × 241.8 mm (H × W × D); weight 0.91 kg.
Which industries commonly use this module?
Power generation, petrochemical, oil & gas, chemical, and other industrial facilities with critical rotating machinery.
