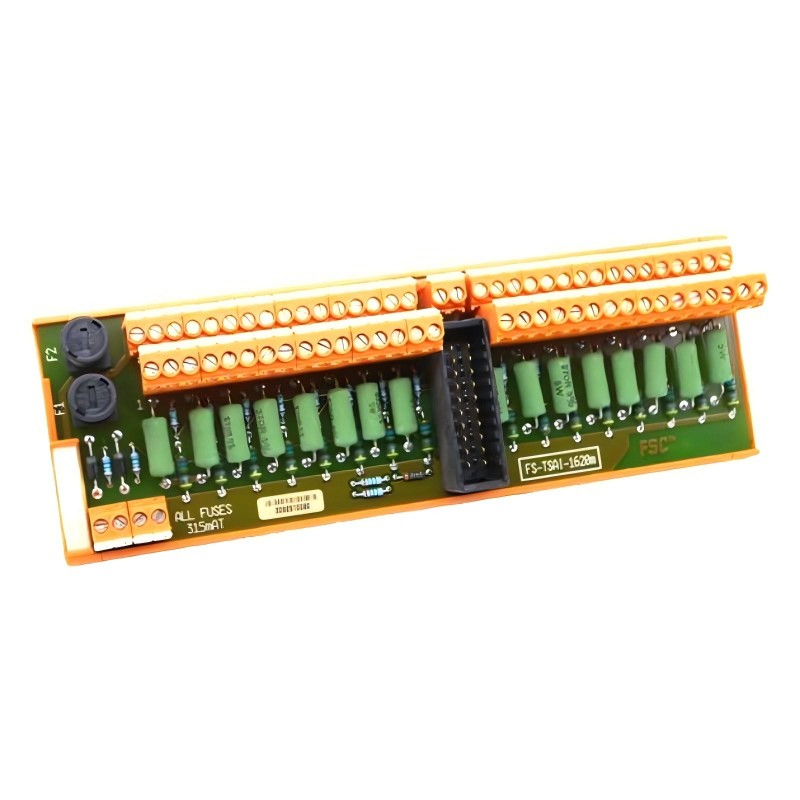

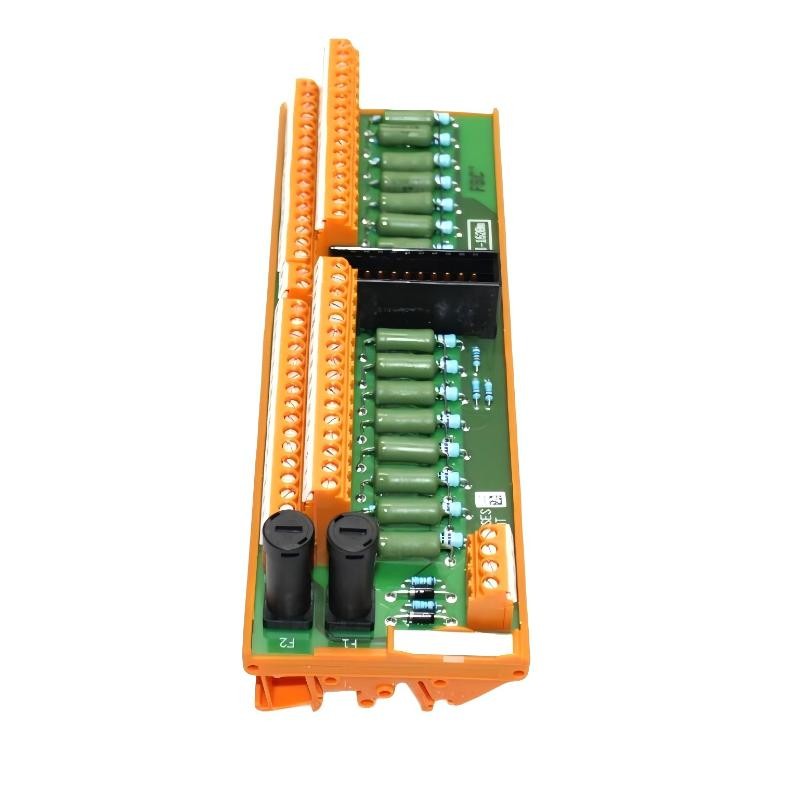

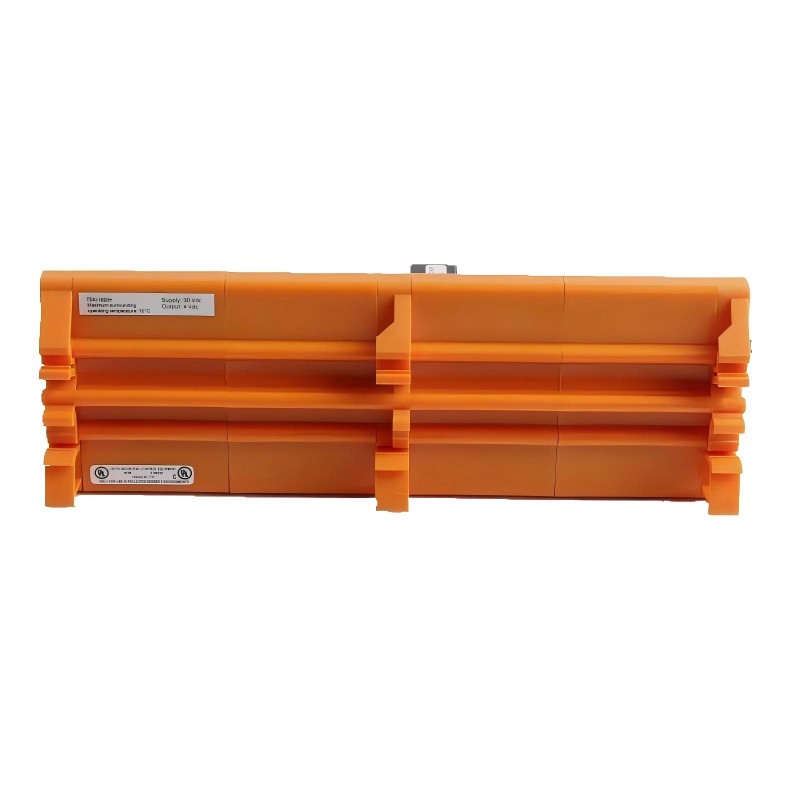

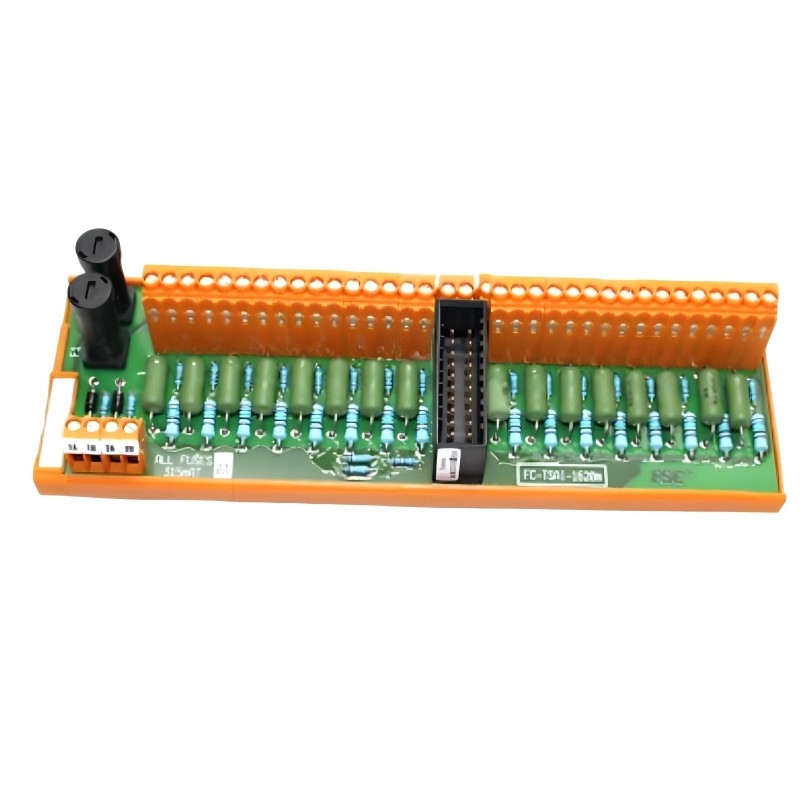

Honeywell FC-TSAL-1620M Analog Input Module

Brand:Honeywell DCS
Item No.:FC-TSAL-1620M
Product Origin:USA
Product Dimensions:120 x 130 x 35 mm
Product Weight:0.3 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact


Introduction
The Honeywell FC-TSAL-1620M is a high-precision analog input module designed for industrial process control systems. With 16 channels for continuous signal acquisition, it enables accurate monitoring of sensors and field devices. Its compact form factor and modular design make it ideal for applications requiring dense signal collection without compromising reliability. The module is engineered to provide stable, low-noise data acquisition, ensuring consistent performance in demanding industrial environments.

Technical Specifications

ParameterSpecification
Module TypeAnalog Input Module
Dimensions120 × 130 × 35 mm (H × W × D)
Weight0.3 kg
Number of Channels16 analog input channels
Input Range±10 V, 0–20 mA (configurable)
Resolution16-bit
IsolationChannel-to-channel isolation
Operating Temperature0°C to 60°C
MountingDIN-rail or panel-mounted
Status IndicatorsLED for module health and communication status


Applications

  • Real-time monitoring of process variables such as temperature, pressure, and flow.

  • Integration into Honeywell distributed control systems for industrial automation.

  • Data acquisition for chemical, pharmaceutical, or manufacturing processes.

  • High-density analog signal collection in compact control cabinets.


Advantages

  • Provides high-accuracy analog signal acquisition with 16-bit resolution.

  • Supports multiple input types and ranges for versatile sensor integration.

  • Optical isolation between channels enhances system reliability and safety.

  • Compact and lightweight design simplifies integration into tight spaces.

  • Robust industrial-grade performance ensures consistent operation under harsh conditions.


Technical FAQs

  1. How many analog input channels does the FC-TSAL-1620M support?
    It supports 16 channels.

  2. What input signal ranges are supported?
    Configurable for ±10 V and 0–20 mA signals.

  3. Is the module isolated?
    Yes, channels are optically isolated for safety and reliability.

  4. Can it be mounted on a DIN rail?
    Yes, it supports both DIN-rail and panel mounting.

  5. What resolution does it provide?
    16-bit resolution for precise analog measurement.

  6. Is it compatible with Honeywell PLCs only?
    Yes, primarily designed for Honeywell FC series systems.

  7. Does it provide status indicators?
    Yes, LEDs indicate module health and communication status.

  8. What is the operating temperature range?
    0°C to 60°C.

  9. Can it handle high-density installations?
    Yes, its compact size allows multiple modules to be installed in limited space.

  10. Does it require configuration software?
    Yes, channel mapping and input ranges must be configured in the Honeywell system software.
