Bently Nevada 3500/42 138708-01 Monitor Module

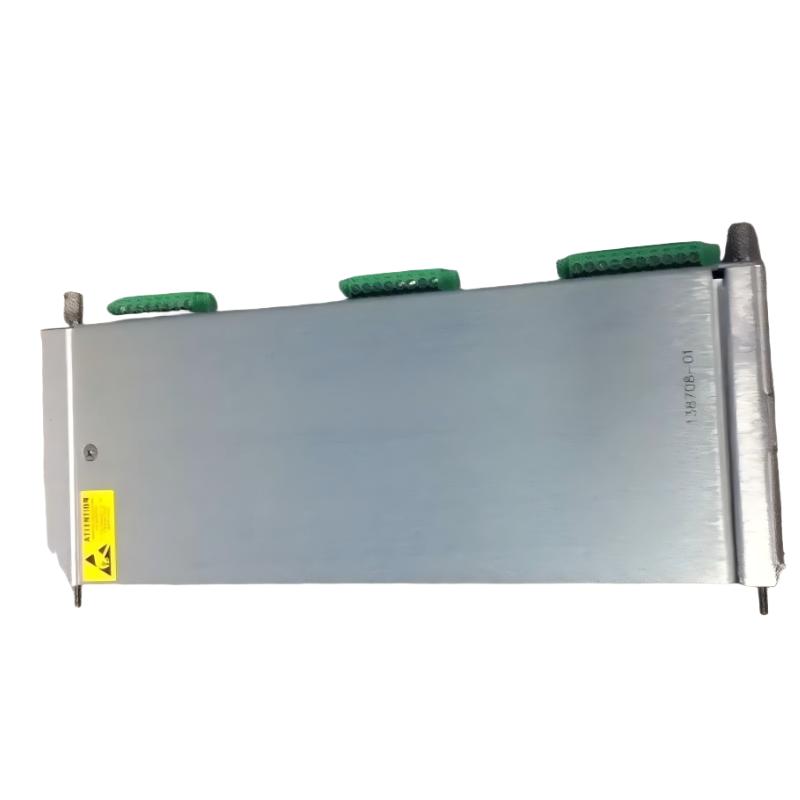

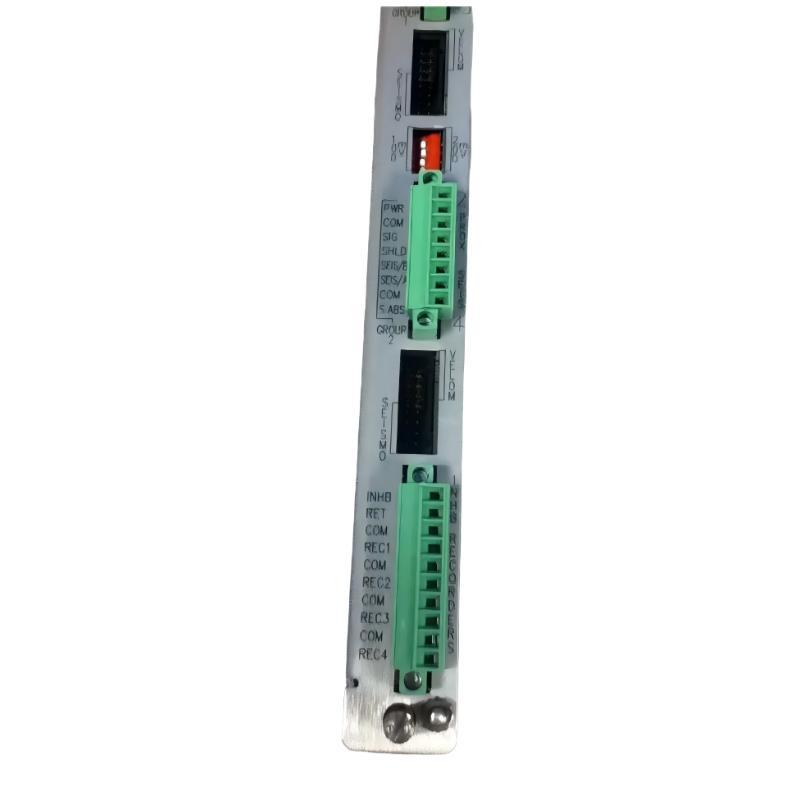

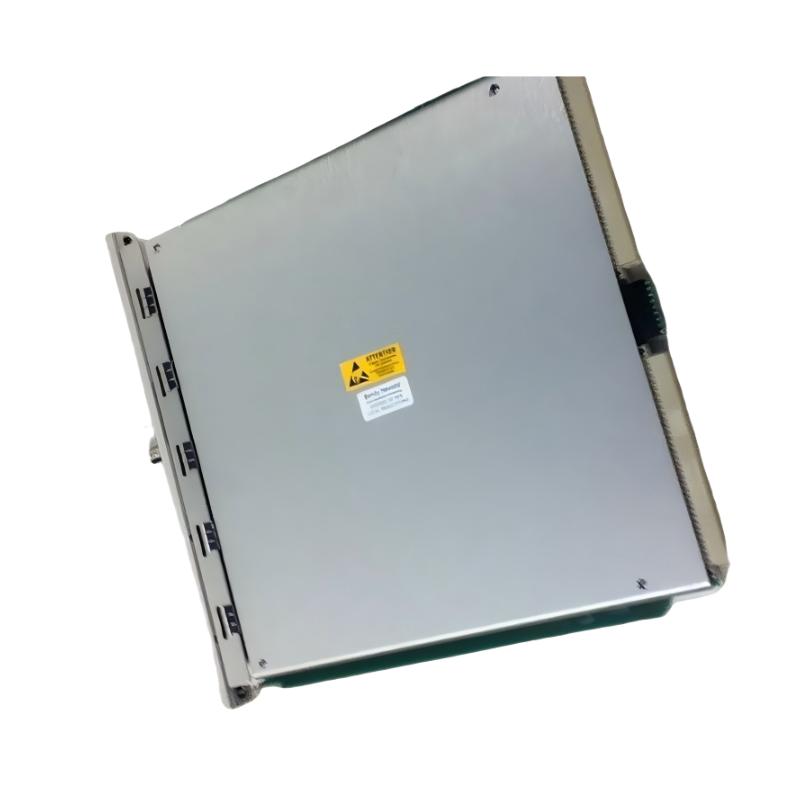

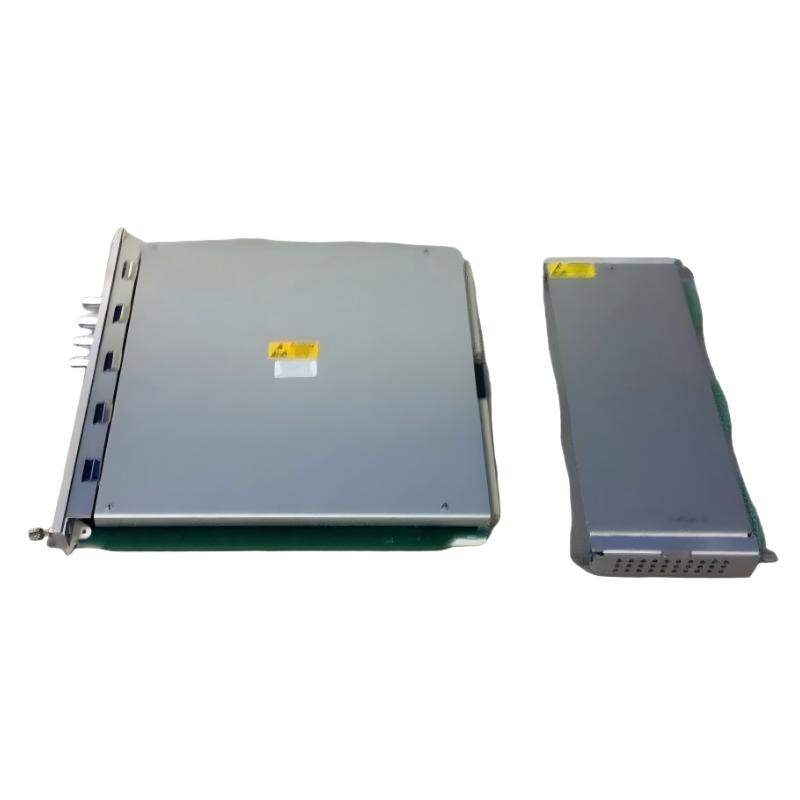

Name: Bently Nevada 3500/42 138708-01 Monitor Module
Brand: Bently Nevada PLC
SKU: 225
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Bently Nevada PLC
Item No.:3500/42 138708-01
Product Origin:USA
Product Dimensions:241.3 x 24.4 x 163.1mm
Product Weight:0.46 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The Bently Nevada 3500/42 (138708-01) is a compact, high-precision vibration monitoring module designed for the 3500 Series machinery protection system. Written from an engineer’s practical perspective, this module emphasizes reliability, continuous operation, and ease of integration. It monitors critical rotating equipment, providing early alerts to prevent mechanical failures and support predictive maintenance programs.

Technical Specifications

Parameter	Description
Model Number	3500/42
Part Number	138708-01
Module Type	Vibration Monitor Module
Function	Monitors vibration in rotating machinery; provides configurable alarm/trip outputs
Compatibility	Integrates with Bently Nevada 3500 Series racks
Signal Inputs	Accepts velocity, acceleration, or displacement transducers
Alarm/Trip Outputs	Configurable via system software based on threshold settings
Operating Temperature	0 °C to 70 °C
Storage Temperature	–40 °C to 85 °C
Dimensions	241.3 × 24.4 × 163.1 mm (H × W × D)
Weight	0.46 kg
Mounting	Standard 19-inch rack compatible with 3500 Series chassis

Applications

Real-time monitoring of turbines, compressors, pumps, and other critical rotating machinery
Early detection of imbalance, misalignment, bearing wear, and other mechanical anomalies
Triggering alarms and trips to prevent equipment damage
Supporting predictive maintenance and reliability programs
Integration into plant-wide asset management and monitoring systems

Advantages

Compact and lightweight — 0.46 kg for easy handling and installation
Reliable industrial performance — continuous 24/7 operation capability
High-precision vibration monitoring — detects early machinery anomalies
Configurable thresholds — alarms and trips tailored to specific equipment
Seamless integration — fits directly into Bently Nevada 3500 Series racks

Technical FAQs

What is the main function of this module?
To monitor vibration in rotating machinery and provide configurable alarms and trip outputs.
Which sensors are compatible?
Velocity, acceleration, or displacement transducers compatible with 3500 Series modules.
What is the operating temperature range?
0 °C to 70 °C; storage –40 °C to 85 °C.
Is it compatible with other 3500 Series modules?
Yes, fully integrates with 3500 Series racks.
How is it mounted?
Standard 19-inch rack mounting in 3500 Series chassis.
How are alarms and trips configured?
Using 3500 Series software to set threshold levels and output behavior.
Is it suitable for continuous monitoring?
Yes, designed for 24/7 operation in industrial environments.
What happens if vibration exceeds alarm levels?
Alarm signals are triggered, and trip outputs may engage if configured.
What is the module’s weight?
0.46 kg, lightweight and easy to handle.
Which industries commonly use this module?
Power generation, petrochemical, oil & gas, chemical, and other facilities with critical rotating machinery.
