Honeywell DC-TAID01 Analog Input Module

ABB CI920N 3BDS014113 Communication Interface for Industrial Automation

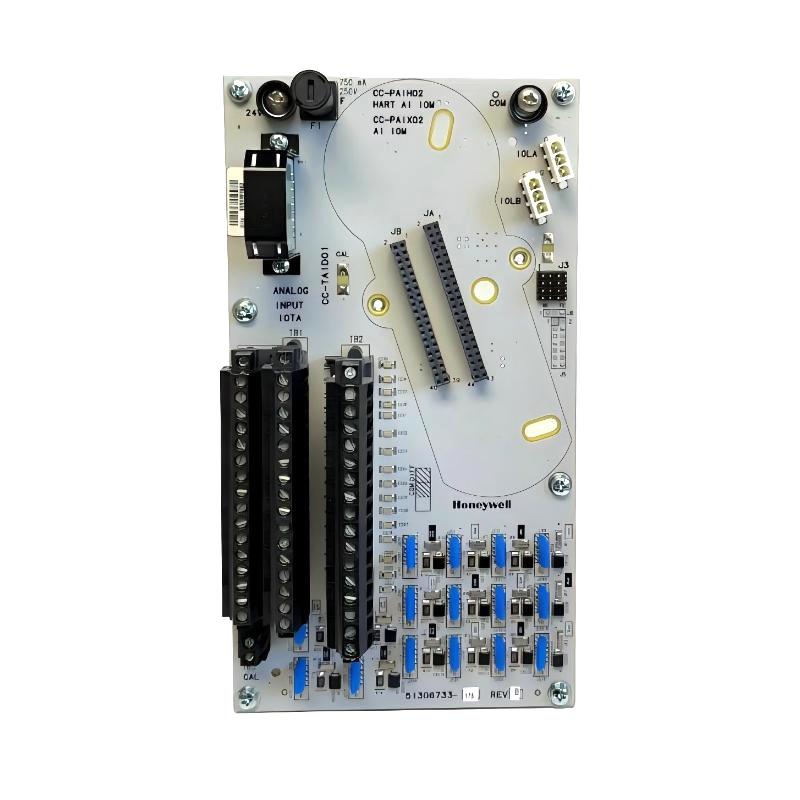

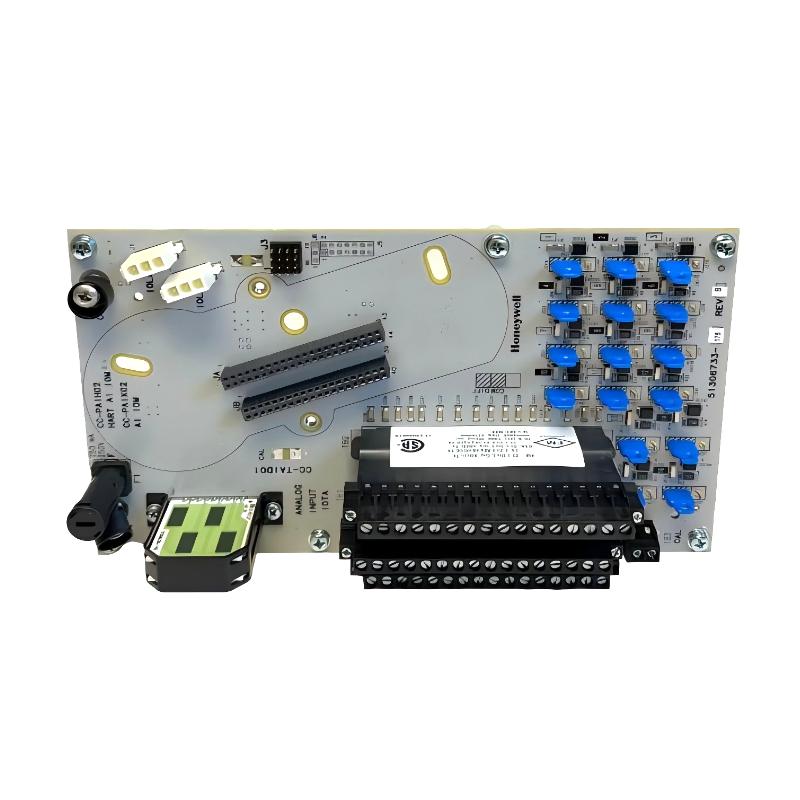

Honeywell DC-TAID01 Analog Input Module

Name: Honeywell DC-TAID01 Analog Input Module
Brand: Honeywell DCS
SKU: 2225
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Honeywell DCS
Item No.:DC-TAID01
Product Origin:USA
Product Dimensions:95 x 135 x 25 mm
Product Weight:0.3 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The Honeywell DC-TAID01 Analog Input Module is designed for precise acquisition of analog signals from field devices in industrial control systems. It converts voltage and current inputs into reliable digital data for Honeywell controllers, ensuring accurate process monitoring and control. Its compact, lightweight design allows easy integration into both new installations and system upgrades.

Technical Specifications

Specification	Details
Module Type	Analog Input Module
Model Number	DC-TAID01
Dimensions (H × W × D)	95 × 135 × 25 mm
Weight	0.3 kg
Terminal Type	Screw terminals, multi-channel
Mounting	DIN rail or panel mountable
Input Compatibility	0–10 V, 4–20 mA signals
Operating Temperature Range	-20°C to +60°C
Electrical Rating	24 VDC nominal
Material	Industrial-grade polycarbonate housing

Applications

Acquisition of analog signals from sensors and transmitters
Process monitoring in industrial automation and control systems
Integration with distributed control systems (DCS)
Data collection for process optimization and reporting
Upgrading or expanding analog input capacity in existing Honeywell systems

Advantages

High-precision analog signal acquisition for accurate process control
Compact, lightweight design for easy panel integration
Durable construction suitable for industrial environments
Clear terminal labeling simplifies wiring and maintenance
Compatible with a wide range of Honeywell controllers
Facilitates easy system expansion and upgrades
Minimizes signal errors for reliable operation
Stable performance in electrically noisy environments
Simplifies troubleshooting with organized terminal layout
Enhances overall system efficiency and signal integrity

Technical FAQs

What types of analog signals are supported?
Voltage (0–10 V) and current (4–20 mA) signals.
Can it be mounted on both DIN rails and panels?
Yes, it supports flexible mounting options.
Is it suitable for continuous operation in industrial environments?
Yes, it is designed for reliable long-term performance.
Does it support hot-swapping?
No, the module should only be installed or removed when the system is powered down.
How are terminals labeled?
Terminals are clearly numbered for accurate wiring and maintenance.
Can multiple modules be installed together?
Yes, multiple modules can be used for expanded analog input capacity.
What is the expected service life?
Over 10 years under standard industrial conditions.
Does it provide protection against electrical noise?
Yes, design features minimize interference from external electrical sources.
Are spare modules interchangeable?
Yes, identical modules can replace existing units without recalibration.
What maintenance is recommended?
Periodic inspection for secure connections and clean terminals is advised for optimal performance.
