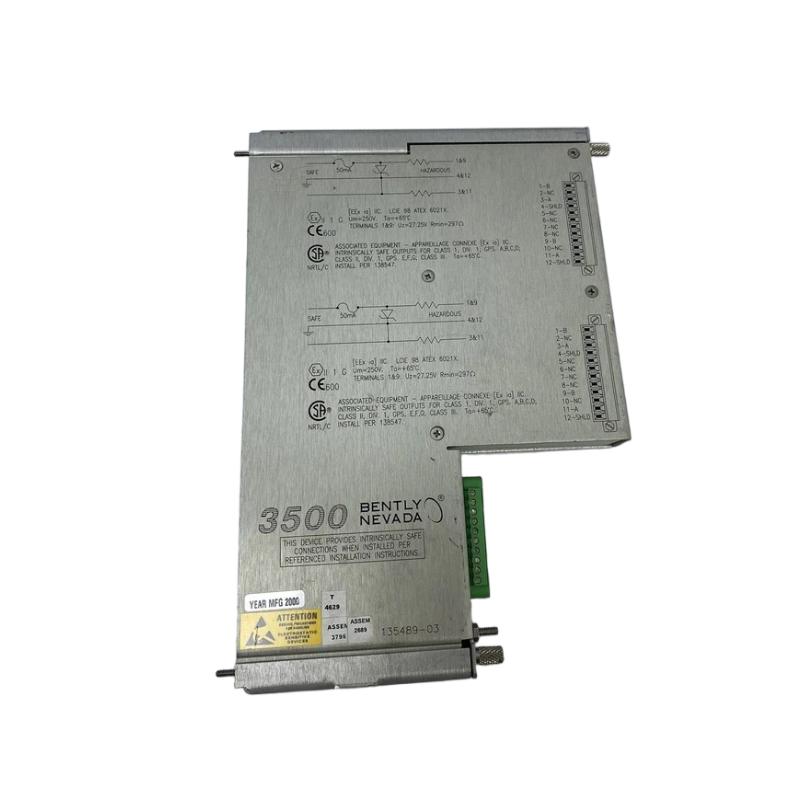

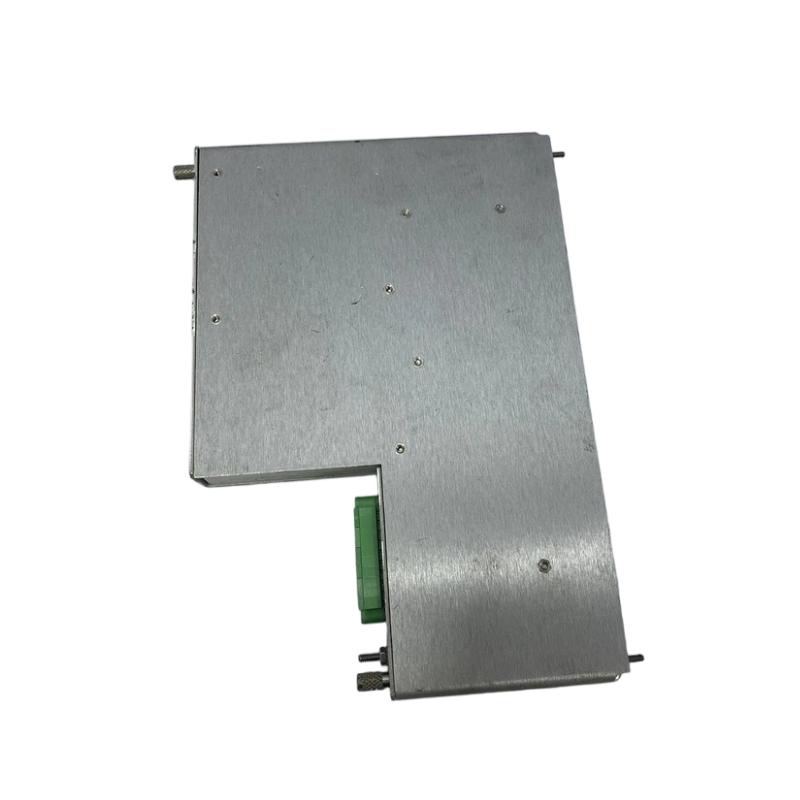

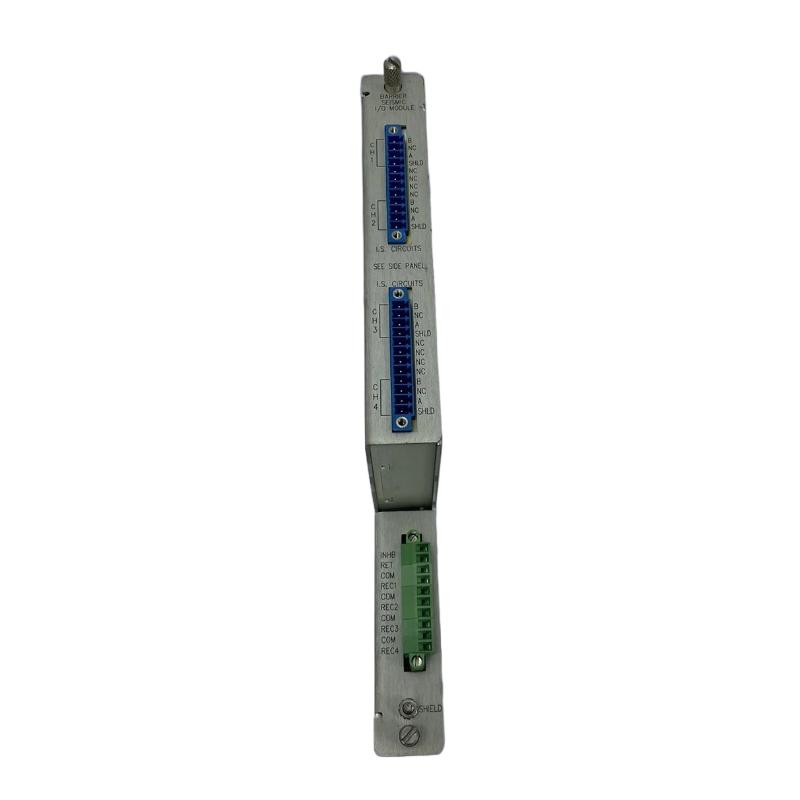

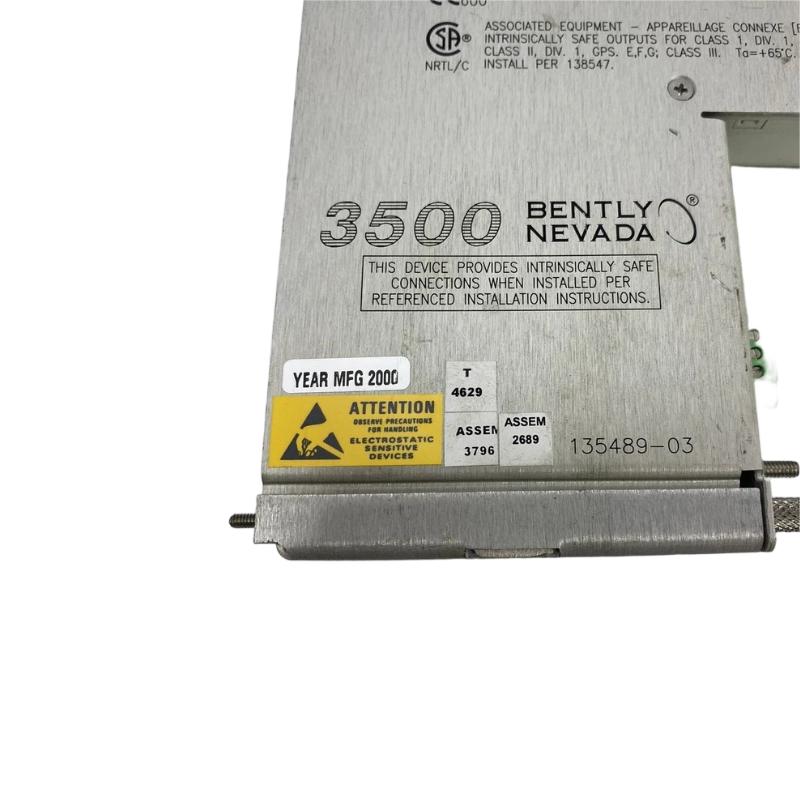

Bently Nevada 3500/42 135489-03 Monitor Module

Name: Bently Nevada 3500/42 135489-03 Monitor Module
Brand: Bently Nevada PLC
SKU: 221
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Bently Nevada PLC
Item No.:3500/42 135489-03
Product Origin:USA
Product Dimensions:241.3 x 24.4 x 163.1mm
Product Weight:0.46 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The Bently Nevada 3500/42 (135489-03) is a precision vibration monitoring module designed for the 3500 Series machinery protection system. Written from a maintenance-engineer viewpoint, this module emphasizes reliability, compactness, and ease of integration. It continuously monitors critical rotating equipment, providing early alerts for machinery anomalies to support predictive maintenance and prevent unplanned downtime.

Technical Specifications

Parameter	Description
Model Number	3500/42
Part Number	135489-03
Module Type	Vibration Monitor Module
Function	Monitors vibration in rotating machinery and provides configurable alarm/trip outputs
Compatibility	Integrates with Bently Nevada 3500 Series racks
Signal Inputs	Accepts velocity, acceleration, or displacement transducers
Alarm/Trip Outputs	Configurable thresholds via system software
Operating Temperature	0 °C to 70 °C
Storage Temperature	–40 °C to 85 °C
Dimensions	241.3 × 24.4 × 163.1 mm (H × W × D)
Weight	0.46 kg
Mounting	19-inch rack compatible with 3500 Series chassis

Applications

Continuous monitoring of critical machinery in power plants, petrochemical, and industrial facilities
Early detection of imbalance, misalignment, bearing defects, and other mechanical issues
Triggering alarms and trips to prevent equipment damage
Supporting predictive maintenance and reliability programs
Integration into plant-wide monitoring and asset management systems

Advantages

Compact and lightweight — 0.46 kg for easy installation and handling
Reliable industrial-grade performance — suitable for 24/7 operation
High-precision monitoring — detects early signs of machinery faults
Configurable alarm and trip thresholds — tailored for each machine’s requirements
Seamless integration — fits directly into Bently Nevada 3500 Series racks

Technical FAQs

What is the primary function of this module?
Monitors vibration in rotating machinery and provides configurable alarms and trips.
Which sensors are compatible?
Velocity, acceleration, or displacement transducers designed for the 3500 Series.
What is the operating temperature range?
0 °C to 70 °C; storage from –40 °C to 85 °C.
Is it compatible with other 3500 Series modules?
Yes, fully integrates with 3500 Series rack systems.
How is the module mounted?
Standard 19-inch 3500 Series rack mounting.
How are alarms and trips configured?
Configured via system software to define threshold levels and output behavior.
Is it suitable for continuous operation?
Yes, designed for industrial 24/7 monitoring.
What happens if vibration exceeds alarm levels?
Alarm signals are triggered; trip outputs may engage if configured.
How heavy is the module?
0.46 kg, lightweight for installation and maintenance.
Which industries typically use this module?
Power generation, petrochemical, oil & gas, and industrial facilities with critical rotating machinery.
