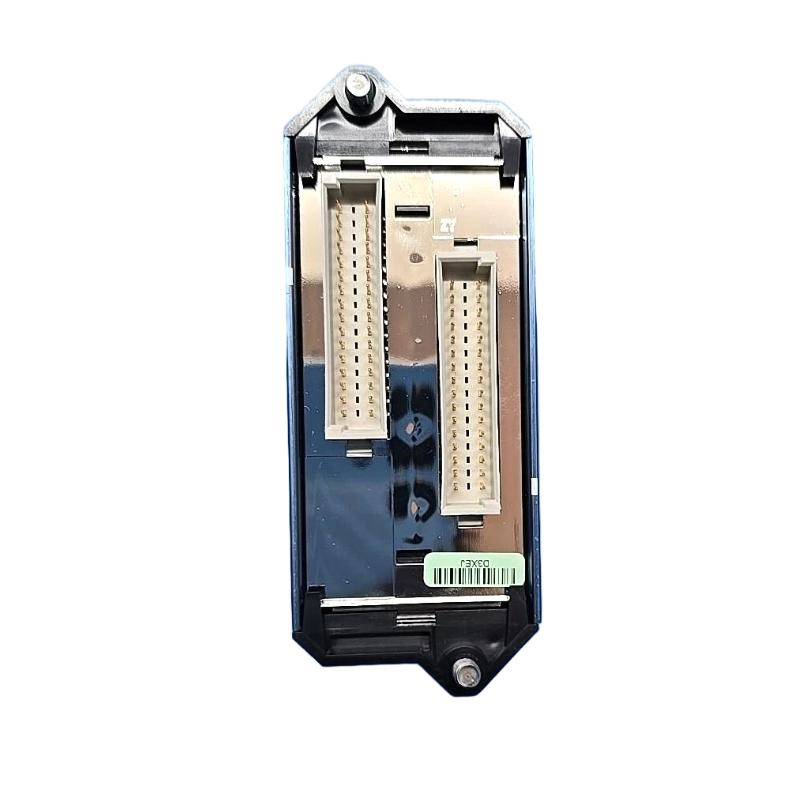

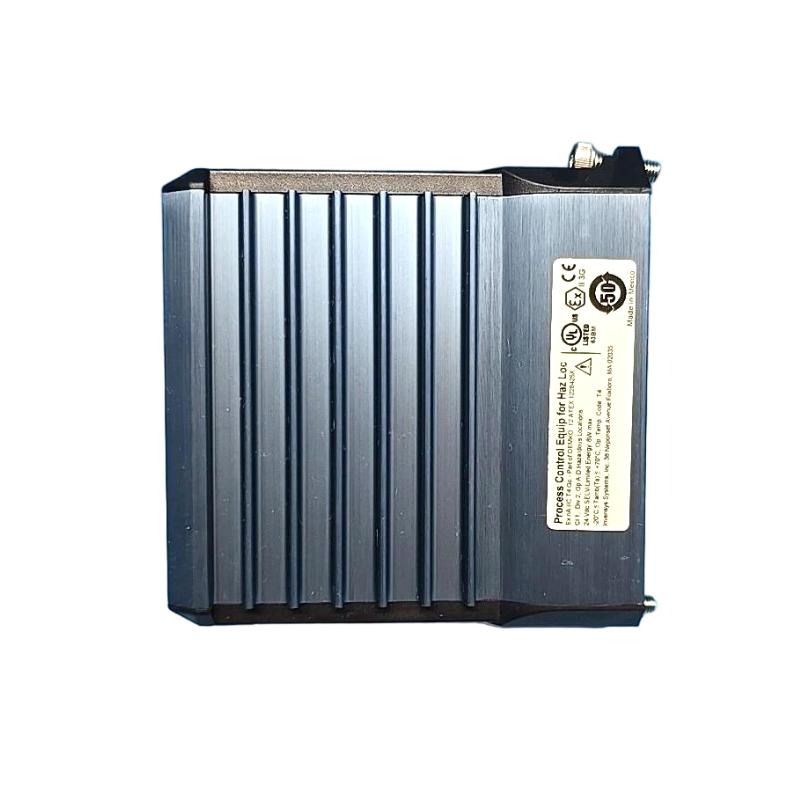

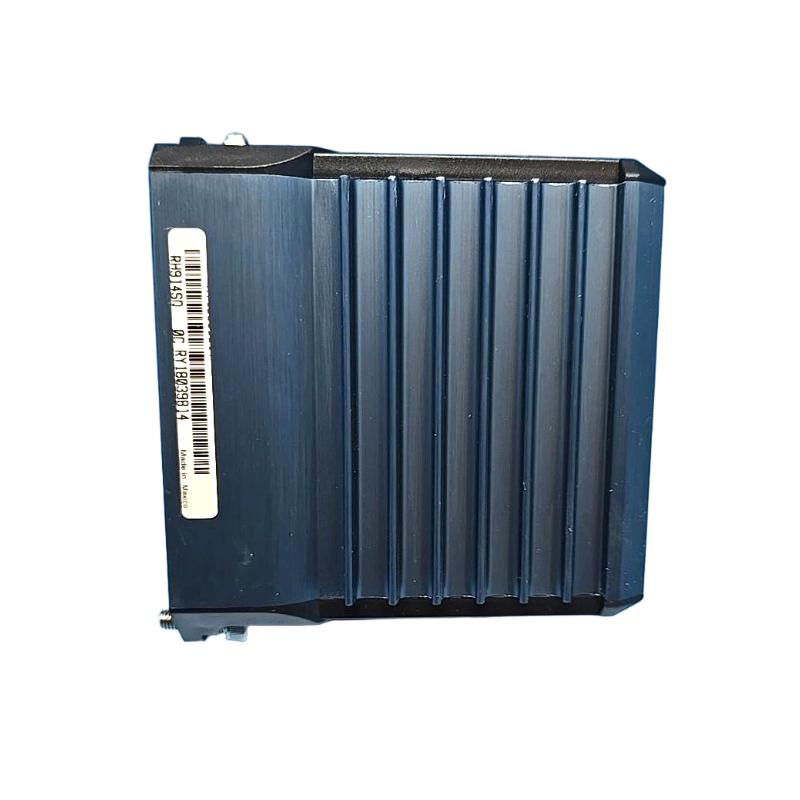

Foxboro FBM201 RH914SQ 8-Channel Isolated Input Module

Brand:Foxboro Module
Item No.:FBM201
Product Origin:USA
Product Dimensions:102 x 45 x 114 mm
Product Weight:0.284 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

Introduction
The Foxboro FBM201 RH914SQ 8-Channel Isolated Input Module is a robust and versatile solution for industrial process control systems. This module is designed to handle 8 channels of isolated input signals, providing accurate and reliable data acquisition for critical monitoring applications. With compact dimensions of 102 x 45 x 114 mm and a weight of 0.284 kg, it integrates seamlessly into control systems without taking up excessive space.

The FBM201 RH914SQ module is essential for scenarios requiring signal isolation between different parts of a system, ensuring that electrical noise or interference does not affect the quality of the input signals. This makes it ideal for use in environments with high electrical interference or complex control systems, such as chemical plants, oil refineries, and power distribution systems.

Technical Specifications

Parameter Specification
Model FBM201 RH914SQ
Type 8-Channel Isolated Input Module
Dimensions 102 x 45 x 114 mm
Weight 0.284 kg (0.626 lbs)
Number of Channels 8 Channels
Input Type Isolated Input Signals (Analog)
Isolation Galvanic Isolation (Signal Isolation)
Input Signal Range 0-20mA, 4-20mA, Voltage Input
Mounting Type DIN Rail Mountable
Operating Temperature -20°C to 60°C
Compliance CE, UL, RoHS
Signal Conditioning Analog to Digital Conversion (ADC)
Communication Protocol Foxboro I/A Series Protocol

Applications
The Foxboro FBM201 RH914SQ 8-Channel Isolated Input Module is designed for applications where signal isolation and data accuracy are critical:

  • Process Control Systems: This module is ideal for use in process control systems where multiple sensors or devices need to be connected, with each requiring isolated inputs to prevent electrical interference.

  • Industrial Automation: It provides reliable signal isolation for automated control systems, ensuring safe and accurate input data processing for sensors and actuators.

  • Energy Management Systems: The module is also suitable for energy systems that require isolated input for monitoring various electrical parameters like current, voltage, and other key variables.

  • Power Distribution Systems: Used in power generation or distribution systems, the FBM201 RH914SQ ensures proper isolation and data integrity while monitoring signals from various field devices.

  • Oil & Gas: In environments where high electrical noise is common, the module provides reliable isolation, ensuring data integrity in hazardous and harsh environments.


Advantages

  • 8-Channel Input: The module supports 8 input channels, enabling the processing of multiple signals simultaneously and reducing the need for multiple individual modules.

  • Galvanic Isolation: Provides galvanic isolation between the input channels and the control system, which protects sensitive equipment from electrical surges and interference.

  • Compact and Efficient Design: The 102 x 45 x 114 mm dimensions and 0.284 kg weight make the module highly compact and efficient, ensuring minimal space utilization in control panels or enclosures.

  • Wide Signal Input Range: Supports a wide range of input signals, including 0-20mA, 4-20mA, and voltage inputs, offering flexibility for various industrial applications.

  • Reliable Signal Conversion: The module features high-quality analog-to-digital conversion, ensuring that input signals are accurately processed and transferred to the control system.

  • DIN Rail Mounting: The DIN rail mounting design ensures easy installation, allowing for quick and secure integration into control systems or electrical enclosures.

  • Wide Temperature Range: The module operates effectively in a wide temperature range of -20°C to 60°C, making it suitable for various industrial environments, including extreme temperatures.

  • Compliance with International Standards: The FBM201 RH914SQ complies with CE, UL, and RoHS standards, ensuring it meets the required safety, quality, and environmental regulations.


Technical FAQs

  1. What is the purpose of the Foxboro FBM201 RH914SQ module?
    The module is designed to provide 8 channels of isolated input signals, ensuring accurate and reliable data acquisition and protection from electrical noise and interference.

  2. How many channels does the module support?
    The FBM201 RH914SQ module supports 8 channels, allowing the simultaneous monitoring of multiple input signals.

  3. What types of input signals can the module handle?
    The module supports a variety of input signals, including 0-20mA, 4-20mA, and voltage inputs, offering flexibility for different industrial applications.

  4. What is galvanic isolation, and why is it important?
    Galvanic isolation ensures that the input signals are electrically isolated from the system, preventing interference and damage to sensitive equipment caused by electrical surges or noise.

  5. How is the module mounted?
    The FBM201 RH914SQ module is designed for DIN rail mounting, making installation easy and secure.

  6. What is the operating temperature range of the module?
    The module can operate in temperatures ranging from -20°C to 60°C, making it suitable for use in diverse industrial environments.

  7. Is the module compliant with safety and environmental standards?
    Yes, the FBM201 RH914SQ complies with CE, UL, and RoHS standards, ensuring it meets international safety, quality, and environmental regulations.

  8. Can the module handle different types of input signals?
    Yes, the module is compatible with 0-20mA, 4-20mA, and voltage inputs, providing flexibility for different applications.

  9. What industries can benefit from this module?
    The module is ideal for industries such as oil & gas, chemical processing, power distribution, and automation, where signal isolation and accurate data processing are critical.

  10. Is the module suitable for high-noise environments?
    Yes, the FBM201 RH914SQ module is designed for environments with high electrical noise, providing reliable signal isolation to ensure data integrity.
