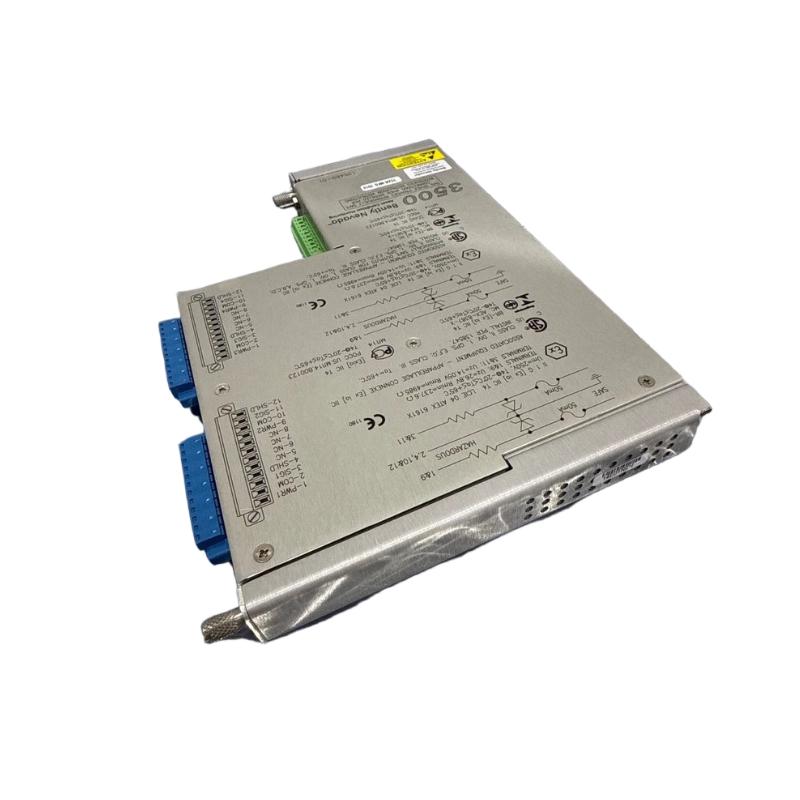

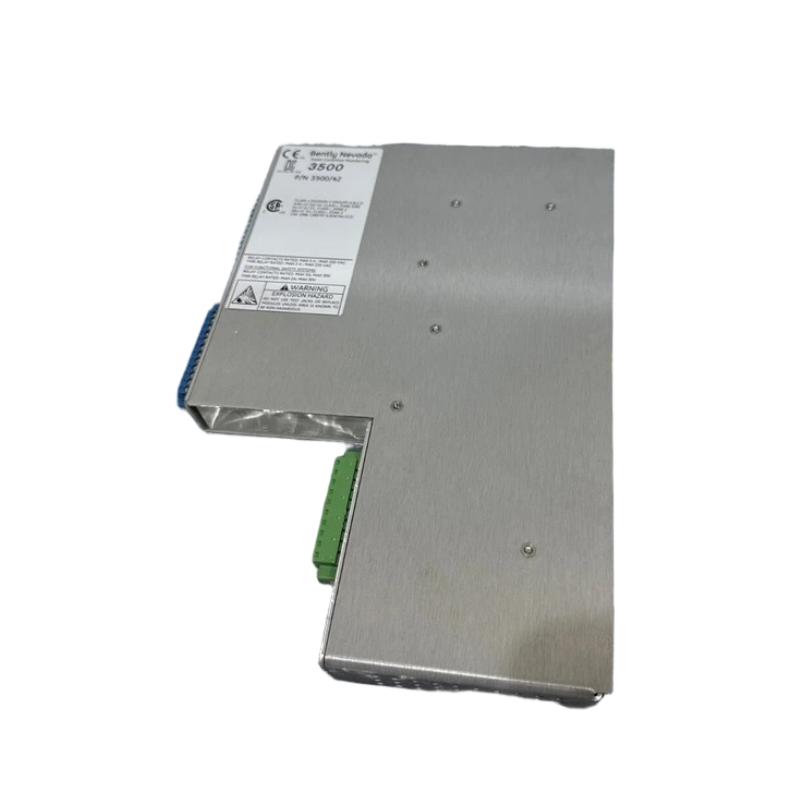

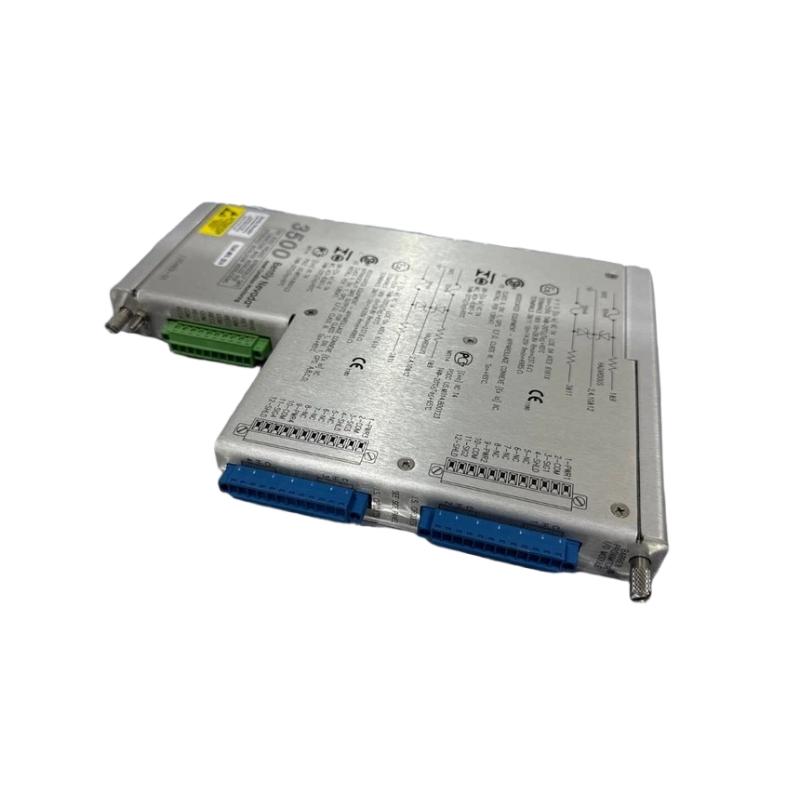

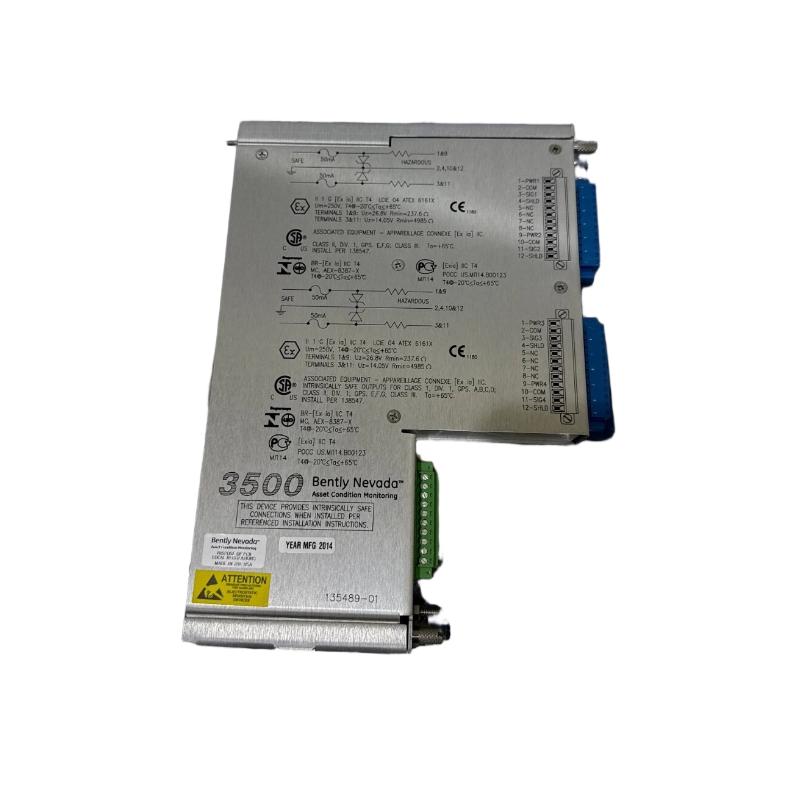

Bently Nevada 3500/42 135489-01 Monitor Module

Name: Bently Nevada 3500/42 135489-01 Monitor Module
Brand: Bently Nevada PLC
SKU: 218
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Bently Nevada PLC
Item No.:3500/42 135489-01
Product Origin:USA
Product Dimensions:241.3 x 24.4 x 163.1mm
Product Weight:0.46 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The Bently Nevada 3500/42 (135489-01) is a compact vibration monitoring module within the 3500 Series machinery protection system. Designed for precision and reliability, this module continuously monitors critical rotating equipment and provides early alerts for mechanical anomalies. This overview is written from a reliability-engineer perspective, emphasizing practical deployment, system integration, and operational continuity in industrial environments.

Technical Specifications

Parameter	Description
Model Number	3500/42
Part Number	135489-01
Module Type	Vibration Monitor Module
Function	Monitors vibration in rotating machinery and provides configurable alarm/trip outputs
Compatibility	Integrates with Bently Nevada 3500 Series racks
Signal Inputs	Supports multiple transducer types: velocity, acceleration, or displacement
Alarm/Trip Outputs	Configurable via system software based on threshold settings
Operating Temperature	0 °C to 70 °C
Storage Temperature	–40 °C to 85 °C
Dimensions	241.3 × 24.4 × 163.1 mm (H × W × D)
Weight	0.46 kg
Mounting	19-inch rack compatible with 3500 Series chassis

Applications

Real-time monitoring of critical machinery in power plants, chemical plants, and refineries
Detecting imbalance, misalignment, bearing defects, and other mechanical issues
Triggering alarms and trips to prevent catastrophic equipment failure
Supporting predictive maintenance and reliability programs
Integration into plant-wide monitoring and asset management systems

Advantages

Compact and lightweight — easy to install and maintain at 0.46 kg
Reliable performance — continuous industrial-grade operation
High-precision monitoring — early detection of vibration anomalies
Configurable thresholds — tailored alarm and trip settings for each machine
Seamless rack integration — fits directly into Bently Nevada 3500 Series chassis

Technical FAQs

What is the primary function of this module?
To monitor vibration in rotating machinery and provide configurable alarms and trip signals.
Which sensors are compatible?
Supports velocity, acceleration, and displacement transducers compatible with the 3500 Series.
What is the operating temperature range?
0 °C to 70 °C; storage from –40 °C to 85 °C.
Is it compatible with other 3500 Series modules?
Yes, fully integrates with 3500 Series rack systems.
How is it mounted?
Standard 19-inch 3500 Series rack mounting.
How are alarms and trips configured?
Using system software to define threshold levels and output behavior.
Is it suitable for continuous monitoring?
Yes, designed for 24/7 industrial operation.
What happens if vibration exceeds alarm levels?
Alarm signals are triggered, and trip outputs may engage if configured.
What is the weight of the module?
0.46 kg, making it easy to handle during installation or maintenance.
Which industries typically use this module?
Power generation, oil & gas, chemical, petrochemical, and industrial facilities with critical rotating machinery.
