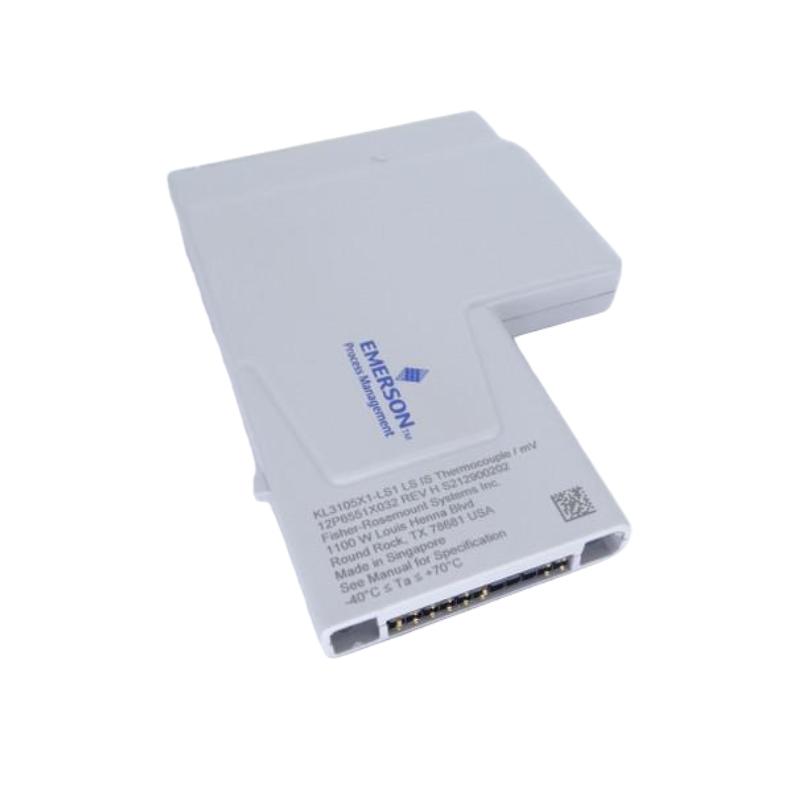

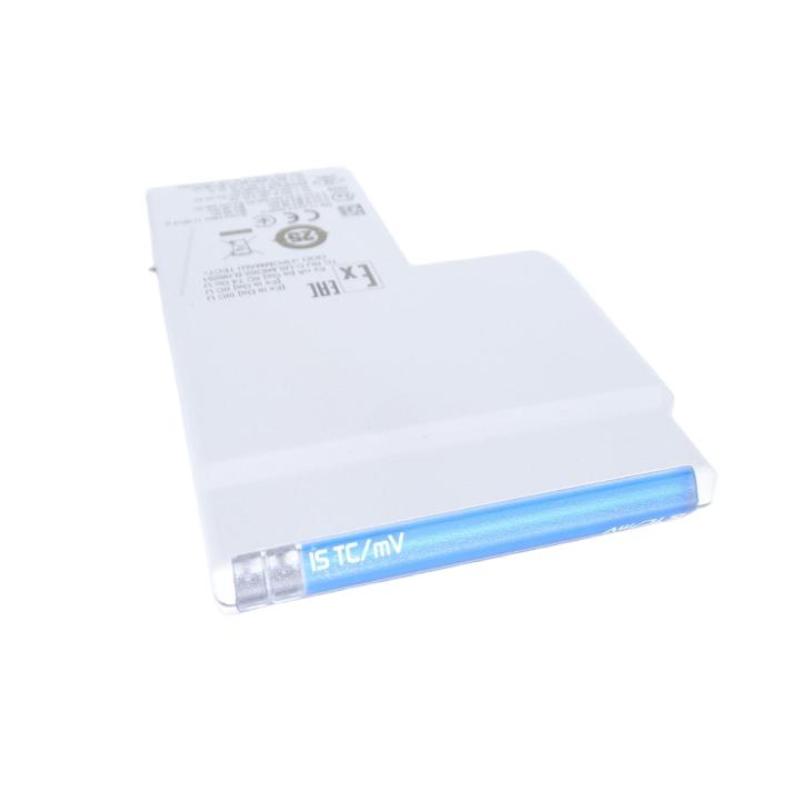

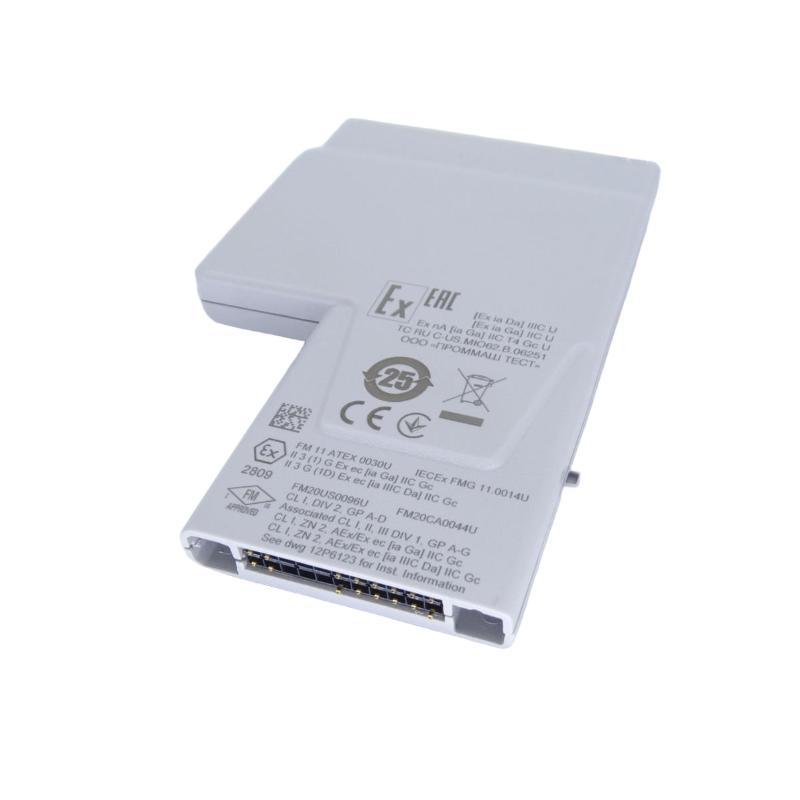

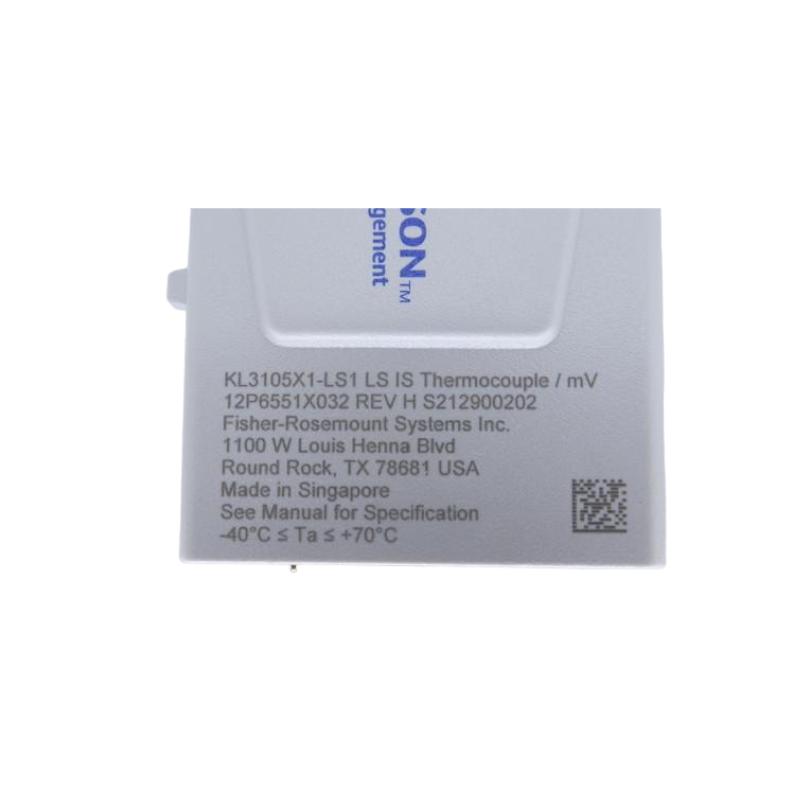

Emerson KL3105X1-LS1 IS Thermocouple/mV CHARM

Brand:Emerson Module
Item No.:KL3105X1-LS1
Product Origin:USA
Product Dimensions:150 × 100 × 35 mm
Product Weight:0.113 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

Introduction

The Emerson KL3105X1-LS1 IS Thermocouple/mV CHARM is an advanced input module designed to provide accurate and reliable temperature measurement using thermocouples and millivolt (mV) inputs. This module is built to support industrial control systems, offering precise signal conversion for temperature sensing and other mV-based measurements. Its robust design ensures reliable performance even in hazardous environments, making it ideal for use in chemical processing, oil & gas, and other industrial applications where accurate temperature data is critical.

Technical Specifications

SpecificationDetails
Dimensions (L x W x H)150 × 100 × 35 mm
Weight0.113 kg
Input TypeThermocouple/mV
Temperature Range-200°C to 1820°C (depending on thermocouple type)
Input SignalThermocouple types (J, K, T, E, etc.), mV
Resolution16-bit
Mounting TypeDIN Rail Mountable
Operating Temperature-20°C to 60°C
CertificationsCE, UL certified


Applications

The Emerson KL3105X1-LS1 IS Thermocouple/mV CHARM is designed for use in various industrial environments where precise temperature and mV measurements are required:

  • Temperature Sensing: Used with thermocouples (e.g., J, K, T, E) for accurate temperature measurement in industries such as chemical processing, petrochemical, and pharmaceuticals.

  • Process Control: Ideal for applications where temperature and mV signals are crucial for controlling industrial processes and ensuring safety and efficiency.

  • Hazardous Environments: The IS (Intrinsic Safety) rating makes this module suitable for use in hazardous areas, ensuring safe operation in explosive environments.

  • Industrial Automation: Provides reliable and high-resolution temperature data, which can be integrated into automated systems for process monitoring and control.


Advantages

  • High Precision: The KL3105X1-LS1 offers accurate temperature and mV measurements with a 16-bit resolution, ensuring reliable and precise data for critical applications.

  • Versatile Input Support: Supports multiple thermocouple types (e.g., J, K, T, E) and mV input signals, providing flexibility to accommodate various sensors.

  • Intrinsic Safety: With IS certification, the module is safe to use in explosive or hazardous environments, reducing the risk of accidents in high-risk industrial locations.

  • Compact and Space-Saving: Its small form factor allows for easy installation in control panels and automation systems with limited space.

  • Easy Integration: The DIN rail mountable design simplifies installation and integration into control systems, streamlining setup and reducing downtime.


Technical FAQs

  1. What is the primary function of the Emerson KL3105X1-LS1 IS Thermocouple/mV CHARM?

    • This module is designed to convert thermocouple and mV input signals into readable data, providing accurate temperature measurements and other mV-based measurements for industrial systems.

  2. Which thermocouple types are supported by the KL3105X1-LS1?

    • The module supports various thermocouple types, including J, K, T, E, and others, enabling flexibility for different temperature measurement applications.

  3. What is the temperature range of the KL3105X1-LS1?

    • The temperature range varies depending on the thermocouple type, with a typical range from -200°C to 1820°C for most thermocouples.

  4. What is the resolution of the KL3105X1-LS1 IS module?

    • The module features a 16-bit resolution, providing high accuracy for both temperature and mV signal measurements.

  5. What makes the KL3105X1-LS1 suitable for use in hazardous areas?

    • The KL3105X1-LS1 has an Intrinsic Safety (IS) certification, ensuring it can operate safely in explosive or hazardous environments, such as those found in chemical or oil & gas industries.

  6. What is the operating temperature range of the KL3105X1-LS1?

    • The module operates within a temperature range of -20°C to 60°C, making it suitable for a wide range of industrial applications.

  7. Can the KL3105X1-LS1 be used for other mV-based measurements?

    • Yes, the module is designed to handle mV inputs in addition to thermocouple signals, making it versatile for different types of sensor inputs.

  8. How is the KL3105X1-LS1 installed?

    • The module is DIN rail mountable, which simplifies installation in industrial control panels or automation systems, ensuring quick and easy setup.

  9. What certifications does the KL3105X1-LS1 have?

    • The module is CE and UL certified, ensuring compliance with international safety and performance standards for industrial use.

  10. Can the KL3105X1-LS1 be used in outdoor applications?

  • While the module is designed for industrial use, additional protection may be needed for outdoor applications to shield it from environmental factors like moisture or extreme temperatures.
