Introduction

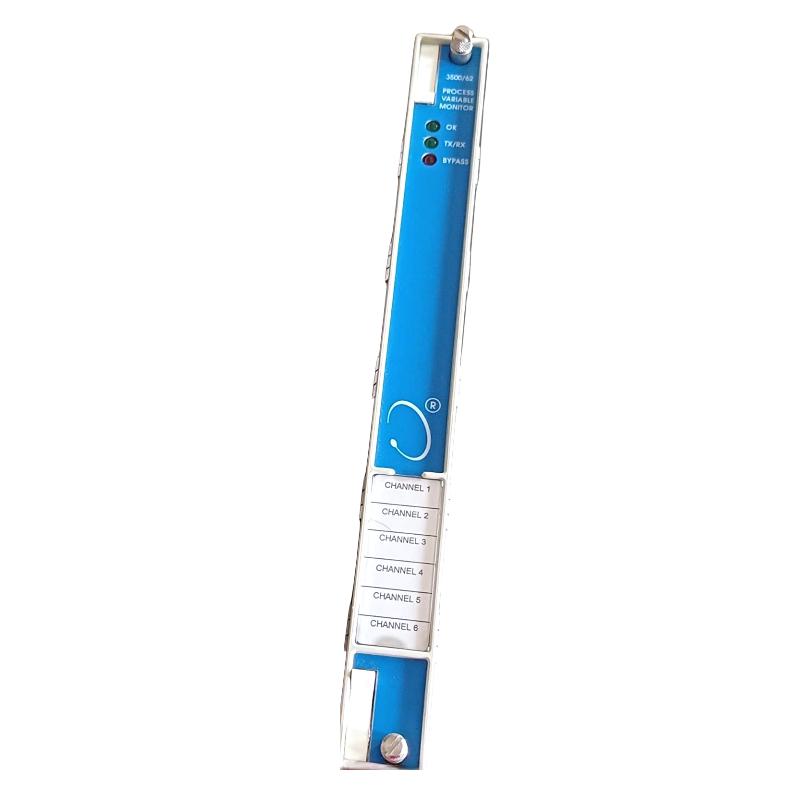

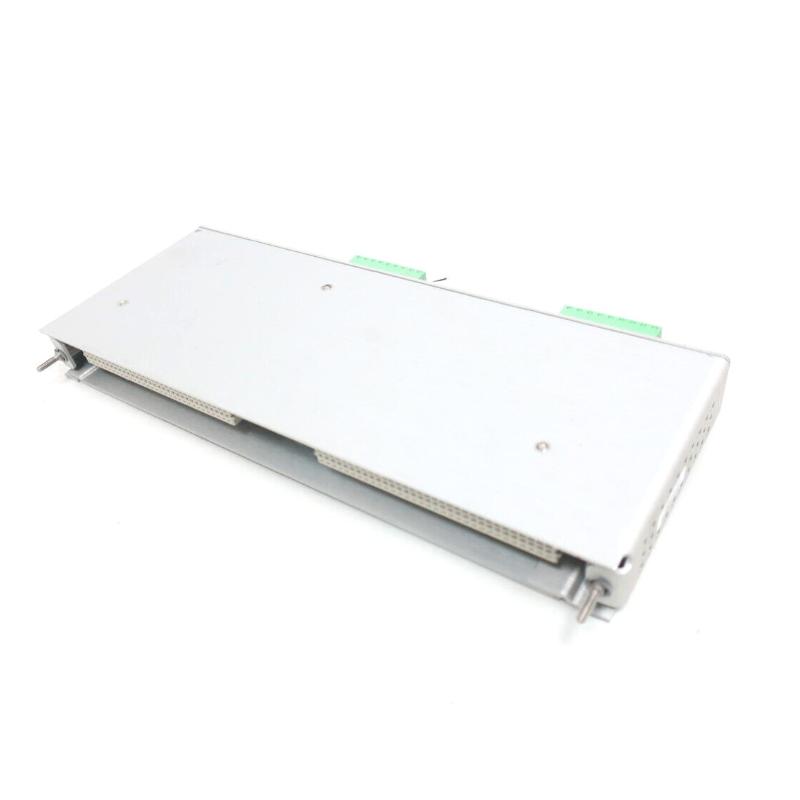

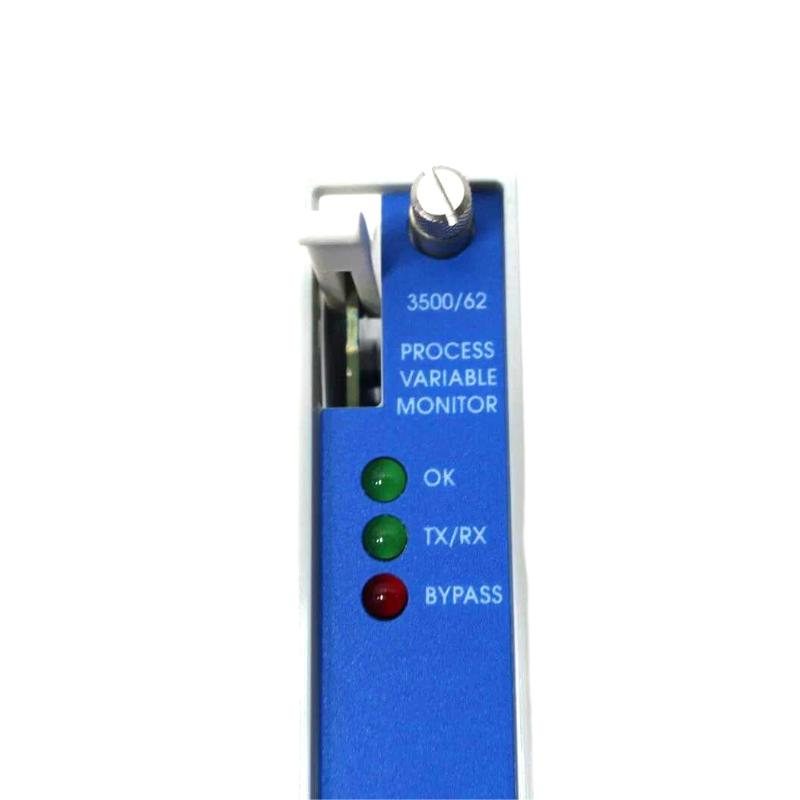

The Bently Nevada 3500/62 163179-03 Process Variable Monitor, combined with the 136294-01 isolated I/O module, is designed to integrate critical process measurements into the 3500 Machinery Protection System. This module combination allows process variables to be accurately monitored while maintaining electrical isolation, ensuring reliable data acquisition and transmission within protection-oriented architectures.
By merging process monitoring with an isolated I/O interface, this solution delivers stable, noise-resistant signal handling, providing operators and engineers with actionable insights into machinery and process interactions.
Technical Specifications
| Item | Description |
|---|
| Product Configuration | Process Variable Monitor Module with isolated I/O Module |
| System Platform | Bently Nevada 3500 Series |
| Model Reference | 3500/62 |
| Part Numbers | 163179-03 + 136294-01 |
| Monitoring Function | Multi-channel process variable acquisition |
| Signal Interface | Isolated +4 to +20 mA input/output via I/O module |
| Signal Processing | Continuous real-time evaluation |
| Diagnostic Features | Built-in self-monitoring and fault detection |
| Electrical Isolation | Channel-to-system isolation via I/O module |
| System Communication | 3500 backplane interface |
| Installation | Rack-mounted modules |
| Dimensions | 241.3 × 24.4 × 241.8 mm |
| Weight | 0.82 kg |
Applications
• Monitoring Process Variables in Critical Machinery
Tracks parameters such as pressure, flow, or temperature that affect machinery operation.
• Integration with Protection and Alarm Logic
Supplies isolated process signals for use in alarms and protective actions within the 3500 system.
• Correlation of Process and Mechanical Data
Enables engineers to analyze the influence of process conditions on vibration, temperature, and speed measurements.
Advantages
• Electrical Isolation for Reliable Signal Handling
The I/O module ensures signals are protected from noise and grounding issues, preserving data integrity.
• Multi-Channel Monitoring in a Single Module Set
Supports multiple process inputs simultaneously, reducing hardware complexity and system footprint.
• Seamless Integration with 3500 Architecture
Backplane communication allows immediate availability of process data for monitoring and protection functions.
Technical FAQs
1. What is the primary purpose of this module combination?
To monitor process variables while providing isolated signal interfacing for reliable protection system integration.
2. How many process inputs can it handle?
It supports multi-channel process variable monitoring through the process monitor module.
3. Is this module used for mechanical monitoring?
No. It is dedicated to process variable measurement and integration.
4. Can it operate outside a 3500 system?
No. Both modules must be installed within a Bently Nevada 3500 rack.
5. What types of signals are supported?
+4 to +20 mA signals from external process instruments via the isolated I/O module.
6. How does it support machinery protection?
It provides process data for alarms, shutdown logic, and coordinated protective actions.
7. Is continuous operation supported?
Yes. The module set is designed for continuous industrial operation.
8. Can it work alongside vibration, temperature, or speed modules?
Yes. It integrates fully with other 3500 monitoring modules.
9. Which industries commonly use this module set?
Power generation, oil and gas, petrochemical processing, and other heavy industrial sectors.
10. What differentiates this module combination from standalone process monitors?
It combines process monitoring with isolated I/O integration directly into the 3500 protection system, enhancing reliability and signal integrity.
