Introduction

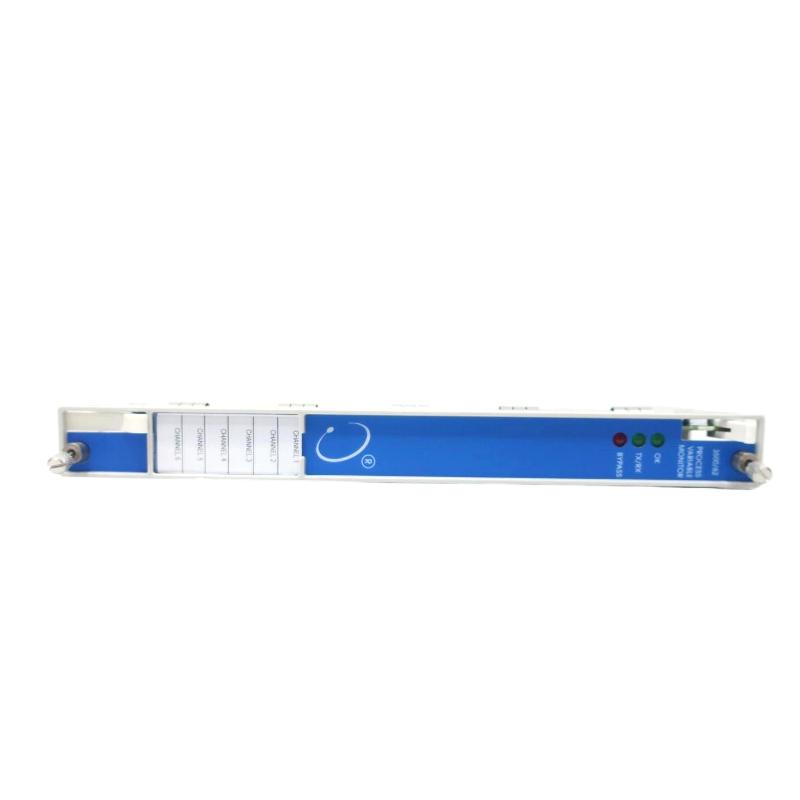

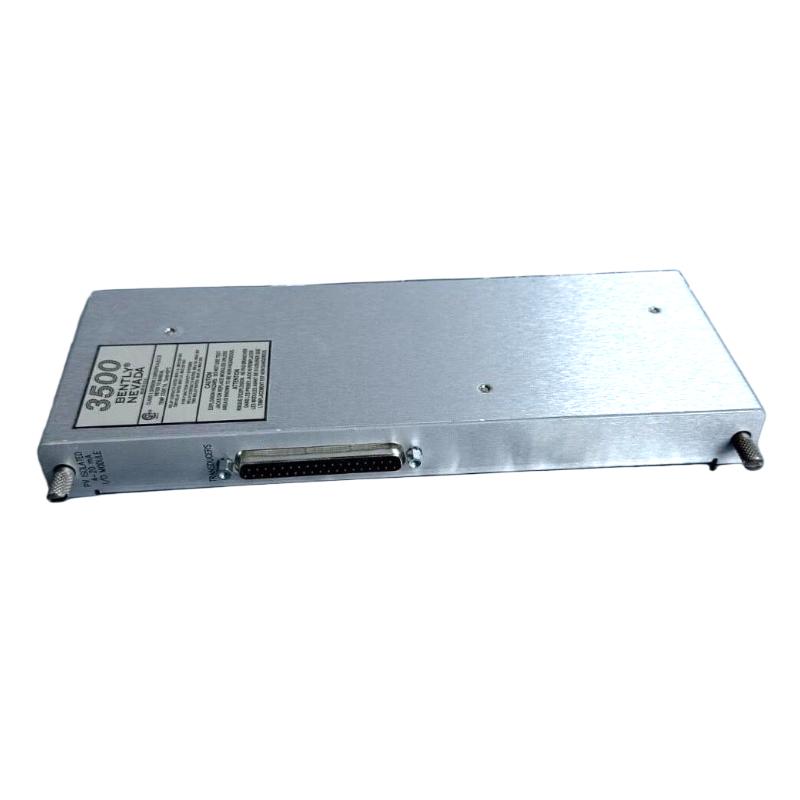

The Bently Nevada 3500/62 Process Variable Monitor, combined with the 136483-01 isolated I/O module, is designed to incorporate critical process measurements into the 3500 Machinery Protection System. This module set enables the system to evaluate process-related conditions alongside mechanical parameters, supporting a more complete view of machine and process interaction.
By integrating process variables directly into a protection-oriented architecture, the 3500/62 solution helps operators and engineers understand how external process conditions influence machinery behavior. The inclusion of an isolated I/O module further strengthens system reliability by preserving signal integrity in electrically demanding environments.
Technical Specifications
| Item | Description |
|---|
| Product Configuration | Process Variable Monitor Module with isolated I/O Module |
| System Platform | Bently Nevada 3500 Series |
| Monitoring Capability | Multi-channel process variable monitoring |
| Signal Interface | Isolated I/O module for process signals |
| Signal Processing | Continuous real-time evaluation |
| Diagnostic Functions | Integrated self-monitoring and fault detection |
| Electrical Isolation | Channel-to-system isolation via I/O module |
| System Communication | 3500 backplane interface |
| Installation Format | Rack-mounted modules |
| Dimensions | 241.3 × 24.4 × 241.8 mm |
| Weight | 0.82 kg |
Applications
• Process Variable Monitoring for Critical Equipment
Used to monitor process-related parameters that directly influence machinery performance, enabling early detection of abnormal operating conditions.
• Correlation of Process Conditions with Mechanical Health
Supports analysis by allowing engineers to compare process trends with vibration, temperature, or speed data within the same protection system.
• Integrated Alarm and Protection Strategies
Provides process variable inputs that can be used to trigger alarms or support coordinated protective responses.
Advantages
• Expanded Monitoring Beyond Mechanical Parameters
The module combination allows the 3500 system to incorporate process data, improving overall situational awareness.
• Isolated I/O for Improved Signal Reliability
Electrical isolation minimizes noise and grounding issues, preserving data integrity in complex industrial installations.
• Seamless Integration with the 3500 Architecture
Native backplane communication ensures that process data is immediately available for system-level monitoring and protection functions.
Technical FAQs
1. What is the primary role of the 3500/62 module in this configuration?
It monitors multiple process variables and integrates them into the 3500 system for evaluation and protection support.
2. Why is an isolated I/O module used with the process variable monitor?
Isolation improves signal integrity and protects the system from electrical noise and grounding issues.
3. Is this module used for vibration monitoring?
No. It is dedicated to process variable measurement rather than mechanical vibration analysis.
4. Can the module set operate outside a 3500 rack?
No. Both modules must be installed within a Bently Nevada 3500 system.
5. How does this configuration support machinery protection?
It supplies process data that complements mechanical measurements and supports coordinated alarm and protection decisions.
6. Is continuous operation supported?
Yes. The module set is designed for continuous duty in industrial environments.
7. Can multiple process signals be monitored simultaneously?
Yes. The process variable monitor supports multi-channel input capability.
8. How is configuration performed?
Configuration is handled through the 3500 system configuration tools during commissioning and maintenance.
9. Which industries commonly apply this module combination?
Power generation, oil and gas, petrochemical processing, and other heavy industrial sectors.
10. What differentiates this configuration from standalone process transmitters?
Its direct integration into a machinery protection system and coordinated use with mechanical monitoring data distinguish it from standalone solutions.
