Introduction

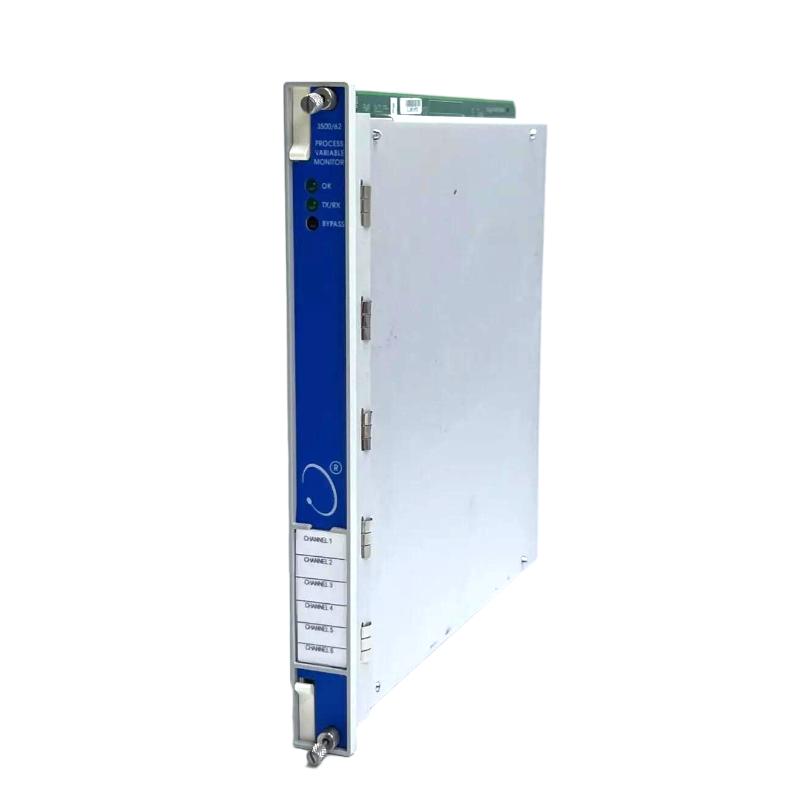

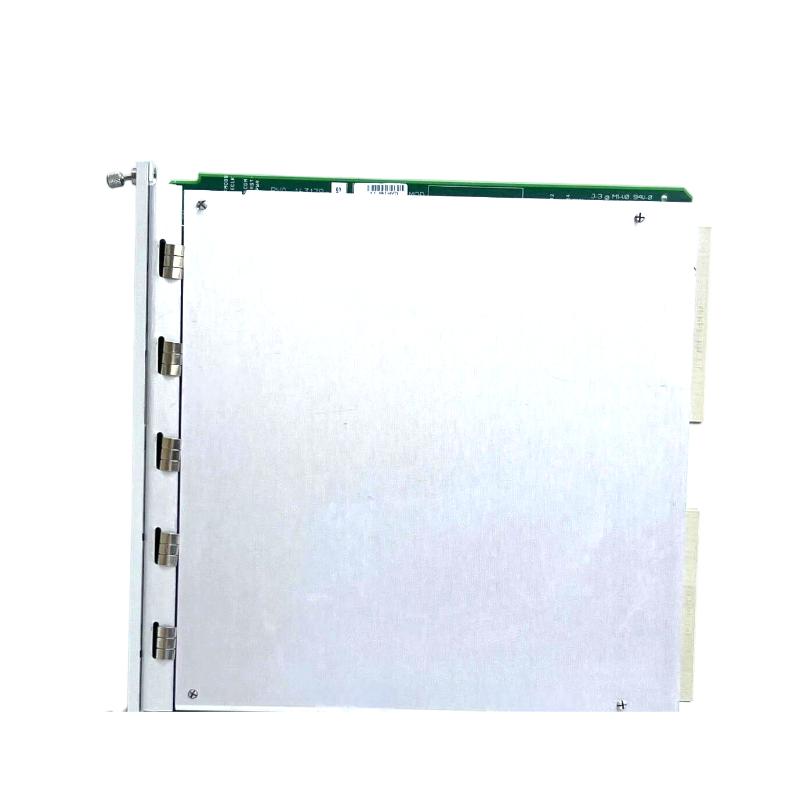

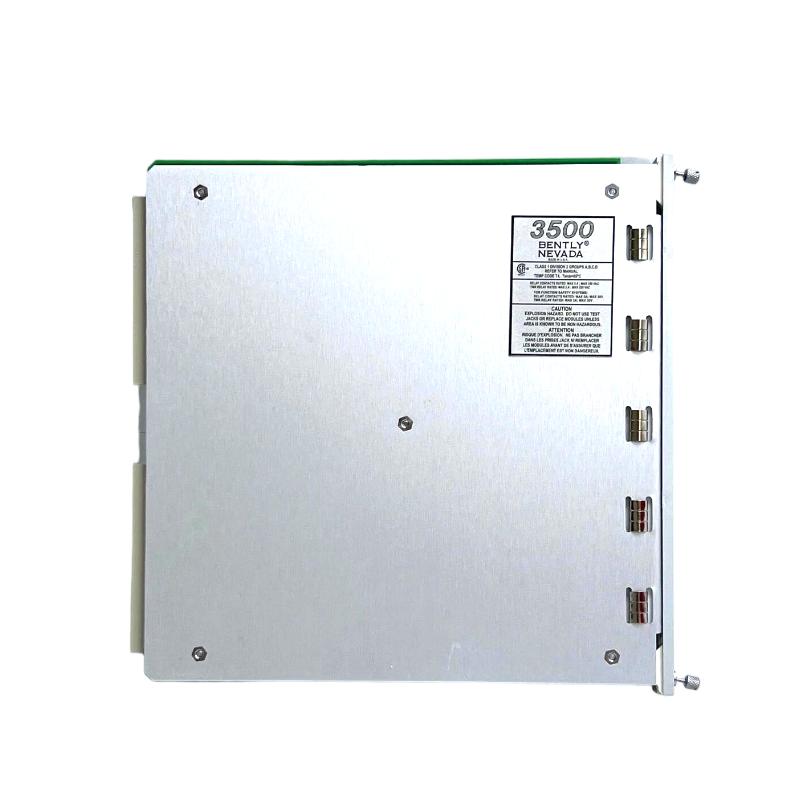

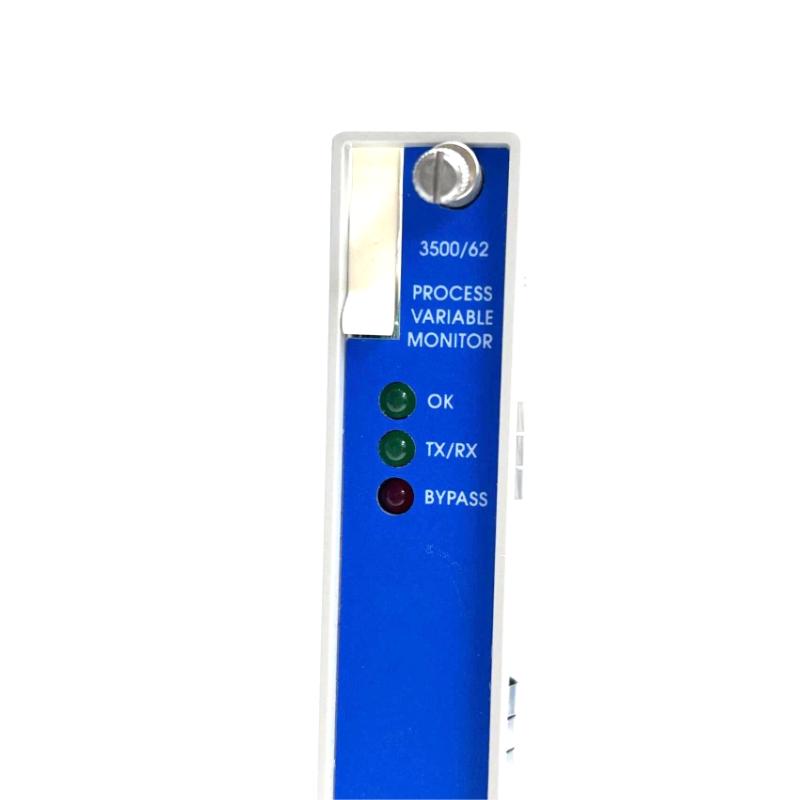

The Bently Nevada 3500/62 Process Variable Monitor Module is a six-channel monitoring component designed to integrate process-related measurements into the 3500 Machinery Protection System. It extends the system’s capability beyond purely mechanical parameters by incorporating critical process variables that influence machine reliability and operating safety.
By consolidating multiple process signals into a single, protection-oriented module, the 3500/62 enables operators and engineers to correlate mechanical condition with process behavior. This holistic approach supports more informed operational decisions and strengthens overall asset protection strategies in complex industrial environments.
Technical Specifications
| Item | Description |
|---|
| Product Type | Process Variable Monitor Module |
| Model Reference | 3500/62 |
| Ordering Number | 133811-03 |
| Channel Capacity | 6 process variable inputs |
| System Platform | Bently Nevada 3500 Series |
| Monitoring Function | Process variable acquisition and evaluation |
| Signal Processing | Continuous real-time monitoring |
| Diagnostic Features | Built-in self-diagnostics and fault detection |
| System Interface | 3500 backplane communication |
| Installation | Rack-mounted module |
| Dimensions | 241.3 × 24.4 × 241.8 mm |
| Weight | 0.82 kg |
Applications
• Process Parameter Monitoring for Critical Machinery
Used to monitor process-related inputs such as pressure, flow, or level that directly affect the operating condition of rotating equipment.
• Correlation of Process Conditions with Machine Behavior
Supports advanced diagnostics by allowing engineers to evaluate how process changes influence vibration, temperature, or speed trends.
• Integrated Alarm and Protection Strategies
Provides process variable data that can be used to generate alarms or support protective actions within the machinery protection system.
Advantages
• Six-Channel Flexibility in a Single Module
The module’s multi-channel design allows multiple process variables to be monitored simultaneously, reducing hardware complexity.
• Seamless Integration with the 3500 Platform
Native backplane communication ensures that process data is immediately available to system alarms and protection logic.
• Enhanced Situational Awareness for Operators
By combining mechanical and process information, the module improves visibility into overall machine and process health.
Technical FAQs
1. What is the primary function of the 3500/62 module?
It monitors and processes multiple process variable inputs within the 3500 system.
2. How many inputs does the module support?
The 3500/62 supports six independent process variable channels.
3. Is this module used for vibration monitoring?
No. It is dedicated to process variable measurement rather than vibration analysis.
4. Can the module operate outside a 3500 rack?
No. It must be installed within a Bently Nevada 3500 system.
5. What types of applications benefit from this module?
Applications where process conditions directly impact machinery performance and safety.
6. How does it contribute to machinery protection?
It supplies process data used for alarms and coordinated protection decisions.
7. Is continuous operation supported?
Yes. The module is designed for continuous duty in industrial environments.
8. Can it be combined with other 3500 monitoring modules?
Yes. It is intended to operate alongside vibration, speed, temperature, and displacement modules.
9. Which industries commonly use the 3500/62?
Power generation, oil and gas, petrochemical processing, and other heavy industrial sectors.
10. What differentiates the 3500/62 from mechanical monitoring modules?
Its focus on process variable inputs rather than direct mechanical measurements sets it apart within the 3500 system.
