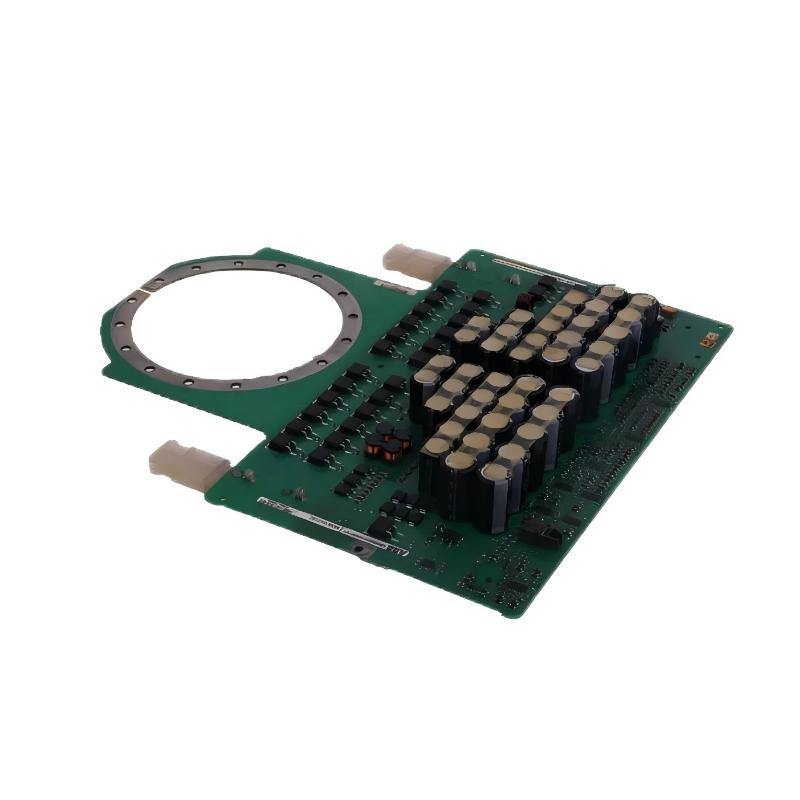

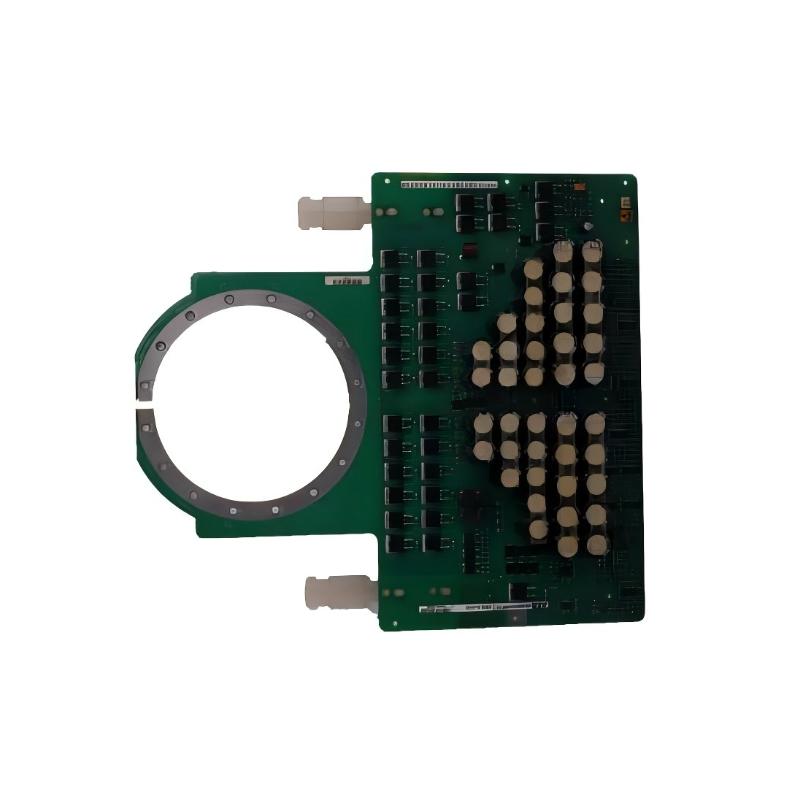

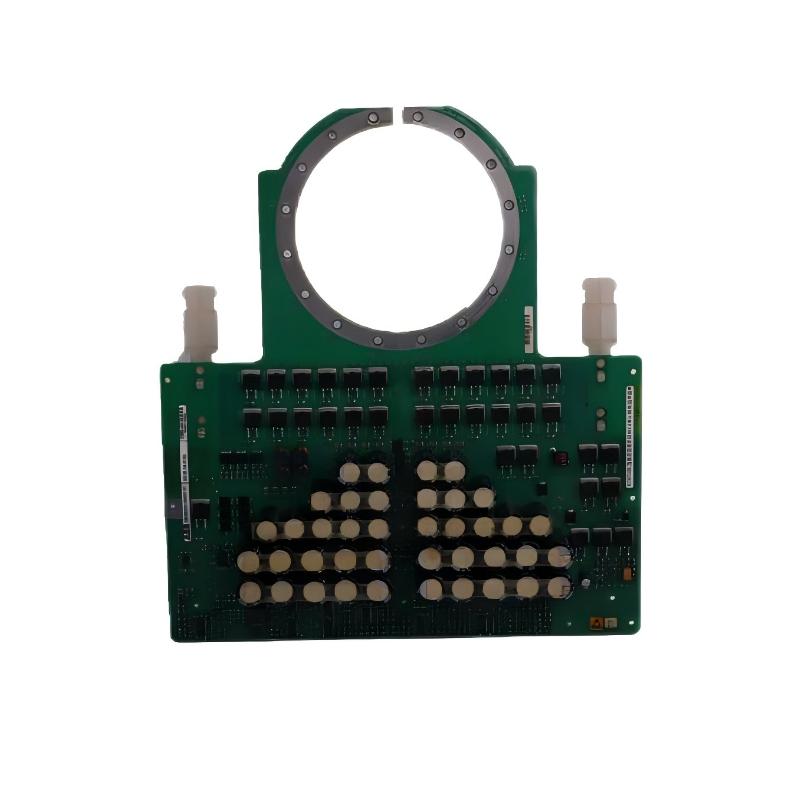

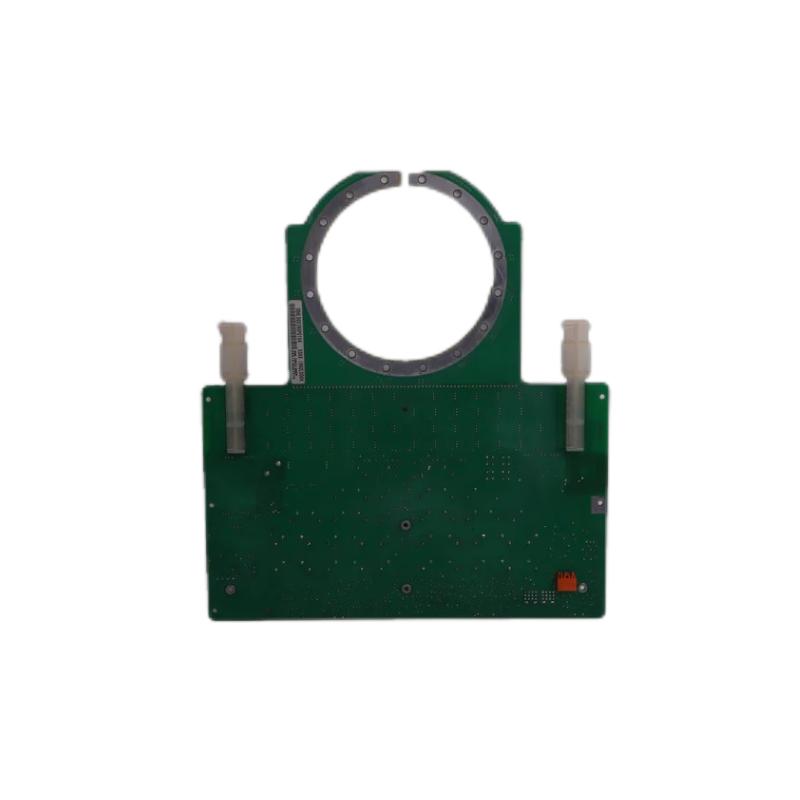

ABB 5SHX1960L0004 3BHL000390P0104 High-Power IGCT Module

ABB CI920N 3BDS014113 Communication Interface for Industrial Automation

ABB 5SHX1960L0004 3BHL000390P0104 High-Power IGCT Module

Name: ABB 5SHX1960L0004 3BHL000390P0104 High-Power IGCT Module
Brand: ABB PLC
SKU: 208
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:ABB PLC
Item No.:5SHX1960L0004 3BHL000390P0104
Product Origin:Sweden
Product Dimensions:160 × 145 × 75 mm
Product Weight:5.2 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The ABB 5SHX1960L0004 (also referred to as 3BHL000390P0104) is a high-capacity IGCT (Insulated Gate Commutated Thyristor) module designed for industrial and utility-scale power electronics. This write-up is crafted from a field-engineer perspective, focusing on system integration, thermal management, and operational reliability, particularly for high-voltage drives, HVDC converters, and large-scale power systems.

Technical Specifications

Parameter	Description
Model Numbers	5SHX1960L0004 / 3BHL000390P0104
Device Type	High-Power IGCT Module
Voltage Rating	Typically ~6 kV nominal
Current Rating	Approximately 1960 A (system-dependent)
Function	High-current, high-voltage switching for industrial drives and power converters
Cooling Requirement	Requires forced air or liquid cooling with high-efficiency heat sinks
Gate Drive	Dedicated IGCT gate driver mandatory
Isolation	Designed to meet industrial high-voltage creepage and clearance standards
Dimensions	160 × 145 × 75 mm (H × W × D)
Weight	~5.2 kg

Applications

High-power industrial motor drives
HVDC transmission modules and converters
Large AC/DC and DC/AC conversion systems
FACTS systems for grid stabilization and reactive power control
Heavy industrial rectifiers and inverters
Replacement or retrofit in existing ABB IGCT-based power electronics systems

Advantages

High power handling — capable of managing extremely high current and voltage for heavy-duty applications.
Robust industrial design — built for continuous operation under harsh environmental conditions.
Predictable switching performance — ensures precise control for complex power electronics systems.
Thermally stable — supports consistent performance with proper cooling.
Legacy system compatibility — allows engineers to maintain or upgrade existing ABB IGCT installations without full system redesign.

Technical FAQs

What is the main function of this module?
It provides high-current switching for industrial drives and power converters requiring controlled commutation.
Can it be used with other ABB IGCT modules?
Only compatible with modules in the same voltage/current class and footprint.
Does it require a special gate driver?
Yes, operation depends on a dedicated IGCT gate drive circuit.
How should cooling be handled?
Forced air or liquid cooling is required to maintain safe junction temperatures.
Can the module be mounted in any orientation?
Orientation is flexible, but uniform thermal interface pressure is required.
Is it suitable for high-frequency operation?
IGCTs are efficient at lower switching frequencies typical of high-power industrial applications.
What happens if cooling is inadequate?
Overheating can lead to reduced lifespan or immediate failure.
Can it handle regenerative power flow?
Yes, suitable for bidirectional current applications in regenerative drives.
Are there any special handling precautions?
Handle with care to avoid mechanical shock and follow anti-static precautions.
Where is this module typically deployed?
Large industrial drives, HVDC converter stations, FACTS systems, and heavy-duty inverter/rectifier installations.
