Introduction

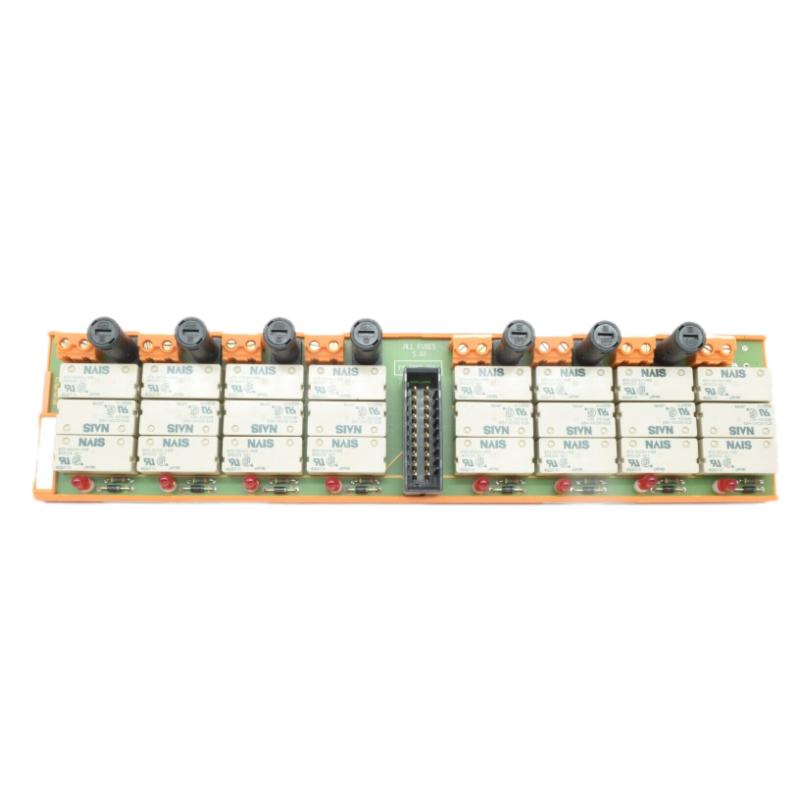

The Honeywell FC‑TSRO‑0824 Digital Output Field Termination Assembly is a rugged and reliable interface component engineered to provide secure and organized termination of digital output signals in industrial automation systems. Designed for use with Honeywell control platforms and field devices, this termination assembly simplifies wiring, enhances signal integrity, and improves maintainability. Its robust construction makes it well‑suited for demanding process environments where consistent performance and field adaptability are required.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | FC‑TSRO‑0824 |
| Type | Digital Output Field Termination Assembly |
| Output Channels | 8 points |
| Output Type | Discrete digital output termination |
| Compatible Signal Level | 24 VDC |
| Terminal Type | Screw‑type with positive locking |
| Wire Range | 12–24 AWG (0.2–4.0 mm²) |
| Current Rating | Up to 5 A per channel |
| Voltage Rating | 30 V DC maximum |
| Isolation | Electrical isolation via terminal assembly |
| Mounting | DIN rail or panel mount |
| Operating Temperature | −20°C to 70°C |
| Storage Temperature | −40°C to 85°C |
| Dimensions (W × H × D) | 215 mm × 95 mm × 45 mm |
| Weight | 0.75 kg |
| Environmental Rating | Industrial use |
