Introduction

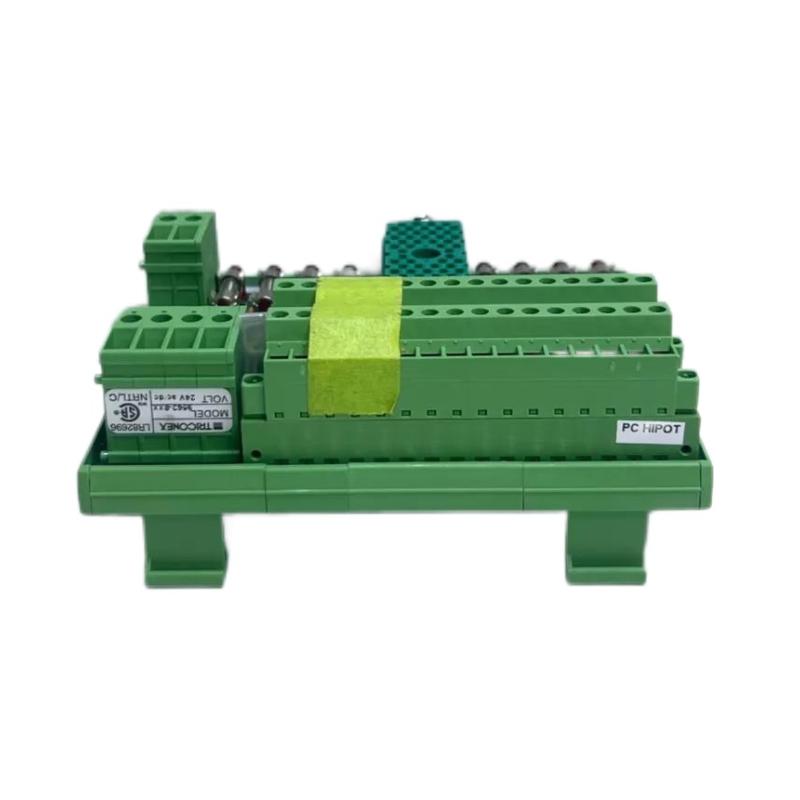

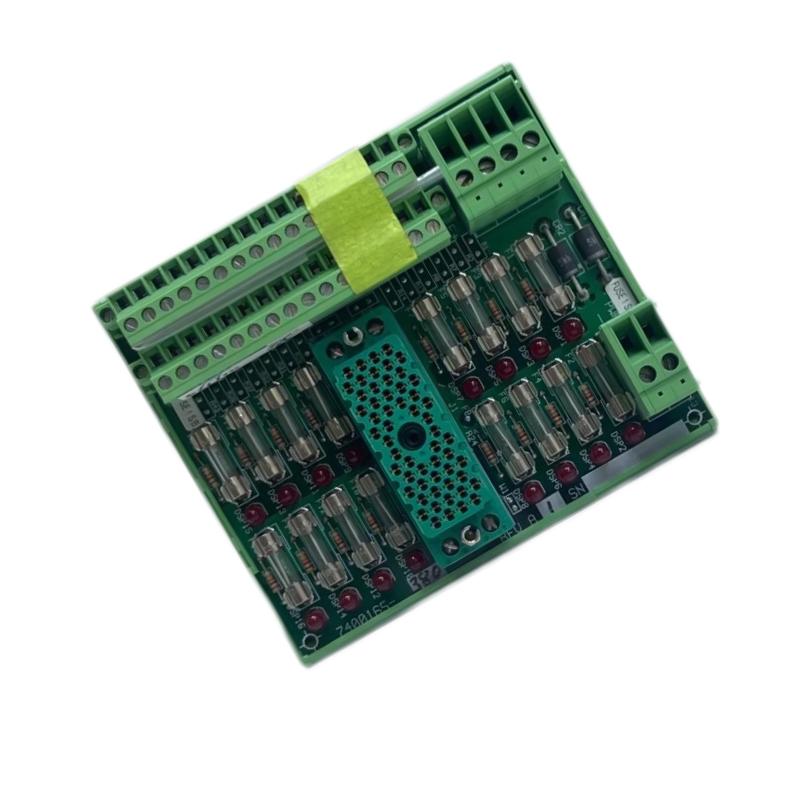

The Triconex 9563-8 Digital Input Terminal Panel is designed to provide reliable and precise monitoring of digital signals for safety-critical industrial control systems. Engineered for rugged environments, this panel integrates seamlessly with Triconex PLCs and automation systems, ensuring accurate real-time detection of input signals. Its modular and fault-tolerant design makes it an essential component in industries requiring high reliability and operational safety.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | 9563-8 (3000510-380) |
| Type | Digital Input Terminal Panel |
| Input Channels | 16 channels |
| Input Type | DC digital inputs |
| Input Voltage | 24 VDC nominal |
| Input Current | 5 mA typical per channel |
| Isolation | Optical isolation between channels |
| Response Time | <10 ms |
| Redundancy Support | Compatible with TMR systems |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions (WxHxD) | 220 mm x 180 mm x 80 mm |
| Weight | 1.5 kg |
| Mounting | DIN rail or panel mount |
