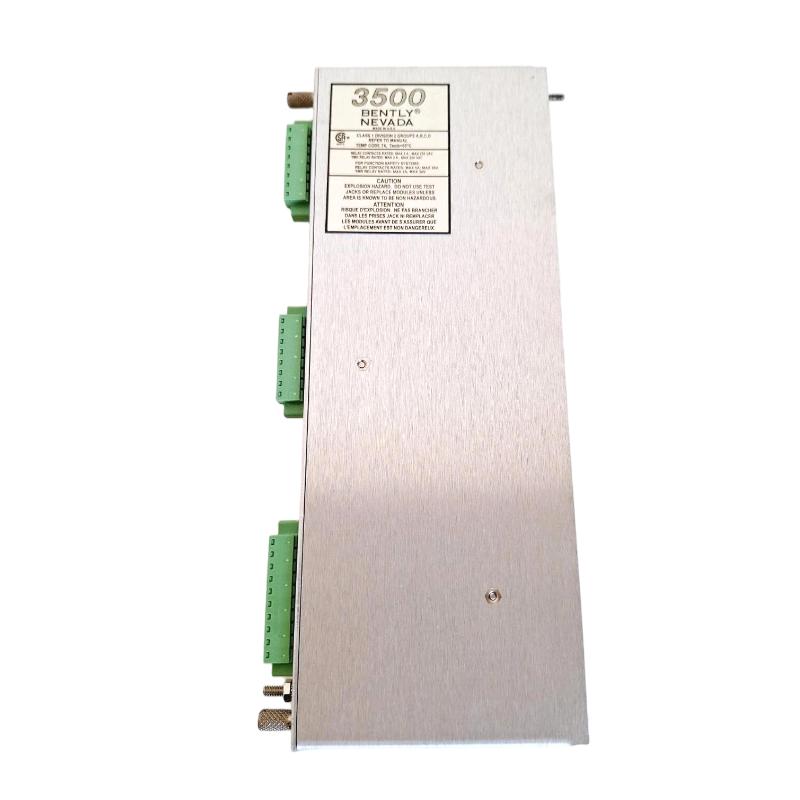

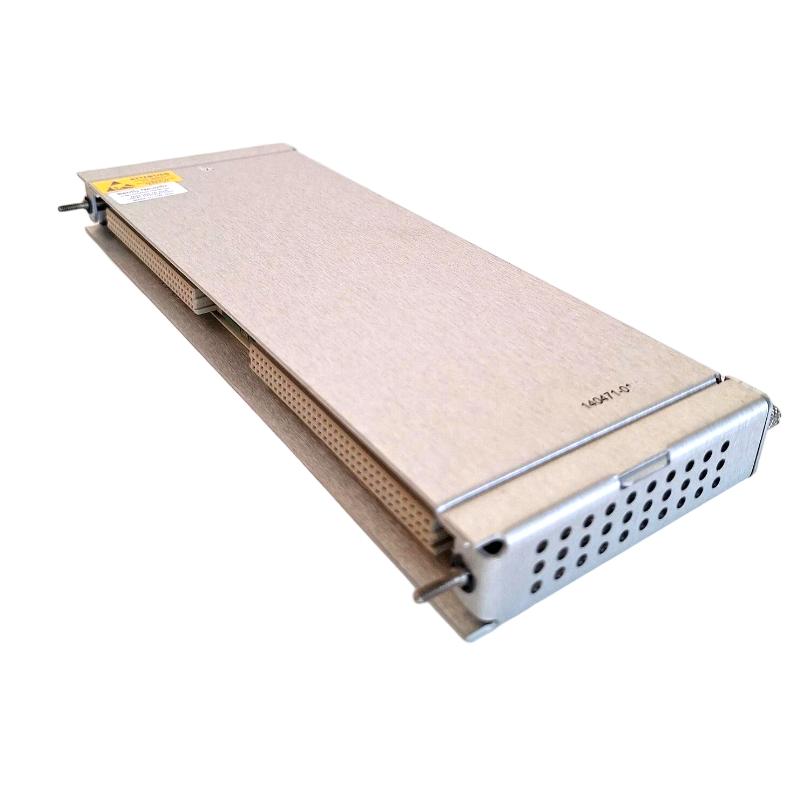

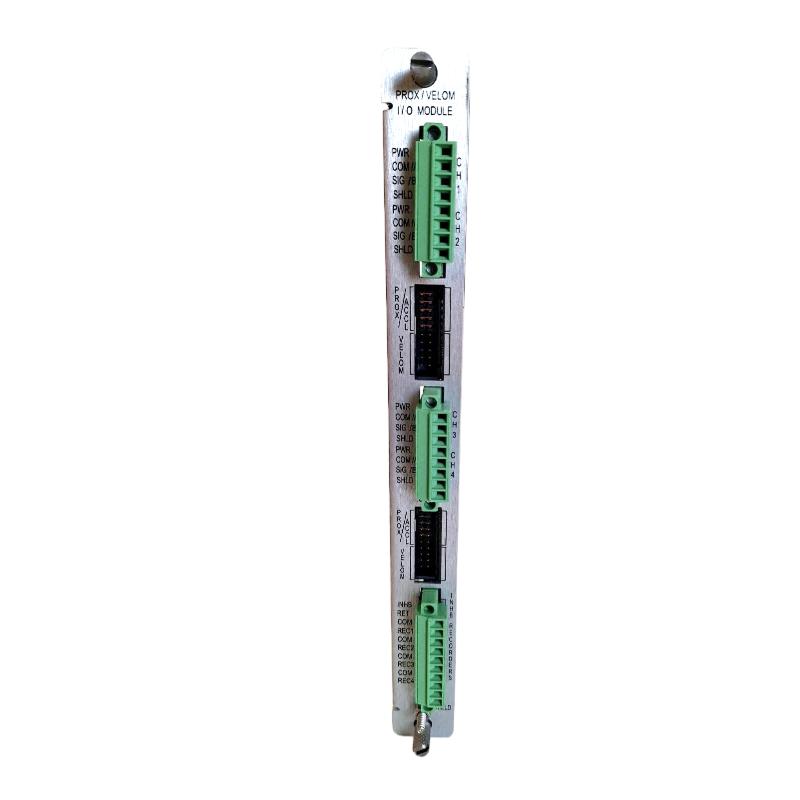

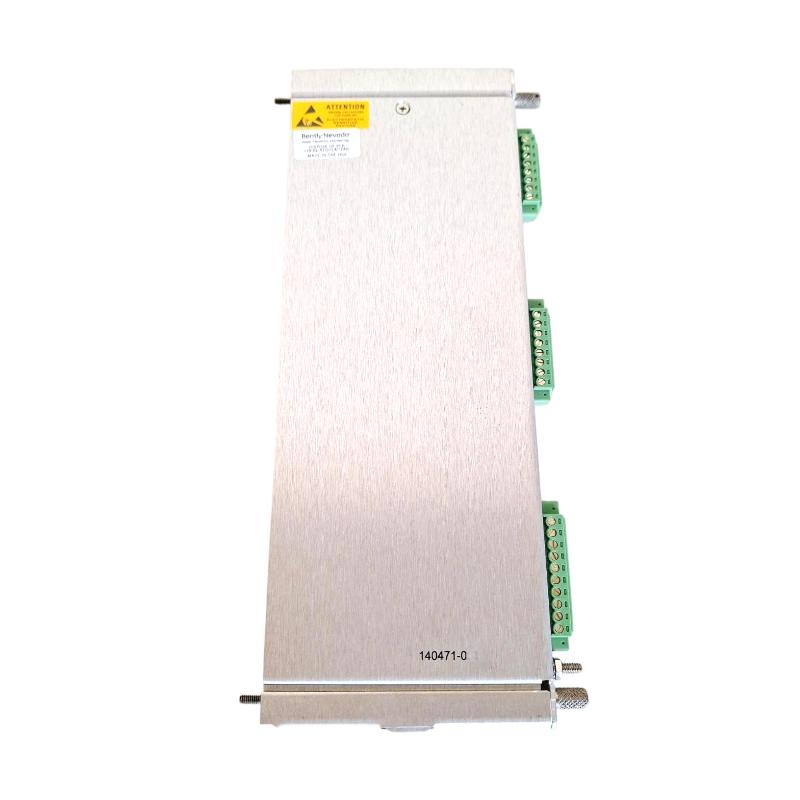

Bently Nevada 3500/42M 140471-01 Prox/Velom Input/Output Module with Internal Termination

Brand:Bently Nevada PLC
Item No.:3500/42M
Product Origin:USA
Product Dimensions:241.3 x 24.4 x 99.1 mm
Product Weight:0.2 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

Introduction

The Bently Nevada 3500/42M 140471-01 Proximity/Velocity Input/Output Module with Internal Termination is a versatile and essential component of the 3500 Condition Monitoring System. Designed to monitor the health of rotating machinery, this module allows for precise measurement of proximity and velocity signals, enabling operators to detect mechanical faults such as imbalance, misalignment, and bearing wear. The module features internal terminations, simplifying installation and reducing the need for external wiring. It is highly reliable and well-suited for applications in industries like power generation, oil & gas, and heavy manufacturing, where continuous monitoring of machinery health is critical to preventing unplanned downtime.

Technical Specifications

SpecificationValue
Model NumberBently Nevada 3500/42M 140471-01
Module TypeProximity/Velocity Input/Output with Internal Termination
Dimensions (L × W × H)241.3 × 24.4 × 99.1 mm
Weight0.2 kg
Power Supply24V DC
Signal TypeProximity, Velocity
Input Channels8 input channels
Output Channels8 output channels
Communication ProtocolEthernet, Modbus RTU
Operating Temperature Range-40°C to +85°C


Applications

The Bently Nevada 3500/42M 140471-01 Proximity/Velocity I/O Module with Internal Termination is designed for applications where proximity and velocity monitoring is critical. Its primary applications include:

  • Rotating Equipment Monitoring: Provides real-time monitoring of vibration, proximity, and velocity signals for turbines, motors, compressors, and other critical machinery, helping to detect issues like misalignment and imbalance.

  • Proximity and Velocity Signal Monitoring: Monitors critical signals related to the position and speed of rotating machinery components, essential for early detection of performance issues.

  • Industrial Automation: Seamlessly integrates with other modules in the 3500 Condition Monitoring System to provide continuous, real-time diagnostics and predictive maintenance capabilities.

  • Power Generation: Ideal for monitoring turbines, generators, and other critical components in power plants, ensuring safe and reliable operation.

  • Oil & Gas: Used for monitoring pumps, compressors, and motors in oil refineries, gas processing plants, and offshore platforms, ensuring smooth operations even in harsh environments.

  • Heavy Manufacturing: Helps monitor production line machinery, reducing downtime and improving overall equipment efficiency.


Advantages

  • Internal Terminations for Simplified Installation: The module features internal terminations, reducing the complexity of wiring and installation, making it easier to integrate into existing systems.

  • High-Precision Monitoring: Provides accurate proximity and velocity measurements, enabling early detection of mechanical issues such as misalignment, imbalance, and bearing wear.

  • Real-Time Diagnostics and Predictive Maintenance: Continuous monitoring of machinery allows for real-time diagnostics, improving the ability to perform predictive maintenance and avoid costly breakdowns.

  • Flexible Configuration: With 8 input channels and 8 output channels, the module can be tailored to a wide range of monitoring applications, offering scalability and flexibility for industrial systems.

  • Durability in Harsh Environments: Designed to operate reliably in temperatures ranging from -40°C to +85°C, the module is built for use in demanding industrial environments.


Technical FAQs

  1. What is the power supply requirement for the monitoring system?
    The Bently Nevada 3500/42M Proximity/Velocity I/O Module with Internal Termination requires a 24V DC power supply.

  2. How many input and output channels does the module support?
    The module supports 8 input channels and 8 output channels, offering a flexible solution for various monitoring needs.

  3. What types of signals can the module monitor?
    The module monitors proximity and velocity signals, providing key data on the position and speed of rotating machinery components.

  4. What communication protocols are supported by the module?
    The module supports Ethernet and Modbus RTU, ensuring seamless integration with existing control systems and allowing for real-time diagnostics.

  5. What is the operating temperature range for the module?
    The Bently Nevada 3500/42M module operates in a temperature range of -40°C to +85°C, making it suitable for use in extreme industrial environments.

  6. Can this module be used in power generation applications?
    Yes, the 3500/42M module is widely used in power generation facilities to monitor critical equipment such as turbines and generators, ensuring efficient and reliable operation.

  7. How does the internal termination feature simplify installation?
    The internal termination feature reduces the need for external wiring, simplifying installation and improving the reliability of the monitoring system by minimizing potential connection issues.

  8. How does the module help with predictive maintenance?
    By providing real-time monitoring of proximity and velocity signals, the module enables early detection of mechanical issues, allowing operators to implement predictive maintenance strategies and avoid costly downtime.

  9. Is the module suitable for use in the oil and gas industry?
    Yes, the 3500/42M module is well-suited for use in the oil and gas industry to monitor pumps, compressors, and other machinery, ensuring smooth operation even in harsh environmental conditions.

  10. What are the key benefits of using this Proximity/Velocity I/O Module?
    The 3500/42M module offers high-precision monitoring, internal terminations for simplified installation, real-time diagnostics, and predictive maintenance capabilities, all of which help reduce downtime and improve machinery reliability.
