Introduction

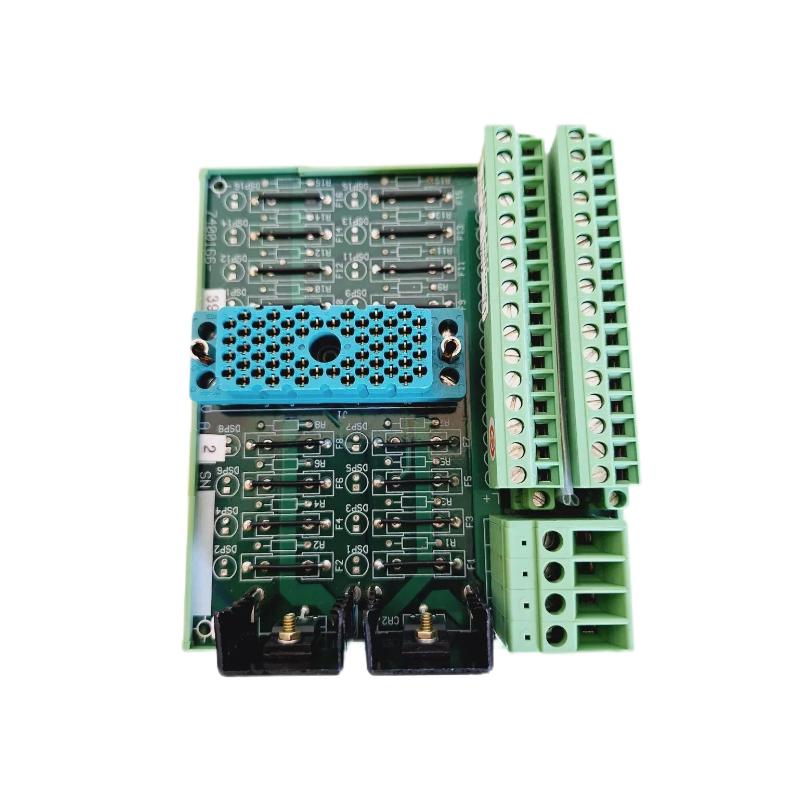

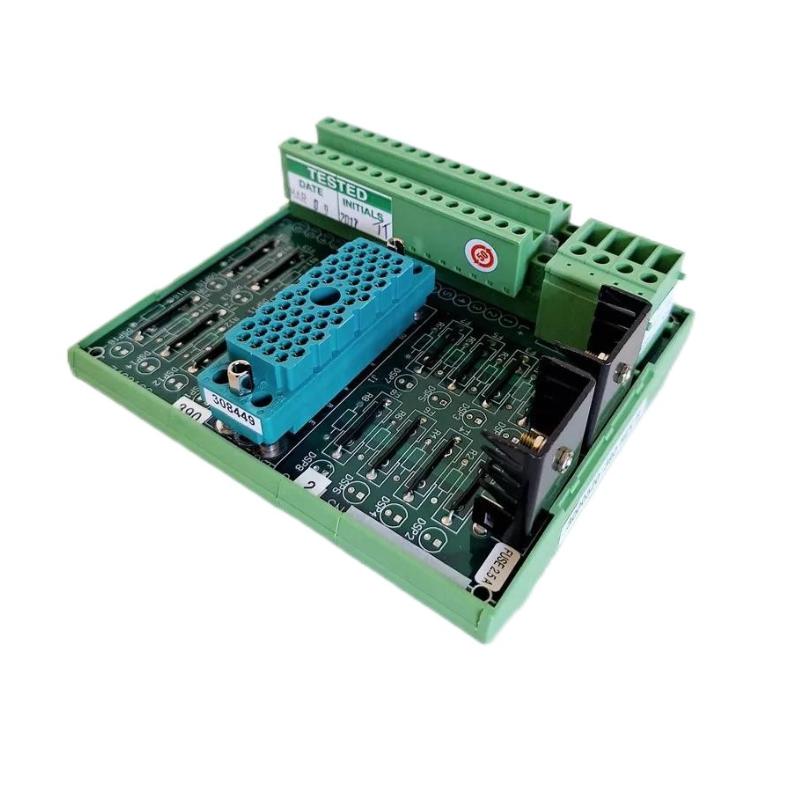

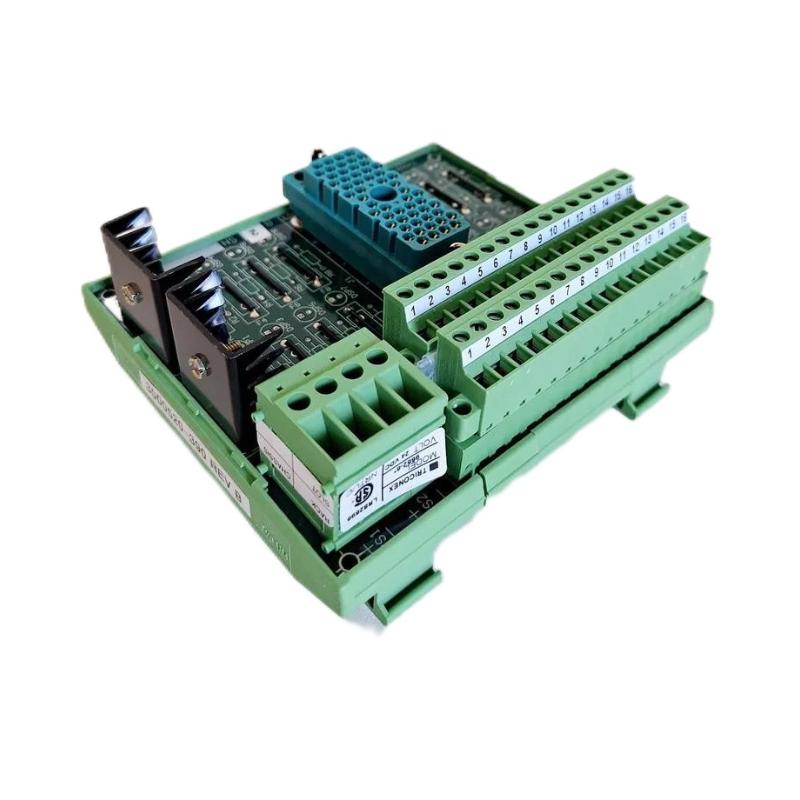

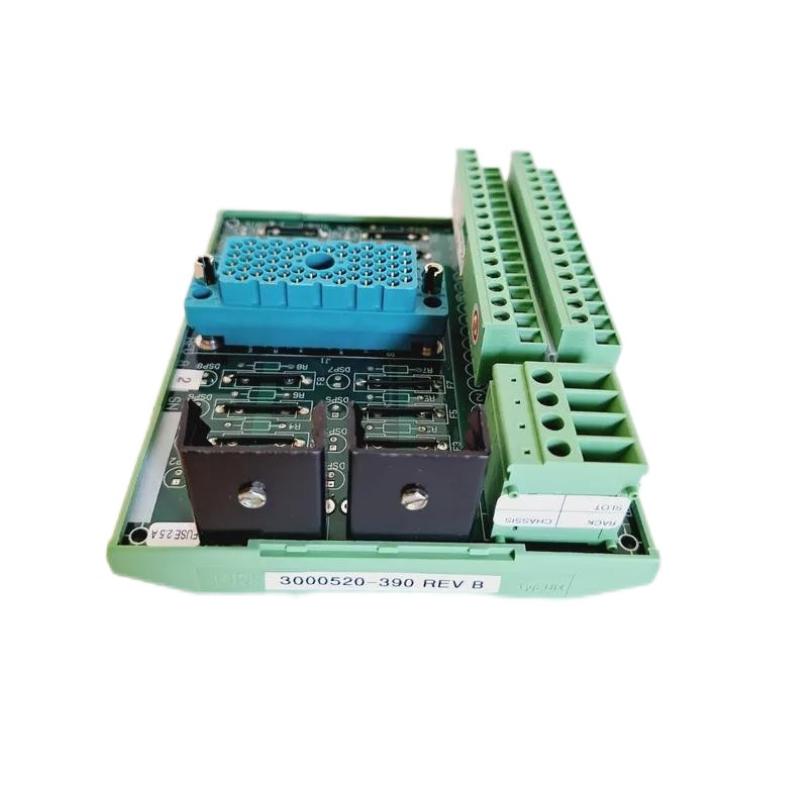

The Triconex 9562 Terminal Board Module is a high-quality interface module designed to provide reliable wiring and connectivity for Triconex safety and control systems. Built for industrial robustness, it ensures secure, fault-tolerant connections between field devices and the main control system. The 9562 module is ideal for applications where organized, high-integrity terminal connections are critical to operational safety and efficiency.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | 9562 (3000520-390) |
| Type | Terminal Board Module |
| Terminal Points | 32 screw-type terminals |
| Input/Output Support | Supports digital and analog signals via connected modules |
| Redundancy Support | Compatible with TMR systems |
| Operating Voltage | 24 VDC nominal (module dependent) |
| Current Rating | 5 A per terminal maximum |
| Isolation | Electrically isolated connections via module interface |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions (WxHxD) | 150 mm x 100 mm x 60 mm |
| Weight | 1.2 kg |
| Mounting | DIN rail or chassis mount |
