Introduction

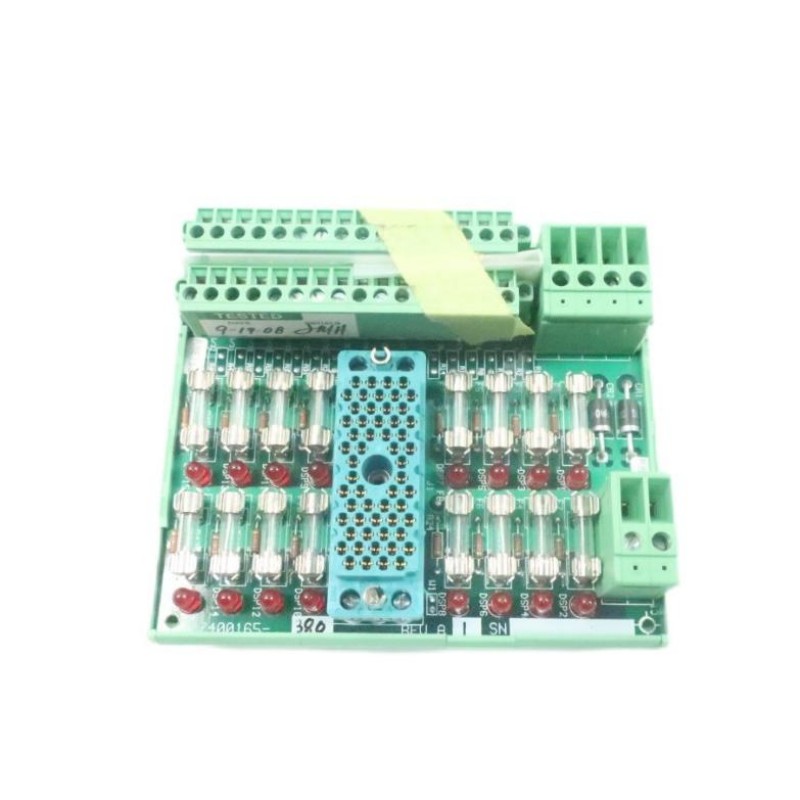

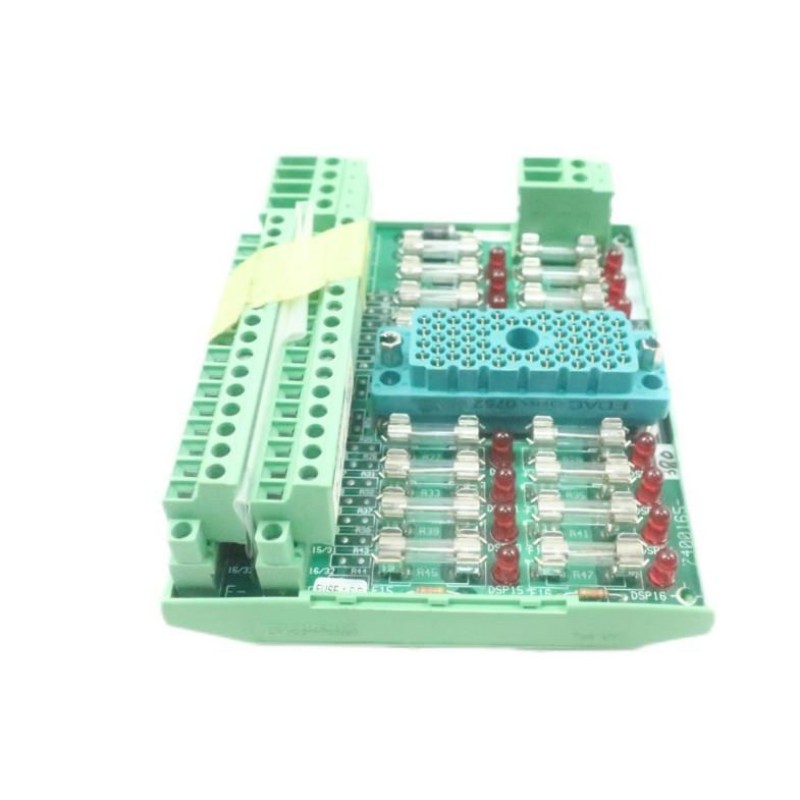

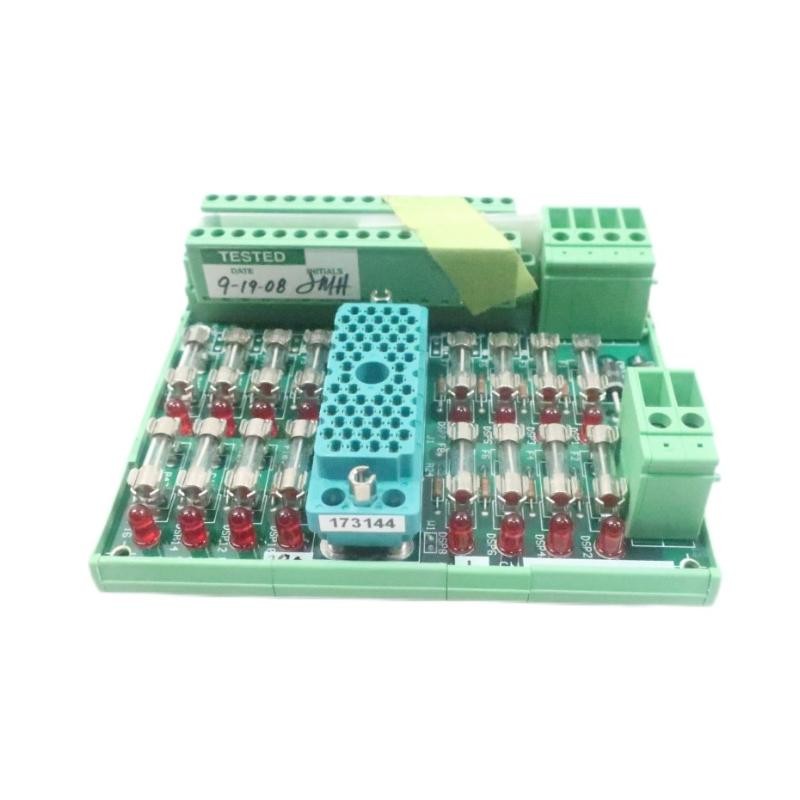

The Triconex 9543-810 Digital Input Terminal is a high-performance module designed for precise monitoring of digital signals within safety-critical industrial control systems. Built for modularity and reliability, this terminal ensures accurate data acquisition and seamless integration with Triconex safety and automation networks. It is ideal for applications where rapid response and fault-tolerant performance are essential.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | 9543-810 (7400165-380) |
| Type | Digital Input Terminal |
| Input Channels | 16 channels |
| Input Type | DC digital inputs |
| Input Voltage | 24 VDC nominal |
| Input Current | 5 mA typical per channel |
| Isolation | Optical isolation between channels |
| Response Time | <10 ms |
| Redundancy Support | Compatible with TMR systems |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions (WxHxD) | 110 mm x 150 mm x 60 mm |
| Weight | 1.1 kg |
| Mounting | DIN rail or terminal block mount |
