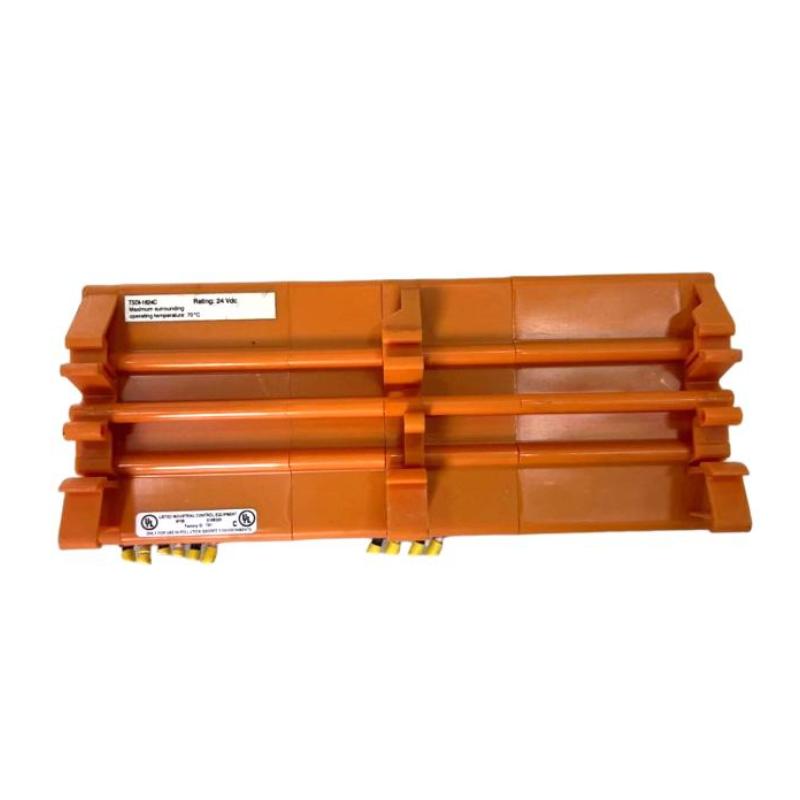

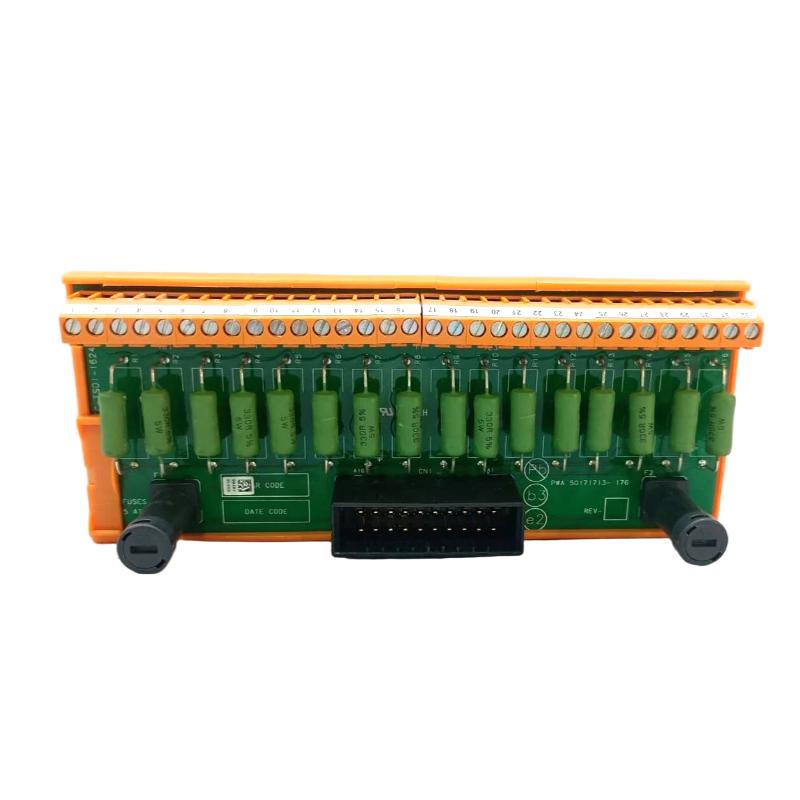

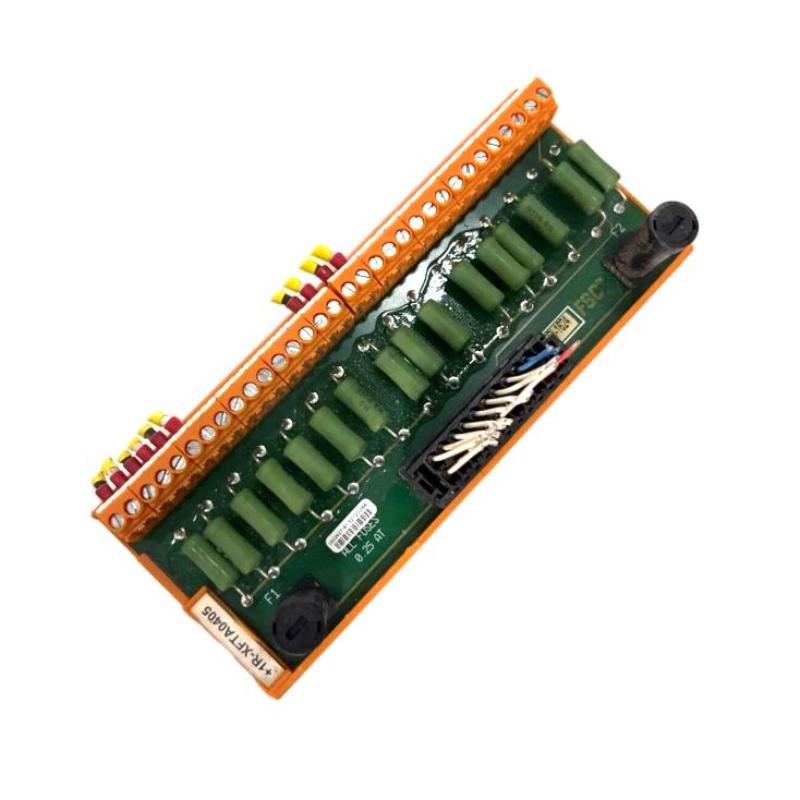

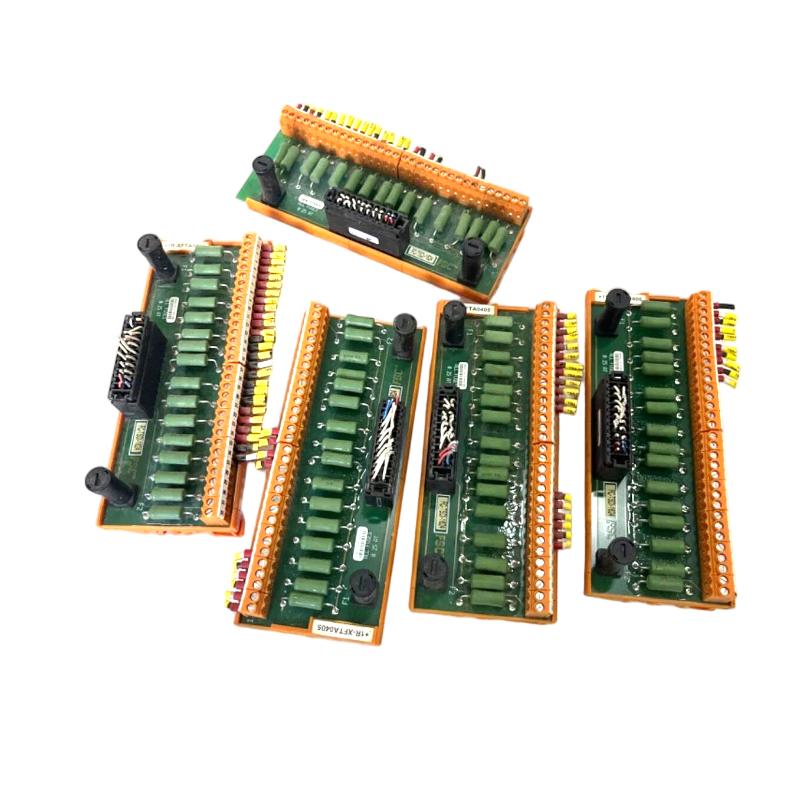

Honeywell FC-TSDI-1624C 50171713-176 Safety Active/Passive Digital Input FTA

Brand:Honeywell DCS
Item No.:FC-TSDI-1624C
Product Origin:USA
Product Dimensions:90 × 70 × 58 mm
Product Weight:0.36 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

Introduction
The Honeywell FC-TSDI-1624C 50171713-176 is a Safety Active/Passive Digital Input module designed to integrate seamlessly into Safety Instrumented Systems (SIS), ensuring the safety and reliability of industrial processes. With a compact size of 90 x 70 x 58 mm and a weight of 0.36 kg, this module is ideal for tight spaces within control panels while providing exceptional performance for safety-critical applications. It supports both active and passive input configurations, providing versatile integration options across a range of industrial systems.

Certified to SIL 3 (Safety Integrity Level 3), the FC-TSDI-1624C plays a vital role in maintaining safe operations in industries that require stringent safety measures such as oil & gas, chemical, and power generation sectors.

Technical Specifications

Parameter Specification
Model FC-TSDI-1624C 50171713-176
Type Safety Active/Passive Digital Input FTA
Dimensions 90 x 70 x 58 mm
Weight 0.36 kg (0.79 lbs)
Input Type Active and Passive Inputs
Input Voltage 24 V DC
Communication Protocol Honeywell FTA
Safety Integrity Level SIL 3
Operating Temperature -20°C to 60°C
Mounting Type DIN Rail Mountable
Protection Overvoltage, Overload, Short Circuit Protection
Compliance CE, UL, RoHS

Applications
The Honeywell FC-TSDI-1624C Safety Digital Input module is designed for use in Safety Instrumented Systems and is suitable for applications where safety and reliability are critical. Common applications include:

  • Safety Instrumented Systems (SIS): Provides monitoring for critical safety signals in process control systems to ensure compliance with safety protocols.

  • Emergency Shutdown Systems (ESD): Monitors inputs from emergency stop buttons and other critical safety devices, ensuring immediate shutdown in hazardous conditions.

  • Fire and Gas Detection Systems: Receives inputs from fire and gas detectors, enabling quick activation of safety measures.

  • Industrial Automation: Used in manufacturing plants, power plants, and chemical facilities for monitoring critical processes.

  • Safety Equipment Monitoring: Ensures proper input reception from safety devices such as valves, sensors, and alarms.


Advantages

  • SIL 3 Certification: The FC-TSDI-1624C meets SIL 3 certification, ensuring it is suitable for use in high-risk, safety-critical applications.

  • Dual Input Flexibility: This module supports both active and passive digital inputs, offering flexibility for integration with various types of sensors and safety devices.

  • Compact Design: With dimensions of 90 x 70 x 58 mm and a weight of only 0.36 kg, it is easy to integrate into limited space in industrial control panels.

  • Robust Protection: The module includes built-in overvoltage, overload, and short circuit protection, ensuring long-term reliability in harsh operating environments.

  • Wide Temperature Range: Operating effectively within the range of -20°C to 60°C, it is suited for a wide variety of industrial settings.

  • DIN Rail Mountable: The FC-TSDI-1624C is designed to be DIN rail mountable, which simplifies installation and saves space in control systems.

  • Global Compliance: Compliant with CE, UL, and RoHS standards, the module meets international safety, environmental, and quality regulations.


Technical FAQs

  1. What is the primary function of the Honeywell FC-TSDI-1624C?
    The FC-TSDI-1624C is a Safety Active/Passive Digital Input module designed to monitor safety-critical signals and integrate them into Safety Instrumented Systems (SIS).

  2. What is the safety integrity level (SIL) of this module?
    This module is certified to SIL 3, the highest safety integrity level for safety-critical applications.

  3. What types of inputs does this module support?
    The module supports both active and passive digital inputs, making it versatile for various sensor and device configurations.

  4. What is the input voltage for the FC-TSDI-1624C?
    The module operates with an input voltage of 24 V DC.

  5. What are the dimensions and weight of this module?
    The module measures 90 x 70 x 58 mm and weighs 0.36 kg, allowing it to fit easily into compact spaces in control cabinets.

  6. What is the operating temperature range of this module?
    The FC-TSDI-1624C operates within a temperature range of -20°C to 60°C, making it suitable for a wide range of industrial environments.

  7. What types of protections are included in the module?
    The FC-TSDI-1624C includes overvoltage, overload, and short circuit protection, ensuring stable and safe operation.

  8. What are the common applications for the FC-TSDI-1624C?
    This module is used in Safety Instrumented Systems (SIS), emergency shutdown systems, fire and gas detection, and critical process monitoring across industries like oil & gas, chemical, and power generation.

  9. Is the Honeywell FC-TSDI-1624C compliant with global standards?
    Yes, it is compliant with CE, UL, and RoHS standards, ensuring safety and regulatory adherence.

  10. How is the module mounted?
    The FC-TSDI-1624C is DIN rail mountable, making installation easier and ensuring secure attachment within industrial control panels.
