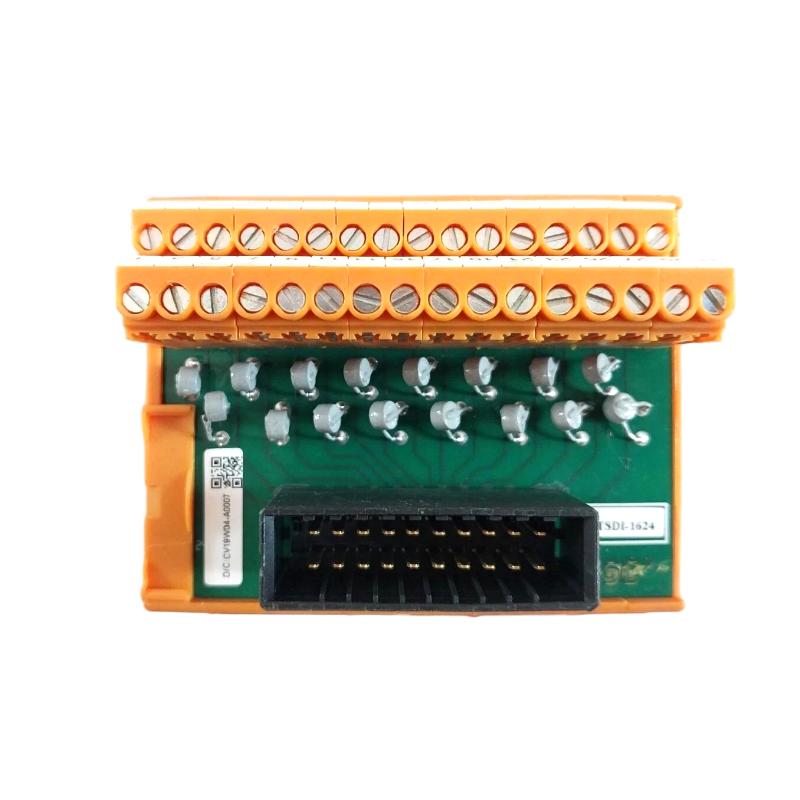

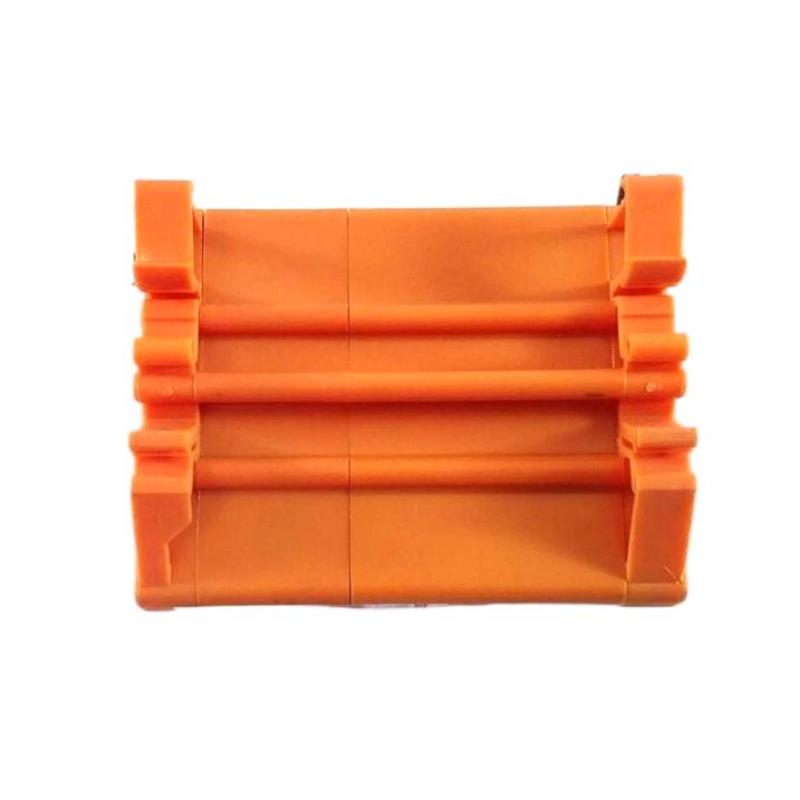

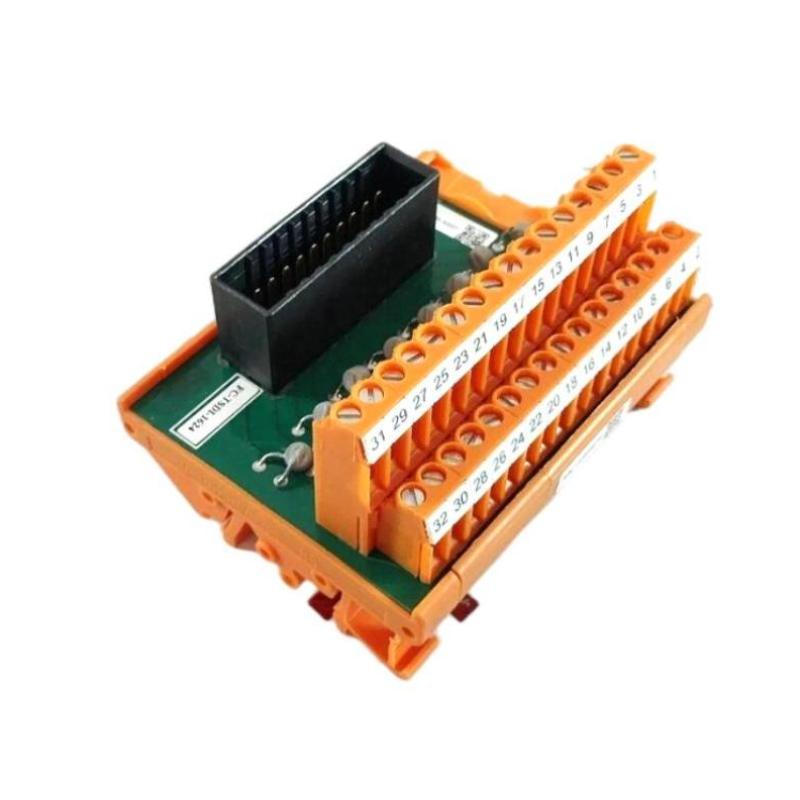

Honeywell FC-TSDI-16115 Safety Active/Passive Digital Input FTA

Brand:Honeywell DCS
Item No.:FC-TSDI-16115
Product Origin:USA
Product Dimensions:300 × 109 × 68 mm
Product Weight:0.24 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

Introduction
The Honeywell FC-TSDI-16115 is a Safety Active/Passive Digital Input module designed for industrial automation systems, specifically in Safety Instrumented Systems (SIS). With its 300 x 109 x 68 mm size and 0.24 kg weight, it provides reliable digital input capabilities for safety-critical applications. This module supports both active and passive input configurations, making it a flexible choice for various industrial environments where high standards of safety and reliability are essential.

The FC-TSDI-16115 is part of Honeywell's advanced safety portfolio, offering enhanced protection and monitoring for systems requiring functional safety and process control. It is designed to ensure safe operation in high-risk environments such as chemical plants, oil and gas facilities, and power generation plants.

Technical Specifications

Parameter Specification
Model FC-TSDI-16115
Type Safety Active/Passive Digital Input FTA
Dimensions 300 x 109 x 68 mm
Weight 0.24 kg (0.53 lbs)
Input Type Active and Passive Inputs
Input Voltage 24 V DC
Communication Protocol Honeywell FTA
Mounting Type DIN Rail Mountable
Safety Integrity Level SIL 3
Operating Temperature -20°C to 60°C
Protection Overvoltage, Overload, Short Circuit Protection
Compliance CE, UL, RoHS

Applications
The Honeywell FC-TSDI-16115 Safety Digital Input module is primarily used in Safety Instrumented Systems where safety-critical operations are involved. Its key applications include:

  • Process Safety Systems: In chemical, oil, and gas industries, this module helps monitor and control critical processes to ensure safety and mitigate risks.

  • Emergency Shutdown Systems (ESD): Ensures safe operation during critical shutdown procedures by receiving digital inputs from safety devices like emergency stop buttons and safety sensors.

  • Fire and Gas Detection Systems: Monitors inputs from fire and gas detectors, contributing to the quick response of fire and gas protection systems.

  • Critical Process Monitoring: Used to monitor important signals such as valve positions, pressure sensors, and flow meters in DCS and PLC systems.

  • Shutdown and Safety Control: Plays a crucial role in shutdown systems and safety functions for power generation and utility facilities.


Advantages

  • SIL 3 Certified: The FC-TSDI-16115 meets SIL 3 (Safety Integrity Level 3) standards, ensuring the highest level of safety in critical operations and applications.

  • Flexible Input Types: Supports both active and passive digital inputs, offering flexible integration with various safety sensors and devices.

  • Compact Design: With a size of 300 x 109 x 68 mm and a weight of only 0.24 kg, the module is easy to integrate into tight control panels and industrial environments.

  • Robust Protection: Includes built-in overvoltage, overload, and short circuit protection, ensuring reliable performance in harsh industrial conditions.

  • Wide Temperature Range: Operates effectively within a wide temperature range of -20°C to 60°C, making it suitable for a variety of industrial applications.

  • DIN Rail Mounting: The module is DIN rail mountable, providing ease of installation and secure positioning in control cabinets.

  • Global Compliance: The FC-TSDI-16115 complies with CE, UL, and RoHS standards, ensuring that it meets global safety, quality, and environmental regulations.


Technical FAQs

  1. What is the primary function of the Honeywell FC-TSDI-16115?
    The FC-TSDI-16115 is a Safety Active/Passive Digital Input module designed to monitor safety-critical signals and integrate into Safety Instrumented Systems (SIS) for process safety and control.

  2. What is the safety integrity level (SIL) of this module?
    The module is certified to SIL 3, which is the highest level of safety required for industrial systems handling critical processes.

  3. What is the input voltage for the Honeywell FC-TSDI-16115?
    The FC-TSDI-16115 operates with an input voltage of 24 V DC.

  4. Can this module handle both active and passive inputs?
    Yes, the module supports both active and passive digital inputs, providing flexibility for various sensor and device configurations.

  5. What are the dimensions and weight of the FC-TSDI-16115?
    The module has dimensions of 300 x 109 x 68 mm and weighs 0.24 kg, making it compact and easy to install in industrial control systems.

  6. What is the temperature range for the FC-TSDI-16115?
    The module can operate within a temperature range of -20°C to 60°C, making it suitable for a wide variety of environments.

  7. What types of protections are included in the module?
    The FC-TSDI-16115 includes protection against overvoltage, overload, and short circuits, ensuring the module operates safely and reliably.

  8. What are the typical applications for the FC-TSDI-16115?
    The module is used in Safety Instrumented Systems (SIS), emergency shutdown systems, and fire and gas detection applications in industries such as oil and gas, chemical plants, and power generation.

  9. Is the Honeywell FC-TSDI-16115 compliant with global safety standards?
    Yes, it complies with CE, UL, and RoHS standards, ensuring it meets international safety, environmental, and quality requirements.

  10. How is the module mounted?
    The FC-TSDI-16115 is DIN rail mountable, which simplifies installation and ensures secure attachment within control panels.
