Introduction

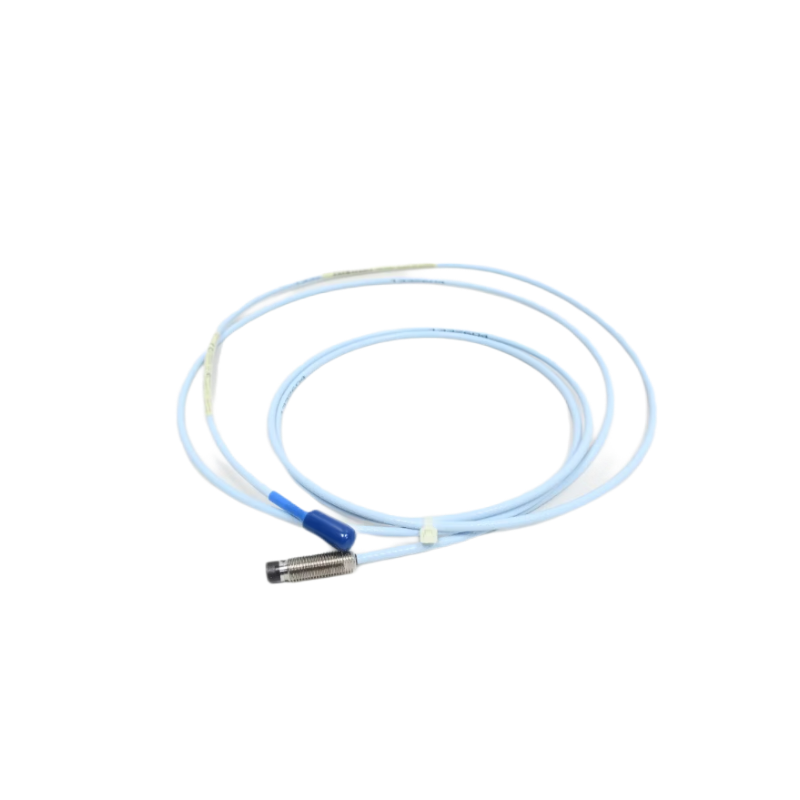

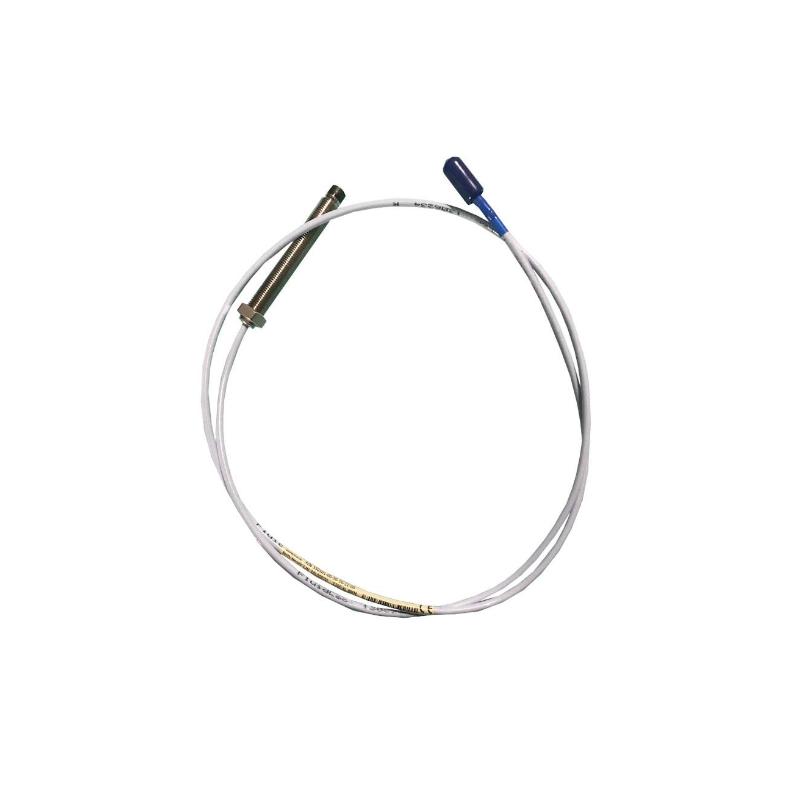

The Bently Nevada 330101‑00‑28‑10‑02‑00 3300 XL 8 mm Proximity Probe is a precision non‑contact displacement measuring sensor engineered for condition monitoring and vibration analysis in industrial machinery. Part of the renowned 3300 XL 8 mm Proximity Transducer System, this probe uses eddy‑current sensing technology to deliver reliable, high‑resolution measurement of shaft position, vibration, and movement. Built for harsh environments and long‑term reliability, it’s widely used in turbines, compressors, generators, and rotating equipment across power, oil & gas, and heavy process industries. PLC Masters Ltd.+1
Technical Specifications
| Specification | Details |
|---|---|
| Model | 330101‑00‑28‑10‑02‑00 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Manufacturer | Bently Nevada |
| Probe Diameter | 8 mm nominal |
| Unthreaded Length Option | 0.0 in |
| Overall Case Length | 2.8 in (approx. 71 mm) |
| Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature coaxial ClickLoc™ connector |
| Sensing Technology | Eddy‑current (non‑contact) |
| Linear Measurement Range | Up to ~2 mm (80 mils) nominal |
| Frequency Response | ~0 Hz to 10 kHz |
| Sensitivity | Typical ~7.87 V/mm |
| Operating Temperature | Standard industrial range |
| Cable Jacket | Standard fluoropolymer jacket |
| Weight | Approx. 0.32 kg |
| Mounting Thread | Not threaded (smooth case) |
| Agency Approvals | Not required (Option 00) |
| Construction | Stainless steel and PPS probe tip |
