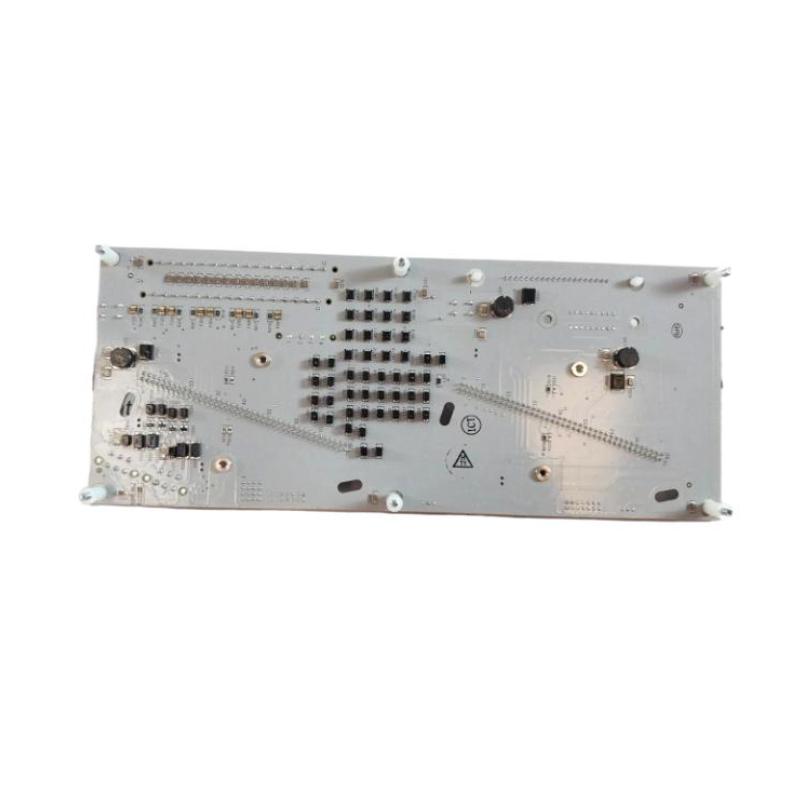

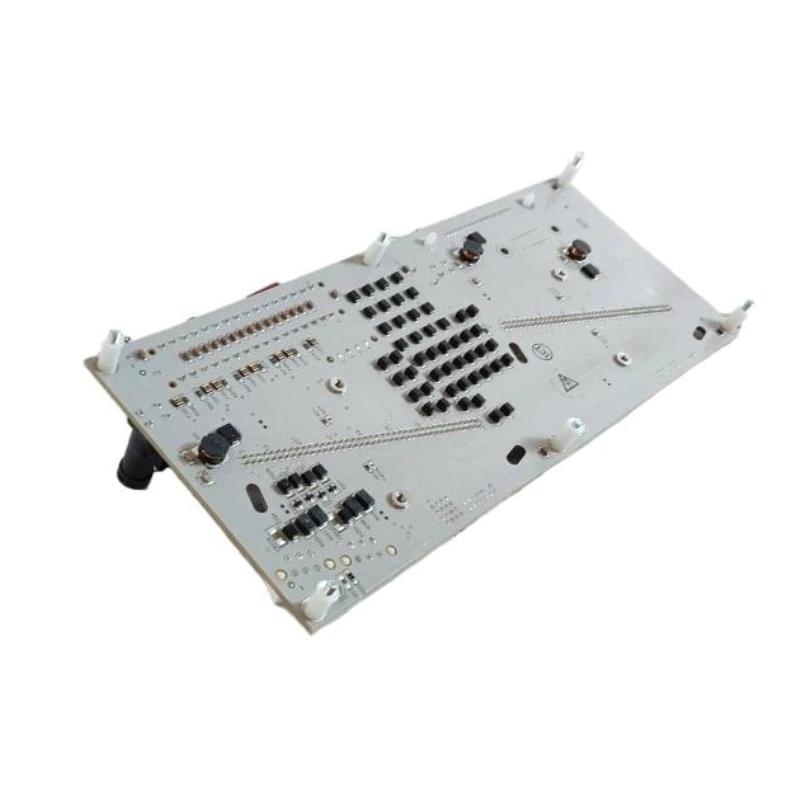

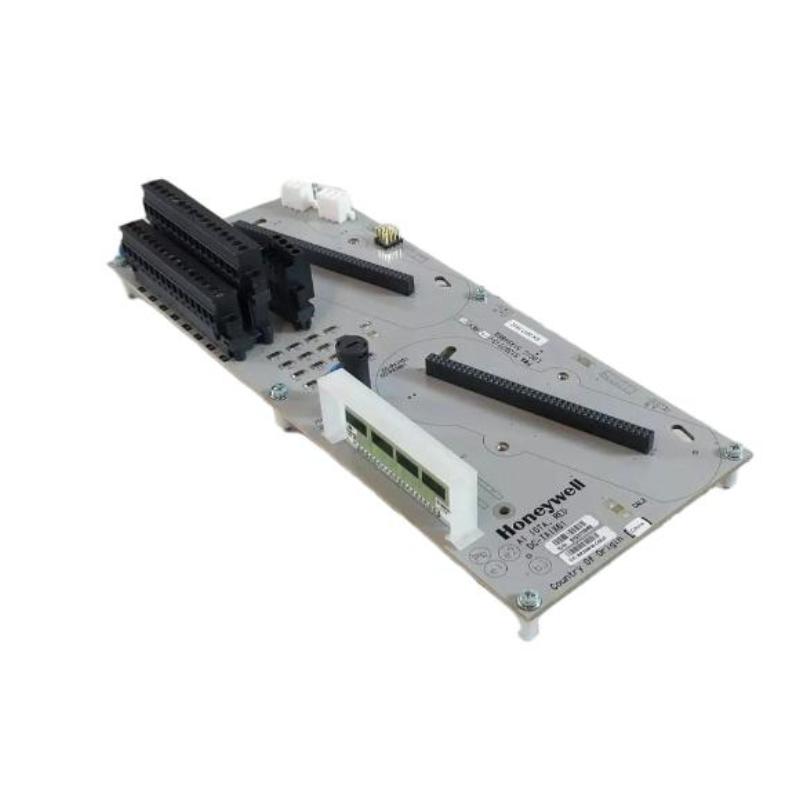

Honeywell DC-TAIX61 Analog Input Module

Brand:Honeywell DCS
Item No.:DC-TAIX61
Product Origin:USA
Product Dimensions:30 x 313 x 156mm
Product Weight:0.5 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

Introduction
The Honeywell DC-TAIX61 Analog Input Module is designed for precision analog signal processing in industrial automation systems. With its compact dimensions of 30 x 313 x 156 mm and a weight of 0.5 kg, this module is well-suited for space-constrained environments, offering high performance in process control, automation, and monitoring applications.

This module is engineered to accept and process analog inputs, making it an essential component in controlling and monitoring sensors, temperature control systems, pressure transducers, and more. With high accuracy and robust reliability, it ensures continuous, precise data collection for efficient system management.

Technical Specifications

Parameter Specification
Model DC-TAIX61
Type Analog Input Module
Dimensions 30 x 313 x 156 mm
Weight 0.5 kg (1.1 lbs)
Input Type Analog Inputs
Input Voltage 24 V DC (Nominal)
Number of Inputs 16 Analog Inputs
Input Range 4-20 mA / 0-10 V (Selectable)
Input Isolation 500 V DC Isolation
Mounting Type DIN Rail Mountable
Operating Temperature -20°C to 60°C
Compliance CE, RoHS
Accuracy 0.1% of Full Scale

Applications
The Honeywell DC-TAIX61 Analog Input Module is designed for a wide range of applications in industrial and process control systems. Its 16 analog input channels make it highly flexible for a variety of uses:

  • PLC Systems: Interfacing with temperature sensors, pressure transducers, and other analog devices in PLC systems for data acquisition and process control.

  • DCS Systems: Used in Distributed Control Systems to process analog signals from sensors and transducers, enabling efficient process monitoring.

  • Machine Automation: Monitors signals from machine sensors, such as level sensors, flow meters, and pressure sensors, ensuring accurate control of operations.

  • Energy Management: Provides input processing for devices like energy meters and load cells, allowing effective energy monitoring and management.

  • Building Automation: Interfaces with analog control devices for systems such as HVAC, lighting, and security systems.


Advantages

  • High Precision: The DC-TAIX61 offers excellent accuracy, with 0.1% of full scale, ensuring that your analog signals are processed with utmost precision.

  • Flexible Input Range: Supports both 4-20 mA and 0-10 V input ranges, making it compatible with a wide variety of field devices.

  • Compact Design: With a size of 30 x 313 x 156 mm, it can fit easily into compact control panels and enclosures.

  • Reliable Isolation: Provides 500 V DC isolation, protecting the module and the connected equipment from electrical interference and ensuring signal integrity.

  • Wide Operating Temperature: The module operates in extreme temperature ranges from -20°C to 60°C, offering flexibility in harsh environments.

  • DIN Rail Mountable: Simplifies installation with its DIN rail mounting design, ensuring secure attachment to control panel racks.

  • International Standards: The DC-TAIX61 is compliant with CE and RoHS certifications, ensuring the highest standards of safety and environmental responsibility.


Technical FAQs

  1. What is the primary function of the Honeywell DC-TAIX61?
    The DC-TAIX61 processes analog input signals from sensors and transducers, making it essential for automation and control systems.

  2. How many input channels does the module support?
    The DC-TAIX61 supports 16 analog input channels, offering versatility for various industrial applications.

  3. What input voltage does the module require?
    The module requires a 24 V DC input voltage to operate.

  4. What is the accuracy of the module?
    The DC-TAIX61 offers 0.1% accuracy of full scale, ensuring high precision for analog signal processing.

  5. What is the input range for the module?
    The module supports two selectable input ranges: 4-20 mA and 0-10 V, making it compatible with a wide variety of devices.

  6. What is the weight of the Honeywell DC-TAIX61 module?
    The module weighs 0.5 kg (1.1 lbs), making it lightweight and easy to handle during installation.

  7. Can the module be mounted on a DIN rail?
    Yes, the DC-TAIX61 module can be easily mounted on a DIN rail, providing a secure and efficient installation method.

  8. What isolation does the module provide?
    The DC-TAIX61 offers 500 V DC isolation between the input channels, ensuring protection against electrical interference.

  9. What is the operating temperature range of the module?
    The DC-TAIX61 operates in a temperature range from -20°C to 60°C, allowing it to be used in a variety of industrial environments.

  10. What compliance standards does the module meet?
    The DC-TAIX61 is CE and RoHS certified, ensuring it adheres to international safety and environmental standards.
