Overview

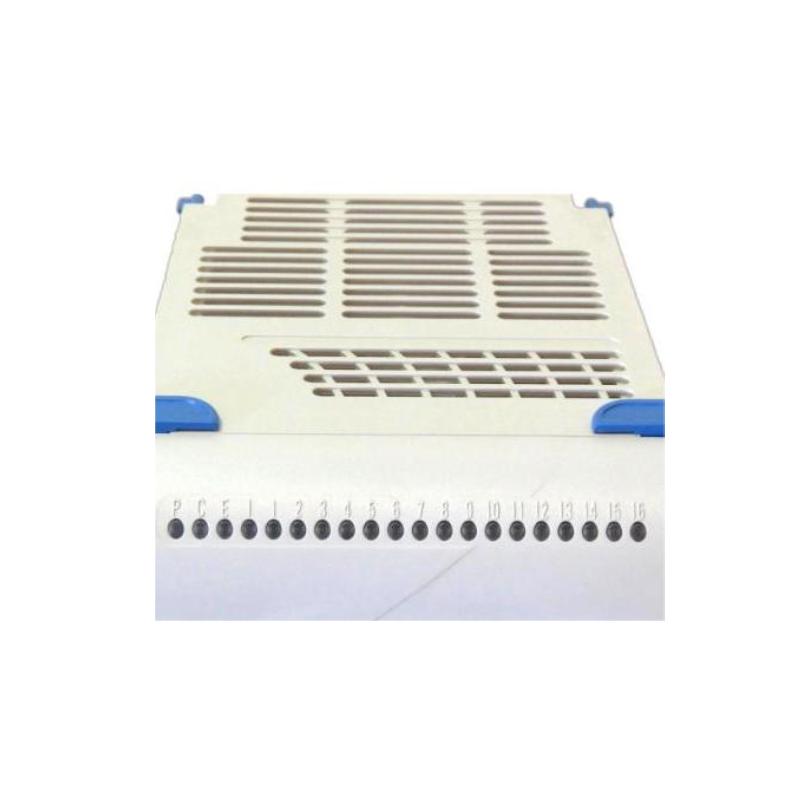

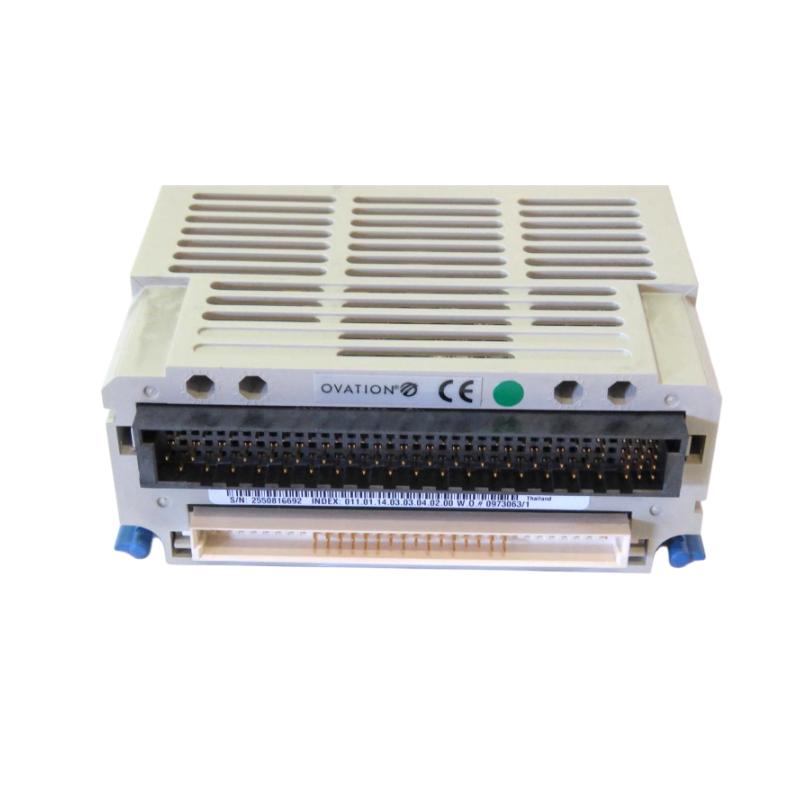

The Ovation 1C31025G05 Analog Input Module is engineered to acquire and process analog signals from field devices, converting them into high-fidelity digital data for Ovation Distributed Control Systems (DCS). It ensures precise monitoring of process variables such as temperature, pressure, flow, and level, supporting real-time control and analytics.
This module is tailored for high-demand industrial environments, offering robust signal conditioning, accurate data conversion, and seamless integration with Ovation controllers. It is particularly suited for applications requiring stable, repeatable analog input measurements for critical process operations.
Technical Specifications
| Item | Description |
|---|---|
| Model Number | 1C31025G05 |
| Module Type | Analog Input Module |
| Input Channels | 16 Analog Input Channels |
| Supported Signal Types | 4–20 mA, 0–10 V, Thermocouple, RTD |
| Input Function | Analog-to-digital conversion for process variables |
| Dimensions (H × W × D) | 41 × 159 × 108 mm |
| Weight | 0.6 kg |
| Resolution | 16-bit per channel |
| System Compatibility | Ovation DCS Platforms |
| Intended Environment | Industrial Process Control and Automation |
