Introduction

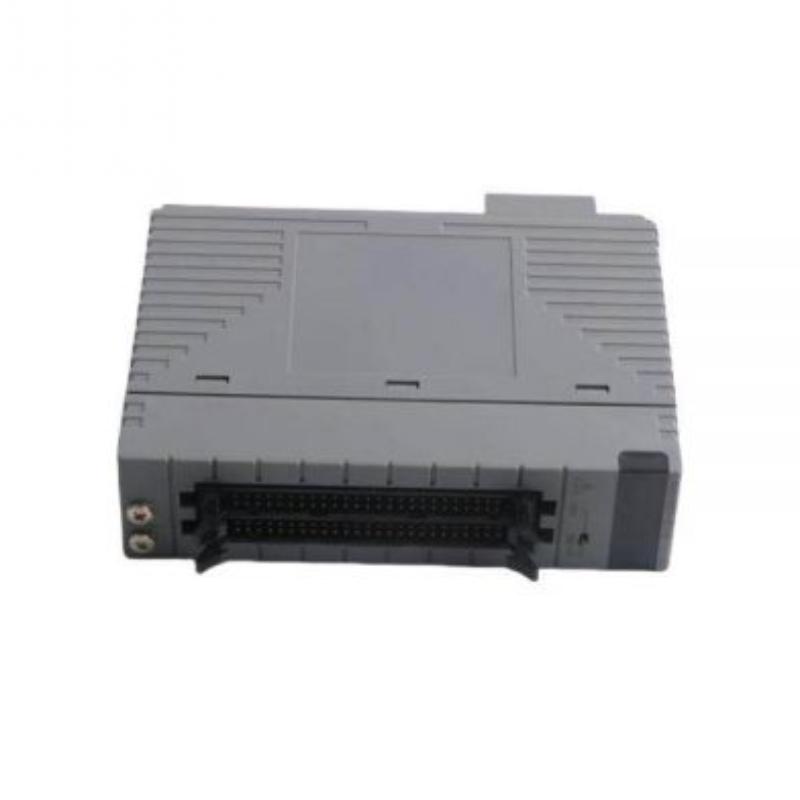

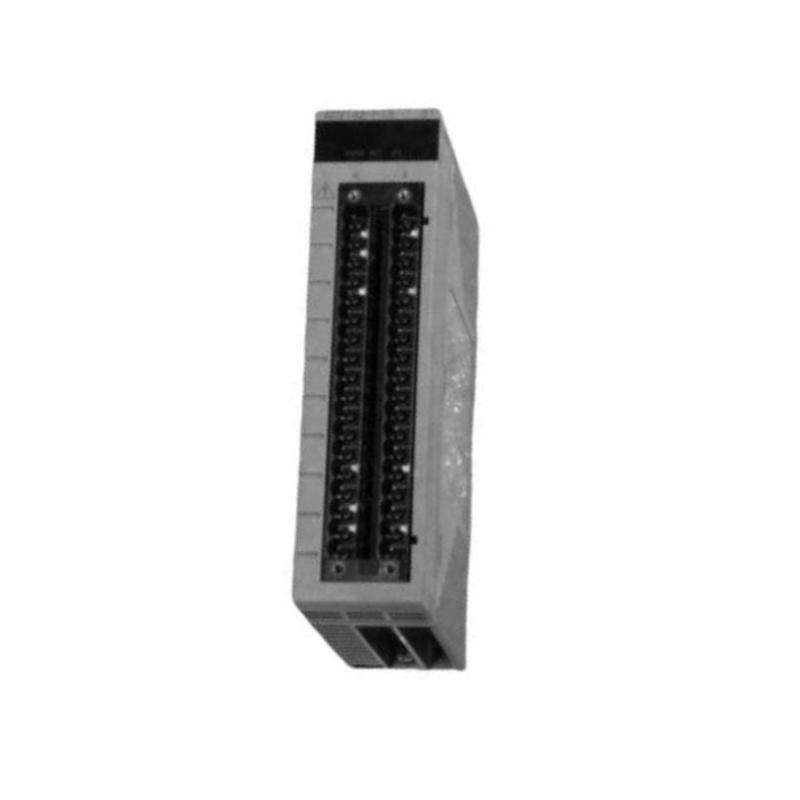

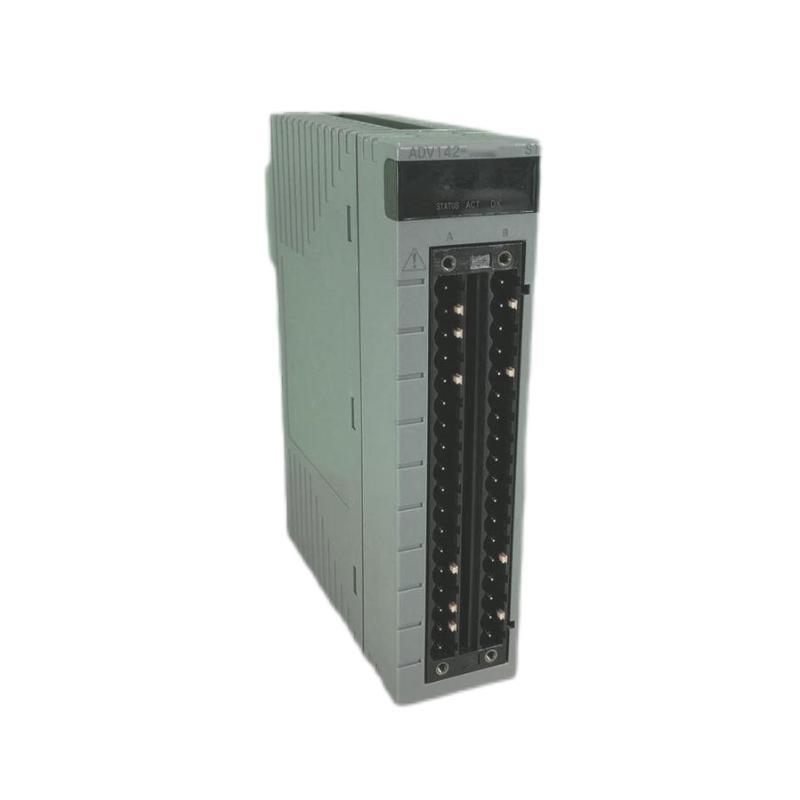

The Yokogawa ADV142 Digital Input Module is a reliable and industrial-grade discrete input interface designed for Yokogawa distributed control systems (DCS) and modular I/O platforms. This module captures on/off logic signals from field equipment such as switches, sensors, pushbuttons, and relay contacts, and converts them into conditioned digital inputs for automation logic, status monitoring, and alarm processing. Built for rugged environments, the ADV142 ensures stable, noise-resilient performance in process plants, manufacturing systems, and other industrial automation applications.
Technical Specifications
| Specification | Details |
|---|
| Model | ADV142 |
| Product Type | Digital Input Module |
| Manufacturer | Yokogawa |
| System Compatibility | Yokogawa DCS and modular automation I/O systems |
| Number of Input Channels | Typically 16 discrete inputs |
| Input Signal Type | Digital on/off (contact or logic signals) |
| Input Logic | Positive/negative logic compatible (system configured) |
| Isolation | Channel-to-system electrical isolation |
| Response Time | Millisecond-class switching detection |
| Mounting | DIN-rail or modular rack compatible |
| Operating Temperature | Industrial operating range |
| Weight | Approx. 0.3 kg |
| Dimensions | Standard modular I/O footprint |
Applications
-
Discrete Signal Acquisition: Captures on/off signals from limit switches, safety contacts, pushbuttons, and proximity switches
-
Control Logic Integration: Provides discrete inputs for PLCs, DCS logic, sequential controls, and interlocks
-
Alarm & Status Monitoring: Detects changes in field status for alarm initiation, fault reporting, and operator feedback
-
Machine & Process Automation: Interfaces binary device outputs into control logic and automation sequences
-
Supervisory Systems: Supplies reliable discrete status data to HMIs, SCADA, and higher-level systems
By transforming simple field logic into conditioned digital inputs, the ADV142 enhances system responsiveness and operational visibility.
Advantages
-
High Channel Count: Supports multiple discrete inputs in one module, reducing panel space and wiring complexity
-
Stable Digital Capture: Designed for accurate detection of on/off transitions with robust noise immunity
-
Electrical Isolation: Channel-to-system isolation protects logic circuitry and improves signal integrity
-
Fast Response: Millisecond-class detection supports timely logic processing and automation actions
-
Flexible Installation: Compatible with DIN-rail and modular rack mounting options
-
Seamless Integration: Works natively with Yokogawa automation backplanes and control systems
These features make the ADV142 a dependable choice for discrete digital input requirements in industrial control systems.
