Introduction

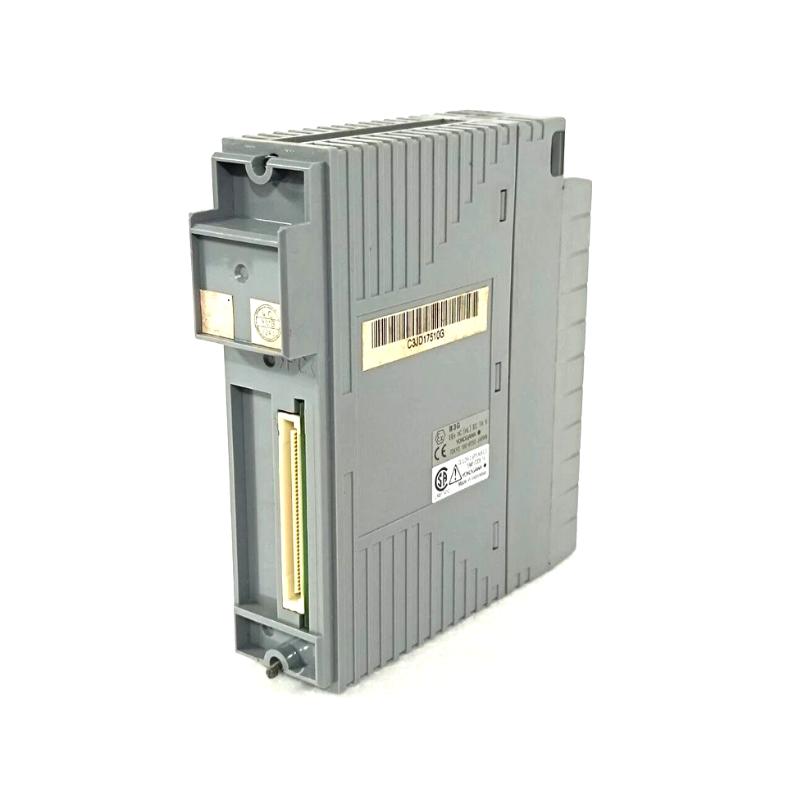

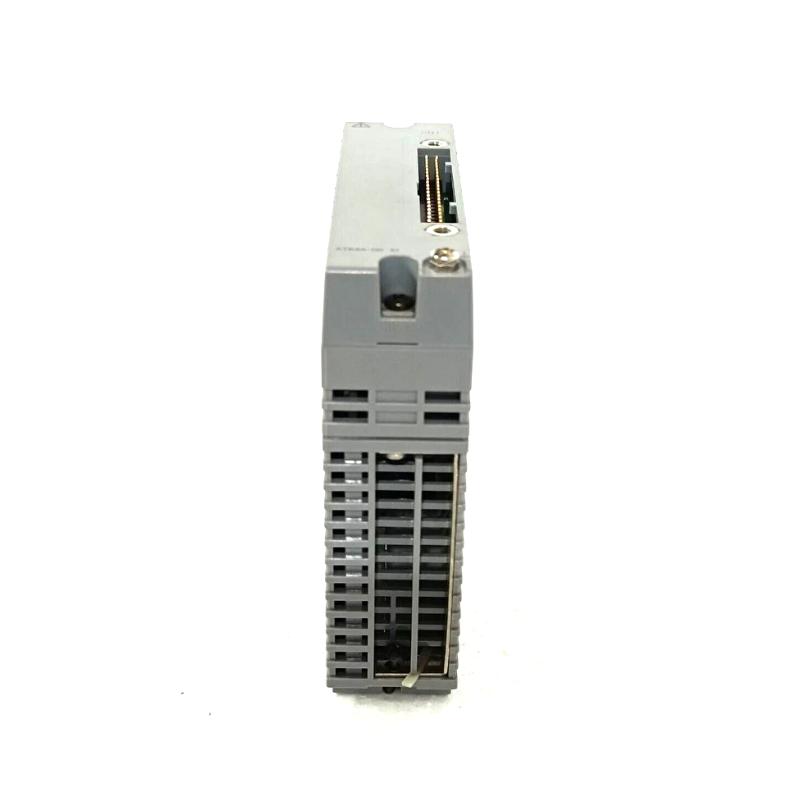

The Yokogawa AAV544‑S00 Voltage Output Module is a robust analog output component designed for Yokogawa distributed control systems (DCS) and modular automation platforms. It delivers multiple isolated voltage output signals to drive external field devices such as actuators, indicators, and data acquisition systems. Engineered for industrial environments, this module offers high fidelity, stable analog signals and supports redundant system configurations for enhanced reliability in process monitoring and control.
Technical Specifications
| Specification | Details |
|---|---|
| Model | AAV544‑S00 |
| Product Type | Voltage Output Module |
| Manufacturer | Yokogawa |
| System Compatibility | Yokogawa DCS / modular control systems |
| Number of Output Channels | 16 isolated voltage outputs |
| Output Signal Range | –10 V to +10 V DC |
| Allowable Load Resistance | ≥ 5 kΩ |
| Accuracy | The larger of ±12 mV or ±0.3 % FS |
| Data Update Period | Approx. 10 ms |
| Temperature Drift | The larger of ±0.1 %/10 °C or ±10 mV/10 °C |
| Maximum Current Consumption | Approx. 860 mA (5 V DC) |
| Isolation Withstanding Voltage | 1500 V AC between output and system (1 minute) |
| Connection Interfaces | Pressure clamp terminal, MIL connector cable, dedicated cable (KS1) |
| Mounting | Rack or DIN‑rail compatible |
| Weight | Approx. 0.2 kg |
| Dimensions | Standard modular I/O footprint |
