Introduction

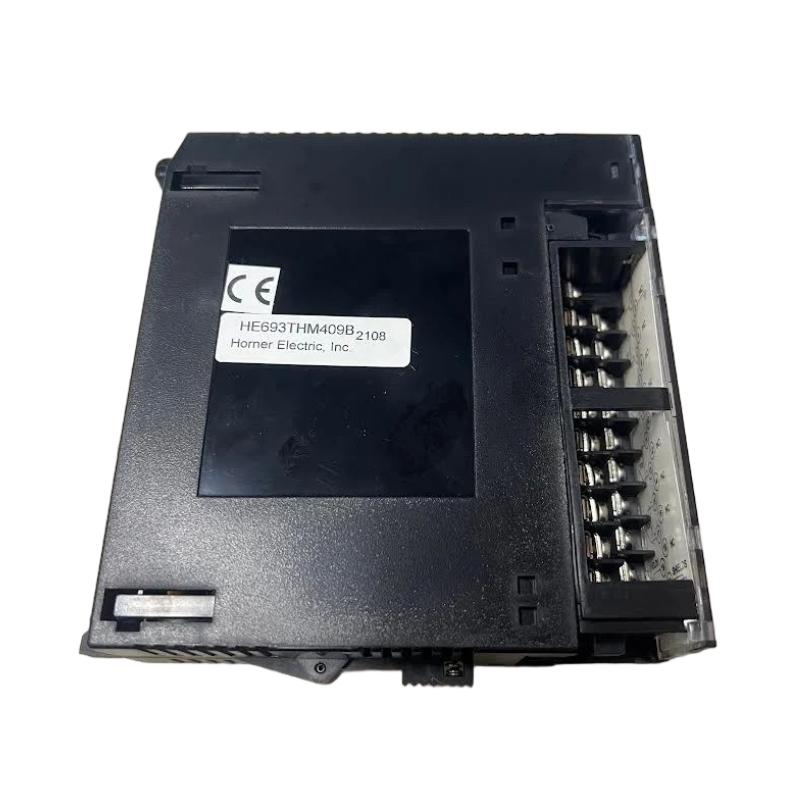

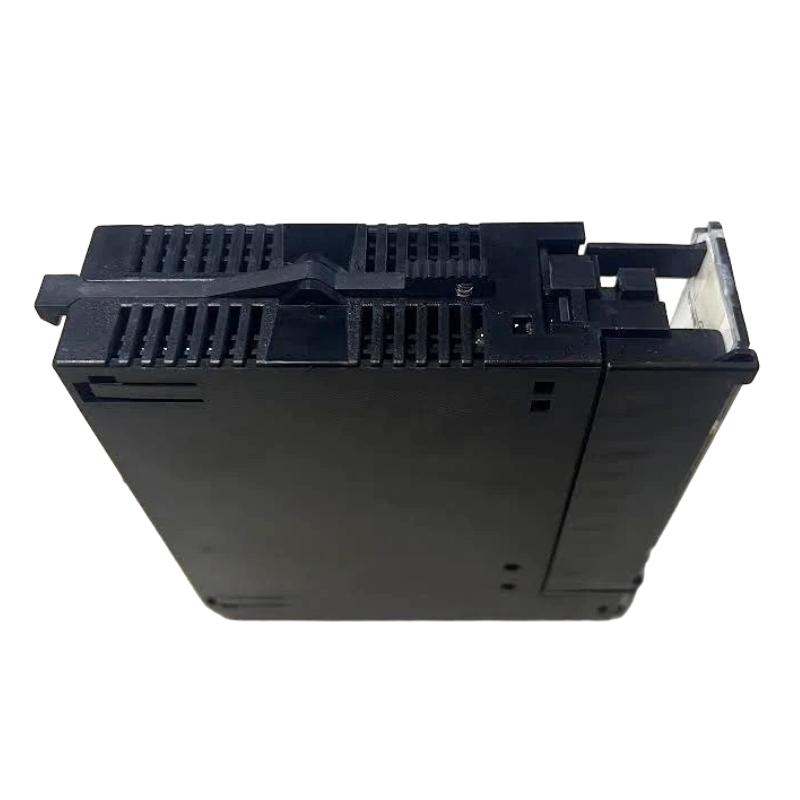

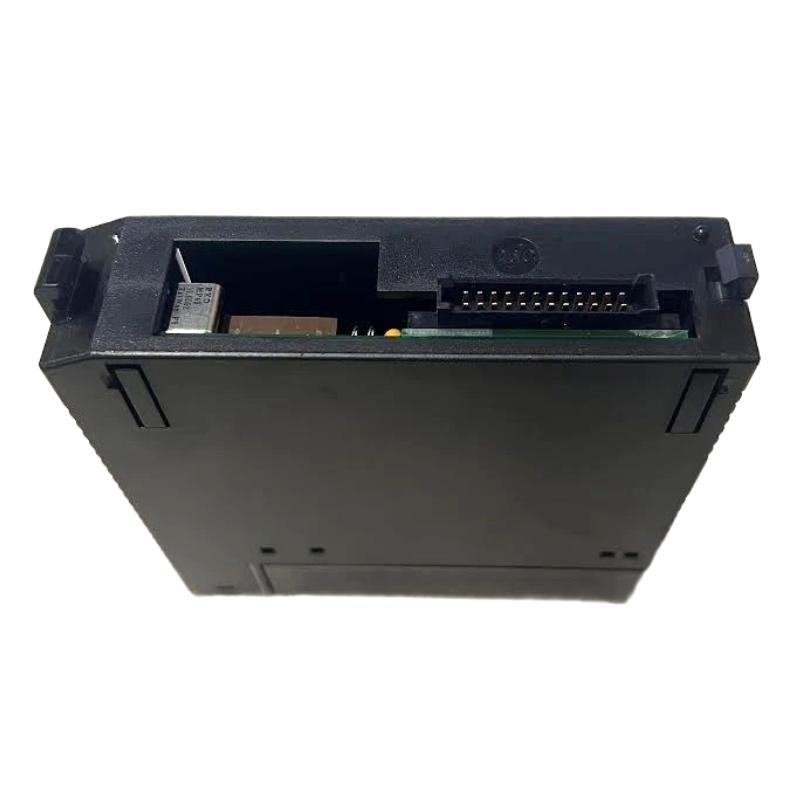

The GE HE693THM409 Input Module is designed for precise acquisition of thermocouple signals in industrial automation systems. It converts temperature readings from field thermocouples into accurate digital data for control and monitoring purposes. Built with industrial-grade reliability, this module ensures consistent and dependable operation in continuous-duty environments where temperature measurement is critical.
Technical Specifications
| Parameter | Description |
|---|
| Manufacturer | GE |
| Model | HE693THM409 |
| Module Type | Thermocouple Input Module |
| Input Channels | Multiple thermocouple channels |
| Signal Type | Analog (thermocouple) |
| Functional Role | Temperature signal acquisition |
| System Compatibility | GE control platforms |
| Installation Method | Rack-mounted |
| Dimensions | 34 × 145 × 140 mm (H x W x D) |
| Weight | Approx. 0.5 kg |
Technical FAQs
Q1: What is the primary function of the HE693THM409 module?
It collects and converts thermocouple temperature signals into digital input data for the control system.
Q2: Can it operate continuously in industrial environments?
Yes, it is designed for long-term, uninterrupted operation.
Q3: What types of signals does it process?
It processes analog signals from thermocouple temperature sensors.
Q4: Is it compatible with GE control platforms?
Yes, it integrates seamlessly with GE industrial control systems.
Q5: How does it enhance process control?
By providing accurate and consistent temperature data for precise monitoring and control.
Q6: Can it be used in retrofits or system upgrades?
Yes, it is suitable for both new installations and modernization projects.
Q7: Does it support alarm and interlock functions?
Yes, reliable thermocouple input enables timely alarms and control actions.
Q8: Is the module suitable for rack-mounted installation?
Yes, it is designed for standard rack-mounted control systems.
Q9: Does it require specialized maintenance?
No, routine inspection and standard maintenance are sufficient.
Q10: Why is the HE693THM409 trusted in industrial automation?
Its precise thermocouple signal acquisition, robust design, and compatibility with GE control platforms make it a reliable solution for critical temperature monitoring and control applications.
