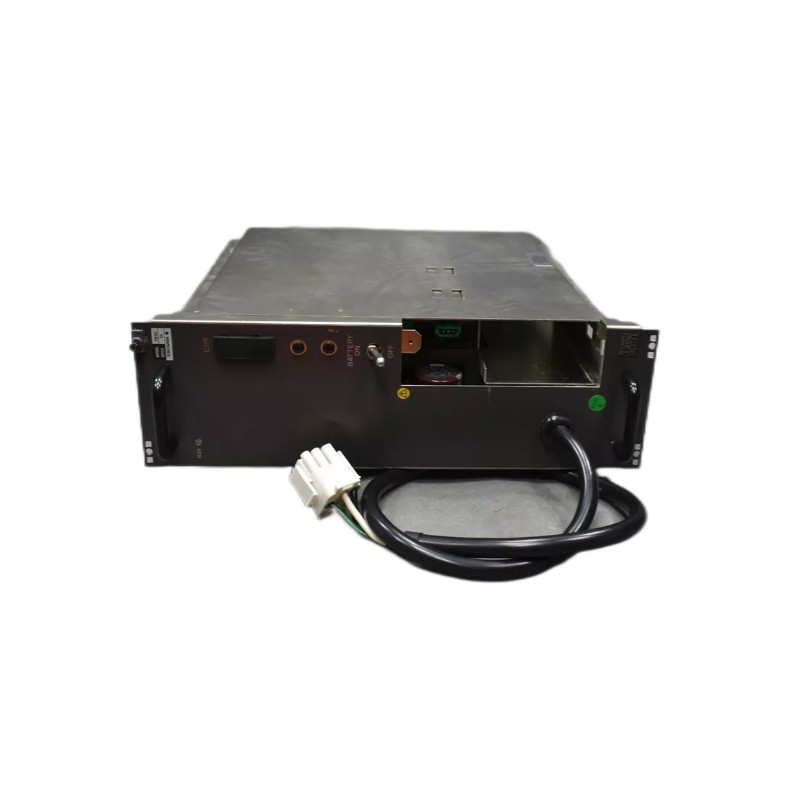

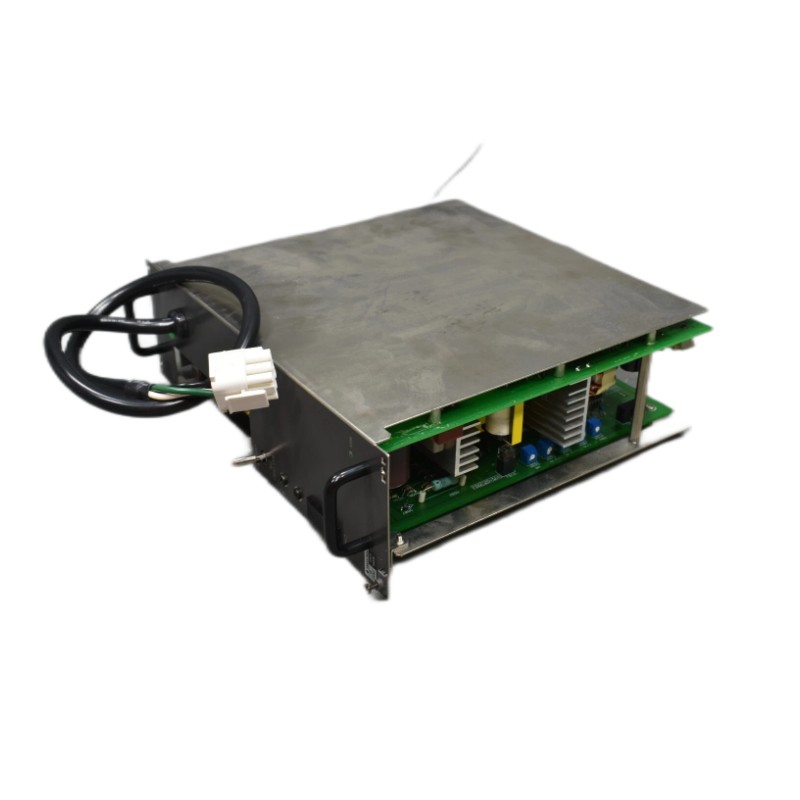

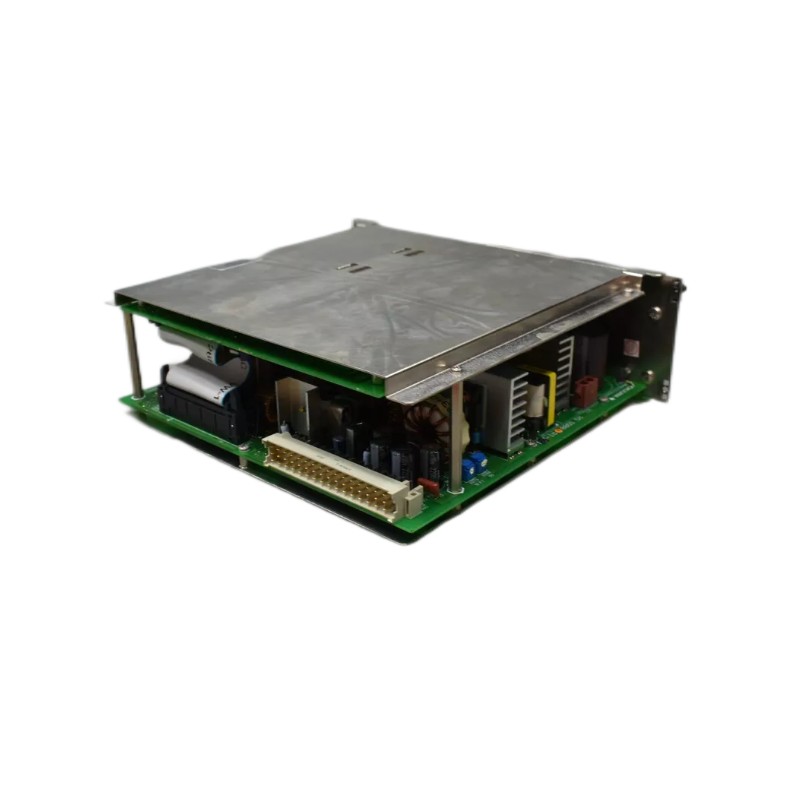

Yokogawa PW604 Power Supply Module

Name: Yokogawa PW604 Power Supply Module
Brand: Yokogawa Electric
SKU: 170
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Yokogawa Electric
Item No.:PW604
Product Origin:Japan
Product Dimensions:100 × 56 × 20 mm
Product Weight:1 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The Yokogawa PW604 is a compact 24 V DC output power supply module designed for use in Yokogawa DCS/automation systems. It serves as the backbone power source for control cabinets, supplying stable DC power to I/O modules, communication interfaces, and field devices. With a focus on dependable output and efficient power conversion, the PW604 is well suited for industrial control environments where reliability and clean power are essential.

Technical Specifications

Parameter	Specification
Module Type	24 V DC Output Power Supply Module
Input Voltage	100–240 V AC, 50/60 Hz
Output Voltage	24 V DC (regulated)
Output Current	4 A (nominal)
Efficiency	≥ 85%
Output Protection	Overcurrent and short-circuit protection
Operating Temperature	0 °C to +55 °C
Storage Temperature	–20 °C to +70 °C
Dimensions*	100 × 56 × 20 mm (H × W × D) (approx.)
Weight*	~1.0 kg

Applications

Supplying regulated 24 V DC to control cabinets housing Yokogawa DCS I/O modules, communication cards, and field interface units.
Retrofit or replacement power supply for legacy Yokogawa control systems.
Use in control panels where stable, low-noise DC power is required for instrumentation and control electronics.
Secondary or redundant power source in distributed control or SCADA environments.
Small-scale automation or auxiliary control cabinets needing compact power modules.

Advantages

Compact and space-saving, making it easy to fit into standard DCS cabinets or retrofit enclosures.
Stable and regulated 24 V DC output ensures consistent performance of connected instrumentation.
Built-in protection features (overcurrent and short-circuit) improve system safety and reliability.
High efficiency (≥ 85%) reduces heat generation and contributes to overall energy savings.
Broad input voltage range (100–240 V AC) supports global installations and varied supply conditions.
Simplified maintenance and replacement — small size and standard output make it a practical spare-part candidate.

Technical FAQs

What is the output voltage of the PW604?
It provides a regulated 24 V DC output.
What maximum current can it supply?
The nominal output current rating is 4 A.
Can it power multiple I/O and communication modules simultaneously?
Yes — provided the combined current draw stays within the 4 A limit.
Does it offer protection against overload or short circuits?
Yes; the module includes built-in overcurrent and short-circuit protection.
What input voltage range does it accept?
It accepts 100–240 V AC at 50 or 60 Hz.
Is it suitable for control cabinets with limited space?
Yes — its compact size (approx. 100 × 56 × 20 mm) makes it suitable for tight cabinet layouts.
What is its typical operating temperature range?
0 °C to +55 °C.
Can it be used as a redundant power supply?
Yes — in redundant or backup power schemes, it can serve as a secondary supply module.
Is installation complicated?
No — the module is designed for straightforward integration into Yokogawa control racks or cabinets.
Is it appropriate for legacy Yokogawa control systems?
Yes — PW604 is commonly used as a replacement or upgrade power module in existing Yokogawa installations.
