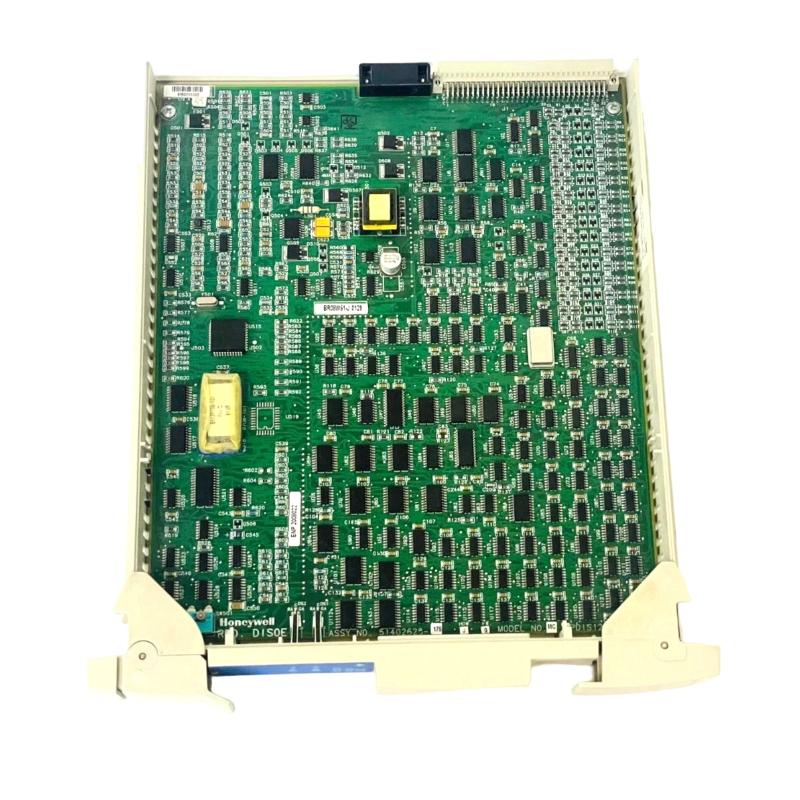

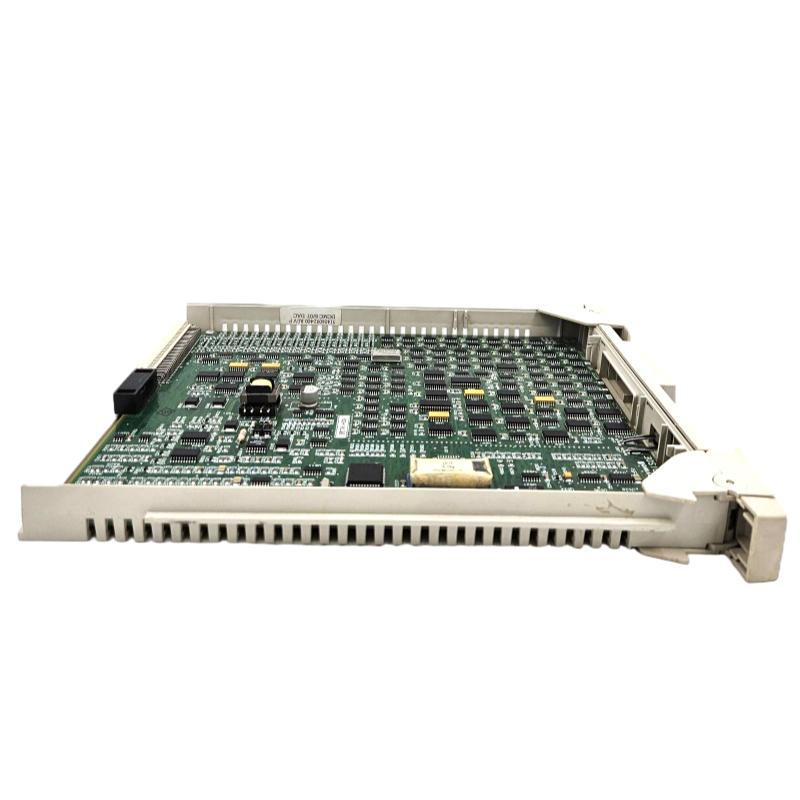

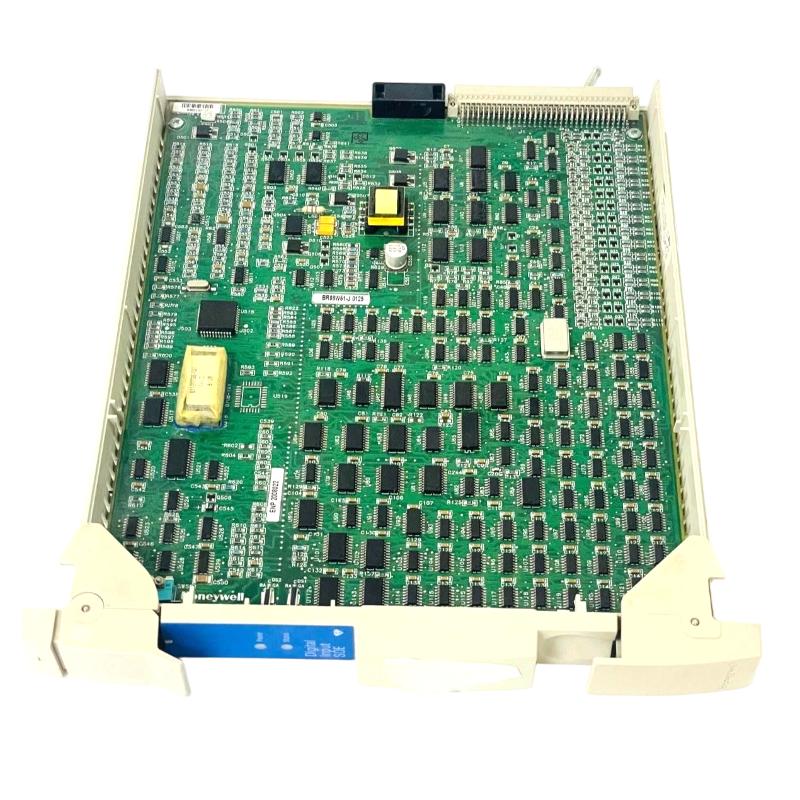

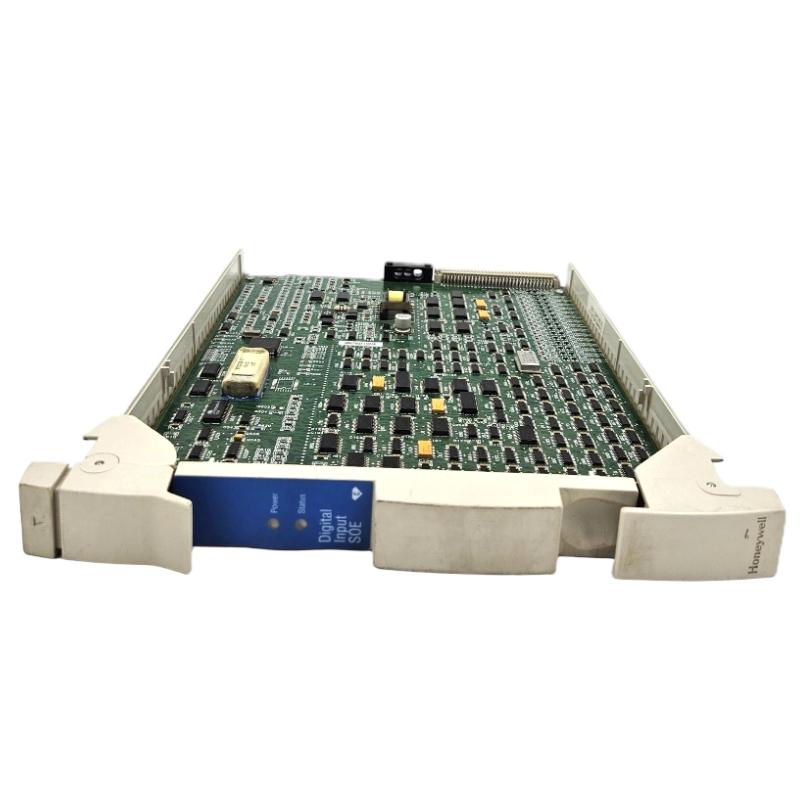

Honeywell MC-PDIS12 51402625-175 Digital Input SOE Card

Brand:Honeywell DCS
Item No.:MC-PDIS12
Product Origin:USA
Product Dimensions:240 × 76 × 203 mm
Product Weight:1.1 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

Introduction

The Honeywell MC-PDIS12 51402625-175 Digital Input SOE (Sequence of Events) Card is designed for high-performance digital input monitoring and event logging in industrial control systems. Part of Honeywell's comprehensive process control offerings, this module provides real-time monitoring and accurate event recording for critical industrial processes. The MC-PDIS12 is specifically engineered for applications where precise event sequencing is essential for maintaining operational safety, efficiency, and compliance. Widely used in industries such as oil and gas, chemical processing, and power generation, the MC-PDIS12 is a reliable solution for capturing and managing digital input signals in complex control systems.

Technical Specifications

SpecificationValue
ModelMC-PDIS12 51402625-175
Module TypeDigital Input SOE Card
Dimensions (W x H x D)240 mm x 76 mm x 203 mm
Weight1.10 kg
Input Type12 Digital Inputs, Sequence of Events (SOE)
Mounting TypeDIN Rail Mountable
Operating Voltage24 VDC
Operating Temperature-20°C to 60°C
Power Consumption5 W (typical)
Compliance StandardsCE, UL, RoHS


Applications

  • Process Control Systems: The MC-PDIS12 card is integral to process control systems, where accurate logging of events and digital input signals is critical for system monitoring and optimization.

  • Oil and Gas: In the oil and gas industry, the card captures key digital inputs such as alarms, status changes, and safety-critical events, ensuring system integrity and reducing downtime.

  • Chemical Processing: The module is used in chemical plants to record sequence events of critical processes, helping to maintain safety standards and optimize plant operations.

  • Power Generation: In power generation facilities, it records digital input signals related to equipment status, alarms, and control signals, enhancing operational reliability and safety.


Advantages

  • Accurate Sequence of Events Logging: The MC-PDIS12 card offers precise Sequence of Events (SOE) functionality, ensuring accurate recording of digital inputs and time-stamped event logging for critical applications.

  • Real-Time Monitoring: With real-time event monitoring capabilities, the module helps operators quickly detect system anomalies and take corrective actions before they lead to major failures or safety risks.

  • Flexible Integration: The card supports up to 12 digital inputs, providing flexibility in connecting multiple field devices and sensors, making it adaptable for a variety of industrial applications.

  • Energy Efficient: Consuming only 5W of power under typical operating conditions, the MC-PDIS12 ensures energy-efficient operation, reducing the overall energy consumption of industrial control systems.

  • Rugged and Reliable: Built to operate within a temperature range of -20°C to 60°C, the MC-PDIS12 is designed to perform reliably even in harsh industrial environments, ensuring uptime and safety in critical systems.


Technical FAQs

  1. What is the function of the MC-PDIS12 51402625-175 Digital Input SOE Card?

    • The card is used to monitor and log digital inputs in real time, providing Sequence of Events (SOE) functionality that records the time and sequence of critical events in industrial control systems.

  2. How many digital inputs does the MC-PDIS12 support?

    • The MC-PDIS12 supports up to 12 digital inputs, allowing it to monitor a variety of field devices and sensor signals in a process control system.

  3. What is the operating temperature range for the MC-PDIS12 card?

    • The card operates in a temperature range of -20°C to 60°C, making it suitable for use in diverse industrial environments, from extreme cold to high temperatures.

  4. What is the power consumption of the MC-PDIS12 card?

    • The card typically consumes 5W of power, ensuring energy efficiency while maintaining high performance in continuous monitoring applications.

  5. How is the MC-PDIS12 card mounted?

    • The MC-PDIS12 card is designed for DIN rail mounting, providing a convenient and standardized installation method for control panels and industrial systems.

  6. What industries can benefit from using the MC-PDIS12 card?

    • The MC-PDIS12 is ideal for industries such as oil and gas, chemical processing, and power generation, where accurate event logging and monitoring of digital inputs are essential for operational efficiency and safety.

  7. What voltage does the MC-PDIS12 operate on?

    • The card operates on 24 VDC, ensuring compatibility with most industrial control systems and field devices.

  8. What compliance standards does the MC-PDIS12 meet?

    • The card complies with CE, UL, and RoHS standards, ensuring it meets international safety, environmental, and quality regulations.

  9. Can the MC-PDIS12 card be used in hazardous environments?

    • Yes, the card is designed for use in industrial and hazardous environments, making it suitable for applications where reliable event logging and monitoring are critical to safety and performance.

  10. What are the key benefits of using the MC-PDIS12 in an industrial control system?

    • The MC-PDIS12 provides precise event logging, real-time monitoring, energy efficiency, and flexibility for integrating multiple digital inputs, making it a crucial component for maintaining safety, reducing downtime, and improving operational reliability in industrial systems.
