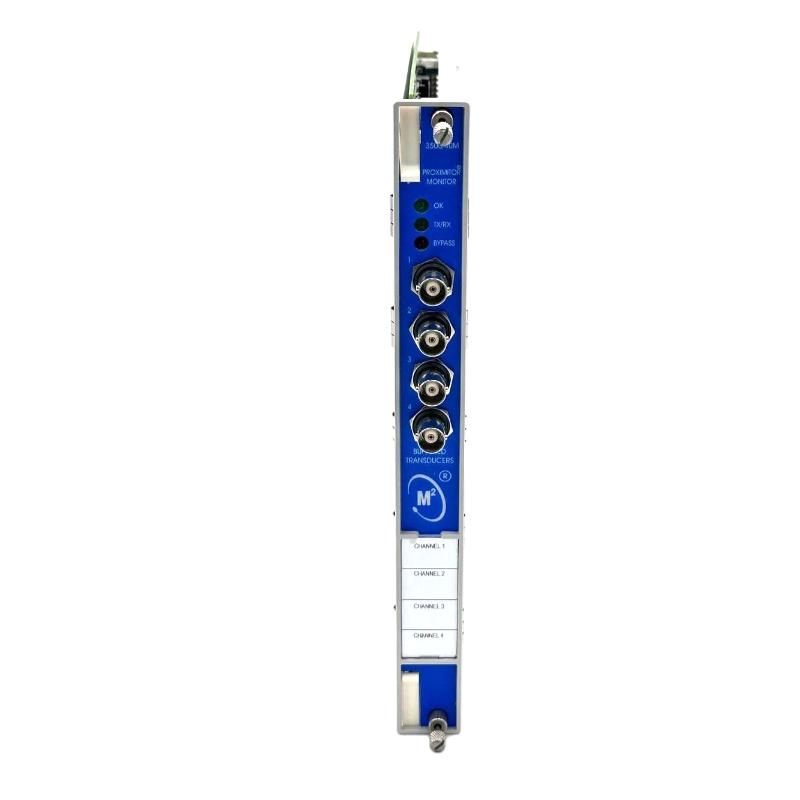

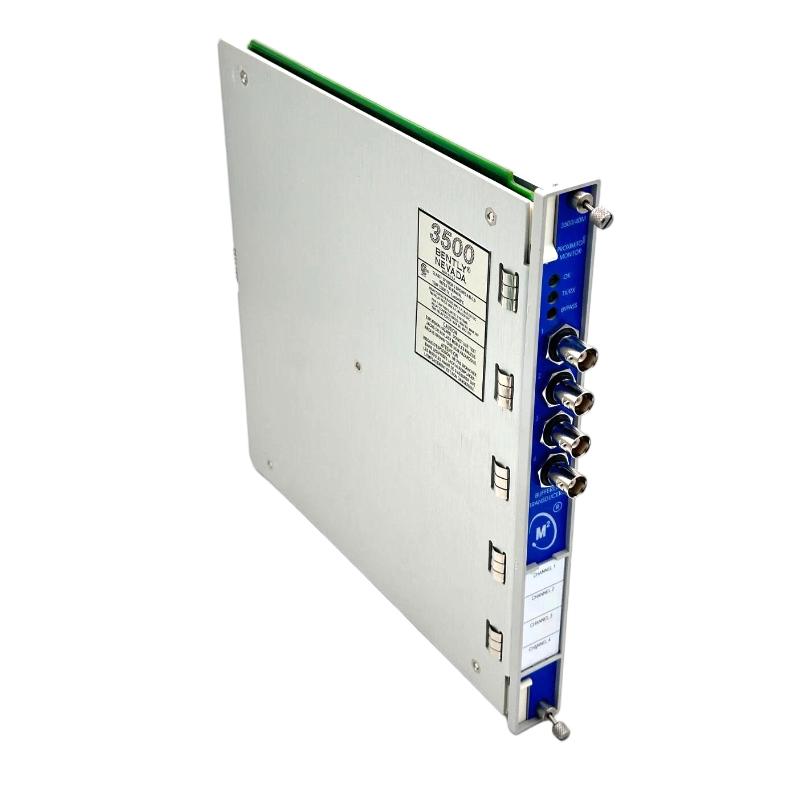

Bently Nevada 3500/40 176449-01 + 135489-04 Front-End Monitor and I/O Module

Brand:Bently Nevada PLC
Item No.:3500/40
Product Origin:USA
Product Dimensions:241.3 x 24.4 x 241.8 mm
Product Weight:0.91 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

Introduction

The Bently Nevada 3500/40 176449-01 Front-End Monitor combined with the 135489-04 I/O Module is a high-performance solution designed for real-time monitoring and protection of critical machinery in industrial environments. Part of the 3500 Series, this integrated system ensures the continuous health of rotating machinery by processing sensor data and providing early detection of potential issues. The 3500/40 Front-End Monitor processes input from a variety of sensors, while the I/O Module facilitates flexible sensor integration, making the system ideal for industries such as oil and gas, power generation, and heavy manufacturing. The combination of these modules provides enhanced reliability, fault detection, and predictive maintenance, ensuring maximum uptime and efficiency.

Technical Specifications

SpecificationValue
Model3500/40 176449-01 + 135489-04
Module TypeFront-End Monitor + I/O Module
Dimensions (W x H x D)241.3 mm x 24.4 mm x 241.8 mm
Weight0.91 kg
Input/OutputMultiple Inputs for Vibration, Position, and Temperature Sensors
Mounting TypeRack Mount
Operating Voltage125 VDC, 24 VDC
Operating Temperature-40°C to 70°C
Power Consumption4 W (typical)
Compliance StandardsCE, UL, RoHS


Applications

  • Vibration and Condition Monitoring: The combined Front-End Monitor and I/O Module provide real-time monitoring for vibration, displacement, and temperature, helping to detect early signs of mechanical failures.

  • Oil and Gas: This solution is ideal for monitoring critical machinery in oil rigs, refineries, and offshore platforms, where machinery health is crucial to safe operations.

  • Power Generation: The system ensures the continuous protection of turbines, compressors, and other equipment in power plants by monitoring critical parameters and providing early fault detection.

  • Heavy Manufacturing: In industrial manufacturing environments, the system continuously monitors key machinery, reducing the risk of unexpected breakdowns and optimizing maintenance schedules.


Advantages

  • Comprehensive Monitoring and I/O Integration: The integration of the Front-End Monitor with the I/O Module simplifies system design, reduces wiring complexity, and provides a comprehensive machinery monitoring solution.

  • Real-Time Fault Detection: Continuous monitoring allows for early identification of issues, enabling predictive maintenance and reducing the risk of unplanned downtime.

  • High Reliability in Harsh Environments: Built to operate in tough industrial environments, the system ensures reliability even in extreme conditions such as high temperatures, vibration, and corrosive environments.

  • Energy Efficient: The module consumes just 4W of power under typical operating conditions, making it an energy-efficient solution for large-scale machinery protection systems.

  • Flexible Sensor Integration: The system supports a wide variety of sensors, including Proximitor sensors for vibration and displacement, and temperature sensors, offering versatility for different monitoring needs.


Technical FAQs

  1. What is the function of the 3500/40 176449-01 + 135489-04 combination?

    • This system integrates a Front-End Monitor and an I/O Module to monitor critical machinery parameters in real time, detect faults early, and reduce unplanned downtime.

  2. What types of sensors can be connected to the 3500/40 176449-01 + 135489-04 system?

    • The system is compatible with a variety of sensors, including Proximitor sensors for vibration and displacement, as well as temperature sensors, providing comprehensive machinery health monitoring.

  3. What is the operating temperature range of the 3500/40 + I/O Module?

    • The system operates within an environment temperature range of -40°C to 70°C, ensuring reliable performance in diverse industrial settings.

  4. What is the power consumption of the 3500/40 + I/O Module?

    • The system consumes only 4W of power under typical conditions, offering an energy-efficient solution for continuous monitoring.

  5. How is the 3500/40 + I/O Module mounted?

    • The system is designed for rack mounting, allowing easy integration into control panels and industrial machinery protection systems.

  6. What compliance standards does the 3500/40 + I/O Module meet?

    • The system complies with CE, UL, and RoHS standards, ensuring it meets international safety, environmental, and quality requirements.

  7. Can the 3500/40 + I/O Module be used in hazardous environments?

    • Yes, the system is designed for industrial environments, including hazardous locations, with additional certifications available for specific use cases.

  8. What voltage does the 3500/40 + I/O Module operate on?

    • The module operates on 125 VDC or 24 VDC, offering flexibility to meet different system configuration requirements.

  9. What are the benefits of using the 3500/40 + I/O Module for machinery monitoring?

    • The combination of real-time fault detection, early warning capabilities, and energy-efficient operation makes this solution ideal for preventing machinery failures, optimizing maintenance schedules, and improving overall equipment reliability.

  10. Is the 3500/40 + I/O Module compatible with other Bently Nevada modules?

    • Yes, the system is fully compatible with other modules in the 3500 Series, allowing for scalable and customizable machinery protection solutions.
