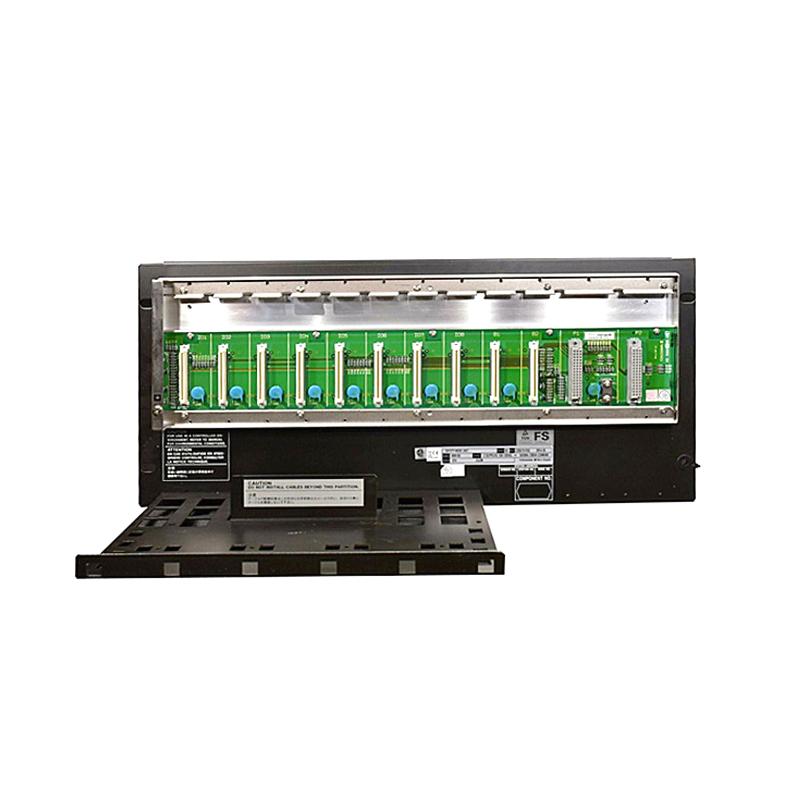

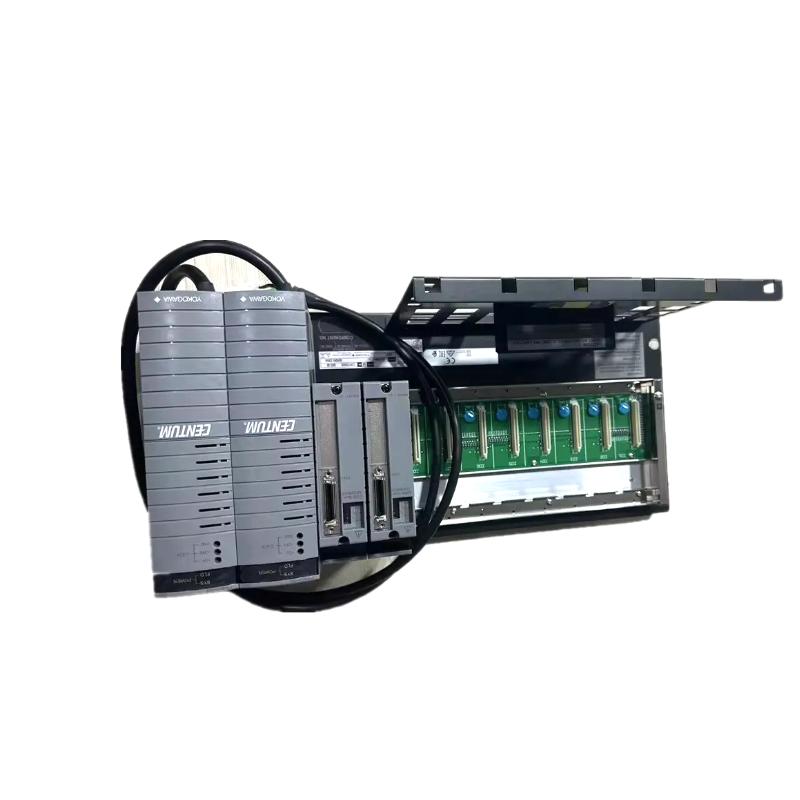

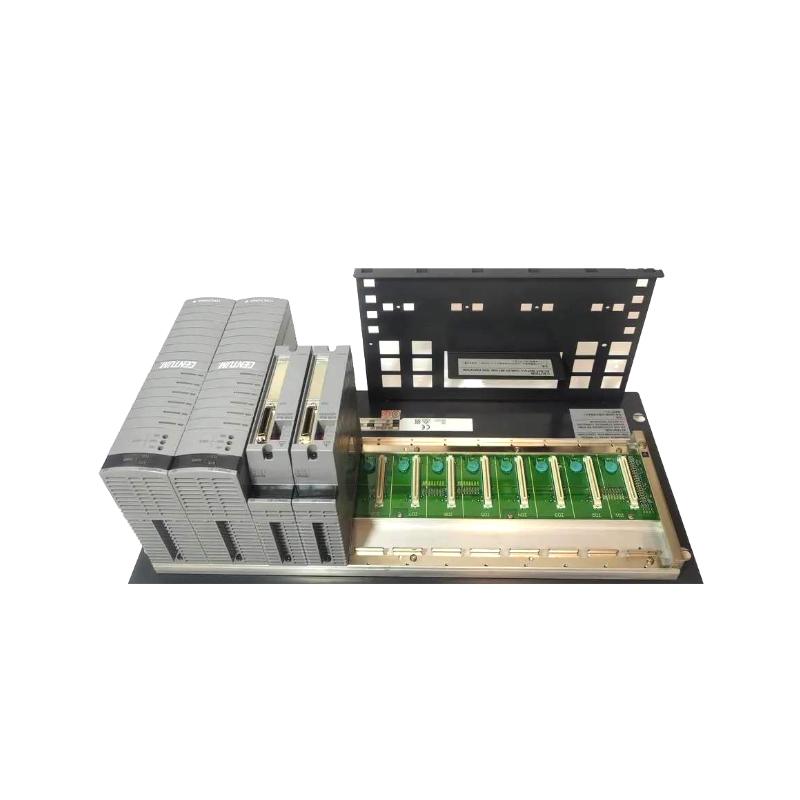

Yokogawa ANB10D-425/CU2T ESB Bus Node Unit

Brand:Yokogawa Electric
Item No.:ANB10D-425/CU2T
Product Origin:Japan
Product Dimensions:482.6 × 221.5 × 205 mm
Product Weight:10 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

Introduction
The Yokogawa ANB10D-425/CU2T ESB Bus Node Unit is a robust and high-performance device designed for seamless integration into industrial automation systems. With its dimensions of 482.6 x 221.5 x 205 mm and a weight of 10 kg, this ESB (Extended Serial Bus) Node Unit offers exceptional capabilities for handling large amounts of data within distributed control systems.

The ANB10D-425/CU2T plays a vital role in communication and data exchange between control systems and field devices, allowing for efficient monitoring, control, and diagnostics. It is ideal for environments requiring high data throughput and real-time communication, such as in process automation, plant control, and industrial monitoring systems.

Technical Specifications

Parameter Specification
Model ANB10D-425/CU2T
Type ESB Bus Node Unit
Dimensions 482.6 x 221.5 x 205 mm
Weight 10 kg (22.05 lbs)
Operating Voltage 24 V DC
Communication Protocol ESB (Extended Serial Bus)
Ports Multiple I/O ports for field device connections
Mounting Type Rack-Mountable or Panel-Mountable
Temperature Range -10°C to 60°C
Compliance CE, RoHS
Power Consumption Low Power Consumption

Applications
The Yokogawa ANB10D-425/CU2T ESB Bus Node Unit is designed for high-performance communication in a variety of industrial applications:

  • Distributed Control Systems (DCS): It acts as a communication hub in DCS networks, enabling data exchange between controllers, sensors, and field devices.

  • Process Automation: Used in process automation systems, it facilitates seamless communication between control systems and remote field devices, ensuring reliable monitoring and control.

  • Plant and Factory Automation: Helps integrate different systems across a plant or factory, allowing for effective real-time data exchange and monitoring.

  • Energy Management Systems: Ideal for energy management applications, where real-time data and remote control of power distribution systems are essential.

  • Remote Monitoring: It enables remote monitoring of control systems, providing operators with access to system data from distant locations.

  • Industrial Equipment Management: Facilitates communication for monitoring and managing industrial equipment, improving operational efficiency and predictive maintenance.


Advantages

  • High Data Throughput: The ESB Bus Node Unit supports high-speed data exchange across ESB networks, ensuring seamless and real-time communication in distributed control systems.

  • Robust Design: Built to withstand harsh industrial environments, the unit has a solid construction that ensures reliable performance over extended periods.

  • Compact and Space-Efficient: Despite its powerful functionality, the ANB10D-425/CU2T offers compact dimensions (482.6 x 221.5 x 205 mm) that make it easy to integrate into control panels or rack-mounted systems.

  • Wide Operating Temperature Range: It operates effectively in environments ranging from -10°C to 60°C, providing flexibility in different industrial settings.

  • Versatile Mounting Options: The unit can be rack-mounted or panel-mounted, providing flexibility in installation depending on available space and system requirements.

  • Low Power Consumption: Designed with energy efficiency in mind, the unit operates with low power consumption, helping reduce operational costs.

  • Reliable Communication: Ensures secure and uninterrupted data transmission between field devices and control systems, improving system uptime and reliability.

  • Compliance with Industry Standards: The ANB10D-425/CU2T is CE and RoHS compliant, ensuring that it meets international safety and environmental standards.


Technical FAQs

  1. What is the primary function of the Yokogawa ANB10D-425/CU2T ESB Bus Node Unit?
    The ANB10D-425/CU2T acts as a central communication hub in ESB networks, facilitating data exchange between distributed control systems (DCS) and field devices in industrial automation systems.

  2. What are the dimensions and weight of the ESB Bus Node Unit?
    The unit measures 482.6 x 221.5 x 205 mm and weighs 10 kg, making it compact yet powerful for industrial applications.

  3. What voltage does the ANB10D-425/CU2T operate on?
    It operates on a 24 V DC supply, making it compatible with many industrial power systems.

  4. What communication protocol does the ESB Bus Node Unit support?
    The unit supports ESB (Extended Serial Bus) protocol for high-speed communication between control systems and field devices.

  5. What is the temperature range in which the ANB10D-425/CU2T can operate?
    The ESB Bus Node Unit is designed to function in environments with temperatures ranging from -10°C to 60°C.

  6. What mounting options are available for the unit?
    The ANB10D-425/CU2T can be rack-mounted or panel-mounted, offering flexibility in installation.

  7. Can this unit be used in process automation?
    Yes, the unit is ideal for use in process automation systems, enabling seamless communication between controllers and field devices.

  8. Is the unit energy-efficient?
    Yes, the unit has low power consumption, helping reduce overall operational costs in industrial systems.

  9. What certifications does the unit hold?
    The ANB10D-425/CU2T is CE and RoHS certified, ensuring compliance with global safety and environmental regulations.

  10. How does the unit improve system reliability?
    By enabling real-time data exchange and communication between control systems and field devices, it helps ensure seamless operations and minimizes the risk of system downtime.
