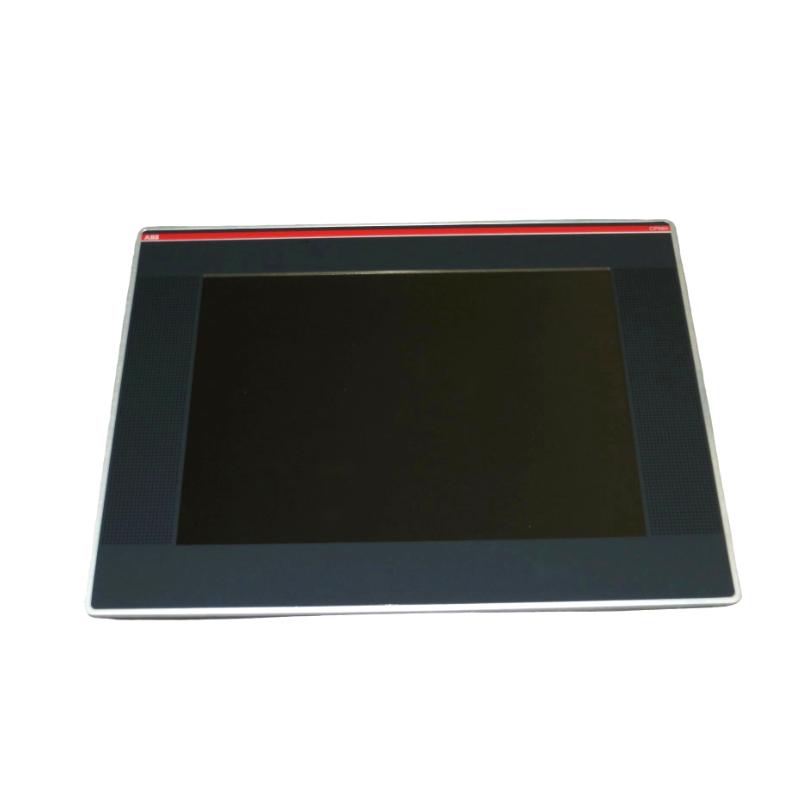

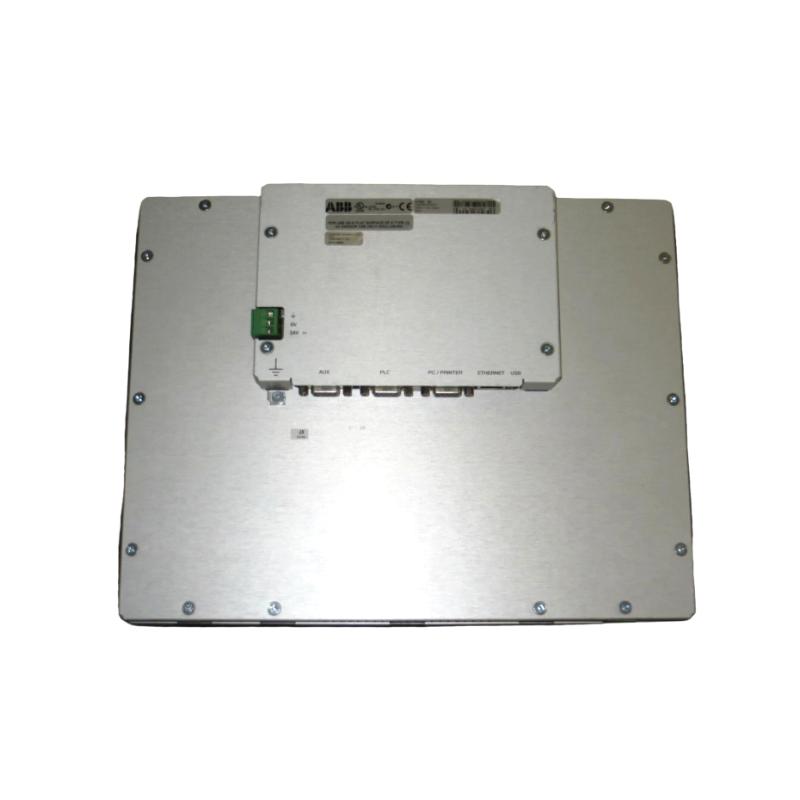

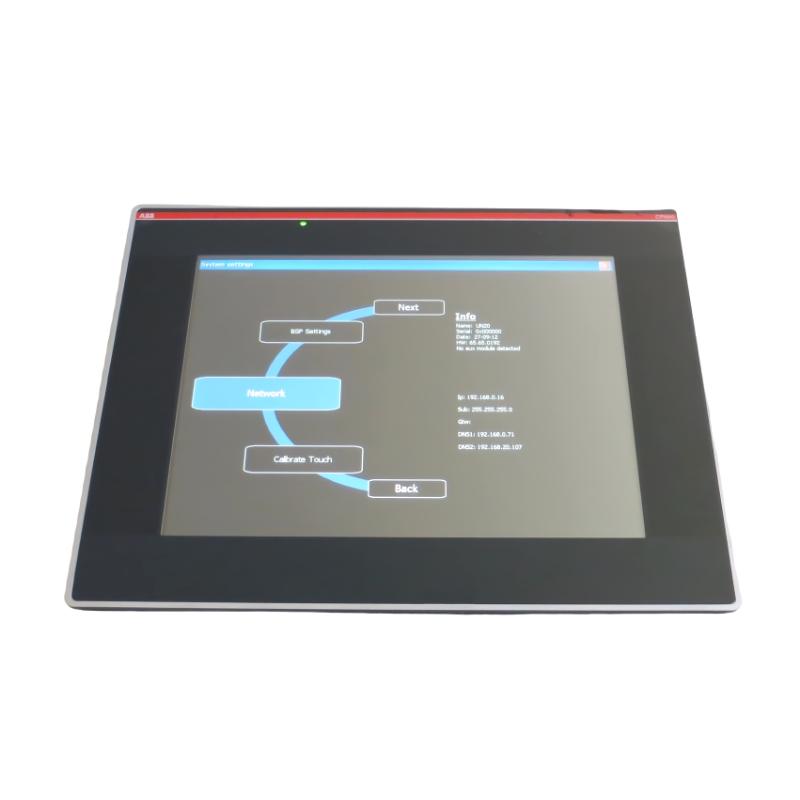

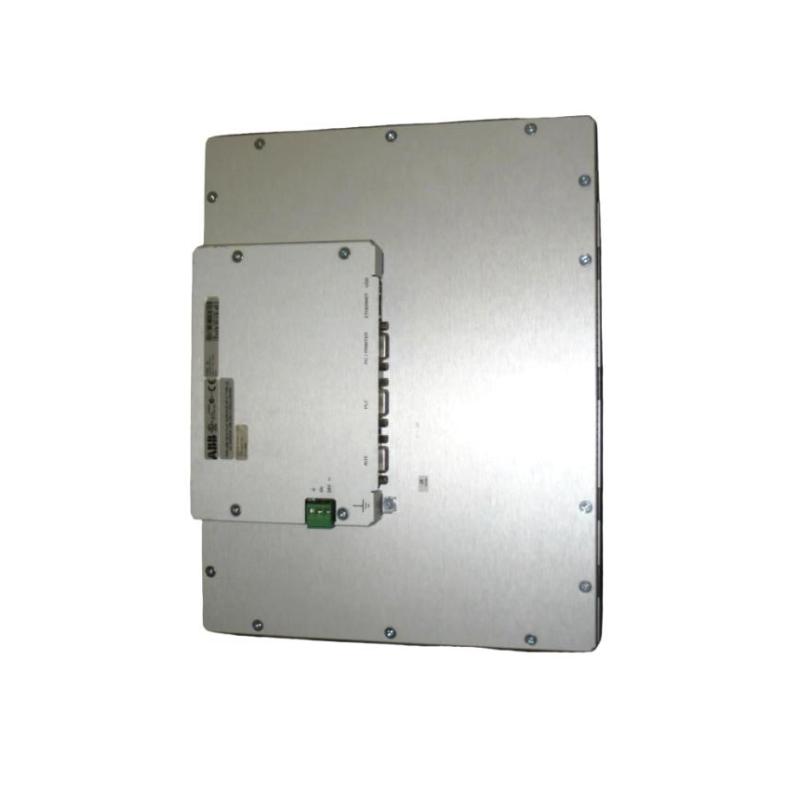

ABB CP660 1SAP560100R0001 Touch Screen

Brand:ABB PLC
Item No.:CP660 1SAP560100R0001
Product Origin:Sweden
Product Dimensions:350 × 260 × 50 mm
Product Weight:2.3kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

CP660 1SAP560100R0001-1CP660 1SAP560100R0001-3CP660 1SAP560100R0001-4CP660 1SAP560100R0001-2

Product Overview

The ABB CP660 1SAP560100R0001 Touch Screen Panel is an advanced Human‑Machine Interface (HMI) designed for demanding industrial automation environments. Built with a high‑resolution color touchscreen and robust connectivity, the CP660 delivers clear visualization, intuitive control, and seamless interaction with ABB controllers, drives, and I/O modules. Its rugged industrial design and flexible communication options make it suitable for centralized operator stations, complex machine interfaces, and process monitoring applications where clarity, responsiveness, and durability are essential.

Technical Specifications & Physical Data

FeatureSpecification
Module TypeTouch Screen Display Panel (HMI)
Model NumberCP660
Order Number1SAP560100R0001
Display TypeTFT LCD color touch screen
Display Size12.1 inches (diagonal)
Resolution1280 × 800 pixels
Color Depth64K+ colors
ConnectivityEthernet, USB (host & device), Serial (RS‑232/422/485)
Software SupportPB610 Panel Builder 600
Supply Voltage24 V DC
Operating Temperature0 °C to +50 °C
Storage Temperature–20 °C to +70 °C
Protection ClassIP66 (front), IP20 (rear)
MountingPanel mount
Dimensions (W × H × D)Approx. 350 × 260 × 50 mm
Net WeightApprox. 2.3 kg


Applications

The CP660 Touch Screen Panel is ideal for industrial environments that require rich visualization and operator engagement. Typical applications include:

  • Centralized control stations in manufacturing plants

  • Real‑time process visualization and trend monitoring

  • Machine supervision and diagnostics interfaces

  • Alarm management and event logging systems

  • Parameter configuration for PLCs, drives, and distributed I/O

Its large, high‑contrast screen supports complex graphical displays, helping operators make faster decisions with clearer insights.


Advantages

  • Large High‑Definition Touch Display
    The 12.1‑inch display with 1280 × 800 resolution provides crisp graphics and detailed process visualization.

  • Robust Industrial Construction
    Front panel rated IP66 protects against dust, water jets, and shop‑floor contaminants, while the rear housing offers IP20 protection.

  • Comprehensive Connectivity
    Ethernet, USB, and serial interfaces enable flexible integration with a wide range of automation equipment.

  • User‑Centric Operation
    Responsive touchscreen and customizable interface layouts make operator interaction fast and intuitive.

  • Scalable Software Support
    Compatible with PB610 Panel Builder 600 for efficient project configuration and graphical screen design.


Technical FAQs

  1. What is the display size and resolution of the CP660?
    It features a 12.1‑inch touchscreen with 1280 × 800 pixel resolution.

  2. Which connectivity options does the panel offer?
    Ethernet, USB (host & device), and serial (RS‑232/422/485) interfaces.

  3. What software is used for programming and configuration?
    PB610 Panel Builder 600 is used for HMI screen design and setup.

  4. What supply voltage is required?
    Standard 24 V DC.

  5. What protection ratings does it have?
    IP66 at the front for industrial environments and IP20 at the rear.

  6. What is the operating temperature range?
    0 °C to +50 °C.

  7. Can it display real‑time trends and alarms?
    Yes, it supports dynamic visualization of trends, alarms, and system status when configured.

  8. Is the CP660 suitable for machine‑level control?
    Yes, its large display and touch interface make it ideal for both machine‑level and plant operator stations.

  9. Can the panel interface with non‑ABB equipment?
    Yes, standard Ethernet and serial protocols allow integration with diverse automation systems.

  10. How heavy is the panel?
    Approximately 2.3 kg, balancing rugged construction with manageable installation.
